Santa Cruz Highball 3.1 C Eagle 90 Complete Mountain Bike 2026
Model Info

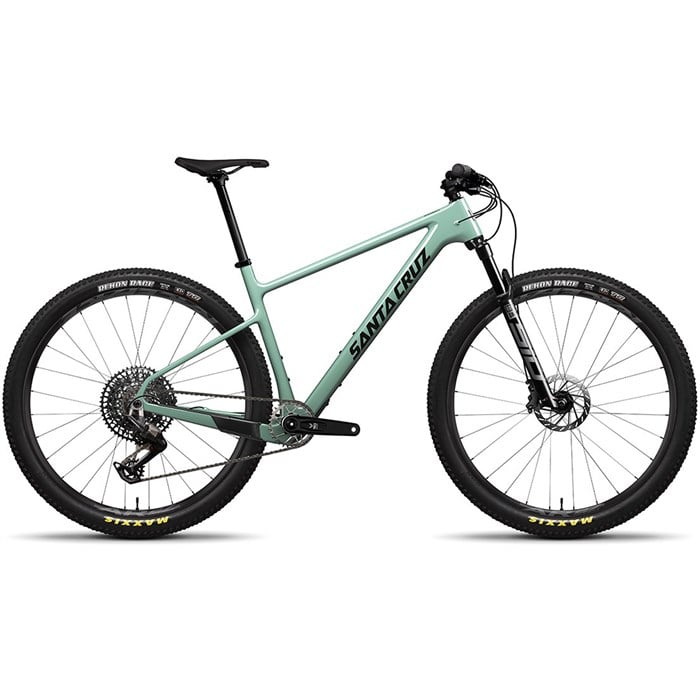

Santa Cruz Highball 3.1 C Eagle 90 Complete Mountain Bike 2026
MEMBERSHIP
Earn up to 10% back in rewards. Join Free.
EASY RETURNS
Take up to a full year to return your item! See our Return Policy.
Product Info
The Santa Cruz Highball 3.1 C Eagle 90 Complete Mountain Bike is a hardtail that doesn't apologize for being a hardtail. A lightweight carbon frame and Eagle 90 drivetrain make it fast and efficient on the climbs, while the aggressive geometry keeps things honest and connected on the way down. Sometimes the simplest setup is the most fun.
Product Details
Key Features
Carbon C Frame – A minimal weight gain of approximately 250 - 280 grams (0.6 lbs) for the C frame over the CC due to the different grade of carbon used. Whether you're riding a carbon CC or C frame, you get exactly the same legendary strength and stiffness because Santa Cruz uses exactly the same manufacturing facility and techniques.
Travel – 100mm Front
Wheel Size – 29"
27.2 Seatpost – A 27.2 seatpost combined with dropped seat stays isolate the top tube from high speed trail chatter, reducing feedback.
Specs
-
Biking Type:
Mountain
More
Biking Type
Mountain Mountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.
-
Used For:
Cross Country
More
Used For
Cross Country With speed and pedaling efficiency in mind, cross country (XC) bikes are the lightest mountain bikes with the least suspension travel (typically 0 - 120mm).
-
Suspension:
Hardtail
More
Suspension
Hardtail As the name suggests, hardtail bikes feature a rigid frame with front suspension only. This means that the rear wheel lacks any form of suspension, hence the term "hardtail."
Hardtail mountain bikes are renowned for their efficiency in transferring power from the pedals to the rear wheel, making them excellent choices for climbing and maintaining speed on smoother trails or paved surfaces.
-
Frame Material:
Carbon
More
Frame Material
Carbon Carbon is a composite frame material. Unlike metals, carbon is composed of fibrous strands woven into a grid and bonded with epoxy. Carbon is favored by many for its lightness and stiffness but its complexity in fabrication makes it the most expensive option.
- Gearing: 1 x 12
- Water Bottle Mounts: 2
-
Fork:
RockShox SID SL Select+
More
Fork
RockShox SID SL Select+ SID Select+ features the proven DebonAir™ air spring and Charger™ 2 RL damper. A race-ready package including Maxima Plush fluid providing lasting performance ready for any start line.
Fork Adjustments - Air Spring Pressure, Compression Lever (Open/Lock), Low Speed Rebound - Stanchion Diameter (mm): 32
- Fork Travel (mm): 100
-
Shifters:
SRAM Eagle 90 T-Type
More
Shifters
SRAM Eagle 90 T-Type The feel, look and shift quality of the Eagle 90 Shifter
allow you to ride in a whole new way. Optimized
cable pull with a revised lever position for maximum
control. With a new T-Type cable actuation ratio,
Eagle 90 offers a higher quality of shift than any
previous mechanical system.
-
Rear Derailleur:
SRAM Eagle 90 T-Type, 12-Speed
More
Rear Derailleur
SRAM Eagle 90 T-Type, 12-Speed The Eagle 90 Transmission derailleur is the definitive
answer to how good a cable actuated derailleur can
be. It features an all-new T-Type cable actuation
ratio to provide the most precise and crisp shifts
every time. Utilizing the same Full Mount design
as its electronic siblings, Eagle 90 is the strongest
mechanical derailleur we have ever produced. Not
only is it robust, but the derailleur body features
replaceable outer and inner parallelogram links,
skid plate, and a tool-free threaded cage assembly,
making it the most rebuildable derailleur in the Eagle
Transmission Ecosystem. -
Crankset:
SRAM Eagle 90 DUB T-Type, 34t
More
Crankset
SRAM Eagle 90 DUB T-Type, 34t The new Eagle 90 crankset is a sleek, sturdy answer
to a growing demand for robust and aesthetically
pleasing components. And with availability down to
shorter 155mm and 160mm lengths, it gives riders
more freedom to build their bike, their way. Featuring
8-bolt chainring compatibility, the Eagle 90 crankset
includes a silver stamped steel T-Type chainring
with optional bashguards for durability and protection
on the trail. - Cassette: SRAM XS 1275 10-52t
-
Chain:
SRAM GX Eagle T-Type Flattop, 12-Speed
More
Chain
SRAM GX Eagle T-Type Flattop, 12-Speed The GX Eagle Transmission (T-Type) chain is the strongest SRAM has ever made. Specifically engineered to optimize Eagle Transmission, this all-new T-Type design features a unique flat top. In addition to this shape maximizing shifting performance and upgrading the aesthetics of any bike, it is developed specifically for the added torque loads of E-MTB thanks to its solid pins that give it incredible strength. - Pedals: Not Included
-
Brake Levers:
SRAM DB8
More
Brake Levers
SRAM DB8 DB8 is SRAM's simple, robust, and powerful brake for riders who prefer to set and forget. The low maintenance Mineral Oil system uses proven lever technologies and features easy adjustment access and superior ergonomic comfort. Code-like power is no surprise, as DB8 utilizes similar caliper architecture and existing brake pads. - Brake Calipers: SRAM DB8
- Rotors: SRAM HS2 160mm
- Headset: Cane Creek 50 IS Integrated
- Stem: SRAM Atmos Stem, 60mm
- Saddle: SDG Bel-Air V3 Lux-Alloy
-
Seatpost:
Race Face Next 27.2mm
More
Seatpost
Race Face Next 27.2mm No fully-XC build is complete without a high-tech seatpost - and the Next has performance written all over it. Lightweight, adjustable and optimized in every way, XC and trail riding have never felt better. - Hubs: DT Swiss 370
- Rims: RaceFace AR Offset 27 29"
-
Front Tire:
Maxxis Rekon Race 2.35" | EXO
More
Front Tire
Maxxis Rekon Race 2.35" | EXO Maxxis Rekon Race is a semi-slick XC race tire that features the lowest profile tread in the XC line. It is a great choice for dry XC trails and short track racing.- EXO: A cut and abrasion-resistant material added to the sidewalls.
-
Rear Tire:
Maxxis Rekon Race 2.35" | EXO
More
Rear Tire
Maxxis Rekon Race 2.35" | EXO The Maxxis Rekon Race is a semi-slick XC race tire that features the lowest profile tread in the Maxxis XC line. It is a great choice for dry XC trails and short track racing.- EXO: A cut and abrasion-resistant material added to the sidewalls.
- Warranty: Limited Lifetime
| Size | S | M | L | XL |
| Rider Height | 5'0" - 5'5" | 5''5" - 5'10" | 5'10" - 6'1" | 6'1" - 6'6" |
| Reach (mm) | 415 | 440 | 460 | 490 |
| Stack (mm) | 596 | 605 | 604 | 633 |
| Effective Top Tube (mm) | 595 | 619 | 642 | 677 |
| Seat Tube (mm) | 405 | 430 | 470 | 530 |
| Head Tube Angle (°) | 67 | 67 | 67 | 67 |
| Seat Tube Angle (°) | 73.5 | 73.5 | 73.5 | 73.5 |
| Chainstay Length (mm) | 426 | 426 | 426 | 426 |
| Bottom Bracket Height (mm) | 313 | 313 | 313 | 313 |
| Bottom Bracket Drop (mm) | 60 | 60 | 60 | 60 |
| Head Tube Length (mm) | 95 | 105 | 115 | 135 |
| Wheelbase (mm) | 1119 | 1145 | 1169 | 1207 |
| Standover Height (mm) | 707 | 704 | 739 | 755 |
| Complete Weight (lbs) | 24.15 | |||
| Complete Weight (kg) | 10.95 | |||
| Wheel Size | 29" | 29" | 29" | 29" |
