Product Info

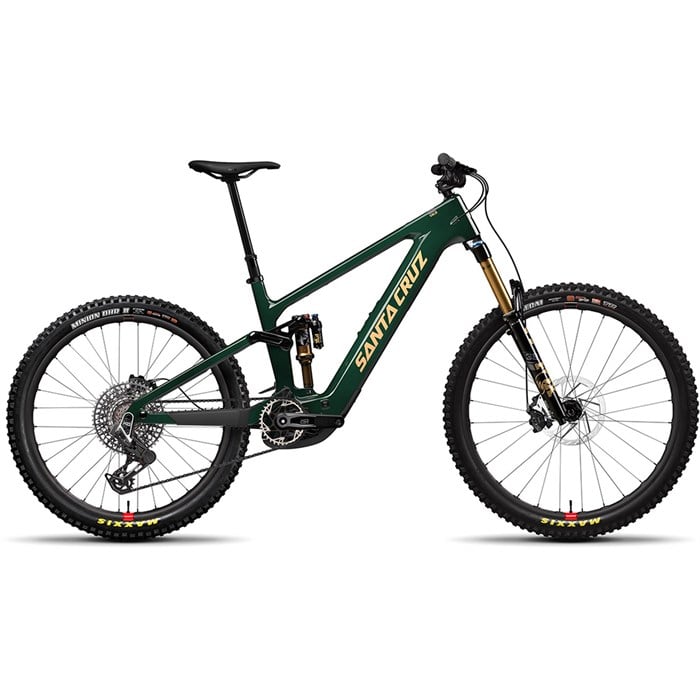

Ready to clear your schedule for some serious trail time? The Santa Cruz Vala 1 CC X0 AXS delivers full-power e-MTB attitude with mixed wheels, 64° head angle, and 150mm travel powered by Bosch Performance Line CX and 600Wh battery, while horst link suspension brings Santa Cruz's best kinematics and handling to the motor layout. Equipped with Fox Factory suspension, SRAM Maven Silver brakes, and incredible XO AXS Transmission drivetrain, this is essentially the e-Bronson you've been waiting for.
Product Details
Key Features
Carbon CC Frame – Santa Cruz's highest grade CC-level carbon frame is every bit as stiff and strong as their C-level frame, but weighs about 280 grams less, due to the use of lighter, stronger, and more expensive carbon fiber. Santa Cruz is also able to truly integrate shock mounts, pivot mounts, dropouts and disc brake tabs into the structure, using all uni-directional carbon plies. The shock mount isn't merely riveted or bonded on after curing, but is an integrated part of the fiber lay-up. This makes Santa Cruz's carbon frames incredibly strong and able to absorb impact better than any other frame they've tested.
Travel – 160mm Front / 150mm Rear
Wheel Size – Mixed Wheel (29" Front / 27.5" Rear)
Bosch Performance Line CX Drive Unit – The next generation Bosch Performance Line CX motor is quieter, lighter, and smaller than ever. More compact but no less powerful, it comes with a maximum torque of 85Nm. Choose between 4 standard modes and customize your ride in the Bosch Flow App.
Discreet Top Tube Display – The built-in display on the toptube allows for battery charge and mode to be displayed. The display can also be used to turn system on/off and toggle modes. More detail (% battery charge and range) can be found by using the app.
Tool Mount – Discreet mounting bolts underneath the top tube allows for clean, on-bike-storage of tools, tubes or an AirTag.
Independently Adjustable Geo and Progression Chips – The geo chip raises or lowers the bottom bracket 4mm, and adjusts the head tube angle by 0.3°. The progression chip changes the progression from 26-29%.
Specs
-
Biking Type:
Mountain
More
Biking Type
Mountain Mountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.
-
Used For:
Trail
More
Used For
Trail Trail bikes are the quintessential “mountain bikes.” If you’re heading into the woods expecting to do it all on two wheels – climbing, technical sections, AND fun descents – you’re looking for a trail bike.
-
Suspension:
Full Suspension
More
Suspension
Full Suspension Engineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.
- Gearing: 1 x 12
-
Frame Material:
Carbon
More
Frame Material
Carbon Carbon is a composite frame material. Unlike metals, carbon is composed of fibrous strands woven into a grid and bonded with epoxy. Carbon is favored by many for its lightness and stiffness but its complexity in fabrication makes it the most expensive option.
- Water Bottle Mounts: 1
-
Fork:
Fox 38 Factory GRIP X2
More
Fork
Fox 38 Factory GRIP X2 The Fox 38 is the hard hitting, long-travel enduro specialist. When you need to go really big, reach for the 38. Optimized for 160 - 180mm of travel and packing the same revolutionary feature set as the Fox 36, the 38 redefines what you think a long travel single crown fork is capable of, and sets a new benchmark for confidence, performance and durability.
"Factory" says it all — feature-packed and designed to exceed the demands of Factory-level riders. What we sell is what they race. Factory Series products feature slippery smooth, ultra-durable Genuine Kashima Coat.
This fork features the GRIP X2 damper for maximum adjustability: high- and low-speed compression adjustment, plus high- and low-speed rebound adjustment. - Fork Travel (mm): 160
-
Rear Shock:
Fox Float X Factory
More
Rear Shock
Fox Float X Factory From aggressive trail to enduro, the advanced damping, fade free performance and class-leading durability of Float X makes it the versatile and lightweight choice for All-Mountain riders earning their descents.
Factory Series models feature a genuine Kashima Coat finish for the ultimate friction-free performance.
Shock Adjustments - Air Spring Pressure / Open/Firm Compression Lever / Low Speed Rebound / Low Speed Compression
- Rear Travel (mm): 150
-
Drive Unit:
Bosch Performance Line CX BDU38
More
Drive Unit
Bosch Performance Line CX BDU38 The next generation Bosch Performance Line CX motor is quieter, lighter, and smaller than ever. More compact but no less powerful, it comes with a maximum torque of 85Nm. Choose between 4 standard modes and customize your ride in the Bosch Flow App. -
Battery:
Bosch PowerTube 600Wh
More
Battery
Bosch PowerTube 600Wh Thanks to their range, long service life, intelligent battery management system and easy handling, Bosch Power Tube lithium-ion batteries are among the most modern on the market. All those decades of Bosch experience has paid off! -
Rear Derailleur:
SRAM X0 Eagle AXS T-Type, 12-Speed
More
Rear Derailleur
SRAM X0 Eagle AXS T-Type, 12-Speed Engineered as integrated and interdependent transmission components, the X0 Eagle T-Type derailleur mounts around the wheel axle itself, contacting the cassette directly with a first-of-its-kind Hangerless Interface. Beyond that, its Full Mount attachment method creates a far stronger connection that grips both sides of the frame. The new Transmission derailleurs feature the same intuitive pairing and set-up procedure as our Eagle AXS derailleurs. Featuring an overload clutch that boosts resiliency and a tucked-in profile that houses protection covers on the B-knuckle and outer link that are fully replaceable, or upgradeable to the XX skid plate. -
Cassette:
SRAM X0 Eagle T-Type XS-1295, 10-52t
More
Cassette
SRAM X0 Eagle T-Type XS-1295, 10-52t The X0 Eagle Transmission (T-Type) Cassette is a major reason why Eagle Transmission offers the best-ever inboard and outboard shifting performance under load. Engineered as integrated and interdependent transmission components, the X0 Eagle Transmission Cassette and derailleur contact directly, ensuring perfect alignment on every bike. Beyond its unique and stunning Dark Polar finish and electroless nickel plating for incredible resistance to corrosion and wear, its full X-Sync design literally means the harder you pedal, the better it shifts. Its strength is further proven by its full approval for E-MTB use. It’s been built for a 55mm chainline for even more durability and precision thanks to milder chain angles throughout the full range, low to high. From its massive 520% gear range, the 52 tooth cog steps down with improved gear progression with 44 and 38 tooth cogs in the low end (compared to the Eagle drivetrain 10-52-tooth cassette). What else? It has a clearly marked Setup Cog, making install both simple and fool-proof.
FEATURES- Full X-SYNC for best-ever inboard and outboard shifting performance under load
- Optimized gear steps on low end
- 55mm chainline compatibility for more moderate chain angle, longer wear and greater precision
- Setup Cog for fool-proof set up
- Features X-DOME with a lighter aluminum 12th gear
- Fully E-MTB approved
-
Chain:
SRAM X0 Eagle T-Type Flattop, 12-Speed
More
Chain
SRAM X0 Eagle T-Type Flattop, 12-Speed With Eagle Transmission being the first of its kind, fully integrated and interdependent system, the X0 Eagle Transmission (T-Type) Flattop Chain is so much more than just a chain. Its unique flat top design makes it the strongest change chain we have ever made. With equal importance, it upgrades the look of any super machine. These details matter. It features a Dark Polar finish specific to X0, has been plated with electroless nickel, and comes with a PVD coating for unbelievable resistance to corrosion and wear. Fully approved for E-MTB use with solid pins.
FEATURES- Strongest SRAM chain ever
- Specifically engineered for Eagle Transmission
- Flattop profile, unbelievable shifting performance, game-changing aesthetics
- Pedals: Not Included
-
Brake Levers:
SRAM Maven Silver
More
Brake Levers
SRAM Maven Silver SRAM Maven Silver features monstrous 18 and 19.5mm pistons driving 50% more power than Code. But best-in-class power means nothing unless you’re able to harness it. The Maven Silver lever body houses Swinglink, which translates rider input for progressive power throughout the lever pull, maintaining SRAM’s signature ride feel. And because of a stiff 4-bolt caliper that sheds an incredible amount of heat, that feel remains consistent, so the last corner feels like the first corner. Maven Silver features a bold black anodized finish with stainless hardware. And for unrivaled ease of customization, features tool-free Reach and Contact Point Adjust. - Brake Calipers: SRAM Maven Silver
- Rotors: SRAM HS2 200mm
- Headset: Cane Creek 50 IS
- Stem: OneUp Enduro Stem
- Saddle: WTB Silverado Medium Fusion, CroMo SL
-
Seatpost:
OneUp V2 Dropper 31.6mm
More
Seatpost
OneUp V2 Dropper 31.6mm The OneUp V2 Dropper has the most drop, shortest stack height and shortest total length of any other post on the market. No other dropper can get your saddle lower. Smooth, reliable and a great value. There’s more than one reason testers, reviewers, racers and riders consistently rate our Dropper Post “#1”, “5-Stars” and “10/10.” -
Wheelset:
Santa Cruz Reserve Carbon 30HD
More
Wheelset
Santa Cruz Reserve Carbon 30HD Modern trail bikes are designed to tackle anything that can be thrown at them. From cruising mellow singletrack to crushing boulder-strewn steeps, they deliver a do-everything performance that inspires the rider to go faster, more smoothly. The Reserve 30|HD is specially designed for trail riding and the abuse trail bikes dish out. They feature a 30mm width for use with 2.5 tires and a redesigned inner rim bed that takes the hassle out of seating new tires. - Hubs: DT Swiss 350
- Rims: Reserve 30|HD Carbon
- Spokes: 28
-
Front Tire:
Maxxis Assegai 2.5" | 3C MaxxGrip, EXO+
More
Front Tire
Maxxis Assegai 2.5" | 3C MaxxGrip, EXO+ Greg Minnaar’s signature tire – the Maxxis Assegai – provides tenacious, predictable grip across the entire profile no matter the lean angle. The Assegai can be used front and rear for a surefooted feel or as a front paired with a faster rolling rear tire.- 3C MaxxGrip: The stickiest, slowest rebounding rubber Maxxis offers.
- EXO+: Durable 60 TPI casing, legendary EXO puncture protection in the sidewalls, and a small butyl insert around the bead to protect from pinch flats and help prevent rim damage.
- Warranty: Limited Lifetime (Frame and Bearings)
| Size | S | M | L | XL | XXL |
| Rider Height | 5'1" - 5'5" | 5''5" - 5'9" | 5'9" - 6'1" | 6'1" - 6'4" | 6'4" - 6'7" |
| Reach (mm) | 432 | 456 | 477 | 497 | 522 |
| Stack (mm) | 625 | 635 | 643 | 657 | 670 |
| Effective Top Tube (mm) | 573 | 601 | 622 | 645 | 673 |
| Seat Tube (mm) | 380 | 400 | 420 | 460 | 500 |
| Head Tube Angle (°) | 110 | 120 | 130 | 145 | 160 |
| Seat Tube Angle (°) | 77.2 | 77.2 | 77.2 | 77.2 | 77.2 |
| Chainstay Length (mm) | 439 | 440 | 443 | 446 | 450 |
| Bottom Bracket Height (mm) | 340 | 340 | 340 | 340 | 340 |
| Bottom Bracket Drop (mm) | 32 | 32 | 32 | 32 | 32 |
| Head Tube Length (mm) | 110 | 120 | 130 | 145 | 160 |
| Wheelbase (mm) | 1210 | 1240 | 1268 | 1297 | 1333 |
| Standover Height (mm) | 741 | 735 | 734 | 734 | 728 |
| Complete Weight (lbs) | 46.53 | ||||
| Wheel Size | Mixed Wheel | Mixed Wheel | Mixed Wheel | Mixed Wheel | Mixed Wheel |
