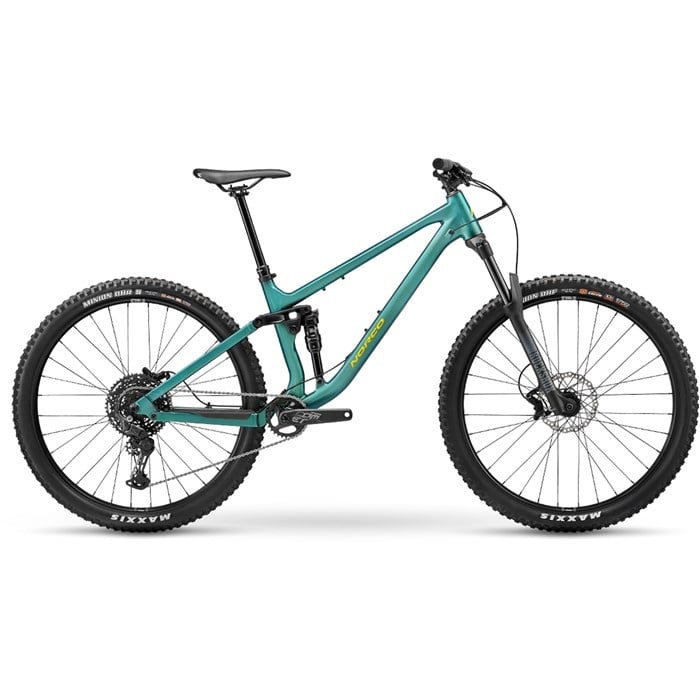

Norco Fluid FS A3 Complete Mountain Bike 2025
Model Info
Norco Fluid FS A3 Complete Mountain Bike 2025
MEMBERSHIP
Earn up to 10% back in rewards. Join Free.
EASY RETURNS
Take up to a full year to return your item! See our Return Policy.
Product Info
The Norco Fluid FS A2 is your ticket to ripping trails without emptying your wallet, with 130mm of rear travel for everyday riding. Built around a capable aluminum frame with modern geometry that inspires confidence whether you're rallying descents or grinding climbs, this rig comes spec'd with a solid parts package that punches well above its price point. If you're looking to graduate from hardtail life or just want a do-it-all trail bike that's ready to party right out of the box, the Fluid FS A3 is calling your name.
Product Details
Key Features
6061 Alloy Frame
Travel – 140mm Front / 130mm Rear
Wheel Size – 29"
Ride Aligned™ Design System – Norco's proprietary system that optimizes the frame geometry and suspension kinematics for each specific frame size, ensuring consistent ride quality for all riders.
UDH (Universal Derailleur Hanger) – Equipped with the standardized UDH, making derailleur replacement easier and ensuring compatibility with SRAM's Eagle Transmission.
Hangerless Interface Compatible,
Specs
-
Biking Type:
Mountain
More
Biking Type
Mountain Mountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.
-
Used For:
Trail
More
Used For
Trail Trail bikes are the quintessential “mountain bikes.” If you’re heading into the woods expecting to do it all on two wheels – climbing, technical sections, AND fun descents – you’re looking for a trail bike.
-
Suspension:
Full Suspension
More
Suspension
Full Suspension Engineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.
-
Frame Material:
Aluminum Alloy
More
Frame Material
Aluminum Alloy Aluminum is the second lightest material per cubic inch, after carbon, but it is significantly more affordable. It offers versatility, strength, and durability that works well in all trail disciplines.
- Gearing: 1 x 10
- Water Bottle Mounts: 1
-
Fork:
RockShox Recon RL
More
Fork
RockShox Recon RL Recon has set the benchmark for value-based performance time and time again. With a beefier chassis and stout 32mm Fast Black steel upper tubes, Recon is the best recipe for the perfect off-road success.
Fork Adjustments - Air Spring Pressure, Low Speed Compression to Lockout, External Rebound Adjust - Fork Travel (mm): 140
-
Rear Shock:
X-Fusion 02 Pro R
More
Rear Shock
X-Fusion 02 Pro R The 02 series line of shocks see a host of changes, including a new air canister design which adds 15% more air for smoother ramp up, increased tuning options with three different size air-can volume spacers, and larger, more ergonomic knobs to allow for easier access to the adjustments. -
Crankset:
FSA Comet, 30t
More
Crankset
FSA Comet, 30t FSA's Comet crankset is designed for cross-country and trail riding conditions. Multiple input forces and angles were used to balance weight, deflection and maximum stress in order to hit the ideal stiffness-to-weight ratio for the crank arms. - Chain: Shimano LG500, 10-Speed
- Bottom Bracket: FSA MegaExo
- Pedals: Not Included
-
Brake Levers:
Tektro HD-M535 Gemini
More
Brake Levers
Tektro HD-M535 Gemini Forge Aluminum Lever / Cast Bracket / Reach Adjustment / One-piece Clamp / 2 Finger Blade - Brake Calipers: Tektro HD-M535 | 4 Piston | Organic Pads
- Rotors: Tektro TR180-22 180mm
- Headset: Zero Stack Sealed Cartridge Bearings - Tapered
- Stem: Norco 6061 Alloy 40mm/35mm
- Saddle: Norco Trail Saddle
- Seatpost: TranzX | 34.9mm | 1x Lever
-
Wheelset:
WTB ST i29
More
Wheelset
WTB ST i29 At 29mm internal width, these aluminum alloy wheels have 32 spokes. They're built for hard abuse on the trail, an nice mix of light weight, stiffness, and ride quality. - Hubs: Front: Formula DC-511 110x15 | Rear: Formula DC-3248 148x12
- Rims: WTB ST 29", 32H
- Spokes: Stainless Steel 14g - Black
- Tires: Continental
-
Front Tire:
Continental Kryptotal 2.4" | Trail
More
Front Tire
Continental Kryptotal 2.4" | Trail This all round tire balances stability of grip, traction for braking, and rolling resistance. Ideal for mixed terrain conditions for you to push your limits in trail, enduro or downhill gravity riding. -
Rear Tire:
Continental Xynotal 2.4" | Trail
More
Rear Tire
Continental Xynotal 2.4" | Trail With low rolling resistance and contact edges for improved traction and braking, you can enjoy a fast gravity ride with the confidence of continuous grip when you need it most. Perfect for hardpack, rocky surfaces. - Warranty: Limited Lifetime
| Size | S | M | L | XL | XXL |
| Rider Height | 5'1" - 5'5" | 5''4.5" - 5'8.5" | 5'8" - 6'0" | 5'11.5" - 6'3.5" | 6'3" - 6'7" |
| Reach (mm) | 420 | 450 | 480 | 510 | 540 |
| Stack (mm) | 617 | 626 | 635 | 644 | 653 |
| Seat Tube (mm) | 360 | 390 | 410 | 460 | 510 |
| Head Tube Angle (°) | 65 | 65 | 65 | 65 | 65 |
| Seat Tube Angle (°) | 7676.3 | 76.7 | 77 | 77.3 | |
| Bottom Bracket Height (mm) | 348 | 348 | 348 | 348 | 348 |
| Bottom Bracket Drop (mm) | 30 | 30 | 30 | 30 | 30 |
| Head Tube Length (mm) | 110 | 120 | 130 | 140 | 150 |
| Wheelbase (mm) | 1166 | 1205 | 1245 | 1284 | 1323 |
| Standover Height (mm) | 678 | 690 | 699 | 736 | 767 |
| Wheel Size | 29" | 29" | 29" | 29" | 29" |
