Size Chart (Rider Height)

	S	M	L
Furtado	5'1" - 5'5"	5'5" - 5'9"	5'9" - 6'1"
Furtado	155 - 165 cm	165 - 175 cm	175 - 185 cm
Roubion	5'1" - 5'5"	5'5" - 5'9"	5'9" - 6'1"
Roubion	155 - 165 cm	165 - 175 cm	175 - 185 cm
Juno	5'1" - 5'5"	5'5" - 5'9"	5'9" - 6'1"
Juno	155 - 165 cm	165 - 175 cm	175 - 185 cm

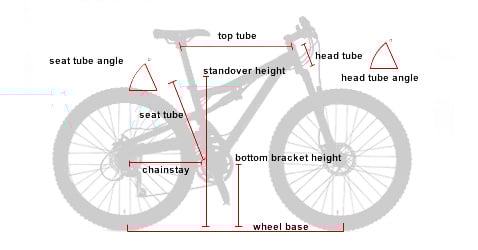

Bike Geometry

Furtado
Roubion
Juno

Furtado

		S	M	L	S	M	L
		Millimeters			Inches
	Top Tube	552.5	584.2	609.6	21.75	23	24
	Seat Tube	414	431.8	469.9	16.3	17	18.5
	Head Tube ∠	68	68	68	68	68	68
	Seat Tube ∠	73	73	73	73	73	73
	BB Height	334	334	334	13.15	13.15	13.15
	Wheelbase	1081	1113.8	1140.1	42.56	43.85	44.89
	Head Tube	90	100	110	3.54	3.94	4.33
	Chainstay	434.8	434.8	434.8	17.12	17.12	17.12
	Standover	721.9	716.2	723.2	28.42	28.2	28.47
	Reach	374.8	403.7	426.3	14.76	15.89	16.78
	Stack	580.9	590.3	599.5	22.87	23.24	23.6

Roubion

		S	M	L	S	M	L
		Millimeters			Inches
	Top Tube	554	584	610	21.81	22.99	24.02
	Seat Tube	407	432	470	16.02	17.01	18.5
	Head Tube ∠	67	67	67	67	67	67
	Seat Tube ∠	73	73	73	73	73	73
	BB Height	346	346	346	13.62	13.62	13.62
	Wheelbase	1107.7	1139.3	1164.7	43.61	44.85	45.85
	Head Tube	90	100	110	3.54	3.94	4.33
	Chainstay	439	439	439	17.28	17.28	17.28
	Standover	718	731	733	28.27	28.78	28.86
	Reach	375	403	428	14.76	15.87	16.85
	Stack	585	594	594	23.03	23.39	23.39

Juno

		S	M	L	S	M	L
		Millimeters			Inches
	Top Tube	553	584	610	21.77	22.99	24.02
	Seat Tube	414	432	470	16.3	17.01	18.5
	Head Tube ∠	68	68	68	68	68	68
	Seat Tube ∠	73	73	73	73	73	73
	BB Height	334	334	334	13.15	13.15	13.15
	Wheelbase	1086	1118	1145	42.76	44.02	45.08
	Head Tube	90	100	110	3.54	3.94	4.33
	Chainstay	435	435	435	17.13	17.13	17.13
	Standover	730	735	736	28.74	28.94	28.98
	Reach	368	397	419	14.49	15.63	16.5
	Stack	604	613	622	23.78	24.13	24.49
