Santa Cruz Stigmata 4 CC Rival AXS 1x 700c Complete Bike 2026
Model Info

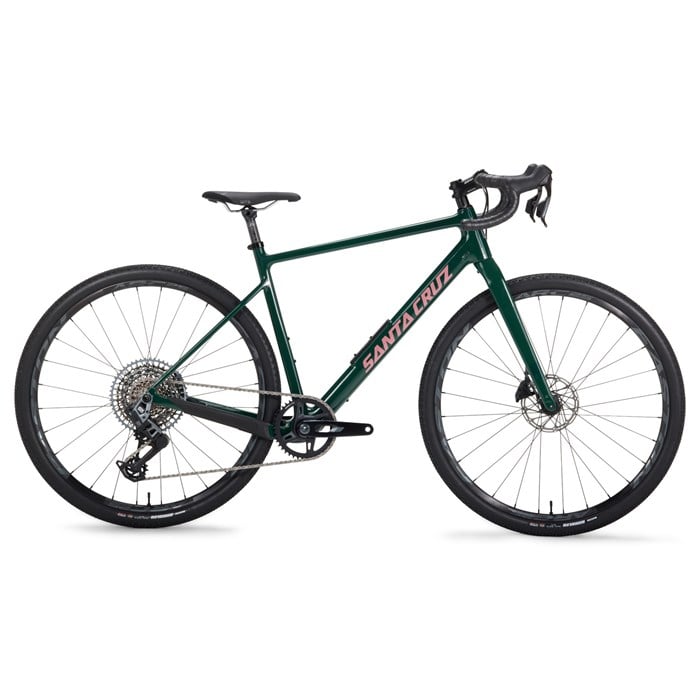

Santa Cruz Stigmata 4 CC Rival AXS 1x 700c Complete Bike 2026
MEMBERSHIP
Earn up to 10% back in rewards. Join Free.
EASY RETURNS
Take up to a full year to return your item! See our Return Policy.
-
-
Same Model, Different Year
Product Info
The Santa Cruz Stigmata 4 CC Rival AXS 1x 700c Complete Bike 2026 is built for riders who line up for big events, seek adventures off the beaten, or just can't resist a bit of a sufferfest. No matter your style, this fast and loose partner adapts to whatever occasion you're chasing—from technical singletrack to podium finishes on gravel roadsv
Product Details
Key Features
Carbon CC Fork and Frame – Santa Cruz's highest grade of carbon makes for a bike that is incredibly lightweight, strong, and comfortable. With knowledge gained from years of mountain bike innovation, this frameset is stiff yet has great offroad feel.
Wheel Size – 700c
Glovebox – Stash snacks and tools in the bike, not on the body or in rattle-y bags.
Reserve Fillmore Valves
Three Water Bottle Mounts
Specs
- Gender: Unisex
- Recommended Use: Gravel
-
Biking Type:
Road
More
Biking Type
Road Road bikes are designed for speed and efficiency on paved surfaces. They feature lightweight frames constructed from materials like carbon fiber or high-end aluminum. Equipped with narrow and smooth tires, road bikes minimize rolling resistance for swift longer-distance rides. - Bike Style: Gravel
- Wheel Size: 700c
- Weight (lbs): 20.64
- Weight (kg): 9.36
- Gearing: 1 x 12
-
Frame Material:
Carbon
More
Frame Material
Carbon Carbon is a composite frame material. Unlike metals, carbon is composed of fibrous strands woven into a grid and bonded with epoxy. Carbon is favored by many for its lightness and stiffness but its complexity in fabrication makes it the most expensive option.
- Fork: Rigid
- Fork Material: Carbon
-
Suspension:
Rigid
-
Shifters:
SRAM Rival eTap AXS
More
Shifters
SRAM Rival eTap AXS Compatible with AXS drivetrains, this wireless shifter has an ergonomic "click and fire" two button design, and ergonomics that'll have your thumbs feeling great. -
Rear Derailleur:
SRAM GX Eagle AXS T-Type, 12-Speed
More
Rear Derailleur
SRAM GX Eagle AXS T-Type, 12-Speed The GX Eagle T-Type derailleur delivers everything a Transmission derailleur possibly can, and then some. It features a revised battery position and a reconfigured gearbox to better protect itself from impacts. To maintain crisp shifting and striking appearance throughout its entire lifespan, hard-chargers can replace both its protective skid plates and two-piece outer link, if needed, making this the most repairable derailleur we’ve ever made. It also features the first ever tool-free cage and clutch assembly – so it’s both removable and upgradable too. - Bottom Bracket: SRAM DUB 68mm Road Wide
- Pedals: Not Included
-
Cassette:
SRAM GX Eagle XG-1275, 10-52t
More
Cassette
SRAM GX Eagle XG-1275, 10-52t The new 10-52 Eagle cassette for riders who prioritize all day function over anything else. With an expanded, 520-percent gear range giving riders more ability to spin and recover on the burliest climbs. Featuring FULL PIN technology that uses lightweight, precision engineered steel cogs permanently connected with high-strength stainless steel pins. An open design similar to our X-DOME cassette that aids in mud clearance, giving riders crisp shifting performance and longer component life.
FEATURES- 520-percent gear range utilizing the industry standard XD hub driver.
- Light and strong FULL PIN technology similar to X-DOME bringing true 1x gear range to more riders and builds.
- Lunar and black colorway makes the XG-1275 cassette right at home on any build.
-
Chain:
SRAM GX Eagle T-Type Flattop, 12-Speed
More
Chain
SRAM GX Eagle T-Type Flattop, 12-Speed The GX Eagle Transmission (T-Type) chain is the strongest SRAM has ever made. Specifically engineered to optimize Eagle Transmission, this all-new T-Type design features a unique flat top. In addition to this shape maximizing shifting performance and upgrading the aesthetics of any bike, it is developed specifically for the added torque loads of E-MTB thanks to its solid pins that give it incredible strength. -
Brake Levers:
SRAM Rival
More
Brake Levers
SRAM Rival Wireless shifting and the best hydraulic disc braking anywhere, plus revolutionary eTap shift logic. What more could you want? While SRAM could have stopped there, they went further and optimized the hood shape to fit hands of all sizes, for comfortable and controlled braking from any position. AXS technology means personalization is in your hands. - Brake Calipers: SRAM Rival
- Rotors: SRAM Centerline, Centerlock, 160mm
- Headset: Cane Creek 50 IS
- Stem: Zipp Service Course
- Saddle: WTB Silverado Medium
-
Seatpost:
Easton EC70
More
Seatpost
Easton EC70 The EC70 Seatpost takes Easton's superlight unidirectional carbon and applies their patent pending ISA technology - Independent Saddle Adjustment - which allows for completely independent fore-aft adjustment and saddle adjustment. With the 2 pitch adjustment bolts, the saddle angle gets locked into place as if you were adjusting limit screws, and unlike single bolt designs, you get adjustability and security. - Hubs: DT Swiss 370
- Rims: Easton EC70
- Spokes: 28
- Tires: Maxxis Rambler
- Warranty: Limited Lifetime
| Size | XS | S | M | L | XL | XXL |
| Rider Height | 5' - 5'3" | 5'3" - 5'6" | 5'6" - 5'9" | 5'9" - 6'0" | 6'0" - 6'2" | 6'2" - 6'4" |
| Reach (mm) | 375 | 390 | 405 | 430 | 435 | 450 |
| Stack (mm) | 550 | 564 | 576 | 600 | 612 | 631 |
| Effective Top Tube (mm) | 533 | 552 | 570 | 592 | 610 | 631 |
| Seat Tube (mm) | 450 | 455 | 485 | 515 | 545 | 575 |
| Head Tube Angle (°) | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 |
| Seat Tube Angle (°) | 74 | 74 | 74 | 74 | 74 | 74 |
| Chainstay Length (mm) | 423 | 423 | 423 | 423 | 423 | 423 |
| Bottom Bracket Height (mm) | 278 | 278 | 280 | 280 | 282 | 282 |
| Bottom Bracket Drop (mm) | 78 | 78 | 76 | 76 | 74 | 74 |
| Head Tube Length (mm) | 90 | 105 | 120 | 145 | 160 | 180 |
| Wheelbase (mm) | 1023 | 1043 | 1063 | 1087 | 1108 | 1130 |
| Complete Weight (lbs) | 20.64 | |||||
| Complete Weight (kg) | 9.36 |
