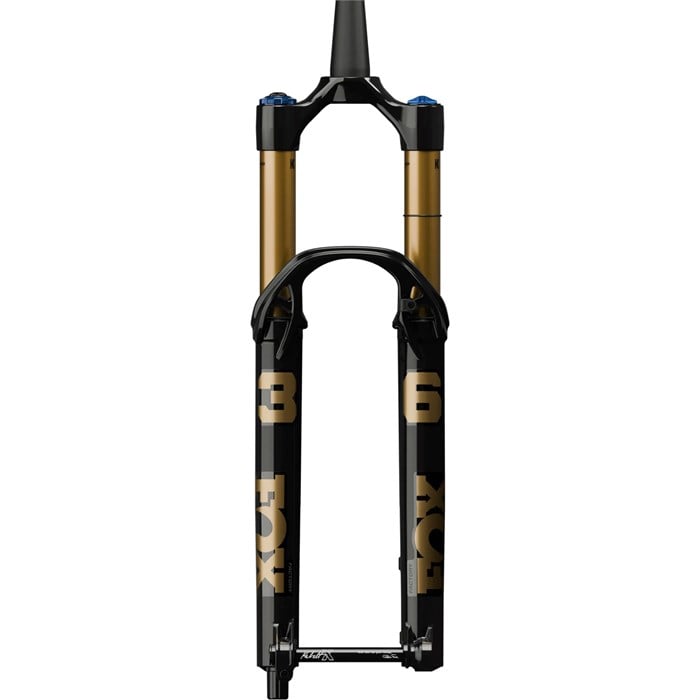

Fox Shox 36 Float Factory GRIP X2 Fork - 29"

sku# 285821
Fox Shox - Fox Shox 36 Float Factory GRIP X2 Fork - 29"Fox Shox - Fox Shox 36 Float Factory GRIP X2 Fork - 29"Fox Shox - Fox Shox 36 Float Factory GRIP X2 Fork - 29"
Model Info

FREE SHIPPING

This item qualifies for Free Shipping! Details.

Fox Shox 36 Float Factory GRIP X2 Fork - 29"

sku# 285821
Select Color:
Please select a color
Select Size:
Please select a size

MEMBERSHIP

Earn up to 10% back in rewards. Join Free.

EASY RETURNS

Take up to a full year to return your item! See our Return Policy.

LOWEST PRICE GUARANTEE

Find a better price? We’ll beat it by 5%. See our Price Match Policy.

Product Info

Built for trail and all-mountain riding with enduro-grade damping, the Fox Shox 36 Float Factory GRIP X2 Fork is the pick for riders who want serious capability without moving up to a full enduro setup. The GRIP X2 damper offers four-way adjustment (high/low-speed compression and rebound) for precise tuning across variable terrain, while the FLOAT GlideCore air spring reduces friction by moving dynamically with the fork under load for noticeably smoother small-bump compliance. A redesigned arch wraps the lowers to increase torsional stiffness by 20% over the previous 36, and Genuine Kashima Coat keeps the upper tubes looking fly and sliding freely.

Product Details

Construction & Measurements

Kashima Coated StanchionsThe smoothest of the smooth, plus it looks cooler. The gold Kashima coating has become synonymous with friction-free suspension actuation, and it's only available on Fox Factory components.

Redesigned Arch & CrownGeneratively designed and optimized by FOX engineers, the new 36 arch wraps around the lowers to increase torsional stiffness of the fork by a full 20%. This now gives the 36 a veritable 87% of the torsional stiffness found on the 38 (up from 75%), while remaining 275g lighter than the 38.

Inboard Bypass ChannelsBypass channels help curb pressure ramping for increased small bump sensitivity, as well as recirculating bath oil to lubricate bushings and seals. By relocating the bypass channels from the aft side of the fork to the inboard side, they are now out of the fore-aft load path to further reduce dynamic friction throughout the fork’s travel.

Increased Bushing OverlapThe 36 SL increases the bushing overlap by 20mm over the 34 for a smoother feeling fork overall. Riders will notice additional suppleness at higher speeds when bending loads on the fork are at their greatest.

1.5" Tapered Aluminum Steerer

Features

FLOAT Glidecore Air SpringThe seamlessly compliant FLOAT Glidecore Air Spring reduces friction and bind by moving with the fork under dynamic load for smoother suspension action.

Low Profile BleedersGrooved design allows pressure to escape around your finger as you press the bleeder.

Air Spring Top CapUses the common Shimano cassette tool for easy volume adjustments.

Kabolt X AxleKabolt, a lightweight bolt-on floating axle to shave grams and increase torsional stiffness via a sleeveless, single-sided pinch bolt design.

Rotor Size180 Direct Post Mount, Up to 230 Compatible

Adjustments

GRIP X2 DamperGRIP X2 is the most tunable, supportive and smoothest descent-focused damper ever created by FOX. Riders reap the benefits of sitting higher in the travel while tires stay glued to the ground, cornering with increased traction. It gives you the confidence to push the limits of downhill and enduro racing, all while reducing overall rider fatigue. GRIP X2 is the winning difference.

Fork AdjustmentsHigh / Low Speed Rebound, High / Low Speed Compression

Specs

  • Used For: Trail More
    Trail
  • Wheel Size: 29"
  • Axle Configuration: 15 x 110 Boost
  • Stanchion Diameter (mm): 36
  • Maximum Rotor Size (mm): 230
  • Warranty: 1 Year
Size 160mm, Kabolt x 110, 44mm Rake
Fork Travel (mm) 160

Other Notes

Fox Shox products can only be shipped within the United States
