Specialized S-Works Turbo Levo R E-Mountain Bike 2026
Model Info

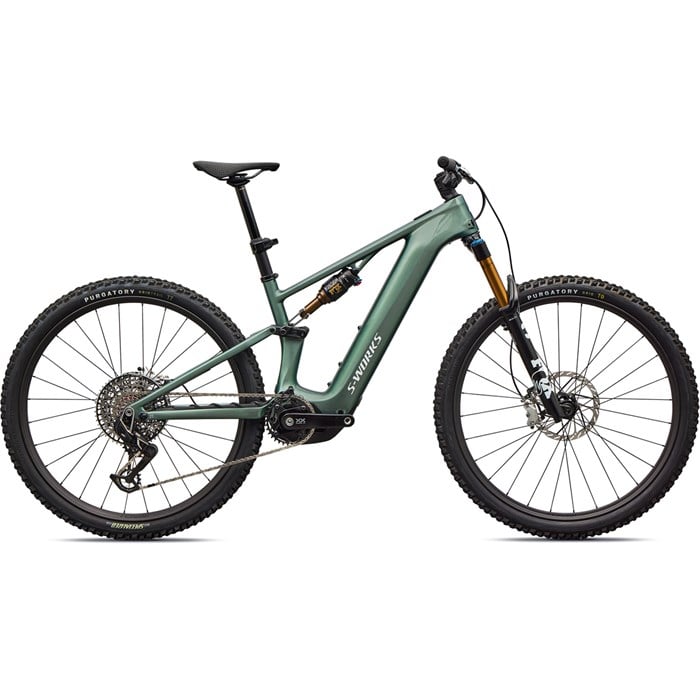

Specialized S-Works Turbo Levo R E-Mountain Bike 2026
MEMBERSHIP
Earn up to 10% back in rewards. Join Free.
EASY RETURNS
Take up to a full year to return your item! See our Return Policy.
Product Info
The Specialized S-Works Turbo Levo R E-Mountain Bike is built for riders who thought full-power e-MTBs had to be heavy, sluggish, and a little boring — it turns out none of that is true. This two-wheeled party animal pumps out 850 watts of peak power from its S-Works 3.1 Motor, with GENIE shock technology making 130mm of rear travel feel more capable and intuitive than anything in this category has a right to. Modular battery options, adjustable geometry, and a wireless SRAM XX T-Type drivetrain round out a package that's as dialed on the climbs as it is unhinged on the way down. Rally-tuned and ready to rumble.
Product Details
Key Features
FACT 11m Carbon Chassis
Travel – 140mm Front / 130mm Rear
Wheel Size – 29"
S-Works 3.1 Motor – With 850 Watts and 111 Nm* deployed with SuperNatural power delivery, nothing beats the power, torque, and control combination of the S-Works 3.1 Motor. Specialized engineered this otherworldly power and torque to feel SuperNatural — like an intuitive extension of you — delivering torque with precision that unlocks your ability to negotiate low-speed technical terrain with control, scale previously impossible climbs, and dominate high speeds with adaptive amplification.
Specialized GENIE Shock Technology – Patent-pending air spring technology provides the feel and control of a coil spring, better bottom-out prevention than a standard air spring, and a tunable platform for a playful feel. Extensive field testing proves that Stumpjumper 15 with GENIE delivers 57% better traction than a standard air-sprung shock because GENIE technology gives you supple, coil-like performance, which keeps the wheel in contact with the ground more than a typical air spring would.
Modular Battery System – open the downtube Wattage Cottage and unlock a modular battery system that lets you go big or go nimble. The stock 840Wh battery delivers serious range. Need more? Slap on the aftermarket 280Wh Range Extender for an unmatched 1,120Wh of all-day adventure battery capacity. Prefer agility? The aftermarket 600Wh battery keeps it light and lively. The side-hatch makes swaps a breeze, and with all batteries passing IP67 standards, your power is “waterproof”.
SWAT e-MTB Downtube Storage – Flip open the downtube hatch and behold the Wattage Cottage; roomy enough for the stock 840Wh battery and SWAT storage. Specialized pioneered internal downtube storage, and now we bring it to you first on an e-MTB. Secured above the battery magnetically, the SWAT bag holds trailside essentials like a tube and CO2. Swap in the smaller aftermarket 600Wh battery and boom, extra space for a jacket or other gear. No bike frame has ever packed so much storage. Clean, clever, and ready to roll.
Specs
-
Biking Type:
Mountain
More
Biking Type
Mountain Mountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.
-
Used For:
Trail
More
Used For
Trail Trail bikes are the quintessential “mountain bikes.” If you’re heading into the woods expecting to do it all on two wheels – climbing, technical sections, AND fun descents – you’re looking for a trail bike.
-
Suspension:
Full Suspension
More
Suspension
Full Suspension Engineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.
- Gearing: 1 x 12
-
Frame Material:
Carbon
More
Frame Material
Carbon Carbon is a composite frame material. Unlike metals, carbon is composed of fibrous strands woven into a grid and bonded with epoxy. Carbon is favored by many for its lightness and stiffness but its complexity in fabrication makes it the most expensive option.
- Water Bottle Mounts: 1
-
Fork:
Fox 36 SL Factory GRIP X
More
Fork
Fox 36 SL Factory GRIP X The lightest 36 ever, the sub-1800g 36 SL injects plushness and steering responsiveness into a true Trail fork. An evolution of the 36 chassis in 120 to 140mm of travel, the 36 SL gives modern Trail riders the confidence to go big without the weight.
“Factory” says it all – feature-packed and designed to exceed the demands of Fox's Factory-level riders. What they sell is what they race. Factory Series products feature slippery smooth, ultra-durable Genuine Kashima Coat. - Stanchion Diameter (mm): 36
- Fork Travel (mm): 140
-
Rear Shock:
Fox Float Factory
More
Rear Shock
Fox Float Factory The all-new Float answers the demands of the modern trail rider; a firm pedal platform for uphill efficiency and confidence-inducing, trail-hugging descent capability, all in a lightweight package.
Factory Series models feature a genuine Kashima Coat finish for the ultimate friction-free performance. - Rear Travel (mm): 130
-
Drive Unit:
Specialized 3.1 S-Works
More
Drive Unit
Specialized 3.1 S-Works 111Nm Torque, 720W Power. -
Battery:
Specialized 840Wh
More
Battery
Specialized 840Wh The big boy battery for big days in the saddle. Up to 4hours of ride time. -
Shifters:
SRAM AXS Pod Bridge Ultimate
More
Shifters
SRAM AXS Pod Bridge Ultimate The AXS Pod Ultimate is SRAM's most premium pod shifter. AXS Pod Ultimate is lighter weight than Eagle Ecosystem AXS Controllers, features a completely new shape, ergonomics, and a vastly superior range of adjustability. -
Rear Derailleur:
SRAM XX Eagle AXS T-Type, 12-Speed
More
Rear Derailleur
SRAM XX Eagle AXS T-Type, 12-Speed Engineered as integrated, interdependent transmission components, the T-Type derailleur mounts around the wheel axle itself, contacting the cassette directly with a first-of-its-kind Hangerless Interface. Its game-changing Full Mount attachment method creates a far stronger connection and grips both sides of the frame. The new Transmission derailleurs feature the same intuitive pairing and set-up procedure as our Eagle AXS derailleurs. A tucked-in profile houses replaceable skid plates that enhances dependability in high-pressure racing environments. The XX Eagle Transmission derailleur features an overload clutch, accommodating common maintenance and features that real world riders really appreciate. -
Crankset:
SRAM XX Eagle DUB T-Type, 34t
More
Crankset
SRAM XX Eagle DUB T-Type, 34t With multiple World Championship medals, EWS series wins and Olympic gold medals to its name, XX Eagle cranks set the standard. The XX Eagle DUB Crank is the evolution of that standard. Carbon fiber engineered with a foam core to give both incredible strength and maximized stiffness. Now pair it with the remarkable new XX Eagle Transmission (T-Type) direct mount chainring, and the spotlight turns from its performance to its appearance, because it absolutely looks like nothing we’ve ever seen before. The XX Eagle Transmission crank also features a first-of-its-kind removable and replaceable bash guard system that riders will appreciate.
FEATURES- Carbon with foam core
- Light with maximized stiffness
- Stunning, never-before-seen look
- T-Type compatibility
- Removable bashguard
- Powermeter ready
-
Cassette:
SRAM XX Eagle T-Type XS-1297, 10-52t
More
Cassette
SRAM XX Eagle T-Type XS-1297, 10-52t The XX Eagle Transmission (T-Type) Cassette is a major reason why Eagle Transmission offers the best-ever inboard and outboard shifting performance under load. Thanks to its full X-Sync design, the harder you pedal, the better it shifts. Literally. Engineered as integrated and interdependent transmission components, the XX Eagle Transmission Cassette and derailleur contact directly, ensuring perfect alignment on every bike. From its massive 520% gear range, the 52 tooth cog steps down with improved gear progression with 44 and 38 tooth cogs in the low end (compared to the Eagle drivetrain 10-52-tooth cassette). It lasts far longer and delivers more precision with the use of less extreme chain angles throughout the entire range. Featuring a clearly marked Setup Cog, install is both simple and fool-proof. Utilizes hardened tool steel machined X-Dome design for the cluster and stamped steel 38T and 44Tcogs are pinned to the lighter weight aluminum 12th gear (Spider Cog).
FEATURES- Full X-SYNC for best-ever inboard and outboard shifting performance under load
- Optimized gear steps on low end
- 55mm chainline compatibility for more moderate chain angle, longer wear and greater precision
- Setup Cog for fool-proof set up
- Utilizes well accepted and broadly available XD driverbody
- Features X-DOME with a lighter aluminum 1st gear
-
Chain:
SRAM XX Eagle T-Type Flattop, 12-Speed
More
Chain
SRAM XX Eagle T-Type Flattop, 12-Speed The first thing to know about the XX Eagle Transmission chain is that it’s the strongest SRAM has ever made. Specifically engineered to optimize Eagle Transmission, this all-new T-Type design features a unique flat top. Not only does this shape maximize shifting performance, but it also contemporizes the look of your super bike. The chain features a hollow pin design and is finished in a long-wearing, high durability chrome.
FEATURES- Strongest SRAM chain ever. Specifically engineered for Eagle Transmission.
- Flattop profile, smooth-shift bottom profile. Ultimate shifting performance, game-changing aesthetics.
- Longer-wearing, Hard Chrome finish and hollow pins.
- Pedals: Not Included
-
Brake Levers:
SRAM Motive Ultimate
More
Brake Levers
SRAM Motive Ultimate Born from the legacy of two of the winningest brakes of all-time, SRAM Motive Ultimate matches the capabilities of modern XC-race and trail bikes. Modern stealth aesthetics pair with wireless superbikes, while titanium hardware, a signature carbon lever, and a slick finish put Ultimate on top.
A sculpted 4-piston caliper delivers tunable heavy-duty power for traction and control. Opening the aperture on what’s possible, giving you the boundless power of more confidence, and in the process redefining what’s required from a low-weight brake. Motive. New powers to go ahead. - Brake Calipers: SRAM Motive Ultimate
- Rotors: SRAM HS2 | 200mm
- Stem: 50mm Integrated Stem
- Saddle: Specialized S-Works Power Mirror with hollow Ti rails
-
Seatpost:
RockShox Reverb AXS Dropper, 34.9mm
More
Seatpost
RockShox Reverb AXS Dropper, 34.9mm RockShox' intention with Reverb™ AXS® was inventive and pure. No hoses. No routing. No energy wasted. Not a single thing in the way of the experience. They created a reliable wireless-electronic dropper post and controller that actuates with drastically less effort and zero distraction. Expanding what's possible on a bike, Reverb AXS is enabled by SRAM AXS™ technology, a new level of interaction, personalization, and connectivity across all AXS enabled components.
Features:- Effortless Electronic-Wireless actuation and infinite height adjustment with a single touch.
- Clean, simple and fast to install. No hoses to route, no fishing required.
- Updated internals for faster return speed in all conditions.
- New Vent Valve Technology, a simple and reliable built in service solution without disassembly of the seatpost.
- SRAM AXS technology, a new level of interaction, personalization, and connectivity across all AXS enabled components.
- Includes RockShox AXS handlebar controller, rechargeable SRAM battery and charger.
- System is completely waterproof to IPX7 rating.
- Hubs: Industry 9 Hydra 2
- Rims: Roval Traverse SL II,hookless carbon, 30mm inner width
-
Front Tire:
Specialized Purgatory 2.4" | Grid, Gripton® T9
More
Front Tire
Specialized Purgatory 2.4" | Grid, Gripton® T9 Meet the Purgatory. This do-it-all tread features large center square lugs that bite in soft soil, while still providing support on hard-packed ground and is equally at home on the front or back of the bike. Block-in-block knobs roll fast, adapt to terrain, and are supremely confident when pushed hard. There’s plenty of meat on the Purgatory to offer reassuring grip across a wide range of terrain.- GRID casing provides a light and supple trail construction with additional sidewall protection for exceptional durability and sidewall stability.
- High-dampening GRIPTON® T9 compound rebounds slowly to grip and stick to the ground for total traction and control.
-
Rear Tire:
Specialized Purgatory 2.4" | Grid Trail, Gripton® T9
More
Rear Tire
Specialized Purgatory 2.4" | Grid Trail, Gripton® T9 Meet the Purgatory. This do-it-all tread features large center square lugs that bite in soft soil, while still providing support on hard-packed ground and is equally at home on the front or back of the bike. Block-in-block knobs roll fast, adapt to terrain, and are supremely confident when pushed hard. There’s plenty of meat on the Purgatory to offer reassuring grip across a wide range of terrain.- GRID TRAIL casing is a step up from GRID with more reinforcement, delivering better handling at lower pressures—all while increasing pinch flat protection by 15% and puncture protection by 30%.
- High-dampening GRIPTON® T9 compound rebounds slowly to grip and stick to the ground for total traction and control.
- Warranty: Limited Lifetime
| Size | S2 | S3 | S4 | S5 | S6 |
| Rider Height | 5'2" - 5'8" | 5''5" - 5'11" | 5'8" - 6'2" | 5'10" - 6'4" | 6'2" - 6'8" |
| Reach (mm) | 420 | 450 | 475 | 500 | 525 |
| Stack (mm) | 607 | 617 | 630 | 644 | 657 |
| Effective Top Tube (mm) | 560 | 592 | 620 | 649 | 677 |
| Seat Tube (mm) | 385 | 405 | 425 | 445 | 465 |
| Head Tube Angle (°) | 65 | 65 | 65 | 65 | 65 |
| Seat Tube Angle (°) | 77 | 77 | 77 | 77 | 77 |
| Chainstay Length (mm) | 447 | 447 | 447 | 447 | 447 |
| Bottom Bracket Height (mm) | 339 | 339 | 339 | 339 | 339 |
| Bottom Bracket Drop (mm) | 36 | 36 | 36 | 36 | 36 |
| Head Tube Length (mm) | 100 | 110 | 125 | 140 | 155 |
| Wheelbase (mm) | 1181 | 1215 | 1246 | 1277 | 1309 |
| Standover Height (mm) | 765 | 771 | 771 | 778 | 778 |
| Complete Weight (lbs) | 46.65 | ||||
| Complete Weight (kg) | 21.16 | ||||
| Wheel Size | 29" | 29" | 29" | 29" | 29" |
