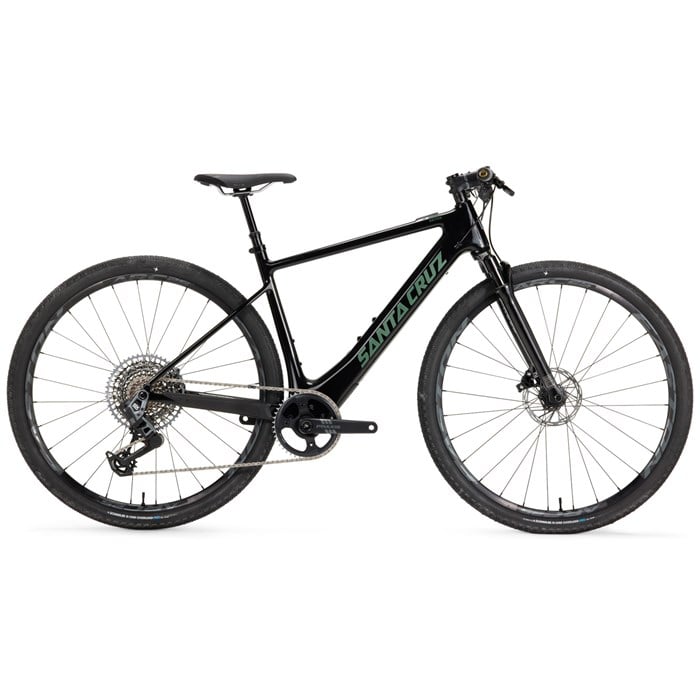

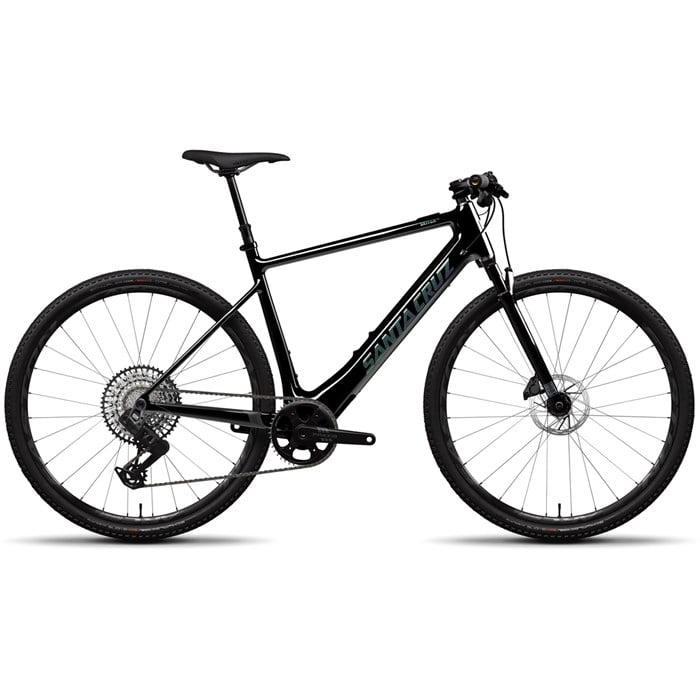

Santa Cruz Skitch 1.1 CC GX AXS Flat Bar 700c Complete eBike 2026
Model Info
Santa Cruz Skitch 1.1 CC GX AXS Flat Bar 700c Complete eBike 2026
MEMBERSHIP
Earn up to 10% back in rewards. Join Free.
EASY RETURNS
Take up to a full year to return your item! See our Return Policy.
Product Info
Sick of getting roasted by e-bikers on the commute while you sweat it out? Meet the Santa Cruz Skitch 1.1 CC GX AXS Flat Bar 700c Complete eBike. This peppy pedaler is the answer to your commute, grocery run, and just about any trip that would be a little more fun with some assistance. It's a full CC-carbon Santa Cruz gravel bike that rides like like a whippet, but hidden in that downtube and bottom bracket area is the phenomenal Fazua Ride 60 drive unit and battery. Virtually frictionless with the motor off, you can pedal it with no assist if you like, but when it's time to go ham you've got up to 430 watts to get you up to speed. This flat bar model even comes with a 40mm Rockshox Rudy fork to keep your ride calm and collected on uneven surfaces. Put the wind in your sails and say adios to the struggle, the Santa Cruz Skitch is a joy!
Product Details
Key Features
Carbon CC Frame – Santa Cruz's highest grade CC-level carbon frame is every bit as stiff and strong as their C-level frame, but weighs about 280 grams less, due to the use of lighter, stronger, and more expensive carbon fiber. Santa Cruz is also able to truly integrate shock mounts, pivot mounts, dropouts and disc brake tabs into the structure, using all uni-directional carbon plies. The shock mount isn't merely riveted or bonded on after curing, but is an integrated part of the fiber lay-up. This makes Santa Cruz's carbon frames incredibly strong and able to absorb impact better than any other frame they've tested.
Wheel Size – 700c
Fazua Ride 60 Drive Unit – 60 Nm of torque but more compact and lighter weight than full-power systems.
Fazua Energy 430Wh Battery – The Fazua Energy 430Wh battery is powerful, compact and lightweight, delivering 430Wh of power and integrating seamlessly into the frame.
Top Tube Integrated LED Display – Lights display battery charge and three ride modes.
Specs
-
Biking Type:
Gravel/Adventure, Urban/Commuter
More
Biking Type
Gravel/Adventure Gravel/Adventure bikes are versatile machines designed for exploring mixed terrain, combining elements of road and mountain bike frames for comfort and stability. They offer traction and stability on various surfaces. Whether on gravel roads, light trails, or city streets, these bikes provide a perfect balance between comfort, performance, and versatility. Urban/Commuter Urban/Commuter bikes are purpose-built for navigating city streets with comfort and practicality in mind. Featuring frames designed for easy mounting and dismounting, often made of durable steel, these bikes prioritize reliability and ease of use with components like internally geared hubs or single-speed drivetrains for low maintenance.
-
Used For:
Gravel
More
Used For
Gravel Think of gravel bikes as the SUVs of the road bike world. Designed to excel on rougher roads, gravel bikes combine drop bar efficiency with mountain bike comfort, making them ideal for a variety of two wheeled adventures. -
Suspension:
Hardtail
More
Suspension
Hardtail As the name suggests, hardtail bikes feature a rigid frame with front suspension only. This means that the rear wheel lacks any form of suspension, hence the term "hardtail."
Hardtail mountain bikes are renowned for their efficiency in transferring power from the pedals to the rear wheel, making them excellent choices for climbing and maintaining speed on smoother trails or paved surfaces.
- Gearing: 1 x 12
-
Frame Material:
Carbon
More
Frame Material
Carbon Carbon is a composite frame material. Unlike metals, carbon is composed of fibrous strands woven into a grid and bonded with epoxy. Carbon is favored by many for its lightness and stiffness but its complexity in fabrication makes it the most expensive option.
- Water Bottle Mounts: 1
-
Fork:
RockShox Rudy Base XPLR
More
Fork
RockShox Rudy Base XPLR The Rudy delivers more control, more confidence, and more fun to the emerging breed of lycra-loving, or baggy-wearing, gravel free spirits. This isn't a "shrink it" development story, Rudy was built from the ground up to match today's most capable gravel bikes. The new Rudy XPLR features Solo Air™ technology matched with a rebound-only damper. Full fender compatibility and plenty of tire clearance mean more options to explore. - Stanchion Diameter (mm): 30
- Fork Travel (mm): 40
-
Drive Unit:
Fazua Ride 60
More
Drive Unit
Fazua Ride 60 The lightweight 60Nm Fazua Ride60 drive unit weighs 4.3lb/1.96kg. The minimal drag and power to weight ratio provide the magic when not riding with power. As you begin to ride beyond the speed cutoff you're not penalized when continuing to push beyond the assistance like that of traditional eMTBs. The 430Wh battery, 60Nm torque, 250Wh continuous power, 450Wh peak power, and overall bike weight work harmoniously together. This all equates to an experience that exceeds what you might expect from its numbers. -
Battery:
Fazua Energy 430Wh
More
Battery
Fazua Energy 430Wh The Fazua Energy 430Wh battery is powerful, compact and lightweight, delivering 430Wh of power and integrating seamlessly into the frame. -
Shifters:
SRAM AXS Pod Bridge
More
Shifters
SRAM AXS Pod Bridge The AXS Pod transforms the crucial act of rider inputs into a vastly more personal experience for all of your AXS controls. -
Rear Derailleur:
SRAM GX Eagle AXS T-Type, 12-Speed
More
Rear Derailleur
SRAM GX Eagle AXS T-Type, 12-Speed The GX Eagle T-Type derailleur delivers everything a Transmission derailleur possibly can, and then some. It features a revised battery position and a reconfigured gearbox to better protect itself from impacts. To maintain crisp shifting and striking appearance throughout its entire lifespan, hard-chargers can replace both its protective skid plates and two-piece outer link, if needed, making this the most repairable derailleur we’ve ever made. It also features the first ever tool-free cage and clutch assembly – so it’s both removable and upgradable too. -
Crankset:
Praxis eTor AL
More
Crankset
Praxis eTor AL Cold Forged Alloy arm sets for many e-Bike motors. -
Cassette:
SRAM GX Eagle T-Type, 10-52t
More
Cassette
SRAM GX Eagle T-Type, 10-52t The new 10-52 Eagle cassette is for riders who prioritize all day function over anything else. With an expanded, 520-percent gear range giving riders more ability to spin and recover on the burliest climbs. Featuring FULL PIN technology that uses lightweight, precision engineered steel cogs permanently connected with high-strength stainless steel pins. An open design similar to our X-DOME cassette that aids in mud clearance, giving riders crisp shifting performance and longer component life. -
Chain:
SRAM GX Eagle T-Type Flattop, 12-Speed
More
Chain
SRAM GX Eagle T-Type Flattop, 12-Speed The GX Eagle Transmission (T-Type) chain is the strongest SRAM has ever made. Specifically engineered to optimize Eagle Transmission, this all-new T-Type design features a unique flat top. In addition to this shape maximizing shifting performance and upgrading the aesthetics of any bike, it is developed specifically for the added torque loads of E-MTB thanks to its solid pins that give it incredible strength. - Pedals: Not Included
-
Brake Levers:
SRAM Level Silver Stealth 2-Piston
More
Brake Levers
SRAM Level Silver Stealth 2-Piston Level Silver Stealth features SRAM's new stealth body to provide you with one of the lightest, sleekest brakes in the market. Featuring the power to weight performance that you expect from Level with a new lever design purpose made to create a clean, fast looking cockpit. SRAM's tool-free reach adjust is quick and easy, while Lever Pivot Bearing technologies ensure smooth, fatigue-free action. - Brake Calipers: SRAM Level Silver Stealth 2-Piston
- Rotors: SRAM Paceline, Centerlock, 160mm
- Headset: FSA IS-2/47/42 ACB
- Stem: SRAM Atmos Stem All Sizes: 80mm
- Saddle: WTB Silverado Medium, CroMo
-
Seatpost:
OneUp Dropper
More
Seatpost
OneUp Dropper Known for its no-nonsense smooth cable actuation, short overall length, and easy serviceability, the OneUp Dropper is a solid choice for dependable and customizable performance. - Hubs: DT Swiss 370
- Rims: Easton ARC Offset 25 700C
- Tires: Schwalbe G-One Overland, Pro EVO, 700x50c
- Warranty: Limited Lifetime
| Size | S | M | L | XL | XXL |
| Rider Height | 5'1" - 5'6" | 5'4" - 5'10" | 5'7" - 6'0" | 5'10" - 6'3" | 6'1" - 6'6" |
| Reach (mm) | 390 | 405 | 420 | 435 | 450 |
| Stack (mm) | 563 | 579 | 596 | 610 | 630 |
| Effective Top Tube (mm) | 551 | 571 | 591 | 610 | 630 |
| Seat Tube (mm) | 455 | 485 | 515 | 545 | 575 |
| Head Tube Angle (°) | 69 | 69 | 69 | 69 | 69 |
| Seat Tube Angle (°) | 74 | 74 | 74 | 74 | 74 |
| Bottom Bracket Height (mm) | 279 | 281 | 281 | 283 | 283 |
| Bottom Bracket Drop (mm) | 78 | 76 | 76 | 74 | 74 |
| Head Tube Length (mm) | 105 | 125 | 145 | 160 | 180 |
| Wheelbase (mm) | 1047 | 1070 | 1092 | 1112 | 1135 |
| Standover Height (mm) | 728 | 753 | 778 | 804 | 830 |
| Wheel Size | 700c | 700c | 700c | 700c | 700c |
