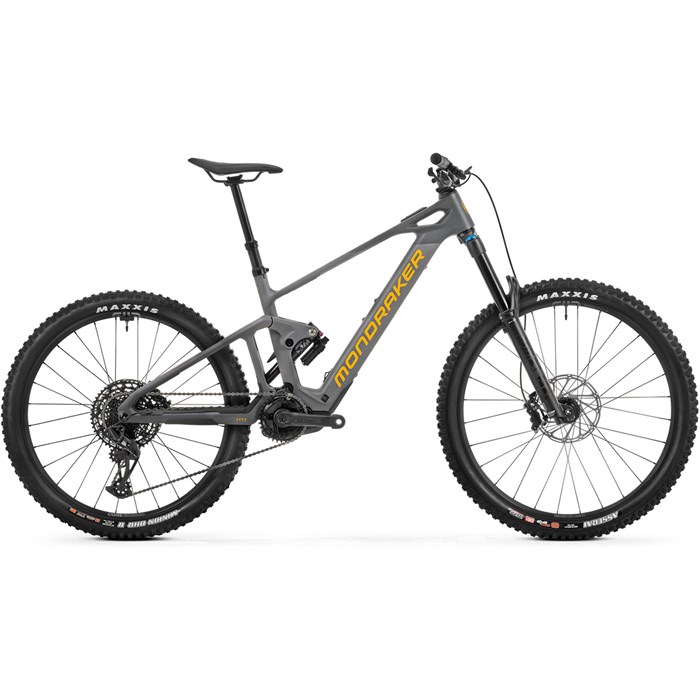

Mondraker DUNE R E-Mountain Bike 2025
sku# 281780
Model Info
Mondraker DUNE R E-Mountain Bike 2025
sku# 281780
MEMBERSHIP
Earn up to 10% back in rewards. Join Free.
EASY RETURNS
Take up to a full year to return your item! See our Return Policy.
Product Info
The Mondraker DUNE R E-Mountain Bike is what happens when a heavy-hitting e-bike goes on a diet. The lightweight Bosch Performance Line SX motor keeps things nimble and natural-feeling on climbs, while 165mm of travel and Mondraker's signature long, slack Forward Geometry mean it's totally at home charging steep, technical descents. A mullet wheel setup adds front-end stability without killing the playfulness, and the Bosch app unlocks even more performance when you're ready to dive in.
Product Details
Key Features
Stealth Air Full Carbon Frame
Travel – 170mm Front / 165mm Rear
Wheel Size – Mixed Wheel (29" Front / 27.5" Rear)
Evolved FORWARD GEOMETRY
ZERO Suspension Platform – ZERO is a virtual pivot suspension system with an exclusive dual link design. The shock floats between the two suspension links and is compressed from both ends, making the rear suspension extremely supple on small bumps and big hit capable. ZERO's main advantages are Zero power loss, Zero pedal kickback, Zero brake jack, and Zero bumps.
Specs
-
Biking Type:
Mountain
More
Biking Type
Mountain Mountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.
-
Used For:
Enduro
More
Used For
Enduro If you’re looking for maximum performance while flying down heavier trails, an enduro bike is for you. These bikes combine ample suspension travel (typically 150mm+) with descent-focused frame geometry and components that allow for reasonably efficient pedaling.
-
Suspension:
Full Suspension
More
Suspension
Full Suspension Engineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.
- Gearing: 1 x 12
-
Frame Material:
Carbon
More
Frame Material
Carbon Carbon is a composite frame material. Unlike metals, carbon is composed of fibrous strands woven into a grid and bonded with epoxy. Carbon is favored by many for its lightness and stiffness but its complexity in fabrication makes it the most expensive option.
- Water Bottle Mounts: 1
-
Fork:
RockShox ZEB Select
More
Fork
RockShox ZEB Select ZEB is a whole new breed of fork designed to challenge the limits. ZEB Select is performance-packed, featuring an updated 38mm chassis, the Charger RC damper, and the new confidence-inspiring DebonAir+ air spring technology. Podium-proven, ZEB’s the rider’s choice for the new generation of long-travel mountain machines. - Stanchion Diameter (mm): 38
- Fork Travel (mm): 170
-
Rear Shock:
RockShox Vivid
More
Rear Shock
RockShox Vivid World Cup-proven and built to charge, Vivid sets a new standard in downhill performance. The LinearXL air spring delivers a coil-like feel—supple off the top, supportive through the mid-stroke, and backed by a large bottom-out bumper—giving you unwavering consistency and predictability. Engineered to work as a system with your RockShox fork damper, the R damper’s new main piston compression tunes provide mid-stroke support. Bigger, more aggressive, and ready to push limits on enduro, E-MTB, and downhill bikes— Vivid redefines what a rear shock is capable of. - Rear Travel (mm): 165
-
Drive Unit:
Bosch Performance Line SX
More
Drive Unit
Bosch Performance Line SX The Performance Line SX is the lightest and most compact drive unit from Bosch eBike Systems When riding in a sporty style with a high cadence, it supports you disproportionately to your performance with peaks of up to 600 watts of motor power. With its sensitive and reactive response behavior, it is ideal for all those who ride in sporty style with electric support and are looking for a training effect -
Battery:
Bosch CompactTube 400Wh
More
Battery
Bosch CompactTube 400Wh Thanks to their range, long service life, intelligent battery management system and easy handling, Bosch Power Tube lithium-ion batteries are among the most modern on the market. All those decades of Bosch experience has paid off! -
Shifters:
SRAM Eagle 70 T-Type
More
Shifters
SRAM Eagle 70 T-Type The feel, look and shift quality of the Eagle 70 Shifter
allow you to ride in a whole new way. Optimized cable
pull with a revised lever position for maximum control
and new T-Type actuation, Eagle 70 is able to offer
a higher quality of shift than any previous mechanical
system. -
Rear Derailleur:
SRAM Eagle 90 T-Type, 12-Speed
More
Rear Derailleur
SRAM Eagle 90 T-Type, 12-Speed The Eagle 90 Transmission derailleur is the definitive
answer to how good a cable actuated derailleur can
be. It features an all-new T-Type cable actuation
ratio to provide the most precise and crisp shifts
every time. Utilizing the same Full Mount design
as its electronic siblings, Eagle 90 is the strongest
mechanical derailleur we have ever produced. Not
only is it robust, but the derailleur body features
replaceable outer and inner parallelogram links,
skid plate, and a tool-free threaded cage assembly,
making it the most rebuildable derailleur in the Eagle
Transmission Ecosystem. - Crankset: e*thirteen Helix eSpec, 160mm
- Cassette: SRAM XS 1270 10-52t
-
Chain:
SRAM Eagle 70 T-Type Flattop, 12-Speed
More
Chain
SRAM Eagle 70 T-Type Flattop, 12-Speed SRAM Eagle 70 T-Type Flattop, 12-Speed - Pedals: Not Included
-
Brake Levers:
SRAM Maven Base
More
Brake Levers
SRAM Maven Base Modern mountain bikes have redefined what riders are capable of, pushing the requirements for extreme duty power further than ever before. Maven is our answer to that evolution, giving you the boundless power of confidence for elevated speed and control on ever-more demanding terrain. Maven Base’s lever body houses Directlink, which translates rider input for a smooth application of power. And because of a stiff 4-bolt caliper that sheds an incredible amount of heat, that feel remains consistent, so the last corner feels like the first corner. And with so much baseline power on hand, there is more range than ever before to tune the ride qualities to exactly how you want with different pad materials, and rotor sizes. Maven Base features a Blasted Black anodized finish, and for ease of customization includes tool-free reach adjust - Brake Calipers: SRAM Maven Base
- Rotors: SRAM Centerline, 200mm
- Headset: Acros Custom ZS56/ZS56
- Stem: Onoff S6, 30mm
- Saddle: Ergon Enduro SPS20
-
Seatpost:
X-Fusion Manic Dropper
More
Seatpost
X-Fusion Manic Dropper The X-Fusion Manic Dropper elects for a simpler design. Inside you'll find a closed cartridge that is both sealed and designed to be easily removable from the rest of the post. Simple construction aside, the action of this post feels super-dooper smooth, and far silkier than any dropper. Features internal cable routing. - Hubs: e*thirteen
- Rims: e*thirteen Grappler Core
- Spokes: e*thirteen custom J-bend
-
Front Tire:
Maxxis Assegai 2.5" | 3C MaxxGrip, DH, TR
More
Front Tire
Maxxis Assegai 2.5" | 3C MaxxGrip, DH, TR Greg Minnaar’s signature tire – the Maxxis Assegai – provides tenacious, predictable grip across the entire profile no matter the lean angle. The Assegai can be used front and rear for a surefooted feel or as a front paired with a faster rolling rear tire.- 3C MaxxGrip: The stickiest, slowest rebounding rubber Maxxis offers.
- DH: Downhill casing tires are designed for extreme use in all gravity applications from downhill racing to bike park riding to free riding to long travel e-bikes. Made with two layers of durable 60 TPI casing material along with a large butyl rubber insert that extends from each bead into the sidewall. The butyl insert helps prevent pinch flats, protects the rim from impacts, and provides additional sidewall stability.
- Tubeless Ready (TR): Tubeless tires allow riders to run lower air pressures for improved traction, lower rolling resistance, and less chance of flatting.
-
Rear Tire:
Maxxis Minion DHR II 2.5" | 3C MaxxTerra, DoubleDown
More
Rear Tire
Maxxis Minion DHR II 2.5" | 3C MaxxTerra, DoubleDown With side knobs borrowed from the legendary Minion DHF, but widened to provide more support, the DHR II corners like no other. The center tread features ramped leading edges to improve acceleration and sipes to create a smooth transition when leaning the bike. Paddle-like knobs on the center tread dig in under hard braking and help keep the bike under control.- 3C MaxxTerra: A triple compound ideal for trail riding in all conditions - offers more traction than 3C MaxxSpeed, yet provides better treadwear and less rolling resistance than 3C MaxxGrip.
- DoubleDown (DD): Two layers of lightweight 120 TPI casing combined with a butyl sidewall insert creates a highly durable tire with more trail feedback than a Downhill casing tire.
- Warranty: Limited Lifetime (Frame)
| Size | S | M | L | XL |
| Rider Height | <5'5" - 5'7" | 5'6" - 5'11" | 5'9" - 6'2" | 6'1" - >6'5" |
| Reach (mm) | 445 | 465 | 485 | 505 |
| Stack (mm) | 621 | 630 | 648 | 658 |
| Effective Top Tube (mm) | 600 | 620 | 645 | 665 |
| Seat Tube (mm) | 380 | 420 | 450 | 490 |
| Head Tube Angle (°) | 64 | 64 | 64 | 64 |
| Seat Tube Angle (°) | 77.5 | 77.5 | 77.5 | 77.5 |
| Chainstay Length (mm) | 445 | 445 | 445 | 445 |
| Bottom Bracket Height (mm) | 352 | 352 | 352 | 352 |
| Bottom Bracket Drop (mm) | 21 | 21 | 21 | 21 |
| Head Tube Length (mm) | 100 | 110 | 130 | 140 |
| Wheelbase (mm) | 1232 | 1256 | 1285 | 1309 |
| Wheel Size | Mixed Wheel | Mixed Wheel | Mixed Wheel | Mixed Wheel |
