Mondraker Crafty Carbon RR E-Mountain Bike 2026
Model Info

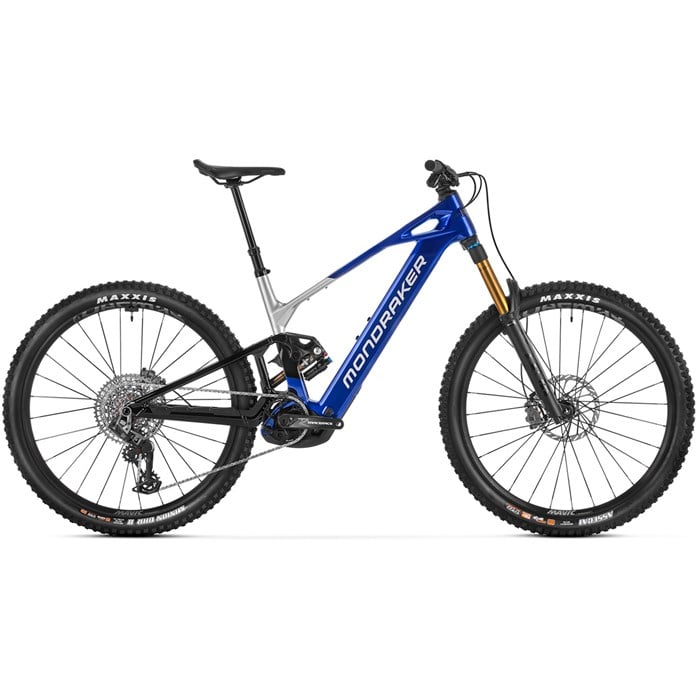

Mondraker Crafty Carbon RR E-Mountain Bike 2026
MEMBERSHIP
Earn up to 10% back in rewards. Join Free.
EASY RETURNS
Take up to a full year to return your item! See our Return Policy.
Product Info
The Mondraker Crafty Carbon RR E-Mountain Bike is built around the Bosch Performamnce Line CX motor and a 800Wh battery — a setup that makes the nastiest climbs feel manageable. The Stealth Air Carbon front triangle pairs with ZERO suspension kinematics and 150mm of travel tuned for both small bump sensitivity and high-speed composure, while a Fox 38 Factory up front adds 160mm of pure confidence on the descents. Forward Geometry with a 64.5° head angle and a two-position flip chip lets you dial geometry to terrain, and proportional chainstay lengths across five sizes ensure the bike handles consistently no matter what frame you're on.
Product Details
Key Features
Stealth Air Carbon Frame With Stealth Alloy Rear Triangle
Travel – 160mm Front / 150mm Rear
Wheel Size – 29"
Evolved FORWARD GEOMETRY
ZERO Suspension Platform – ZERO is a virtual pivot suspension system with an exclusive dual link design. The shock floats between the two suspension links and is compressed from both ends, making the rear suspension extremely supple on small bumps and big hit capable. ZERO's main advantages are Zero power loss, Zero pedal kickback, Zero brake jack, and Zero bumps.
Flip Chip – The new design is one degree slacker than the previous generation of Crafty Carbon, making it more stable at speed. As well as the new 64.5° head angle, the frame also comes with a two-position (standard and low) flip chip on the lower shock mount which means you can modify the bottom bracket height by +/- 0.5mm and the seat and head tube angles by +/-0.35° to better suit your style or terrain type.
Removeable Batteries – An integrated, removable battery ensures all the power you need on every ride. And when you get home, simply remove the battery and charge it next to your smartphone.
250Wh Range Extender – All models and frame sizes of the Crafty Carbon offer Powermore range extender compatibility. An extra 250Wh to extend your range or to conquer that last gnarly climb, it’s easily fixed to the main bottle mount on the downtube.
Specs
-
Biking Type:
Mountain
More
Biking Type
Mountain Mountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.
-
Used For:
Enduro
More
Used For
Enduro If you’re looking for maximum performance while flying down heavier trails, an enduro bike is for you. These bikes combine ample suspension travel (typically 150mm+) with descent-focused frame geometry and components that allow for reasonably efficient pedaling.
-
Suspension:
Full Suspension
More
Suspension
Full Suspension Engineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.
- Gearing: 1 x 12
-
Frame Material:
Carbon
More
Frame Material
Carbon Carbon is a composite frame material. Unlike metals, carbon is composed of fibrous strands woven into a grid and bonded with epoxy. Carbon is favored by many for its lightness and stiffness but its complexity in fabrication makes it the most expensive option.
- Water Bottle Mounts: 1
-
Fork:
Fox 38 Factory GRIP X2
More
Fork
Fox 38 Factory GRIP X2 The Fox 38 is the hard hitting, long-travel enduro specialist. When you need to go really big, reach for the 38. Optimized for 160 - 180mm of travel and packing the same revolutionary feature set as the Fox 36, the 38 redefines what you think a long travel single crown fork is capable of, and sets a new benchmark for confidence, performance and durability.
"Factory" says it all — feature-packed and designed to exceed the demands of Factory-level riders. What we sell is what they race. Factory Series products feature slippery smooth, ultra-durable Genuine Kashima Coat.
This fork features the GRIP X2 damper for maximum adjustability: high- and low-speed compression adjustment, plus high- and low-speed rebound adjustment. - Stanchion Diameter (mm): 38
- Fork Travel (mm): 160
-
Rear Shock:
Fox Float X Factory
More
Rear Shock
Fox Float X Factory From aggressive trail to enduro, the advanced damping, fade free performance and class-leading durability of Float X makes it the versatile and lightweight choice for All-Mountain riders earning their descents.
Factory Series models feature a genuine Kashima Coat finish for the ultimate friction-free performance.
Shock Adjustments - Air Spring Pressure / Open/Firm Compression Lever / Low Speed Rebound / Low Speed Compression
- Rear Travel (mm): 150
-
Drive Unit:
Bosch Performance Line CX
More
Drive Unit
Bosch Performance Line CX The new Bosch Performance CX is now 48% smaller and 25% lighter compare to the previous generation. More compact but no less powerful, it comes with a maximum power output of 75Nm and 340%. Choose between 5 assist modes or opt for the comfort of the eMTB mode which automatically adapts the assistance like an automatic gearbox does in a car. -
Battery:
Bosch PowerTube 800Wh
More
Battery
Bosch PowerTube 800Wh Thanks to their range, long service life, intelligent battery management system and easy handling, Bosch Power Tube lithium-ion batteries are among the most modern on the market. All those decades of Bosch experience has paid off! -
Shifters:
SRAM AXS Pod Bridge
More
Shifters
SRAM AXS Pod Bridge The AXS Pod transforms the crucial act of rider inputs into a vastly more personal experience for all of your AXS controls. -
Rear Derailleur:
SRAM GX Eagle AXS T-Type, 12-Speed
More
Rear Derailleur
SRAM GX Eagle AXS T-Type, 12-Speed The GX Eagle T-Type derailleur delivers everything a Transmission derailleur possibly can, and then some. It features a revised battery position and a reconfigured gearbox to better protect itself from impacts. To maintain crisp shifting and striking appearance throughout its entire lifespan, hard-chargers can replace both its protective skid plates and two-piece outer link, if needed, making this the most repairable derailleur we’ve ever made. It also features the first ever tool-free cage and clutch assembly – so it’s both removable and upgradable too. -
Crankset:
Race Face Aeffect
More
Crankset
Race Face Aeffect The new crank on the XC and trail riding scene is back with a new sleek two-tone color scheme and a 165 mm length. Aggressively attack any loamy surface with full confidence and without putting too big of a hurt on your fun funds. - Cassette: SRAM XS 1275 10-52t
-
Chain:
SRAM GX Eagle T-Type Flattop, 12-Speed
More
Chain
SRAM GX Eagle T-Type Flattop, 12-Speed The GX Eagle Transmission (T-Type) chain is the strongest SRAM has ever made. Specifically engineered to optimize Eagle Transmission, this all-new T-Type design features a unique flat top. In addition to this shape maximizing shifting performance and upgrading the aesthetics of any bike, it is developed specifically for the added torque loads of E-MTB thanks to its solid pins that give it incredible strength. - Pedals: Not Included
-
Brake Levers:
SRAM Maven Bronze
More
Brake Levers
SRAM Maven Bronze SRAM Maven Bronze features monstrous 18 and 19.5mm pistons driving 50% more power than Code. But best-in-class power means nothing unless you’re able to harness it. The Maven Bronze lever body houses Swinglink, which translates rider input for progressive power throughout the lever pull, maintaining SRAM’s signature ride feel. And because of a stiff 4-bolt caliper that sheds an incredible amount of heat, that feel remains consistent, so the last corner feels like the first corner. Maven Bronze features a Dark Polar Anodized finish, and tool-free Reach Adjust. - Brake Calipers: SRAM Maven Bronze
- Rotors: SRAM HS2, 200mm
- Headset: Acros Custom ZS56/ZS56
- Stem: Onoff S6, 30mm
- Saddle: Ergon SM-10
- Seatpost: Onoff Pija Dropper Internal, 31.6mm
- Hubs: Mavic
- Rims: Mavic E-Deemax 29"
- Spokes: Mavic J-bend
-
Front Tire:
Maxxis Assegai 2.5" | 3C MaxxGrip, EXO+, TR
More
Front Tire
Maxxis Assegai 2.5" | 3C MaxxGrip, EXO+, TR Greg Minnaar’s signature tire – the Maxxis Assegai – provides tenacious, predictable grip across the entire profile no matter the lean angle. The Assegai can be used front and rear for a surefooted feel or as a front paired with a faster rolling rear tire.- 3C MaxxGrip: The stickiest, slowest rebounding rubber Maxxis offers.
- EXO+: Durable 60 TPI casing, legendary EXO puncture protection in the sidewalls, and a small butyl insert around the bead to protect from pinch flats and help prevent rim damage.
- Tubeless Ready (TR): Tubeless tires allow riders to run lower air pressures for improved traction, lower rolling resistance, and less chance of flatting.
-
Rear Tire:
Maxxis Minion DHR II 2.5" | 3C MaxxTerra, DoubleDown
More
Rear Tire
Maxxis Minion DHR II 2.5" | 3C MaxxTerra, DoubleDown With side knobs borrowed from the legendary Minion DHF, but widened to provide more support, the DHR II corners like no other. The center tread features ramped leading edges to improve acceleration and sipes to create a smooth transition when leaning the bike. Paddle-like knobs on the center tread dig in under hard braking and help keep the bike under control.- 3C MaxxTerra: A triple compound ideal for trail riding in all conditions - offers more traction than 3C MaxxSpeed, yet provides better treadwear and less rolling resistance than 3C MaxxGrip.
- DoubleDown (DD): Two layers of lightweight 120 TPI casing combined with a butyl sidewall insert creates a highly durable tire with more trail feedback than a Downhill casing tire.
- Warranty: Limited Lifetime (Frame)
| Size | S | M | M/L | L | XL |
| Rider Height | 5'3" - 5'6" | 5'5" - 5'10" | 5'8" - 6'1" | 6' - 6'4" | 6'3" - 6'7" |
| Reach (mm) | 445 | 460 | 480 | 500 | 520 |
| Stack (mm) | 638 | 638 | 647 | 656 | 665 |
| Effective Top Tube (mm) | 581 | 596 | 618 | 640 | 662 |
| Seat Tube (mm) | 380 | 410 | 435 | 460 | 490 |
| Head Tube Angle (°) | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| Seat Tube Angle (°) | 77.95 | 77.95 | 77.95 | 77.95 | 77.95 |
| Chainstay Length (mm) | 455 | 455 | 455 | 465 | 465 |
| Bottom Bracket Height (mm) | 350 | 350 | 350 | 350 | 350 |
| Bottom Bracket Drop (mm) | 25 | 25 | 25 | 25 | 25 |
| Head Tube Length (mm) | 120 | 120 | 130 | 140 | 150 |
| Wheelbase (mm) | 1240 | 1255 | 1280 | 1314 | 1338 |
| Wheel Size | 29" | 29" | 29" | 29" | 29" |
