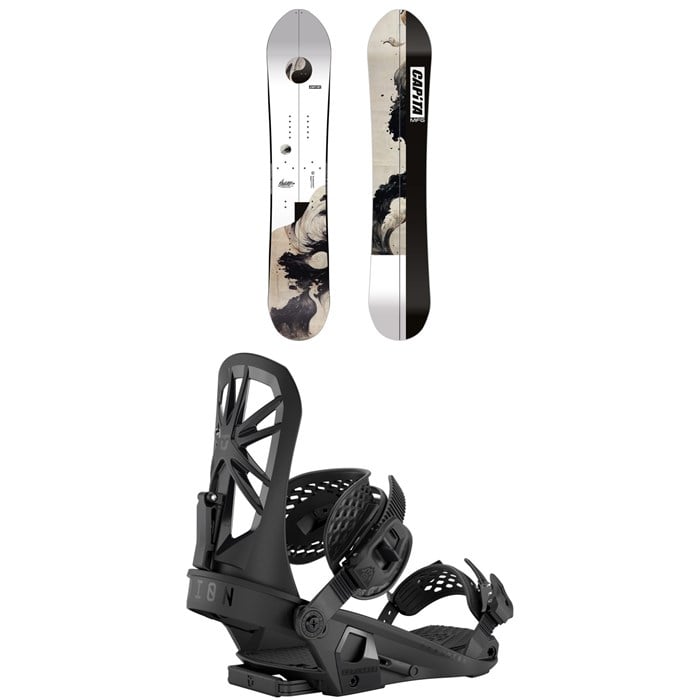

CAPiTA Navigator Split Splitboard + Union Explorer Splitboard Bindings 2026

sku# 274870
CAPiTA - CAPiTA Navigator Split Splitboard + Union Explorer Splitboard Bindings 2026CAPiTA - CAPiTA Navigator Split Splitboard + Union Explorer Splitboard Bindings 2026CAPiTA - CAPiTA Navigator Split Splitboard + Union Explorer Splitboard Bindings 2026CAPiTA - CAPiTA Navigator Split Splitboard + Union Explorer Splitboard Bindings 2026CAPiTA - CAPiTA Navigator Split Splitboard + Union Explorer Splitboard Bindings 2026CAPiTA - CAPiTA Navigator Split Splitboard + Union Explorer Splitboard Bindings 2026
Model Info

CAPiTA Navigator Split Splitboard ​+ Union Explorer Splitboard Bindings 2026

sku# 274870
Select Splitboard Size:
Please select a splitboard size
Select Splitboard Binding Color:
Please select a splitboard binding color
Select Splitboard Binding Size:
Please select a splitboard binding size

MEMBERSHIP

Earn up to 10% back in rewards. Join Free.

LOWEST PRICE GUARANTEE

Find a better price? We’ll beat it by 5%. See our Price Match Policy.

Product Info

Splitboard

CAPiTA Navigator Split Splitboard 2026

The Capita Navigator Splitboard is your backcountry compass, built to guide you through untouched terrain with confidence and control. With its Parabolic Radical Taper and lightweight Hover Core, it floats effortlessly in deep snow while staying responsive and stable on the skintrack and descent. Surfy, nimble, and purpose-built for adventure — this splitboard leads the way to lines less traveled.

Product Details

Rocker Type

Resort V2 Directional + Flat Kick TechThis revolutionary all-terrain shape provides the best of both worlds. It has a raised camber platform through the inserts to retain high-speed edge hold through variable terrain, elevated contact points to land and float in powder, and Flat Kick tip and tail arcs for faster, more aggressive transitions.

Flex

Flex Rating6 (1 Soft - 10 Stiff)

Shape

Directional 0.8" Setback

Parabolic Radical Taper

Core

3D Ascend 2 Split CorePremium weight-graded Poplar aligned with Paulownia and an ABS centerline resulting in a high-end split-specific core. This core retains the primary poppiness of Poplar while remaining lightweight due to pressure-bonded dual-species wood core strips.

Laminates

Holysheet Tri/BiThe HOLYSHEET™ fiberglass configuration features fiber weaves with a high tensile strength and low modulus of elasticity. With a higher roving count in the same weight of glass, you can have a stronger and more responsive board without adding extra weight. It features Triaxial fiberglass on top of the core and Biaxial fiberglass beneath, creating a perfectly blended ride while increasing strength and durability.

Magic Bean ResinThis advanced resin system has a bio-content of 60% renewable, agricultural raw material and is produced with no waste or greenhouse emissions. In production, it has a low-temperature requirement with a high yield output. Poppy, powerful, and extremely durable, MAGIC BEAN™ resin yields much stronger and more rigid qualities allowing a decrease in the wood core thickness. This means you get a lighter board while achieving higher energy return.

2 x 30 mm Technora Flax BoostersWith an excellent tensile strength and fatigue resistance, Technora™ is an aramid fiber that functions as a shock absorber and energy source when integrated into a snowboard construction layup. Technora™ has been interwoven with an extremely lightweight and all-natural Flax fiber to invigorate every construction combination for maximum turning and ollie power.

Base

Hyperdrive Adv XTEngineers at The MotherShip have worked tirelessly with the world's leading polyethylene running base supplier to create HYPERDRIVE™. With exceptional anti-friction properties due to high molecular mass and specialized processing aids, this sintered material has a proprietary composition and is beyond fast. Our loyal fans charge hard, and we have integrated the fastest, meanest base available. The thickness of the XT bases have been increased for enhanced durability.

Topsheet

Digital Print

Metallic Underlay

Additional Features

Included: Union Expedition Skins by Montana & Union Pro Clips and Hooks

Binding Compatibility

2x4 Inserts

Specs

  • Terrain: Splitboarding More
    Splitboarding
  • Ability Level: Intermediate-Advanced More
    Intermediate-Advanced
  • Rocker Type: Rocker/Camber/Rocker More
    Rocker/Camber/Rocker
  • Shape: Directional
  • Flex Rating: Medium More
    Medium
  • Core/Laminates: Aramid (Kevlar®), Flax, Wood
  • Warranty: 2 Years
Size 155 158 161 164
Effective Edge (mm) 1182 1195 1222 1238
Tip Width (mm) 301 305 310 315
Waist Width (mm) 252 256 260 264
Tail Width (mm) 290 293 297 301
Sidecut Radius (m) 8.0 ​/ 6.8 ​/ 8.0 8.1 ​/ 7.0 ​/ 8.1 8.3 ​/ 7.2 ​/ 8.3 8.5 ​/ 7.4 ​/ 8.5
Stance Setback (in) 0.8 0.8 0.8 0.8
Rider Weight (lbs) 130-190 150-200 160-210 170-220​+
Width Regular Regular Regular Regular
Splitboard Binding

Union Explorer Splitboard Bindings 2026

Ditch the lift lines and chase untouched lines with the Union Explorer Splitboard Bindings, built for riders ready to step into the backcountry and step up their game. With a smooth, surfy ride that feels just like your resort setup, these bindings keep it simple with a bomber pin system and minimal moving parts for maximum reliability. From first tours to big missions, the Explorers bring the stoke without the struggle.

Product Details

Tour Mode

Spring Loaded Pin SystemBy combining the standard pin system with the Split System baseplate, Union increases the amount of connection between board and binding. Just one pin changes the mode and locks it into place.

No-Nonsense Touring ModeFor touring, the binding slides into the climbing cradle and is locked into place with the pin.

Integrated Climbing Bar

Ride Mode

Ride ModeFor riding, the binding slides onto the baseplate which rotates over the center of the board. The pin then slides through the middle of the baseplate for maximum connection.

Flex Rating6/10

Baseplate

EXP2 Duraflex STThe perfect balance of flex and response for all types of riding.

Hot Press EVA Bushing

Extruded 3D Aluminum Heelcup

Straps

Exoframe 4.0 Ankle StrapsRapid response, trusted by professional snowboarders

TS 2.0 Toe Strap with Pin

Tool-less Strap Adjustments

Buckles

RatchetsMagnesium 3.0 w/ Aluminum Base

HardwareTitanium + Grade 8.8 Steel

Highback

EXP2 Duraflex Highback

Split FLAD 2.0 Forward Lean Adjust

Compatibility

Fits Standard Splitboard (Voile) Insert Pattern

Additional Features

In the BoxIncludes all Necessary Mounting hardware

Non-Stick EVA Disk Cover

Specs

  • Ability Level: Beginner-Intermediate More
    Beginner-Intermediate
  • Mounting Pucks: Yes
  • Warranty: Lifetime Warranty on Baseplates & Heelcups / 1 Year Warranty on all other binding parts
Size S M L
Weight (g) 810
