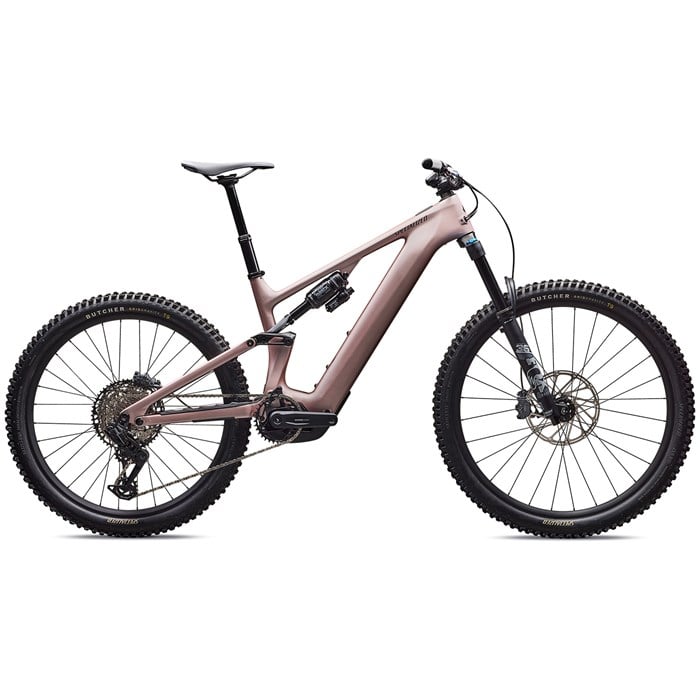

Is it a bird? Is it a plane? No, it's the all new Specialized Turbo Levo 4 Comp Carbon E-Mountain Bike. Built around the futuristic 3.1 Motor, Turbo Levo 4 is carefully engineered to deliver a smoother, more intuitive ride on technical trails with a 27% increase in peak power. Its ingenious modular battery system allows you to tailor capacity to your own needs – go big with a 280Wh range extender, or lighten the load with a smaller battery – and there's enough room leftover in the downtube for a handy SWAT storage compartment. With adjustable geometry, GENIE shock technology, and wireless SRAM S1000 Eagle T-Type drivetrain components, this bike puts you in full control of your ride.
FACT 11m Carbon Chassis
Travel – 160mm Front / 150mm Rear
Wheel Size – Mixed Wheel (29" Front / 27.5" Rear)
Specialized 3.1 Motor – With 666 Watts and 101 Nm* deployed with SuperNatural power delivery, nothing beats the power, torque, and control combination of the Specialized 3.1 Motor. Specialized engineered this otherworldly power and torque to feel SuperNatural — like an intuitive extension of you — delivering torque with precision that unlocks your ability to negotiate low-speed technical terrain with control, scale previously impossible climbs, and dominate high speeds with adaptive amplification.
Specialized GENIE Shock Technology – Patent-pending air spring technology provides the feel and control of a coil spring, better bottom-out prevention than a standard air spring, and a tunable platform for a playful feel. Extensive field testing proves that Stumpjumper 15 with GENIE delivers 57% better traction than a standard air-sprung shock because GENIE technology gives you supple, coil-like performance, which keeps the wheel in contact with the ground more than a typical air spring would.
SWAT e-MTB Downtube Storage – Flip open the Levo 4’s downtube hatch and behold the Wattage Cottage; roomy enough for the stock 840Wh battery and SWAT storage. Specialized pioneered internal downtube storage, and now we bring it to you first on an e-MTB. Secured above the battery magnetically, the SWAT bag holds trailside essentials like a tube and CO2. Swap in the smaller aftermarket 600Wh battery and boom, extra space for a jacket or other gear. No bike frame has ever packed so much storage. Clean, clever, and ready to roll.
Adjustable Geometry – The Levo 4 geometry delivers an exceptional ride right out of the box, combining big-bike capability with nimble manners in tight sections. Riders who love to fine-tune can easily personalize their geometry.
Modular Battery System – open the downtube Wattage Cottage and unlock a modular battery system that lets you go big or go nimble. The stock 840Wh battery delivers serious range. Need more? Slap on the aftermarket 280Wh Range Extender for an unmatched 1,120Wh of all-day adventure battery capacity. Prefer agility? The aftermarket 600Wh battery keeps it light and lively. The side-hatch makes swaps a breeze, and with all batteries passing IP67 standards, your power is “waterproof”.
Size | S1 | S2 | S3 | S4 | S5 | S6 |
Rider Height | 5'2" - 5'8" | 5''5" - 5'11" | 5'8" - 6'2" | 5'10" - 6'4" | 6'2" - 6'8" | |
Reach (mm) | 435 | 455 | 480 | 505 | 535 | |
Stack (mm) | 618 | 626 | 638 | 652 | 667 | |
Effective Top Tube (mm) | 579 | 599 | 627 | 655 | 689 | |
Seat Tube (mm) | 390 | 405 | 425 | 445 | 465 | |
Head Tube Angle (°) | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 | |
Seat Tube Angle (°) | 77 | 77 | 77 | 77 | 77 | |
Chainstay Length (mm) | 435 | 435 | 435 | 435 | 435 | |
Bottom Bracket Height (mm) | 350 | 350 | 350 | 350 | 350 | |
Bottom Bracket Drop (mm) | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 | |
Head Tube Length (mm) | 95 | 103 | 117 | 132 | 149 | |
Wheelbase (mm) | 1200 | 1223 | 1254 | 1286 | 1323 | |
Standover Height (mm) | 753 | 754 | 753 | 758 | 761 | |
Complete Weight (lbs) | 53.81 | |||||
Complete Weight (kg) | 24.41 | |||||
Wheel Size | Mixed Wheel | Mixed Wheel | Mixed Wheel | Mixed Wheel | Mixed Wheel |
