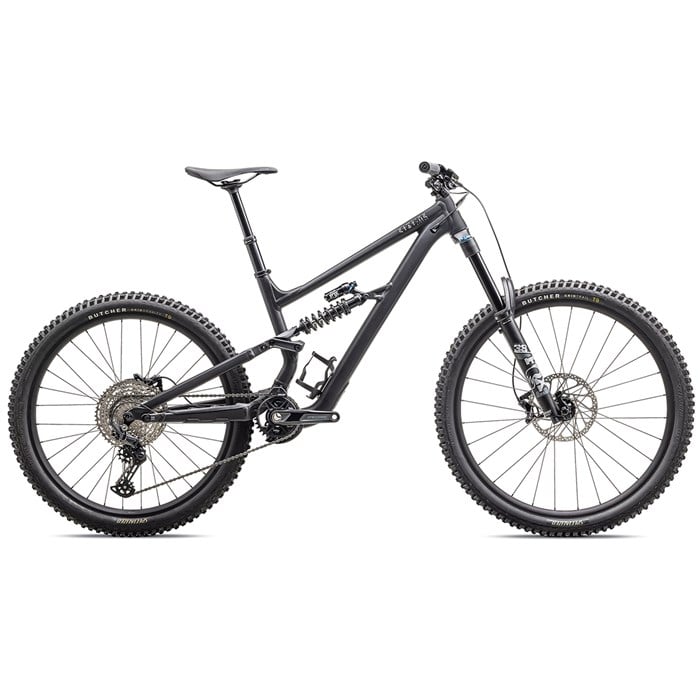

Specialized Status 2 170 Complete Mountain Bike 2025
sku# 255474
Model Info
MEMBERSHIP
Earn up to 10% back in rewards. Join Free.
Product Info
The Specialized Status 2 170 Complete Mountain Bike is a full-send machine built for big terrain, big hits, and even bigger grins. With 170mm of travel, mixed wheel sizing for playful handling, and a bombproof alloy frame, it's ready to smash laps at the bike park or go full throttle on rowdy enduro lines. Fast, fun, and unapologetically aggressive—this bike doesn’t ask permission, it just goes.
Product Details
Key Features
M5 Alloy Chassis – 100% Redesigned durable alloy chassis.
Travel – Travel - 170mm Front / 170mm Rear
Wheel Size – Mixed Wheel (29" Front / 27.5" Rear)
Ride Dynamics Tuned – Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from the Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly.
Horst Link Geometry Adjust Flip Chip – Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frame’s geometry to their desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.
Internal Cable Routing with External Rear Brake Option
SRAM UDH Compatible
Specs
-
Biking Type:
Mountain
More
Biking Type
Mountain Mountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.
-
Used For:
Trail, Downhill
More
Used For
Trail Trail bikes are the quintessential “mountain bikes.” If you’re heading into the woods expecting to do it all on two wheels – climbing, technical sections, AND fun descents – you’re looking for a trail bike. Downhill For bike park days and shuttle laps, there’s nothing like a downhill (DH) bike. Designed to tackle the roughest trails at high speeds, these bikes have long suspension travel (typically 170mm+), huge brakes, and unreal descending capabilities. DH bikes are not as suitable for tight trails or climbing.
-
Suspension:
Full Suspension
More
Suspension
Full Suspension Engineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.
-
Frame Material:
Aluminum Alloy
More
Frame Material
Aluminum Alloy Aluminum is the second lightest material per cubic inch, after carbon, but it is significantly more affordable. It offers versatility, strength, and durability that works well in all trail disciplines.
- Gearing: 1 x 12
- Water Bottle Mounts: 2
-
Fork:
Fox 38 Rhythm
More
Fork
Fox 38 Rhythm The Fox 38 is the hard hitting, long-travel enduro specialist. When you need to go really big, reach for the 38. Optimized for 160 - 180mm of travel and packing the same revolutionary feature set as the Fox 36, the 38 redefines what you think a long travel single crown fork is capable of, and sets a new benchmark for confidence, performance and durability.
Rhythm Series forks retain all the same features as Performance Series except they feature 6000 series aluminum upper tubes and two-position GRIP sweep with infinite adjust instead of three-position GRIP with detents. - Stanchion Diameter (mm): 38
- Fork Travel (mm): 170
-
Rear Shock:
Fox DHX Factory Coil
More
Rear Shock
Fox DHX Factory Coil Answering the prayers of riders seeking the ultimate in plush suspension, the DHX brings coil-sprung, magic-carpet, trail smoothing performance in a wide range of configurations to the trails and beyond. - Rear Travel (mm): 230
-
Shifters:
Shimano Deore SL-M6100
More
Shifters
Shimano Deore SL-M6100 With quick lever access and a light, responsive lever action, Shimano's Rapidfire Plus Deore shift lever delivers smooth control out on the trail. -
Rear Derailleur:
Shimano Deore M6100, 12-Speed
More
Rear Derailleur
Shimano Deore M6100, 12-Speed The Shimano Deore M6100 rear derailleurs deliver advanced shifting performance with decreased tension in the low gear position. Larger 13T pulleys increase efficiency and chain management while compatibility with Shimano's 12-speed cassettes boosts range. - Crankset: Shimano Deore M6120, 32t
-
Cassette:
Shimano Deore M6100, 10-51t
More
Cassette
Shimano Deore M6100, 10-51t With its Beam Spider construction, the Shimano Deore M6100 12-speed cassette shaves weight while increasing Shimano's MTB gearing range another gear. Using Shimano's new Micro Spline freehub body and HYPERGLIDE+ tooth profile, the 10-51T cassette delivers advanced shifting performance. -
Chain:
Shimano Deore M6100, 12-Speed
More
Chain
Shimano Deore M6100, 12-Speed The M6100 chain provides smooth shifting and enhanced chain retention thanks to an extended portion of the inner plate. The chain features Quick-Link assembly and is optimized for HYPERGLIDE+ cassettes and Dynamic Chain Engagement+ chainrings. - Pedals: Not Included
- Brake Levers: TRP Trail EVO
- Brake Calipers: TRP Trail EVO, 4 Piston
- Rotors: TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm
- Stem: Alloy Trail Stem, 35mm bar bore
- Saddle: Bridge Comp, Hollow Cr-mo rails, 143mm
-
Seatpost:
X-Fusion Manic Dropper
More
Seatpost
X-Fusion Manic Dropper The X-Fusion Manic Dropper elects for a simpler design. Inside you'll find a closed cartridge that is both sealed and designed to be easily removable from the rest of the post. Simple construction aside, the action of this post feels super-dooper smooth, and far silkier than any dropper. Features internal cable routing. -
Wheelset:
Specialized Alloy, 30mm
More
Wheelset
Specialized Alloy, 30mm At 30mm wide, these hookless alloy wheels are the perfect width for aggressive trail riding. They have sealed cartridge hubs with 32 spokes front and rear, built for light weight and very high strength. - Hubs: Front: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h | Rear: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
- Rims: Specialized, hookless alloy, 30mm inner width, tubeless ready
- Spokes: DT Swiss Industry
-
Front Tire:
Specialized Butcher 2.3" | Grid Trail, Gripton® T9, 2Bliss Ready
More
Front Tire
Specialized Butcher 2.3" | Grid Trail, Gripton® T9, 2Bliss Ready The Butcher GRID TRAIL 2Bliss Ready T9 features a World-Cup proven aggressive tread design to bite and grip in any condition. Ramped and siped, the center tread blocks provide maximum traction and accurate steering. The sawtooth faced shoulder knobs offer a continuous biting edge for railing through corners.- GRID TRAIL casing is a step up from GRID with more reinforcement, delivering better handling at lower pressures—all while increasing pinch flat protection by 15% and puncture protection by 30%.
- High-dampening GRIPTON® T9 compound rebounds slowly to grip and stick to the ground for total traction and control.
-
Rear Tire:
Specialized Butcher 2.3" | Grid Trail, Gripton® T9, 2Bliss Ready
More
Rear Tire
Specialized Butcher 2.3" | Grid Trail, Gripton® T9, 2Bliss Ready The Butcher GRID TRAIL 2Bliss Ready T9 features a World-Cup proven aggressive tread design to bite and grip in any condition. Ramped and siped, the center tread blocks provide maximum traction and accurate steering. The sawtooth faced shoulder knobs offer a continuous biting edge for railing through corners.- GRID TRAIL casing is a step up from GRID with more reinforcement, delivering better handling at lower pressures—all while increasing pinch flat protection by 15% and puncture protection by 30%.
- High-dampening GRIPTON® T9 compound rebounds slowly to grip and stick to the ground for total traction and control.
- Warranty: Limited Lifetime
| Size | S1 | S2 | S3 | S4 | S5 |
| Rider Height | 4'11" - 5'3" | 5'2" - 5'8" | 5'5" - 5'11" | 5'8" - 6'2" | 5'10"+ |
| Reach (mm) | 420 | 445 | 470 | 495 | 520 |
| Stack (mm) | 620 | 625 | 634 | 643 | 652 |
| Effective Top Tube (mm) | 554 | 595 | 635 | 676 | 716 |
| Seat Tube (mm) | 390 | 400 | 420 | 440 | 465 |
| Head Tube Angle (°) | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 |
| Seat Tube Angle (°) | 77 | 77 | 77 | 77 | 77 |
| Chainstay Length (mm) | 428 | 428 | 428 | 433 | 433 |
| Bottom Bracket Height (mm) | 350 | 350 | 350 | 350 | 350 |
| Bottom Bracket Drop (mm) | 34 | 34 | 34 | 34 | 34 |
| Head Tube Length (mm) | 95 | 100 | 110 | 120 | 130 |
| Wheelbase (mm) | 1193 | 1221 | 1250 | 1285 | 1314 |
| Standover Height (mm) | 735 | 735 | 742 | 748 | 752 |
| Complete Weight (lbs) | 34.31 | ||||
| Complete Weight (kg) | 15.56 | ||||
| Wheel Size | Mixed Wheel | Mixed Wheel | Mixed Wheel | Mixed Wheel |
