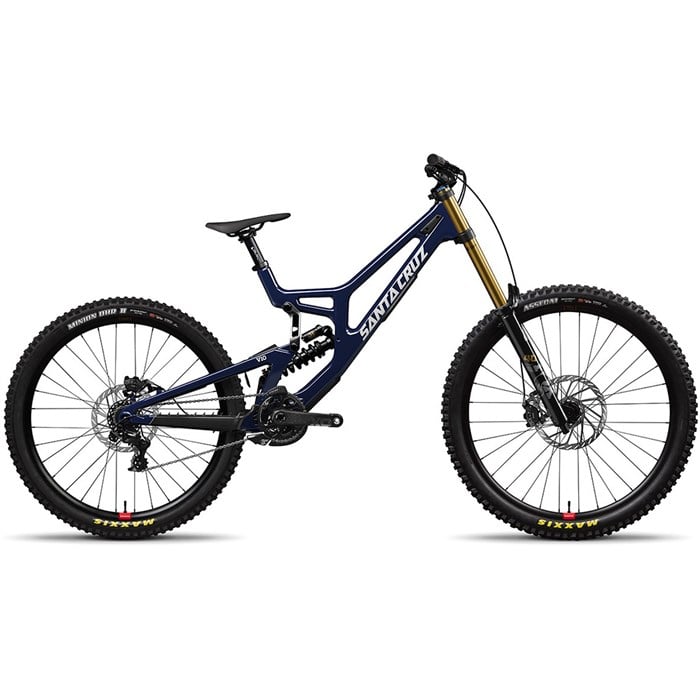

Santa Cruz V10 8 CC DH X01 Complete Mountain Bike 2027
sku# 280826
Model Info
Santa Cruz V10 8 CC DH X01 Complete Mountain Bike 2027
sku# 280826
MEMBERSHIP
Earn up to 10% back in rewards. Join Free.
-
-
Same Model, Different Year
Product Info
The Santa Cruz V10 8 CC DH X01 Complete Mountain Bike brings Syndicate-level performance to riders who spend Sunday afternoons chasing hero lines or hunting the perfect bike park flow. Fully refined rather than redefined, this is for those who understand that downhill bikes deliver a specific kind of thrill and abuse-handling capability that nothing else can match, lap after lap, day after day, with the kind of reliability and performance that makes every run feel dialed.
Product Details
Key Features
Carbon CC Frame – Santa Cruz's highest level of carbon fiber frame construction, CC carbon is not only extremely lightweight and strong, but it comes with a lifetime warranty. The durability, feel, and performance of carbon is unmatched in the mountain bike world, and Santa Cruz are at the top of the game.
Travel – 200mm Front / 208mm Rear
Wheel Size – Mixed Wheel (29" Front / 27.5" Rear)
Reach Adjust Headset Cups – The headset cups offer three positions (-8mm, 0mm, +8mm) to fine-tune the reach of the bike, allowing riders to customize the cockpit fit. It's a valuable addition for riders who want to optimize the bike's fit and performance on the DH track.
Rear Axle Flip Chip – This 3-position chip (+5mm / 0 / -5mm) allows a racer to tune fore/aft weight balance.
Lower Link Flip Chip – This 3-position adjustment fine-tunes BB height and head tube angle for balancing stability across different courses.
Specs
-
Biking Type:
Mountain
More
Biking Type
Mountain Mountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.
-
Used For:
Downhill
More
Used For
Downhill For bike park days and shuttle laps, there’s nothing like a downhill (DH) bike. Designed to tackle the roughest trails at high speeds, these bikes have long suspension travel (typically 170mm+), huge brakes, and unreal descending capabilities. DH bikes are not as suitable for tight trails or climbing.
-
Suspension:
Full Suspension
More
Suspension
Full Suspension Engineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.
-
Frame Material:
Carbon
More
Frame Material
Carbon Carbon is a composite frame material. Unlike metals, carbon is composed of fibrous strands woven into a grid and bonded with epoxy. Carbon is favored by many for its lightness and stiffness but its complexity in fabrication makes it the most expensive option.
- Gearing: 1 x 11
- Water Bottle Mounts: 0
-
Fork:
Fox 40 Factory
More
Fork
Fox 40 Factory The Fox 40 is the definitive DH race fork, target locked on the top step of the podium and developed in the crucible of World Cup competition.
“Factory” says it all – feature-packed and designed to exceed the demands of Fox's Factory-level riders. What they sell is what they race. Factory Series products feature slippery smooth, ultra-durable Genuine Kashima Coat. - Stanchion Diameter (mm): 40
- Fork Travel (mm): 200
-
Rear Shock:
Fox DHX2 Factory Coil
More
Rear Shock
Fox DHX2 Factory Coil Nothing sticks to the ground quite like a coil shock. The DHX2 takes that sensation and buttresses it with sophisticated progressive damping, a massive overall tuning range, and super low-friction internals in order to capitalize on the full race-spec magic carpet experience. - Rear Travel (mm): 208
-
Shifters:
SRAM X01 Eagle DH
More
Shifters
SRAM X01 Eagle DH Harnessing SRAM’s 1x™ X-ACTUATION™ technology, the X01® DH trigger shifter delivers precise and dependable 7-speed performance. With ZERO LOSS™, the cable engages instantly so you shift faster. And with multi-adjustable triggers, you shift from whatever position fits perfectly with the way your ride. The shifter’s aluminum cover and adjustable forged aluminum pull lever bring the strength and durability you need to conquer the toughest terrain. -
Rear Derailleur:
SRAM X01 DH, 7-Speed
More
Rear Derailleur
SRAM X01 DH, 7-Speed Engineered to maintain consistent chain gap across all seven gears, X-HORIZON™ delivers faster shifting and reduced shift force while eliminating vertical movement and ghost shifting. And with the Type-3 ROLLER BEARING CLUTCH™, you get the very best in chain management. It's quiet, consistent and long-lasting - a purpose-built workhorse for the parks and tracks.
-
Crankset:
SRAM X01 DH DUB, 36t
More
Crankset
SRAM X01 DH DUB, 36t The X01 DH crankset with X-SYNC technology is engineered for ultimate DH performance in the most aggressive terrain. The carbon crank combines stiffness and strength with lightest-in-class weight of under 800 grams. Proven in World Cup and World Championship racing, it’s the crankset made for relentless downhill rides.
FEATURES- Carbon DH racing crank
- CNC machined 7075, two-tone anodized X-SYNC™ chainring, 94 BCD —an integral component of the SRAM 1x™ drivetrain
- X-SYNC™ technology compatible with SRAM 1x™ 7- and 10-speed DH drivetrains
- X-SYNC™ tall, square tooth design provides maximum chain control
- Sharp, narrow tooth profile and rounded chamfer edges help manage a deflected chain
- Mud-clearing recesses for the inner chain links and rollers
- Lightest in class carbon construction
- High strength alloy pedal lug
- Cassette: SRAM X01 DH, 11-25t
-
Chain:
SRAM PC-1170, 11-Speed
More
Chain
SRAM PC-1170, 11-Speed The SRAM PC-1170 chain features more heavily chamfered outer plates for improved shifting and quieter running. The chrome hardened pin construction provides longer chain life.
FEATURES- 11-speed compatibility
- PowerLock® Technology
- Bottom Bracket: SRAM DUB 83mm
- Pedals: Not Included
-
Brake Levers:
SRAM Maven Silver
More
Brake Levers
SRAM Maven Silver SRAM Maven Silver features monstrous 18 and 19.5mm pistons driving 50% more power than Code. But best-in-class power means nothing unless you’re able to harness it. The Maven Silver lever body houses Swinglink, which translates rider input for progressive power throughout the lever pull, maintaining SRAM’s signature ride feel. And because of a stiff 4-bolt caliper that sheds an incredible amount of heat, that feel remains consistent, so the last corner feels like the first corner. Maven Silver features a bold black anodized finish with stainless hardware. And for unrivaled ease of customization, features tool-free Reach and Contact Point Adjust. - Brake Calipers: SRAM Maven Silver
- Rotors: SRAM HS2, 220mm Front / 200mm Rear
- Headset: Cane Creek 50 IS41
- Stem: OneUp Direct Mount Stem
- Saddle: Fizik Alpaca Gravita X5 Saddle
- Seatpost: Burgtec Aluminum Post, 31.6
- Hubs: Industry Nine 1/1
- Rims: Reserve 30|HD AL 6069 or Raceface ARC 30 HD
- Spokes: 30
- Tires: Maxxis Minion DHR II
-
Front Tire:
Maxxis Minion DHR II 2.5" | 3C MaxxGrip, DH
More
Front Tire
Maxxis Minion DHR II 2.5" | 3C MaxxGrip, DH With side knobs borrowed from the legendary Minion DHF, but widened to provide more support, the DHR II corners like no other. The center tread features ramped leading edges to improve acceleration and sipes to create a smooth transition when leaning the bike. Paddle-like knobs on the center tread dig in under hard braking and help keep the bike under control.- 3C MaxxGrip: The stickiest, slowest rebounding rubber Maxxis offers.
- DH: Downhill casing tires are designed for extreme use in all gravity applications from downhill racing to bike park riding to free riding to long travel e-bikes. Made with two layers of durable 60 TPI casing material along with a large butyl rubber insert that extends from each bead into the sidewall. The butyl insert helps prevent pinch flats, protects the rim from impacts, and provides additional sidewall stability.
-
Rear Tire:
Maxxis Minion DHR II 2.5" | 3C MaxxGrip, DH
More
Rear Tire
Maxxis Minion DHR II 2.5" | 3C MaxxGrip, DH With side knobs borrowed from the legendary Minion DHF, but widened to provide more support, the DHR II corners like no other. The center tread features ramped leading edges to improve acceleration and sipes to create a smooth transition when leaning the bike. Paddle-like knobs on the center tread dig in under hard braking and help keep the bike under control.- 3C MaxxGrip: The stickiest, slowest rebounding rubber Maxxis offers.
- DH: Downhill casing tires are designed for extreme use in all gravity applications from downhill racing to bike park riding to free riding to long travel e-bikes. Made with two layers of durable 60 TPI casing material along with a large butyl rubber insert that extends from each bead into the sidewall. The butyl insert helps prevent pinch flats, protects the rim from impacts, and provides additional sidewall stability.
- Warranty: Limited Lifetime (Frame and Bearings)
| Size | S | M | L | XL |
| Rider Height | 5'1" - 5'6" | 5'5" - 5'9" | 5'8" - 6'1" | 6' - 6'5" |
| Reach (mm) | 412 | 447 | 467 | 492 |
| Stack (mm) | 624 | 633 | 637 | 642 |
| Seat Tube (mm) | 435 | 445 | 455 | 465 |
| Head Tube Angle (°) | 62.9 | 62.9 | 62.9 | 62.9 |
| Seat Tube Angle (°) | 77.9 | 77.4 | 77.3 | 77 |
| Chainstay Length (mm) | 785 | 825 | 847 | 874 |
| Bottom Bracket Height (mm) | 356 | 356 | 356 | 356 |
| Head Tube Length (mm) | 100 | 110 | 115 | 120 |
| Wheelbase (mm) | 1230 | 1275 | 1302 | 1334 |
| Standover Height (mm) | 729 | 730 | 731 | 731 |
| Complete Weight (lbs) | 35.6 | |||
| Wheel Size | Mixed Wheel | Mixed Wheel | Mixed Wheel | Mixed Wheel |
