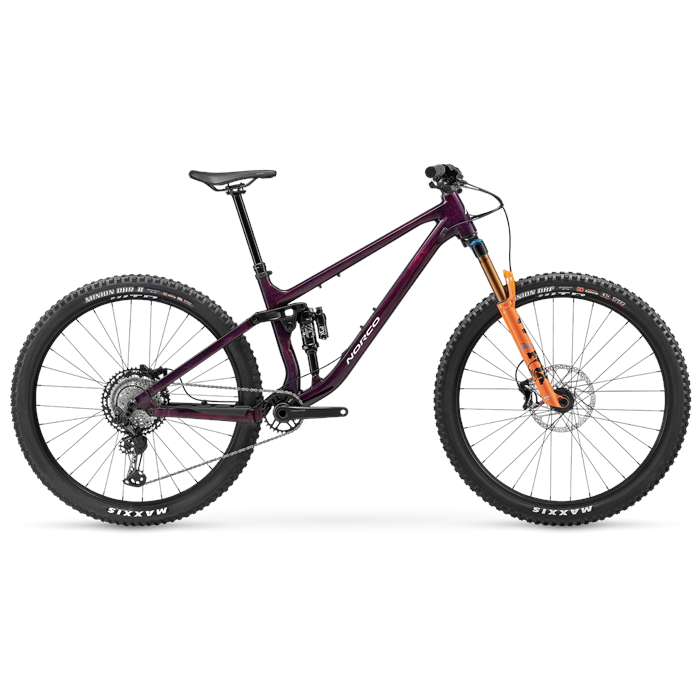

Norco Fluid FS A1 Complete Mountain Bike 2025
sku# 277421
Model Info
MEMBERSHIP
Earn up to 10% back in rewards. Join Free.
Product Info
The Norco Fluid FS A1 Complete Mountain Bike is a versatile trail bike for every ride and every rider. Its lightweight aluminum frame offers a lively feel on the trail, while the 130mm rear travel and 140mm fork suspension provide a comfortable and capable ride over techy terrain. Norco's Ride Aligned design ensures optimal geometry and setup for every rider and the efficient pedaling geometry excels on the climb as much as it does on the descent, making the Fluid the perfect bike for riders looking to do it all, while the Shimano XT drivetrain components ensure clean, crisp shifting no matter what.
Product Details
Key Features
6061 Alloy Frame
Wheel Size – 29"
Travel – 140mm Front / 130mm Rear
Ride Aligned – Ride Aligned is a bike setup guide that provides personalized settings tailored specifically for you. Your height, weight, body proportions, and the trails you ride are all taken into account to provide you with an accurate baseline that you can adjust as you ride.
Specs
-
Biking Type:
Mountain
More
Biking Type
Mountain Mountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.
-
Used For:
Trail
More
Used For
Trail Trail bikes are the quintessential “mountain bikes.” If you’re heading into the woods expecting to do it all on two wheels – climbing, technical sections, AND fun descents – you’re looking for a trail bike.
-
Suspension:
Full Suspension
More
Suspension
Full Suspension Engineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.
-
Frame Material:
Aluminum Alloy
More
Frame Material
Aluminum Alloy Aluminum is the second lightest material per cubic inch, after carbon, but it is significantly more affordable. It offers versatility, strength, and durability that works well in all trail disciplines.
- Gearing: 1 x 12
- Water Bottle Mounts: 1
-
Fork:
Fox 34 Factory GRIP2
More
Fork
Fox 34 Factory GRIP2 The Fox 34 is the hard charging, do-it-all trail fork. Smoother, lighter, more tunable, and more capable than ever before; when it comes to a do-it-all trail fork the 34 is in a class of its own.
“Factory” says it all – feature-packed and designed to exceed the demands of Fox's Factory-level riders. What they sell is what they race. Factory Series products feature slippery smooth, ultra-durable Genuine Kashima Coat. This fork also features a GRIP2 damper for maximum adjustment range and performance. - Stanchion Diameter (mm): 34
- Fork Travel (mm): 140
-
Rear Shock:
Fox Float X Performance Elite
More
Rear Shock
Fox Float X Performance Elite From aggressive trail to enduro, the advanced damping, fade free performance and class-leading durability of Float X makes it the versatile and lightweight choice for All-Mountain riders earning their descents.
Performance Elite shocks have all the same internals as Fox Factory models, just without the Kashima coating. Simply put, this is a highly tuneable and smooth shock made for aggressive trail riding.
Shock Adjustments - Air Spring Pressure / Open/Firm Compression Lever / Low Speed Rebound / Low Speed Compression - Rear Travel (mm): 130
-
Shifters:
Shimano XT SL-M8100
More
Shifters
Shimano XT SL-M8100 Shimano's Rapidfire Plus Deore XT shift lever delivers light and responsive front shifting for improved control out on the trail. -
Rear Derailleur:
Shimano XT M8100, 12-Speed
More
Rear Derailleur
Shimano XT M8100, 12-Speed The Shimano XT M8100 series of derailleurs brings a new level of drivetrain silence thank to decreased tension in the low gear position and an added bumper on the pulley cage. Larger 13T pulleys increase efficiency and chain management while compatibility with Shimano's 12-speed cassettes boost range. -
Crankset:
Praxis Cadet, 30t
More
Crankset
Praxis Cadet, 30t Updated arm shaping and spacing, the new second generation Cadet is perfect for all types of XC and trail riding. With forged-aluminum arms, the Cadet packs in performance aimed at value-driven XC/Trail rider. -
Cassette:
Shimano XT M8100, 10-51t
More
Cassette
Shimano XT M8100, 10-51t With its Beam Spider construction, the Deore XT M8100 cassette shaves weight while increasing Shimano's MTB gearing range another gear. Using a Micro Spline freehub body and HYPERGLIDE+ tooth profile, these 10-45 and 10-51T cassettes deliver advanced shifting performance.
-
Chain:
Shimano XT M8100, 12-Speed
More
Chain
Shimano XT M8100, 12-Speed The M8100 chain provides enhanced chain retention thanks to an extended portion of the inner plate. The chain features quick-link assembly and SIL-TEC treatment for extended offroad durability. - Bottom Bracket: Praxis M24, BSA Threaded
- Pedals: Not Included
- Brake Levers: TRP Trail EVO
- Brake Calipers: TRP Trail EVO, 4 Piston
- Rotors: TRP TR203-29 | 203mm Front, 180mm Rear
- Headset: Sealed Bearing, Tapered
- Stem: 6061 Alloy, 40mm
- Saddle: SDG Bel Air V3 Lux Alloy
- Seatpost: TranzX | 34.9mm | 1x Lever
- Hubs: Beaer Pawls Sealed Bearing
- Rims: WTB ST Light, 32H
-
Front Tire:
Continental Kryptotal 2.4" | Trail
More
Front Tire
Continental Kryptotal 2.4" | Trail This all round tire balances stability of grip, traction for braking, and rolling resistance. Ideal for mixed terrain conditions for you to push your limits in trail, enduro or downhill gravity riding. -
Rear Tire:
Continental Xynotal 2.4" | Trail
More
Rear Tire
Continental Xynotal 2.4" | Trail With low rolling resistance and contact edges for improved traction and braking, you can enjoy a fast gravity ride with the confidence of continuous grip when you need it most. Perfect for hardpack, rocky surfaces. - Warranty: Limited Lifetime
| Size | S | M | L | XL | XXL |
| Rider Height | 5'1" - 5'5" | 5'5" - 5'9" | 5'8" - 6'0" | 5'11" - 6'3" | 6'3" - 6'7" |
| Reach (mm) | 420 | 450 | 480 | 510 | 540 |
| Stack (mm) | 617 | 626 | 635 | 644 | 653 |
| Effective Top Tube (mm) | 574 | 602 | 630 | 659 | 687 |
| Seat Tube (mm) | 360 | 390 | 410 | 460 | 510 |
| Head Tube Angle (°) | 65 | 65 | 65 | 65 | 65 |
| Seat Tube Angle (°) | 76 | 76.3 | 76.7 | 77 | 77.3 |
| Chainstay Length (mm) | 425 | 430 | 435 | 440 | 445 |
| Bottom Bracket Height (mm) | 348 | 348 | 348 | 348 | 348 |
| Bottom Bracket Drop (mm) | 30 | 30 | 30 | 30 | 30 |
| Head Tube Length (mm) | 110 | 120 | 130 | 140 | 150 |
| Wheelbase (mm) | 1166 | 1205 | 1245 | 1284 | 1323 |
| Standover Height (mm) | 678 | 690 | 699 | 736 | 767 |
| Wheel Size | 29" | 29" | 29" | 29" | 29" |
