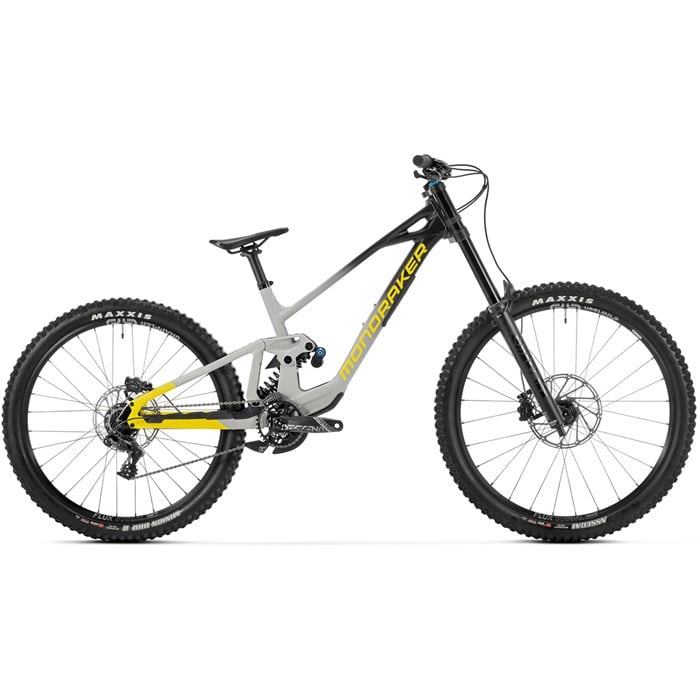

Mondraker Summum R Mullet Complete Mountain Bike 2026
sku# 285686
Model Info
Mondraker Summum R Mullet Complete Mountain Bike 2026
sku# 285686
MEMBERSHIP
Earn up to 10% back in rewards. Join Free.
Product Info
The Mondraker Summum R Mullet Complete Mountain Bike is a full-send downhill race bike, developed alongside Mondraker's World Cup DH team and built to handle whatever you can throw at it. With 200mm of travel, DH-specific Forward Geometry, and a mullet wheel setup that adds front-end stability without sacrificing agility, this thing is fast, planted, and deeply confidence-inspiring when the trail gets rowdy. Twenty-seven possible geometry configurations mean you can dial it in for any course. Get busy tinkering, and then get busy riding.
Product Details
Key Features
Summum MX 6061 Alloy Stealth Evo Frame
Travel – 203mm Front / 200mm Rear
Wheel Size – Mixed Wheel (29" Front / 27.5" Rear)
DH-Specific Forward Geometry – Longer reachs, slacker head tube angles… directly inherited from World Cup racing. Key refinements that you will benefit from when you put the bike to the test.
27 Adjustments – The new Summum offers dedicated, race-ready geometry right out of the box. And for skilled riders looking to further tune the bike’s geometry or adapt the bike to different courses and preferences, the frame can be tuned with 27 possible configurations thanks to adjustable headset cups, a lower shock-mount flip chip, and adjustable rear dropouts.
Specs
-
Biking Type:
Mountain
More
Biking Type
Mountain Mountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.
-
Used For:
Downhill
More
Used For
Downhill For bike park days and shuttle laps, there’s nothing like a downhill (DH) bike. Designed to tackle the roughest trails at high speeds, these bikes have long suspension travel (typically 170mm+), huge brakes, and unreal descending capabilities. DH bikes are not as suitable for tight trails or climbing.
-
Suspension:
Full Suspension
More
Suspension
Full Suspension Engineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.
-
Frame Material:
Aluminum Alloy
More
Frame Material
Aluminum Alloy Aluminum is the second lightest material per cubic inch, after carbon, but it is significantly more affordable. It offers versatility, strength, and durability that works well in all trail disciplines.
- Gearing: 1 x 7
- Water Bottle Mounts: 1
-
Fork:
Fox 40 Performance
More
Fork
Fox 40 Performance The Fox 40 is the definitive DH race fork, target locked on the top step of the podium and developed in the crucible of World Cup competition.
Performance Series forks retain the same black anodized 7000 series aluminum upper tubes as Performance Elite, except paired with a GRIP damper. Push-button bleeders are not included but can be purchased separately. - Stanchion Diameter (mm): 40
- Fork Travel (mm): 203
-
Rear Shock:
Fox DHX2 Performance Elite Coil
More
Rear Shock
Fox DHX2 Performance Elite Coil Nothing sticks to the ground quite like a coil shock. The DHX2 takes that sensation and buttresses it with sophisticated progressive damping, a massive overall tuning range, and super low-friction internals in order to capitalize on the full race-spec magic carpet experience. - Rear Travel (mm): 200
-
Shifters:
SRAM GX Eagle DH
More
Shifters
SRAM GX Eagle DH The authentic click of the GX DH Trigger Shifter means it’s time to sprint out of the corner, set up for the next big table, or put in that last kick to the finish line. A critical component in the lineup, the GX DH shifter is engineered in Germany to deliver clockwork-accurate shifting when you want it. -
Rear Derailleur:
SRAM GX DH, 7-Speed
More
Rear Derailleur
SRAM GX DH, 7-Speed The SRAM GX DH derailleur is easier to shift, incredibly precise, and keeps unwanted chain slap noise to a minimum so you can concentrate on the sweet feeling of nailing your line. GX DH — Get Some.
-
Crankset:
SRAM Descendant DUB
More
Crankset
SRAM Descendant DUB The Descendant crankset delivers consistent performance every time out. Featuring SRAM's X-SYNC™2 tooth profile chainring, the Descendant crankset is engineered for complete chain control. Each tooth's thickness is precisely toleranced and controlled to work seamlessly with the SRAM chain's inner and outer links. SRAM DUB™ technology features a better-engineered bottom bracket and a new spindle design. Together, these allow for a more uniform approach to bottom bracket fitment, better sealing against contamination and forward and backward compatibility. Now everyone can benefit from a new measure of durability.
FEATURES- The DESCENDANT crankset is compatible with the SRAM Eagle™ drivetrain systems.
- Featuring SRAM's X-SYNC™2 tooth profile.
- The DESCENDANT crankset is engineered for complete chain control.
- Most affordable aluminum X-SYNC™ direct mount crankset.
-
Cassette:
SRAM PG-720 DH, 11-25t
More
Cassette
SRAM PG-720 DH, 11-25t No mixed messaging or compromises here. The GX DH cassette was built with only one purpose in mind - exploiting gravity to its fullest lap after lap. This downhill-optimized 7-speed cassette gives you gear steps that give each shift more purpose, and its compact design allows more spoke clearance. It's a full-on, dedicated SRAM 1x™ cassette for gravity that lets you keep some money for a lift ticket. GX DH - Get Some.
FEATURES- The PG-720 cassette is an integral part of the SRAM 1x™ DH drivetrain system
- This is the most affordable full-featured, dedicated 1x DH cassette in the industry
- Compatible with SRAM 11-speed chains.
- Fully compatible with the SRAM X01 DH drivetrain
- Splined driver body compatible
-
Chain:
SRAM PC-1110, 11-Speed
More
Chain
SRAM PC-1110, 11-Speed Designed from a long line of dependable, lightweight chains that are built for toughness, the SRAM PC-1110 chain features solid pin construction, 11-speed PowerLock® and smooth, efficient shifting that you can count on every time out.
FEATURES- This chain is an integral part of the SRAM 1x™ drivetrain system
- Optimized to work with X-SYNC™ rings for precise and dependable 11-speed performance
- Fully compatible with all SRAM 1x™ drivetrains
- Bottom Bracket: SRAM Dub BSA
- Pedals: Not Included
-
Brake Levers:
SRAM Maven Base
More
Brake Levers
SRAM Maven Base Modern mountain bikes have redefined what riders are capable of, pushing the requirements for extreme duty power further than ever before. Maven is our answer to that evolution, giving you the boundless power of confidence for elevated speed and control on ever-more demanding terrain. Maven Base’s lever body houses Directlink, which translates rider input for a smooth application of power. And because of a stiff 4-bolt caliper that sheds an incredible amount of heat, that feel remains consistent, so the last corner feels like the first corner. And with so much baseline power on hand, there is more range than ever before to tune the ride qualities to exactly how you want with different pad materials, and rotor sizes. Maven Base features a Blasted Black anodized finish, and for ease of customization includes tool-free reach adjust - Brake Calipers: SRAM Maven Base
- Rotors: SRAM Centerline, 220mm Front / 200mm Rear
- Headset: Onoff DH ARS
- Stem: Onoff S9 DH CNC Integrated, 45-50mm adjustable
- Saddle: Ergon SM10 DH
- Seatpost: Alloy
- Hubs: e*thirteen
- Rims: e*thirteen Grappler Flux
- Spokes: e*thirteen Sapim D-light
-
Front Tire:
Maxxis Assegai 2.5" | 3C MaxxGrip, DH, TR
More
Front Tire
Maxxis Assegai 2.5" | 3C MaxxGrip, DH, TR Greg Minnaar’s signature tire – the Maxxis Assegai – provides tenacious, predictable grip across the entire profile no matter the lean angle. The Assegai can be used front and rear for a surefooted feel or as a front paired with a faster rolling rear tire.- 3C MaxxGrip: The stickiest, slowest rebounding rubber Maxxis offers.
- DH: Downhill casing tires are designed for extreme use in all gravity applications from downhill racing to bike park riding to free riding to long travel e-bikes. Made with two layers of durable 60 TPI casing material along with a large butyl rubber insert that extends from each bead into the sidewall. The butyl insert helps prevent pinch flats, protects the rim from impacts, and provides additional sidewall stability.
- Tubeless Ready (TR): Tubeless tires allow riders to run lower air pressures for improved traction, lower rolling resistance, and less chance of flatting.
-
Rear Tire:
Maxxis Minion DHR II 2.5" | 3C MaxxTerra, DH, WT TR
More
Rear Tire
Maxxis Minion DHR II 2.5" | 3C MaxxTerra, DH, WT TR With side knobs borrowed from the legendary Minion DHF, but widened to provide more support, the DHR II corners like no other. The center tread features ramped leading edges to improve acceleration and sipes to create a smooth transition when leaning the bike. Paddle-like knobs on the center tread dig in under hard braking and help keep the bike under control.- 3C MaxxTerra: A triple compound ideal for trail riding in all conditions - offers more traction than 3C MaxxSpeed, yet provides better treadwear and less rolling resistance than 3C MaxxGrip.
- DH: Downhill casing tires are designed for extreme use in all gravity applications from downhill racing to bike park riding to free riding to long travel e-bikes. Made with two layers of durable 60 TPI casing material along with a large butyl rubber insert that extends from each bead into the sidewall. The butyl insert helps prevent pinch flats, protects the rim from impacts, and provides additional sidewall stability.
- Tubeless Ready (TR): Tubeless tires allow riders to run lower air pressures for improved traction, lower rolling resistance, and less chance of flatting.
- Warranty: Limited Lifetime (Frame)
| Size | M | L | XL |
| Rider Height | 5'5" - 5'9" | 5'9" - 6'1" | 6'1" - 6'5"+ |
| Reach (mm) | 450 | 480 | 510 |
| Stack (mm) | 643 | 643 | 643 |
| Effective Top Tube (mm) | 710 | 740 | 770 |
| Seat Tube (mm) | 400 | 400 | 400 |
| Head Tube Angle (°) | 62.5 | 62.5 | 62.5 |
| Seat Tube Angle (°) | 68 | 68 | 68 |
| Chainstay Length (mm) | 455 | 455 | 455 |
| Bottom Bracket Height (mm) | 351 | 351 | 351 |
| Bottom Bracket Drop (mm) | 5 | 5 | 5 |
| Head Tube Length (mm) | 120 | 120 | 120 |
| Wheelbase (mm) | 1285 | 1315 | 1345 |
| Wheel Size | Mixed Wheel | Mixed Wheel | Mixed Wheel |
