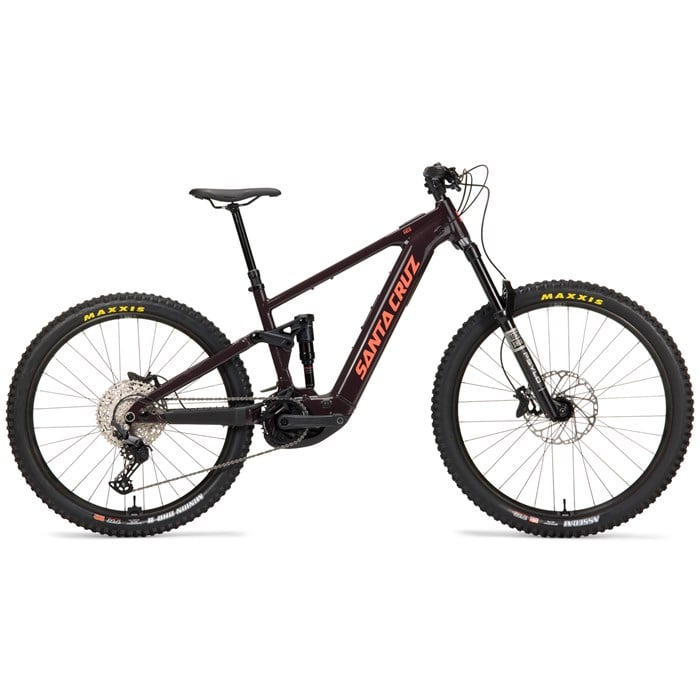

Santa Cruz Vala 1 AL Deore E-Mountain Bike 2026
Model Info
MEMBERSHIP
Earn up to 10% back in rewards. Join Free.
Product Info
Finally, an eBike for the rest of us. The Santa Cruz Vala 1 AL Deore E-Mountain Bike is a full power trail ripper with an aluminum frame and more attitude than you can shake a stick at. It boasts a mixed wheel design, 64° head tube angle, and 150mm of rear travel, powered by the latest Bosch Performance Line CX drive unit and a 600Wh battery optimized for performance and weight. Vala's four bar suspension layout is tuned for the best possible kinematics, with proven Shimano Deore drivetrain components and plush Rockshox suspension to round things out.
Product Details
Key Features
Aluminum Frame
Travel – 160mm Front / 150mm Rear
Wheel Size – Mixed Wheel (29" Front / 27.5" Rear)
Bosch Performance Line CX Drive Unit – The next generation Bosch Performance Line CX motor is quieter, lighter, and smaller than ever. More compact but no less powerful, it comes with a maximum torque of 85Nm. Choose between 4 standard modes and customize your ride in the Bosch Flow App.
Discreet Top Tube Display – The built-in display on the toptube allows for battery charge and mode to be displayed. The display can also be used to turn system on/off and toggle modes. More detail (% battery charge and range) can be found by using the app.
Independently Adjustable Geo and Progression Chips – The geo chip raises or lowers the bottom bracket 4mm, and adjusts the head tube angle by 0.3°. The progression chip changes the progression from 26-29%.
Tool Mount – Discreet mounting bolts underneath the top tube allows for clean, on-bike-storage of tools, tubes or an AirTag.
Specs
-
Biking Type:
Mountain
More
Biking Type
Mountain Mountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.
-
Used For:
Trail
More
Used For
Trail Trail bikes are the quintessential “mountain bikes.” If you’re heading into the woods expecting to do it all on two wheels – climbing, technical sections, AND fun descents – you’re looking for a trail bike.
-
Suspension:
Full Suspension
More
Suspension
Full Suspension Engineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.
- Gearing: 1 x 12
-
Frame Material:
Aluminum Alloy
More
Frame Material
Aluminum Alloy Aluminum is the second lightest material per cubic inch, after carbon, but it is significantly more affordable. It offers versatility, strength, and durability that works well in all trail disciplines.
- Water Bottle Mounts: 1
-
Fork:
RockShox Psylo Gold RC
More
Fork
RockShox Psylo Gold RC You don’t often strike gold twice! The RockShox Psylo Gold is bursting with value that invites riders to rethink what’s possible, whether they’re on lunch loops or all-mountain excursions, mountain bikes or E-MTBs. The all-new 35mm platform delivers premium performance with the new flow-focused Isolator RC three-position damper, tunable DebonAir air spring, and Maxima Plush Dynamic Suspension Lube to keeps things running smooth. Psylo combines value and performance to bring capability and reliability to each and every ride - Stanchion Diameter (mm): 38
- Fork Travel (mm): 160
-
Rear Shock:
RockShox Deluxe Select
More
Rear Shock
RockShox Deluxe Select Deluxe Select delivers a lightweight package with the same proven damping performance of the entire Deluxe family. Featuring the DebonAir+ air spring with the ability to tune both positive and negative air volume paired with a wider range of Rebound adjustment. Maximized adjustability in a streamlined and minimalist package, accessible at your fingertips.
Shock Adjustments - External Rebound Adjustment / Air Spring Pressure
- Rear Travel (mm): 150
-
Drive Unit:
Bosch Performance Line CX BDU38
More
Drive Unit
Bosch Performance Line CX BDU38 The next generation Bosch Performance Line CX motor is quieter, lighter, and smaller than ever. More compact but no less powerful, it comes with a maximum torque of 85Nm. Choose between 4 standard modes and customize your ride in the Bosch Flow App. -
Battery:
Bosch PowerTube 600Wh
More
Battery
Bosch PowerTube 600Wh Thanks to their range, long service life, intelligent battery management system and easy handling, Bosch Power Tube lithium-ion batteries are among the most modern on the market. All those decades of Bosch experience has paid off! -
Shifters:
Shimano Deore SL-M6100
More
Shifters
Shimano Deore SL-M6100 With quick lever access and a light, responsive lever action, Shimano's Rapidfire Plus Deore shift lever delivers smooth control out on the trail. -
Rear Derailleur:
Shimano Deore M6100, 12-Speed
More
Rear Derailleur
Shimano Deore M6100, 12-Speed The Shimano Deore M6100 rear derailleurs deliver advanced shifting performance with decreased tension in the low gear position. Larger 13T pulleys increase efficiency and chain management while compatibility with Shimano's 12-speed cassettes boosts range. - Crankset: e*thirteen Helix eSpec, 160mm
-
Cassette:
Shimano M6100, 10-51t
More
Cassette
Shimano M6100, 10-51t With its Beam Spider construction, the Shimano Deore M6100 cassette shaves weight while increasing Shimano's MTB gearing range another gear. Using a Micro Spline freehub body and HYPERGLIDE+ tooth profile, the 10-51t cassette delivers advanced shifting performance. -
Chain:
Shimano Deore M6100, 12-Speed
More
Chain
Shimano Deore M6100, 12-Speed The M6100 chain provides smooth shifting and enhanced chain retention thanks to an extended portion of the inner plate. The chain features Quick-Link assembly and is optimized for HYPERGLIDE+ cassettes and Dynamic Chain Engagement+ chainrings. - Pedals: Not Included
- Brake Levers: Shimano Deore
- Brake Calipers: Shimano Deore M6120
- Rotors: Shimano RT66 | 220mm Front / 203mm Rear
- Headset: FSA IS-2/47/42 ACB
- Stem: OneUp Enduro Stem, 42mm
- Saddle: WTB Silverado Medium
-
Seatpost:
SDG Tellis Dropper 31.6mm
More
Seatpost
SDG Tellis Dropper 31.6mm The SDG Tellis Dropper is an absolute workhorse. A dropper post and remote combo with unsurpassed durability, reliability and simplicity. This post features a fully sealed cartridge system that'll operate smoothly in the wettest, coldest, and muddiest conditions. - Hubs: WTB Frequency Sport
- Rims: WTB ST Tough 30
-
Front Tire:
Maxxis Assegai 2.5" | EXO+
More
Front Tire
Maxxis Assegai 2.5" | EXO+ Greg Minnaar’s signature tire – the Maxxis Assegai – provides tenacious, predictable grip across the entire profile no matter the lean angle. The Assegai can be used front and rear for a surefooted feel or as a front paired with a faster rolling rear tire.- EXO+: Durable 60 TPI casing, legendary EXO puncture protection in the sidewalls, and a small butyl insert around the bead to protect from pinch flats and help prevent rim damage.
-
Rear Tire:
Maxxis Minion DHR II 2.4" | DoubleDown
More
Rear Tire
Maxxis Minion DHR II 2.4" | DoubleDown With side knobs borrowed from the legendary Minion DHF, but widened to provide more support, the DHR II corners like no other. The center tread features ramped leading edges to improve acceleration and sipes to create a smooth transition when leaning the bike. Paddle-like knobs on the center tread dig in under hard braking and help keep the bike under control.- DoubleDown (DD): Two layers of lightweight 120 TPI casing combined with a butyl sidewall insert creates a highly durable tire with more trail feedback than a Downhill casing tire.
- Warranty: Limited Lifetime
| Size | S | M | L | XL |
| Rider Height | 5'1" - 5'5" | 5''5" - 5'9" | 5'9" - 6'1" | 6' - 6'4" |
| Reach (mm) | 433 | 458 | 478 | 498 |
| Stack (mm) | 625 | 634 | 643 | 656 |
| Effective Top Tube (mm) | 578 | 606 | 628 | 652 |
| Seat Tube (mm) | 380 | 400 | 420 | 460 |
| Head Tube Angle (°) | 64.1 | 64.1 | 64.1 | 64.1 |
| Seat Tube Angle (°) | 76.9 | 76.9 | 76.8 | 76.8 |
| Chainstay Length (mm) | 440 | 440 | 445 | 445 |
| Bottom Bracket Height (mm) | 342 | 342 | 342 | 342 |
| Bottom Bracket Drop (mm) | 30 | 30 | 30 | 30 |
| Head Tube Length (mm) | 110 | 120 | 130 | 145 |
| Wheelbase (mm) | 1211 | 1241 | 1270 | 1297 |
| Wheel Size | Mixed Wheel | Mixed Wheel | Mixed Wheel | Mixed Wheel |
