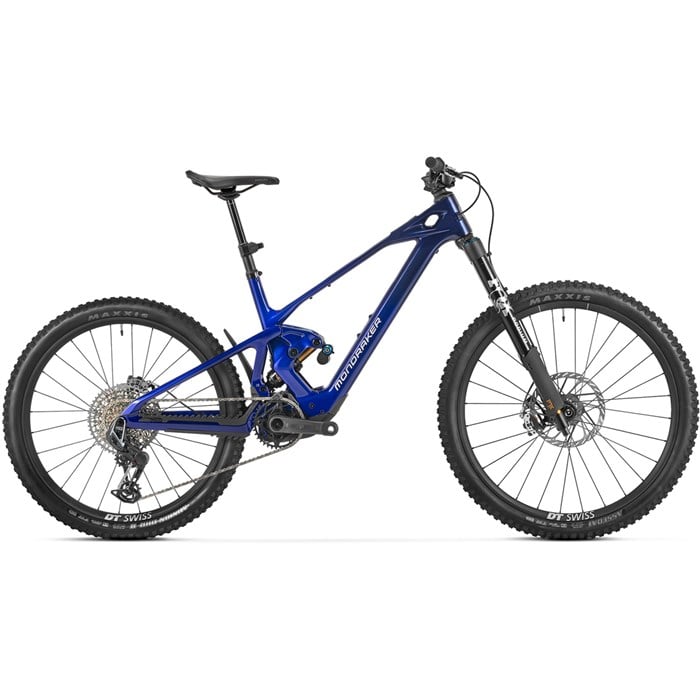

The Mondraker Zendit XR E-Mountain Bike is what happens when a factory team gets handed an e-MTB project with a blank slate and no ceiling. It boasts an all new Avinox M2S drive system to claw up climbs that have no business being rideable, while the revised ZERO suspension platform keeps everything composed on the way back down. A Stealth Air Carbon frame, evolved Forward Geometry, and 165mm of rear travel make this the most capable Mondraker ever built, rounded out with a powerful Fox Podium fork, SRAM XO Eagle AXS T-Type shifting, and hard-stopping Maven Ultimate brakes.
Stealth Air Carbon Frame
Travel – 170mm Front / 165mm Rear
Wheel Size – Mixed Wheel (29" Front / 27.5" Rear)
ZERO Suspension Platform – ZERO is a virtual pivot suspension system with an exclusive dual link design. The shock floats between the two suspension links and is compressed from both ends, making the rear suspension extremely supple on small bumps and big hit capable. ZERO's main advantages are Zero power loss, Zero pedal kickback, Zero brake jack, and Zero bumps.
Avinox Connectivity – The Avinox M2S system features a beautiful and intuitive touch screen control interface, with a completely customisable feature set. Pairs with Avinox Ride app for full custom control.
Evolved FORWARD GEOMETRY
Adjustable Geo
Podium is designed to be ridden like a downhill fork. No barriers. No hesitation. Complete confidence that your front wheel will hold the line, no matter how fast or how big you push it. All this while keeping your bike in a familiar range of travel and geometry in a single crown package.
Maven Ultimate features monstrous 18 and 19.5-millimeter pistons driving 50% more power than Code. But best-in-class power means nothing unless you’re able to harness it. Swinglink translates rider input for progressive power throughout the lever pull, maintaining SRAM’s signature ride feel. And because of a stiff 4-bolt caliper that sheds an incredible amount of heat, that feel remains consistent, so the last corner feels like the first corner. But with so much baseline power on hand, there is more range than ever before to tune the ride qualities to exactly how you want with different pad materials, and rotor sizes. Maven Ultimate pairs a sleek high polish lever body to a caliper with machined edges and titanium hardware for a finish worthy of any modern super bike. And for unrivaled ease of customization, features tool-free Reach and Contact Point Adjust.
| Size | S | M | M/L | L | XL |
| Rider Height | 5'3" - 5'6" | 5'5" - 5'10" | 5'8" - 6'1" | 6' - 6'4" | 6'3" - 6'7" |
| Reach (mm) | 440 | 460 | 480 | 500 | 520 |
| Stack (mm) | 631 | 631 | 640 | 649 | 658 |
| Effective Top Tube (mm) | 586 | 606 | 629 | 650 | 672 |
| Seat Tube (mm) | 380 | 410 | 435 | 460 | 490 |
| Head Tube Angle (°) | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 |
| Seat Tube Angle (°) | 77 | 77 | 77 | 77 | 77 |
| Chainstay Length (mm) | 450 | 450 | 450 | 455 | 455 |
| Bottom Bracket Height (mm) | 345 | 345 | 345 | 345 | 345 |
| Bottom Bracket Drop (mm) | 6 | 6 | 6 | 6 | 6 |
| Head Tube Length (mm) | 110 | 110 | 120 | 130 | 140 |
| Wheelbase (mm) | 1241 | 1261 | 1286 | 1315 | 1339 |
| Wheel Size | Mixed Wheel | Mixed Wheel | Mixed Wheel | Mixed Wheel | Mixed Wheel |
