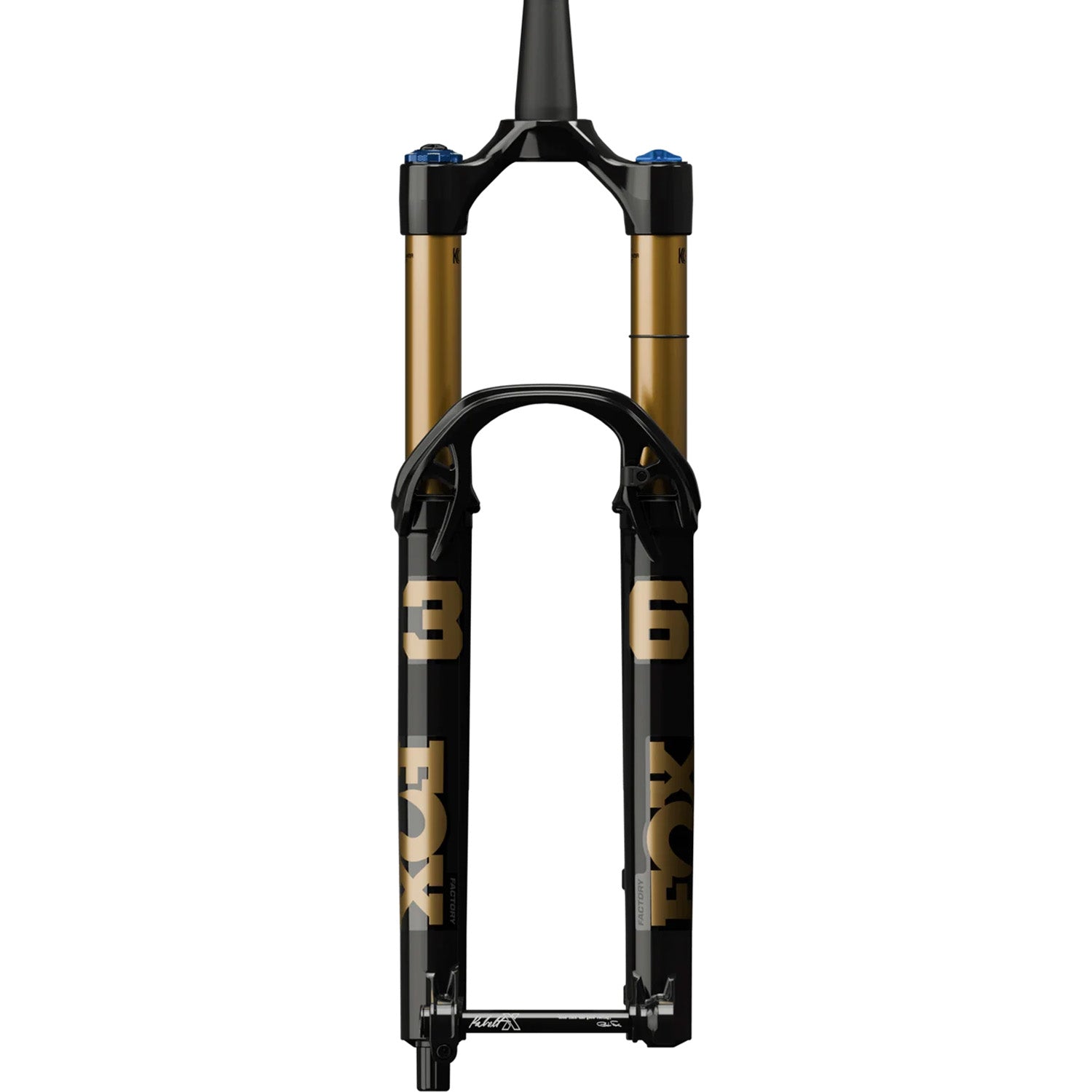

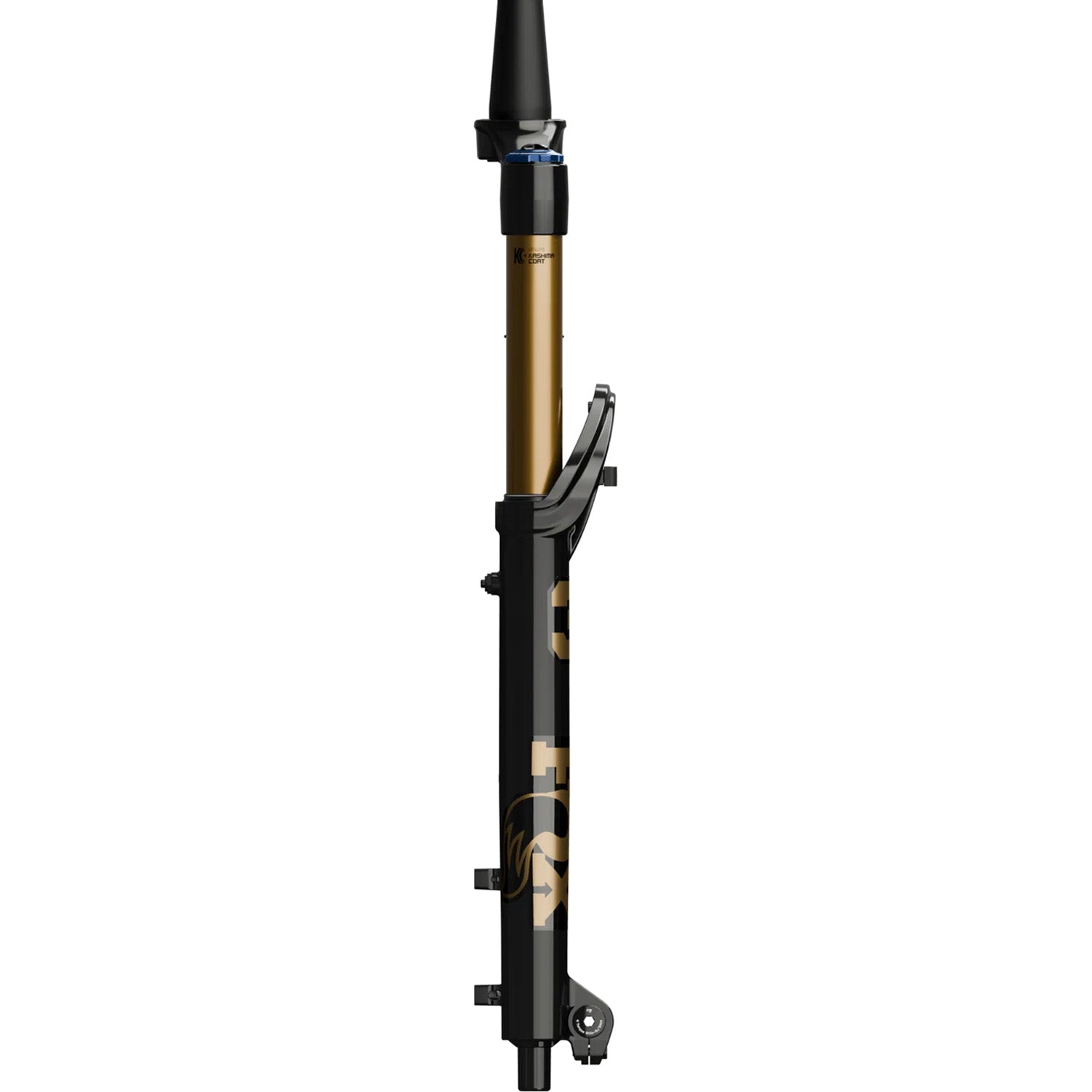

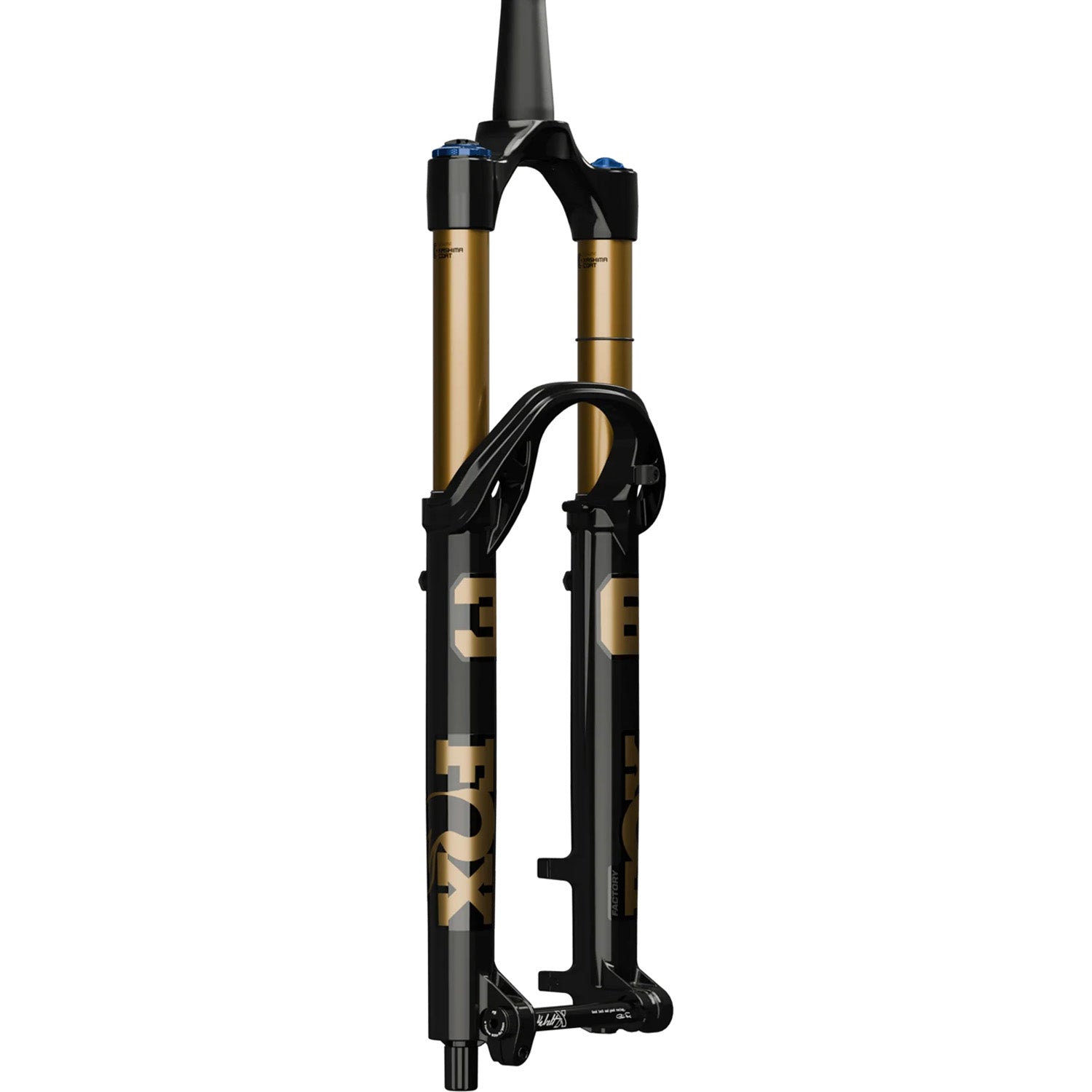

Fox Shox 36 Float Factory GRIP X2 Fork - 29"

SKU# EB-285821-1001

$1,299.00

Color: Shiny Black, Neutral/Gloss Black Logo
Size: 160mm, Kabolt x 110, 44mm Rake
Shipping

Free shipping on orders $50+

Shipping options available

Find in Store

Checking availability...

Earn up to 10% back in rewards

Join Free (opens in a new tab)

Free shipping on orders over $50

Details

Lowest price guarantee

Details

366 Day Return Policy

Details

Fox Shox 36 Float Factory GRIP X2 Fork - 29"

Built for trail and all-mountain riding with enduro-grade damping, the Fox Shox 36 Float Factory GRIP X2 Fork is the pick for riders who want serious capability without moving up to a full enduro setup. The GRIP X2 damper offers four-way adjustment (high/low-speed compression and rebound) for precise tuning across variable terrain, while the FLOAT GlideCore air spring reduces friction by moving dynamically with the fork under load for noticeably smoother small-bump compliance. A redesigned arch wraps the lowers to increase torsional stiffness by 20% over the previous 36, and Genuine Kashima Coat keeps the upper tubes looking fly and sliding freely.

Product Details

Construction & Measurements:
Kashima Coated Stanchions: The smoothest of the smooth, plus it looks cooler. The gold Kashima coating has become synonymous with friction-free suspension actuation, and it's only available on Fox Factory components.
Redesigned Arch & Crown: Generatively designed and optimized by FOX engineers, the new 36 arch wraps around the lowers to increase torsional stiffness of the fork by a full 20%. This now gives the 36 a veritable 87% of the torsional stiffness found on the 38 (up from 75%), while remaining 275g lighter than the 38.
Inboard Bypass Channels: Bypass channels help curb pressure ramping for increased small bump sensitivity, as well as recirculating bath oil to lubricate bushings and seals. By relocating the bypass channels from the aft side of the fork to the inboard side, they are now out of the fore-aft load path to further reduce dynamic friction throughout the fork’s travel.
Increased Bushing Overlap: The 36 SL increases the bushing overlap by 20mm over the 34 for a smoother feeling fork overall. Riders will notice additional suppleness at higher speeds when bending loads on the fork are at their greatest.
1.5" Tapered Aluminum Steerer
Features:
FLOAT Glidecore Air Spring: The seamlessly compliant FLOAT Glidecore Air Spring reduces friction and bind by moving with the fork under dynamic load for smoother suspension action.
Low Profile Bleeders: Grooved design allows pressure to escape around your finger as you press the bleeder.
Air Spring Top Cap: Uses the common Shimano cassette tool for easy volume adjustments.
Kabolt X Axle: Kabolt, a lightweight bolt-on floating axle to shave grams and increase torsional stiffness via a sleeveless, single-sided pinch bolt design.
Rotor Size: 180 Direct Post Mount, Up to 230 Compatible
Adjustments:
GRIP X2 Damper: GRIP X2 is the most tunable, supportive and smoothest descent-focused damper ever created by FOX. Riders reap the benefits of sitting higher in the travel while tires stay glued to the ground, cornering with increased traction. It gives you the confidence to push the limits of downhill and enduro racing, all while reducing overall rider fatigue. GRIP X2 is the winning difference.
Fork Adjustments: High / Low Speed Rebound, High / Low Speed Compression

Specs

Used For:
Trail
Trail
Wheel Size:
29"
Axle Configuration:
15 x 110 Boost
Stanchion Diameter:
36mm
Maximum Rotor Size:
230mm
Warranty:
1 Year
