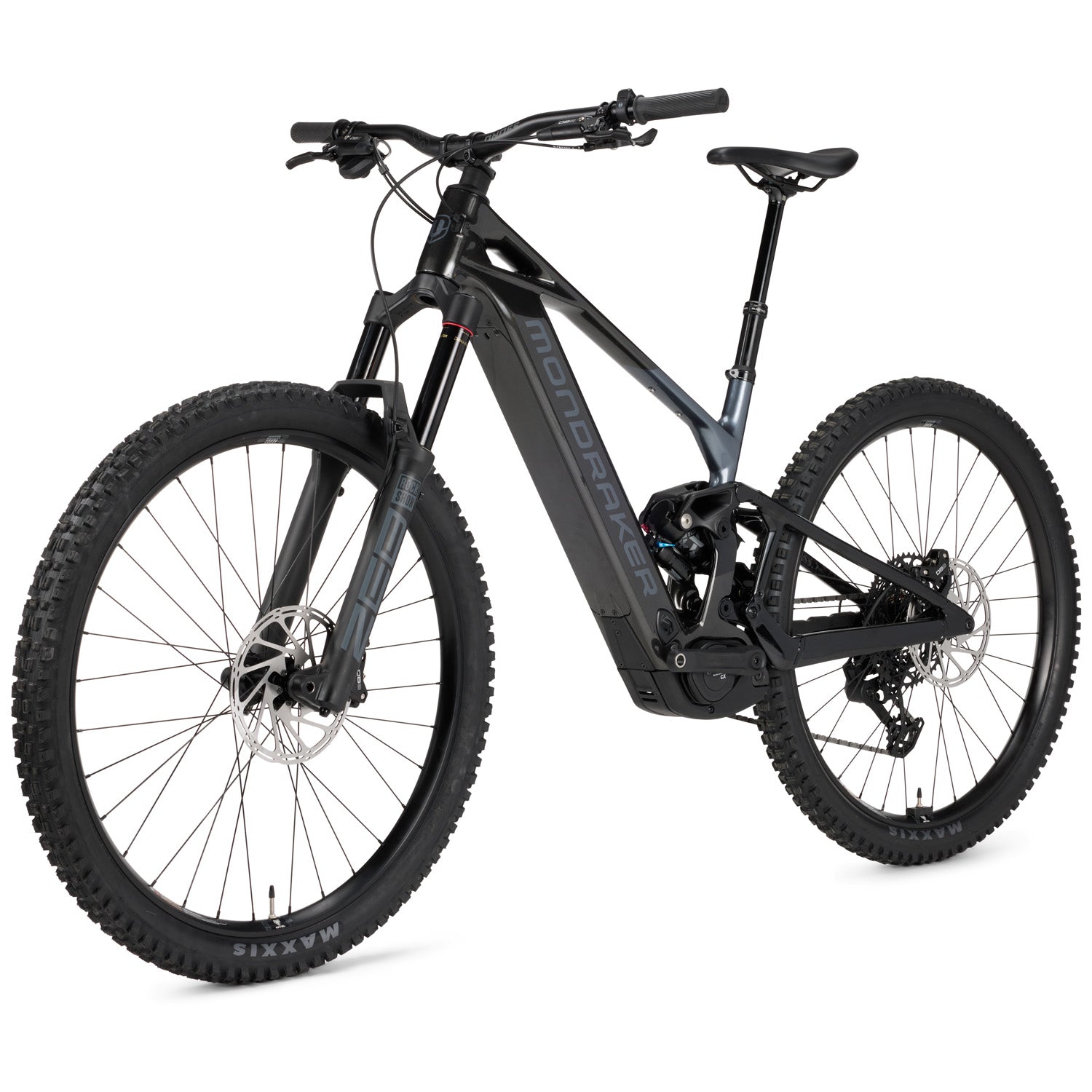

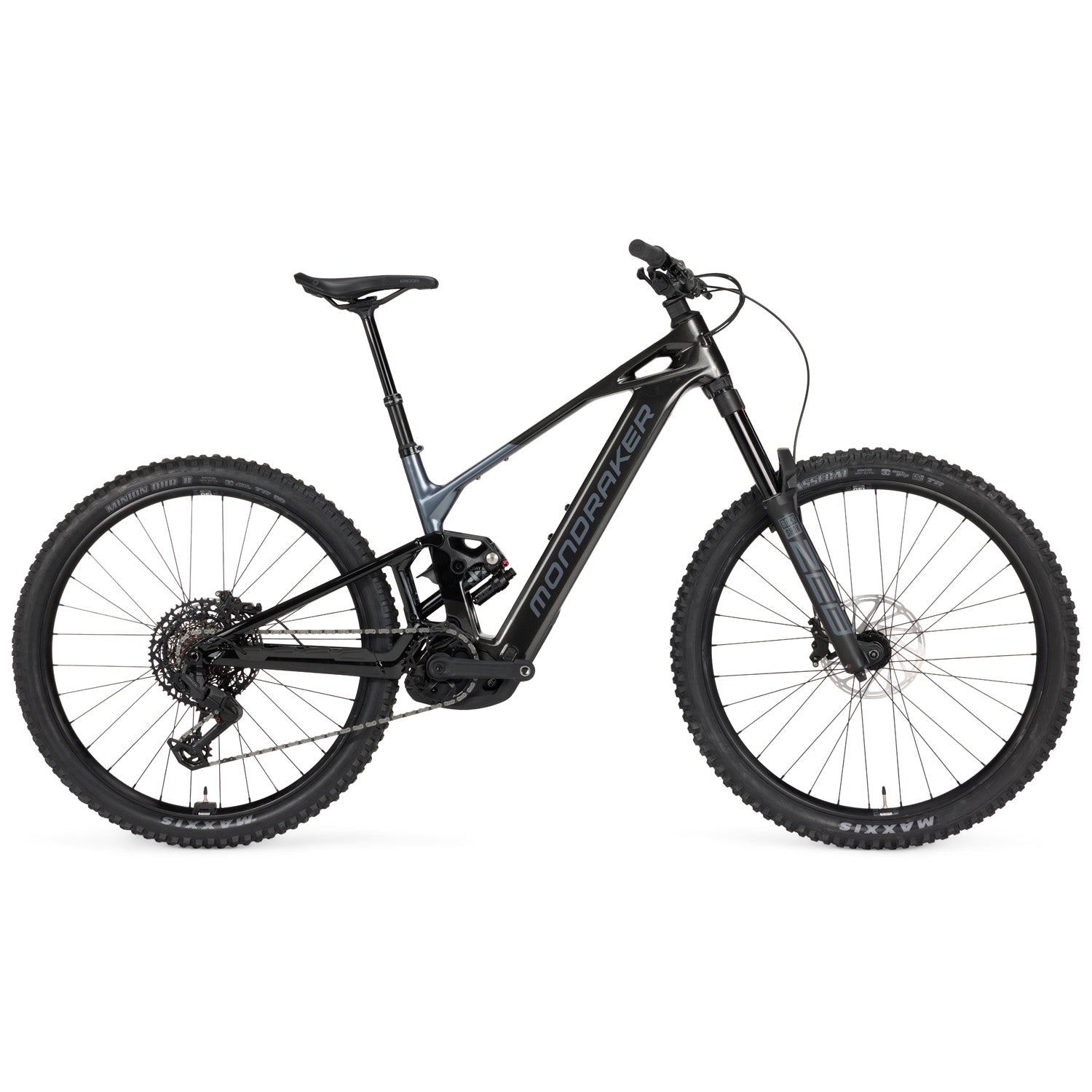

Mondraker Crafty Carbon S E-Mountain Bike 2026
SKU# EB-285707-1003
$7,499.00
$7,499.00
Find in Store
Checking availability...
Not available in store
Mondraker Crafty Carbon S E-Mountain Bike 2026
Earn up to 10% back in rewards
Join Free (opens in a new tab)
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsMondraker Crafty Carbon S E-Mountain Bike 2026

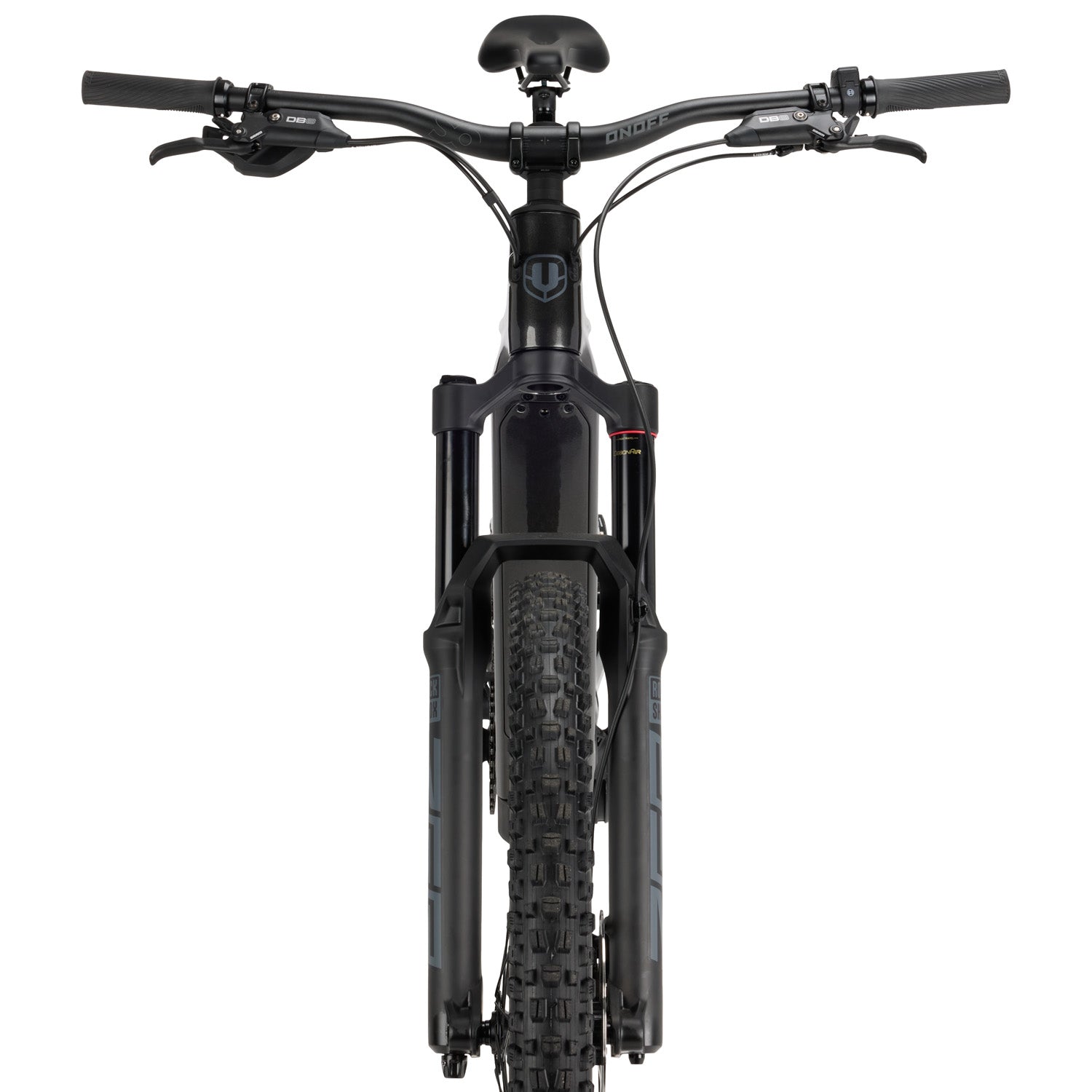

The Mondraker Crafty Carbon S E-Mountain Bike is built around the Bosch Performamnce Line CX motor and a 800Wh battery — a setup that makes the nastiest climbs feel manageable. The Stealth Air Carbon front triangle pairs with ZERO suspension kinematics and 150mm of travel tuned for both small bump sensitivity and high-speed composure, while a RockShox ZEB up front adds 160mm of pure confidence on the descents. Forward Geometry with a 64.5° head angle and a two-position flip chip lets you dial geometry to terrain, and proportional chainstay lengths across five sizes ensure the bike handles consistently no matter what frame you're on.
Product Details
Key Features:
Stealth Air Carbon Frame With Stealth Alloy Rear Triangle
Travel: 160mm Front / 150mm Rear
Wheel Size: 29"
Evolved FORWARD GEOMETRY

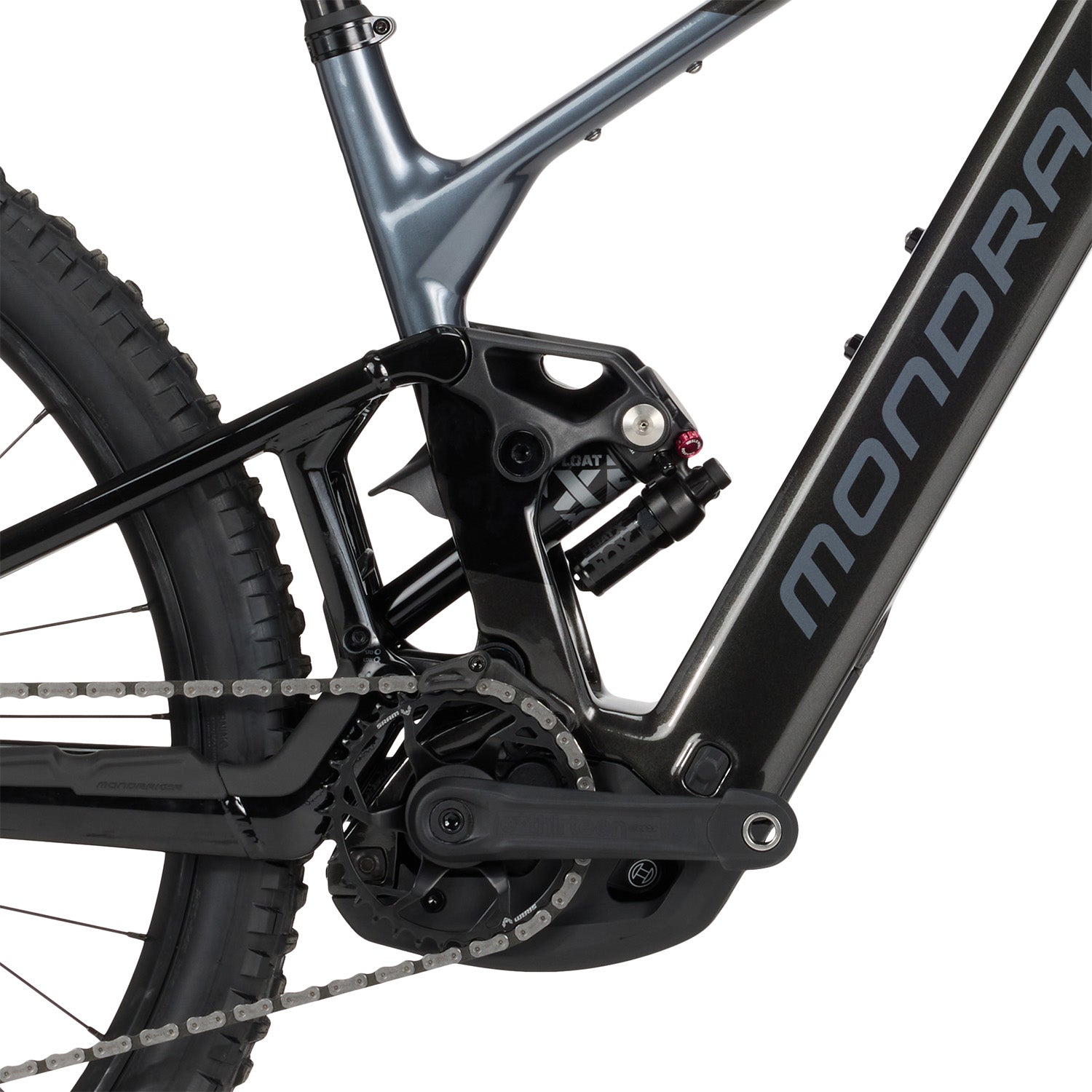

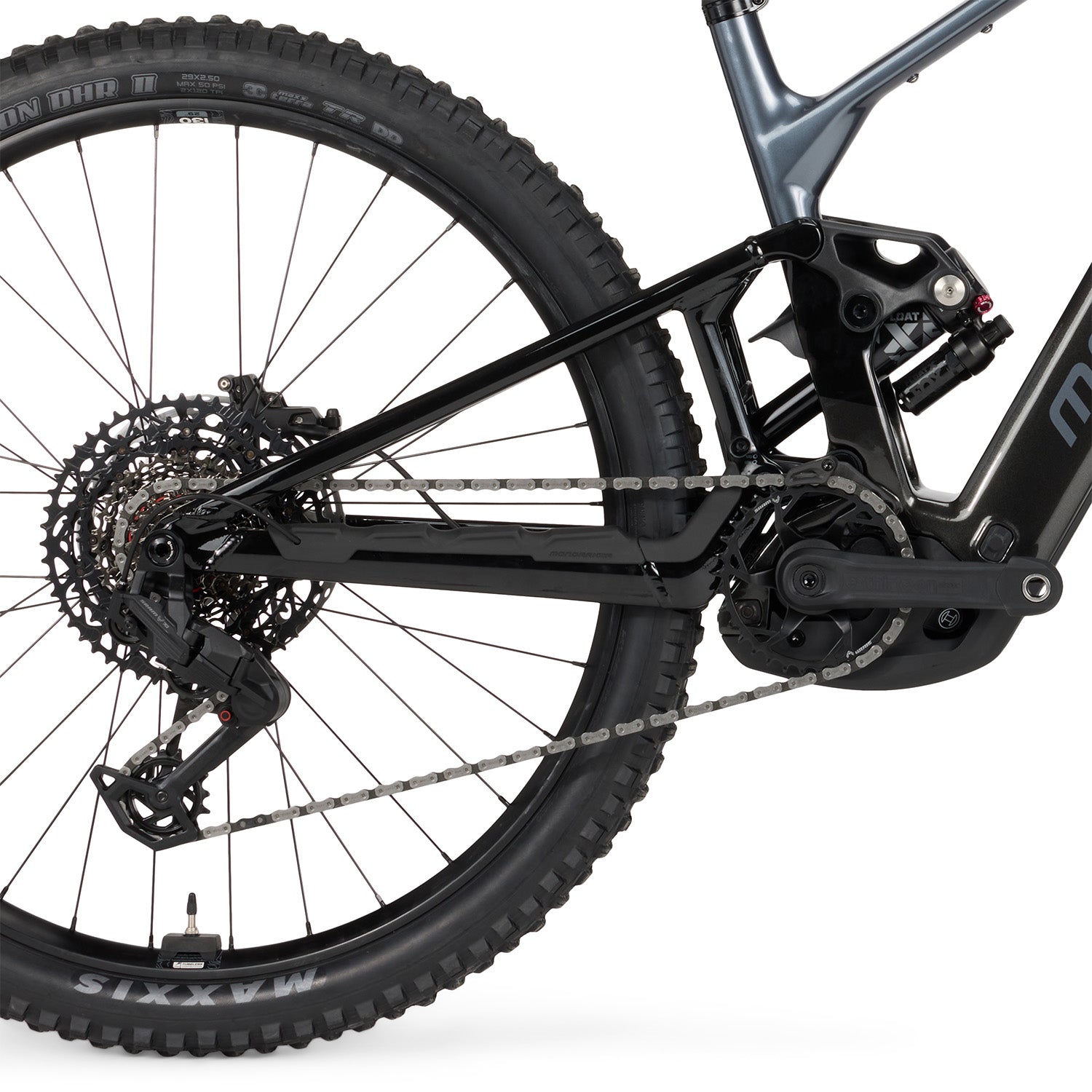

ZERO Suspension Platform: ZERO is a virtual pivot suspension system with an exclusive dual link design. The shock floats between the two suspension links and is compressed from both ends, making the rear suspension extremely supple on small bumps and big hit capable. ZERO's main advantages are Zero power loss, Zero pedal kickback, Zero brake jack, and Zero bumps.
Flip Chip: The new design is one degree slacker than the previous generation of Crafty Carbon, making it more stable at speed. As well as the new 64.5° head angle, the frame also comes with a two-position (standard and low) flip chip on the lower shock mount which means you can modify the bottom bracket height by +/- 0.5mm and the seat and head tube angles by +/-0.35° to better suit your style or terrain type.
Removeable Batteries: An integrated, removable battery ensures all the power you need on every ride. And when you get home, simply remove the battery and charge it next to your smartphone.
250Wh Range Extender: All models and frame sizes of the Crafty Carbon offer Powermore range extender compatibility. An extra 250Wh to extend your range or to conquer that last gnarly climb, it’s easily fixed to the main bottle mount on the downtube.
Specs

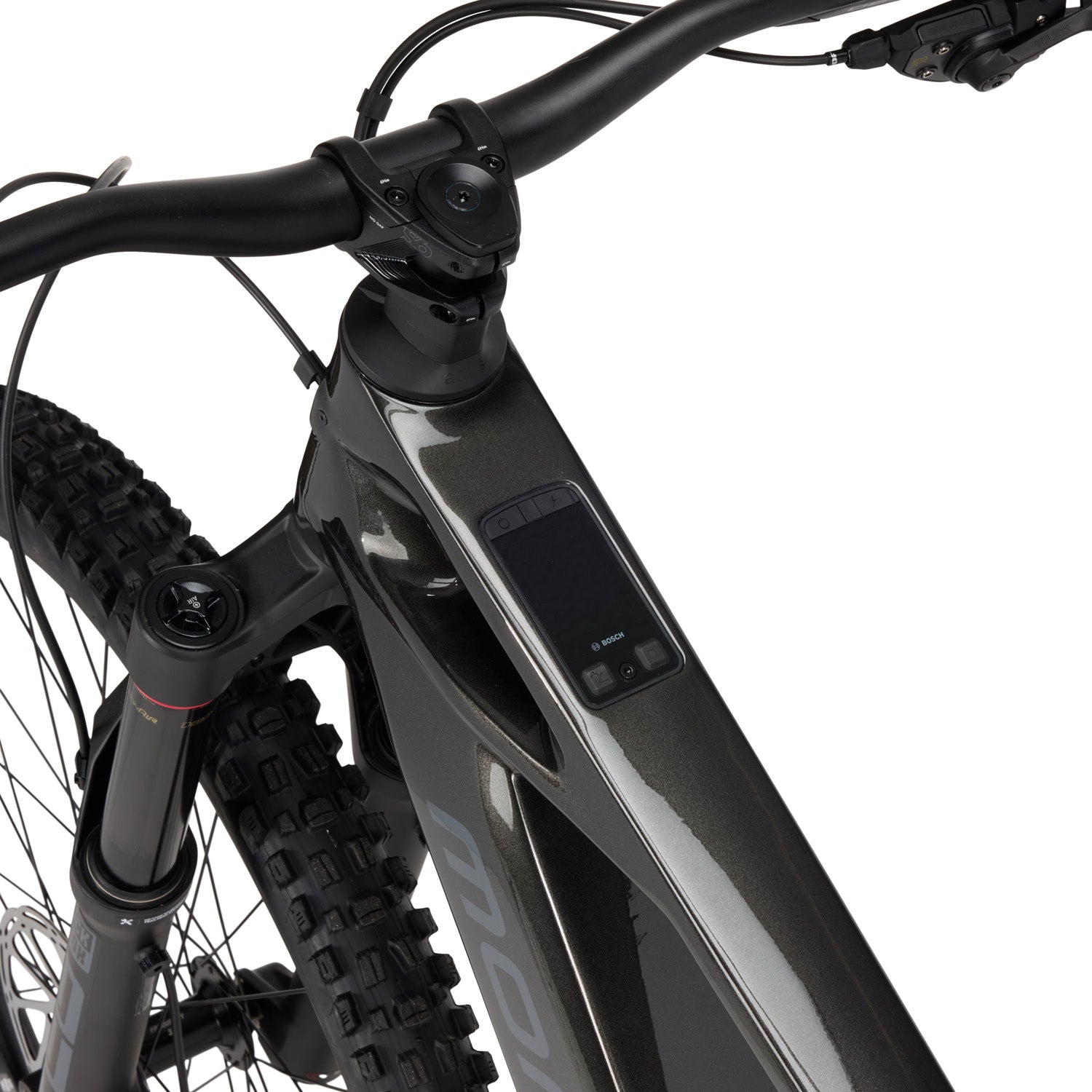

Handlebar:
Onoff S6 1.0 7050 alloy, 800mm
Biking Type:
Mountain
Used For:
Enduro
Suspension:
Full Suspension
Gearing:
1 x 12
Frame Material:
Carbon
Water Bottle Mounts:
1

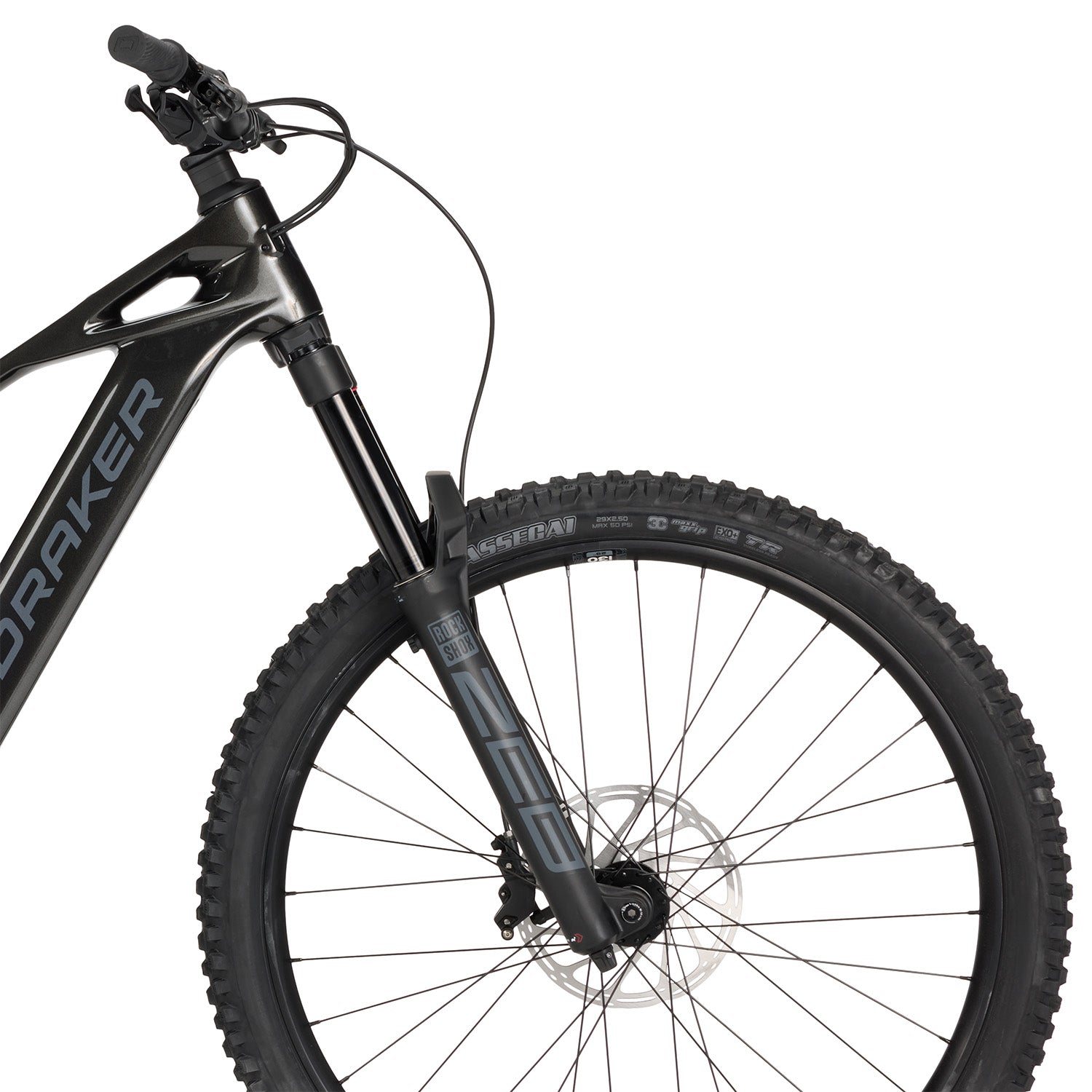

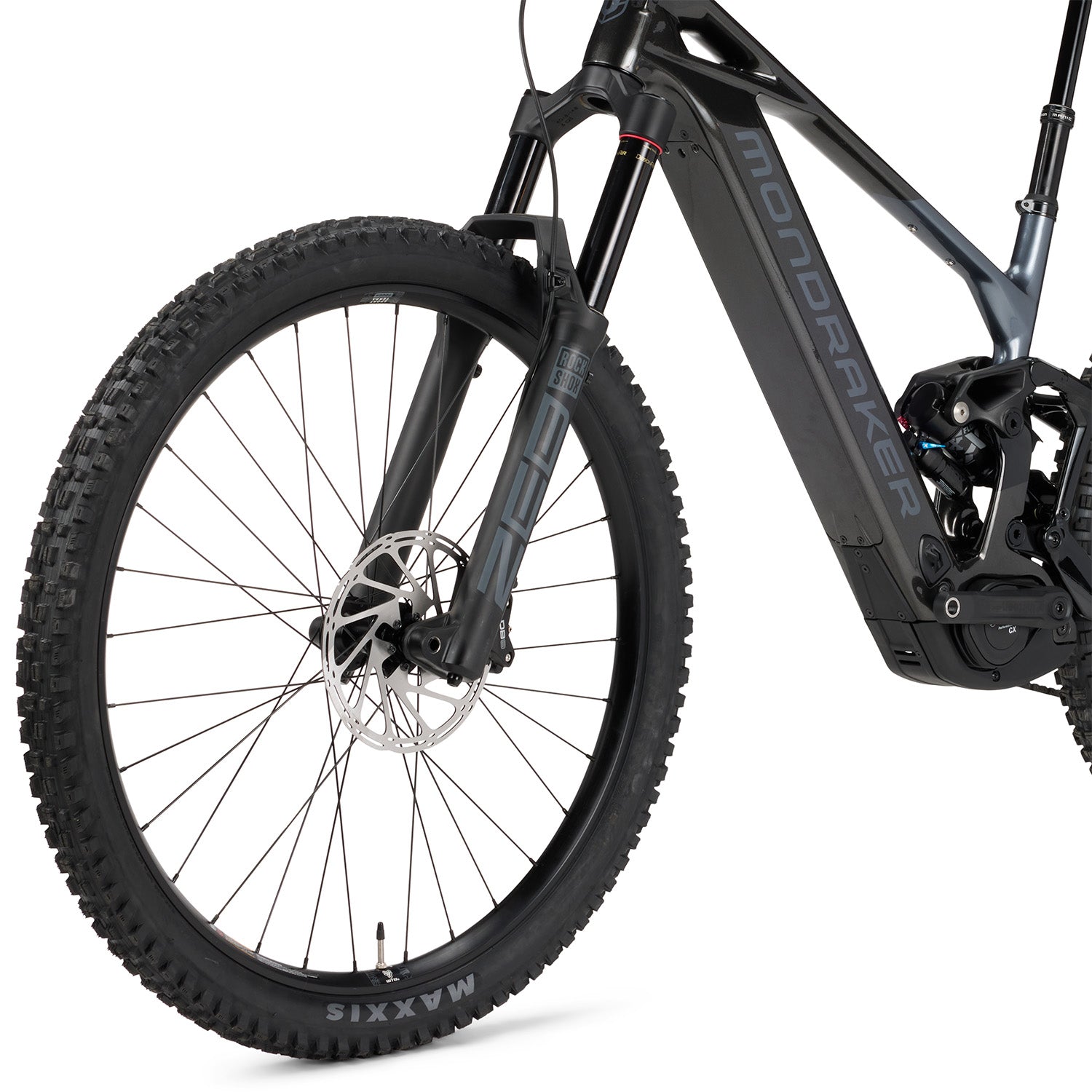

Fork:
RockShox ZEB Rush RC
Stanchion Diameter:
38mm
Fork Travel:
160mm
Rear Shock:
Fox Float X Performance
Rear Travel:
150mm

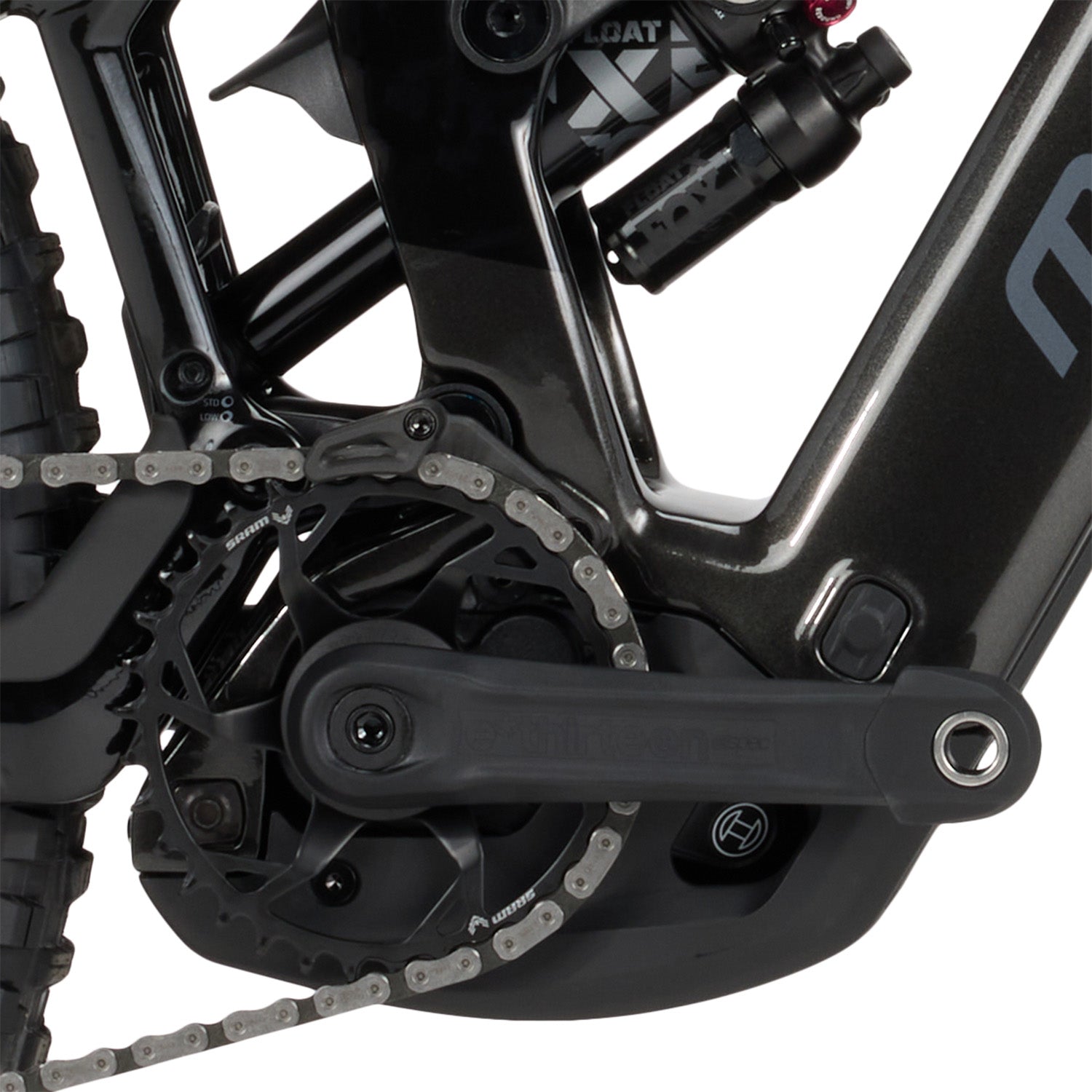

Drive Unit:
Bosch Performance Line CX
Battery:
Bosch PowerTube 800Wh
Shifters:
SRAM Eagle 70 T-Type

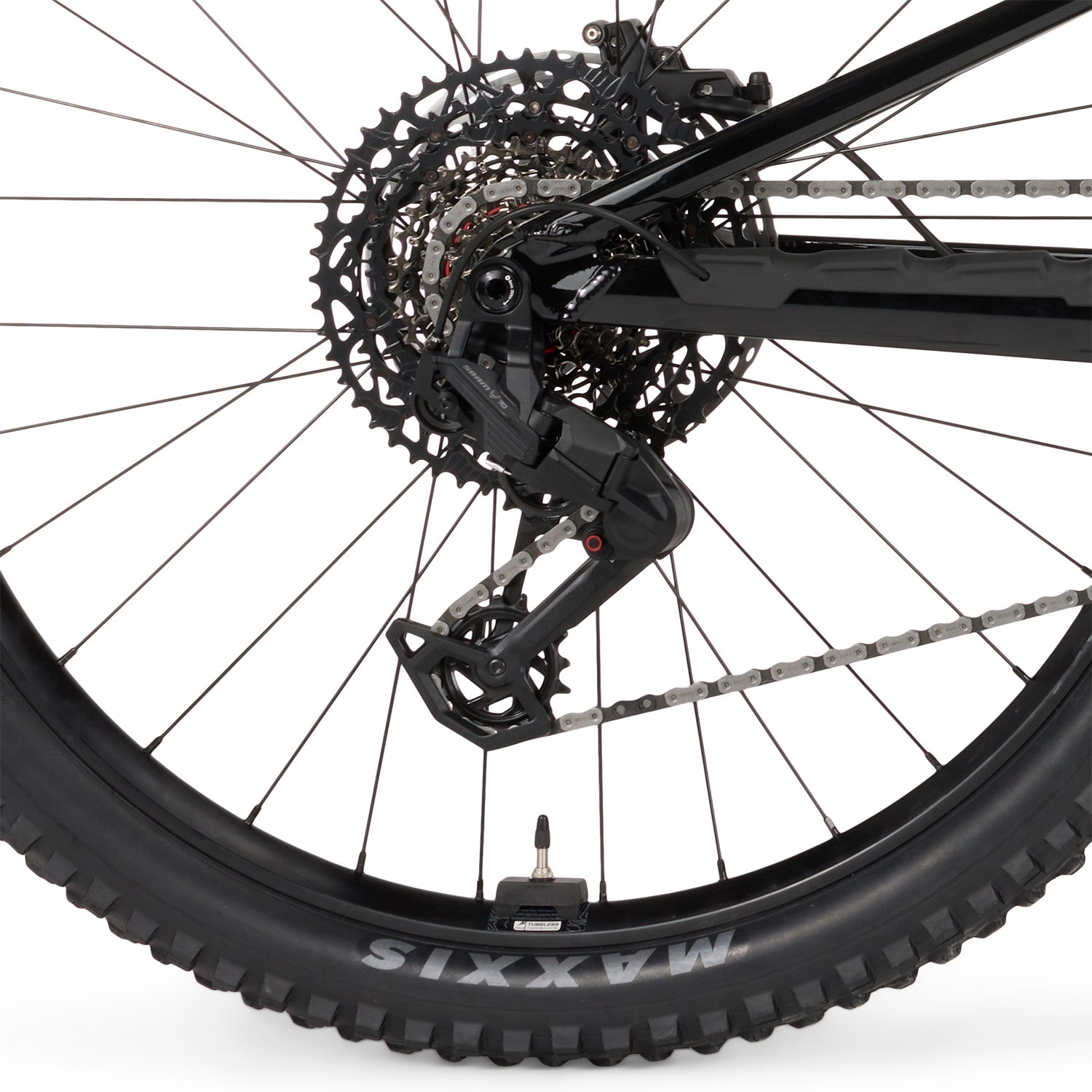

Rear Derailleur:
SRAM Eagle 70 T-Type, 12-Speed
Crankset:
e*thirteen Helix eSpec, 160mm
Cassette:
SRAM XS 1270 10-52t
Chain:
SRAM Eagle 70 T-Type Flattop, 12-Speed
Pedals:
Not Included
Brake Levers:
SRAM DB8
Brake Calipers:
SRAM DB8
Rotors:
SRAM Centerline, 200mm
Headset:
Acros Custom ZS56/ZS56
Bar Tape/Grips:
Onoff Desert Pro
Stem:
Onoff S6, 30mm
Saddle:
Ergon SM-10
Seatpost:
X-Fusion Manic Dropper
Hubs:
WTB Frequenzy Sport Boost
Rims:
WTB Sportterra Tough
Spokes:
WTB Straight Gauge
Front Tire:
Maxxis Assegai 2.5" | 3C MaxxGrip, EXO+, TR
Rear Tire:
Maxxis Minion DHR II 2.5" | 3C MaxxTerra, DoubleDown
Warranty:
Limited Lifetime (Frame)
