Yeti SB140 LR C2 Eagle 90 Complete Mountain Bike 2026

sku# 273351
Yeti - SB140 LR C2 Eagle 90 Complete Mountain Bike 2026
Model Info

Free Ship to Store or $69 Home Delivery

Select shipping method at checkout.

Details.

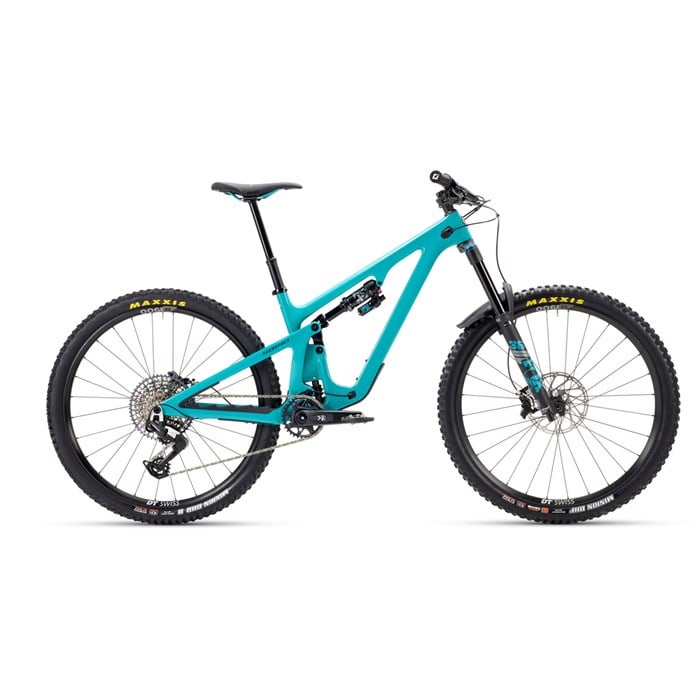

Yeti SB140 LR C2 Eagle 90 Complete Mountain Bike 2026

sku# 273351
Select Color:
Please select a color
Select Size:
Please select a size
Talk to a Mountain Bike Expert at 1 (866) 386-1591

MEMBERSHIP

Earn up to 10% back in rewards. Join Free.

EASY RETURNS

Take up to a full year to return your item! See our Return Policy.

Product Info

The Yeti SB140 LR C2 Eagle 90 Complete Mountain Bike is built for riders who know that the best trails are discovered when you're supposed to be back at the office. This "Lunch Ride" edition delivers an extra 10mm of front travel, a burlier Fox Float shock, and more powerful brakes for the ideal balance of climbing efficiency and descending prowess. With SRAM Eagle 90 Transmission and geometry dialed for maximum fun, this trail-devouring machine turns every ride into an endless opportunity for technical singletrack, steep climbs, and features that demand just ONE more lap.

Product Details

Key Features

C/Series Carbon FrameOver the course of hundreds of virtual simulation comparisons and back-to-back carbon prototype testing, Yeti has refined their carbon layups to deliver consistent torsional stiffness and flex profiles across all frame sizes. The feel is precise yet compliant while structurally balancing light weight and durability.

Travel160mm Front / 140mm Rear

Wheel Size29"

Lunch RideThe "LR" designation stands for "Lunch Ride" edition, which features 10 mm more travel at the front than the conventional SB140 model & is designed for enhanced fun & stability.

Switch Infinity SuspensionThe new line of Yeti Switch Infinity bikes builds on their award-winning performance with subtle refined leverage rates that have been adjusted for the added travel of each new bike. This balanced approach to leverage rate results in an incredibly predictable ride.

Internal Cable RoutingInternally routed cable tubes with secure closures at entry and exit points eliminate rattles and cable rub. Whether running a mechanical drivetrain and dropper or a wireless setup, cable management is intuitively easy and quiet.

UDH CompatibleIf a hanger bending crash occurs, the new Yeti models use the Universal Derailleur Hanger (UDH) interface — the industry standard mount for a rear derailleur. The UDH is available in nearly any bike shop, Yeti dealer or not.

Specs

  • Biking Type: Mountain More
    Mountain
  • Used For: Trail More
    Trail
  • Suspension: Full Suspension More
    Full Suspension
  • Frame Material: Carbon More
    Carbon
  • Gearing: 1 x 12
  • Water Bottle Mounts: 1
  • Fork: Fox 36 Performance More
  • Stanchion Diameter (mm): 36
  • Fork Travel (mm): 160
  • Rear Shock: Fox Float DPS Performance More
  • Rear Travel (mm): 140
  • Shifters: SRAM Eagle 90 T-Type More
  • Rear Derailleur: SRAM Eagle 90 T-Type, 12-Speed More
  • Crankset: SRAM SX Eagle More
  • Cassette: SRAM Eagle T-Type XS-1275, 10-52t More
  • Chain: SRAM GX Eagle T-Type Flattop, 12-Speed More
  • Bottom Bracket: Threaded aluminum bottom bracket shell
  • Pedals: Not Included
  • Brake Levers: SRAM G2 RSC More
  • Brake Calipers: SRAM G2 RSC
  • Rotors: SRAM Centerline, 200mm Front, 180mm Rear
  • Headset: Standard tapered (1 1/8" to 1.5")
  • Handlebar: Yeti Carbon, 780mm width
  • Bar Tape/Grips: ODI Elite Pro grips
  • Stem: Standard Alloy Stem
  • Saddle: WTB Silverado Custom
  • Seatpost: OneUp V2 Dropper 31.6mm More
  • Wheelset: DT Swiss M 1900 Spline, 30mm More
  • Hubs: DT Swiss 370 with Ratchet LN system, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear
  • Rims: DT Swiss M 1900 aluminum rims, 30mm internal width
  • Spokes: DT Swiss Champion straight-pull spokes, 2.0mm diameter steel
  • Front Tire: Maxxis Minion DHF 2.5" | 3C MaxxTerra, EXO More
  • Rear Tire: Maxxis Aggressor 2.3" | EXO More
  • Warranty: Limited Lifetime (Frame)
Size S M L XL
Rider Height 5'2" - 5'6" 5'6" - 5'10" 5'10" - 6'2" 6'2" - 6'6"
Reach (mm) 430 460 480 505
Stack (mm) 617 620 625 635
Effective Top Tube (mm) 575 600 615 635
Seat Tube (mm) 400 430 440 460
Head Tube Angle (°) 65 65 65 65
Seat Tube Angle (°) 77 77 77 77
Chainstay Length (mm) 436 438 440 442
Bottom Bracket Height (mm) 335 335 335 335
Bottom Bracket Drop (mm) 30 30 30 30
Head Tube Length (mm) 95 100 105 115
Wheelbase (mm) 1195 1225 1247 1272
Standover Height (mm) 720 750 760 780
Complete Weight (lbs) 32
Complete Weight (kg) 14.5
Wheel Size 29" 29" 29" 29"

Other Notes

Yeti products can only be shipped within the United States
