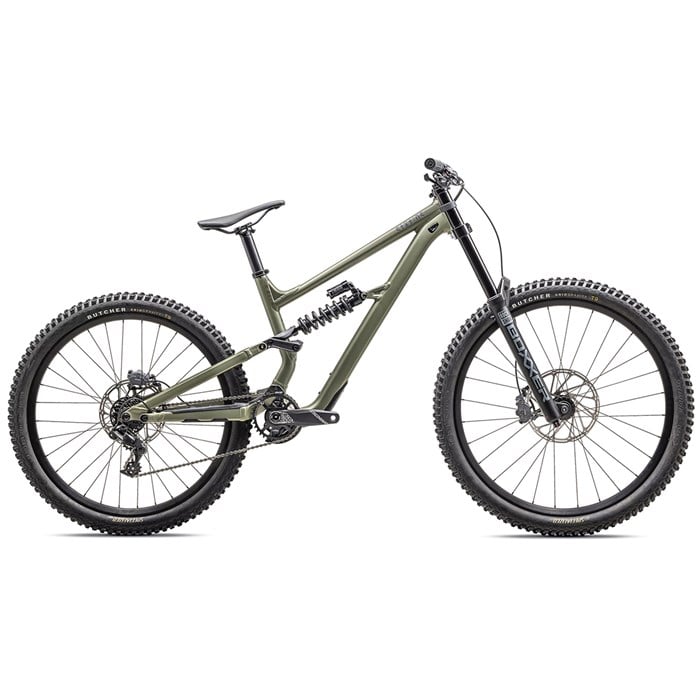

Specialized Status 2 170 DH Complete Mountain Bike 2025
Model Info
MEMBERSHIP
Earn up to 10% back in rewards. Join Free.
EASY RETURNS
Take up to a full year to return your item! See our Return Policy.
Product Info
The Specialized Status 2 170 DH Complete Mountain Bike is a full-send machine built for big terrain, big hits, and even bigger grins. This special downhill edition features 170mm of travel, mixed wheel sizing for playful handling, and a bombproof alloy frame with components designed to go fast and down, Fast, fun, and unapologetically aggressive—this bike doesn’t ask permission, it just goes.
Product Details
Key Features
M5 Alloy Chassis – 100% Redesigned durable alloy chassis.
Travel – Travel - 180mm Front / 170mm Rear
Ride Dynamics Tuned – Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from the Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly.
Horst Link Geometry Adjust Flip Chip – Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frame’s geometry to their desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.
Internal Cable Routing with External Rear Brake Option
SRAM UDH Compatible
Specs
-
Biking Type:
Mountain
More
Biking Type
Mountain Mountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.
-
Used For:
Downhill
More
Used For
Downhill For bike park days and shuttle laps, there’s nothing like a downhill (DH) bike. Designed to tackle the roughest trails at high speeds, these bikes have long suspension travel (typically 170mm+), huge brakes, and unreal descending capabilities. DH bikes are not as suitable for tight trails or climbing.
-
Suspension:
Full Suspension
More
Suspension
Full Suspension Engineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.
-
Frame Material:
Aluminum Alloy
More
Frame Material
Aluminum Alloy Aluminum is the second lightest material per cubic inch, after carbon, but it is significantly more affordable. It offers versatility, strength, and durability that works well in all trail disciplines.
- Gearing: 1 x 7
- Water Bottle Mounts: 1
- Fork: RockShox BoXXer
- Stanchion Diameter (mm): 38
- Rear Shock: RockShox Super Deluxe Select Coil
- Rear Travel (mm): 180
-
Shifters:
SRAM GX Eagle DH
More
Shifters
SRAM GX Eagle DH The authentic click of the GX DH Trigger Shifter means it’s time to sprint out of the corner, set up for the next big table, or put in that last kick to the finish line. A critical component in the lineup, the GX DH shifter is engineered in Germany to deliver clockwork-accurate shifting when you want it. -
Rear Derailleur:
SRAM GX DH, 7-Speed
More
Rear Derailleur
SRAM GX DH, 7-Speed The SRAM GX DH derailleur is easier to shift, incredibly precise, and keeps unwanted chain slap noise to a minimum so you can concentrate on the sweet feeling of nailing your line. GX DH — Get Some.
-
Crankset:
SRAM Descendant DH, 34t
More
Crankset
SRAM Descendant DH, 34t Whether your target is high speed or big air, an unwavering focus on dependability and style can never be overlooked. Blending the experience of countless DH podiums, big mountain competitions and film sessions, the new Descendant DH crank brings clock-beating weight savings to freeride burliness — at a price that will leave money for the next adventure. Meet your gravity goals — Descendant.
FEATURES- Lightweight DH crank set
- New graphics
- World Cup proven design
- Fully compatible with any 1x drivetrain
- X-SYNC™ chainring
- Cassette: SRAM GX DH, 7-speed, 11-24t
- Chain: SRAM PC1110 w/ Powerlink™
- Bottom Bracket: SRAM DUB Threaded Wide
- Pedals: Not Included
-
Brake Levers:
SRAM Maven Bronze
More
Brake Levers
SRAM Maven Bronze SRAM Maven Bronze features monstrous 18 and 19.5mm pistons driving 50% more power than Code. But best-in-class power means nothing unless you’re able to harness it. The Maven Bronze lever body houses Swinglink, which translates rider input for progressive power throughout the lever pull, maintaining SRAM’s signature ride feel. And because of a stiff 4-bolt caliper that sheds an incredible amount of heat, that feel remains consistent, so the last corner feels like the first corner. Maven Bronze features a Dark Polar Anodized finish, and tool-free Reach Adjust. - Brake Calipers: SRAM Maven Bronze
- Rotors: Front: SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm | Rear: SRAM DB MVN BRZ SJ BDPA DIR
- Stem: Descendant 35mm Direct Mount Stem, 50mm length
- Saddle: Body Geometry Henge DH, hollow Cro-Mo rails, 130mm
- Seatpost: Specialized 2-Bolt Head, Forged Alloy, 5mm Offset, Micro-Adjust, 34.9mm
- Hubs: Alloy, sealed cartridge bearings
- Rims: Roval Alloy DH, 28mm internal width, tubeless ready. Front: 29", 28H, Rear: 27.5", 32H
- Spokes: DT Swiss Industry
- Tires: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready,
-
Front Tire:
Specialized Butcher 2.3" | Grid, Gripton® T9, 2Bliss Ready
More
Front Tire
Specialized Butcher 2.3" | Grid, Gripton® T9, 2Bliss Ready The Butcher GRID 2Bliss Ready T9 features a World-Cup proven aggressive tread design to bite and grip in any condition. Ramped and siped, the center tread blocks provide maximum traction and accurate steering. The sawtooth faced shoulder knobs offer a continuous biting edge for railing through corners.- GRID casing provides a light and supple trail construction with additional sidewall protection for exceptional durability and sidewall stability.
- High-dampening GRIPTON® T9 compound rebounds slowly to grip and stick to the ground for total traction and control.
- Warranty: Limited Lifetime
| Size | S2 | S3 | S4 | S5 |
| Rider Height | 5'2" - 5'8" | 5'5" - 5'11" | 5'8" - 6'2" | 5'10"+ |
| Reach (mm) | 445 | 470 | 495 | 520 |
| Stack (mm) | 625 | 634 | 643 | 652 |
| Effective Top Tube (mm) | 595 | 635 | 676 | 716 |
| Seat Tube (mm) | 400 | 420 | 440 | 465 |
| Head Tube Angle (°) | 63.5 | 63.5 | 63.5 | 63.5 |
| Seat Tube Angle (°) | 77 | 77 | 77 | 77 |
| Chainstay Length (mm) | 428 | 428 | 433 | 433 |
| Bottom Bracket Height (mm) | 350 | 350 | 350 | 350 |
| Bottom Bracket Drop (mm) | 34 | 34 | 34 | 34 |
| Head Tube Length (mm) | 100 | 110 | 120 | 130 |
| Wheelbase (mm) | 1221 | 1250 | 1285 | 1314 |
| Standover Height (mm) | 735 | 742 | 748 | 752 |
| Complete Weight (lbs) | 37.88 | |||
| Complete Weight (kg) | 17.18 | |||
| Wheel Size | Mixed Wheel | Mixed Wheel | Mixed Wheel | Mixed Wheel |
