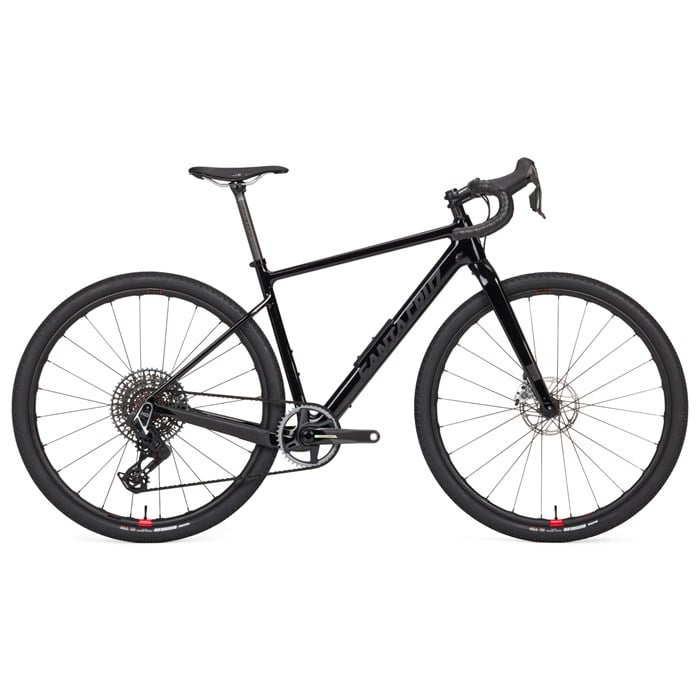

Santa Cruz Stigmata 4 CC Red Force 1x Reserve 700c Complete Bike 2026
Model Info
MEMBERSHIP
Earn up to 10% back in rewards. Learn more. Join Free.
EASY RETURNS
Take up to a full year to return your item! See our Return Policy.
Product Info
The Santa Cruz Stigmata 4 CC Red Force 1x Reserve 700c isn't just a bike—it's basically gravel royalty with a carbon fiber throne. This top-tier build pairs Santa Cruz's immaculate CC carbon frame with SRAM's no-compromise Red/Force hybrid drivetrain and those drool-worthy Reserve carbon wheels that'll have your riding buddies developing a serious case of wheel envy. If the crème de la crème is what you're after, this bike delivers all that and then some!
Product Details
Key Features
Carbon CC Frame & Fork – Santa Cruz's highest grade of carbon makes for a bike that is incredibly lightweight, strong, and comfortable. With knowledge gained from years of mountain bike innovation, this frameset is stiff yet has great offroad feel.
Wheel Size – 700c
Suspension Corrected Geometry for Longer Axle-Crown of 40mm Gravel Suspension
SRAM X0 Eagle AXS T-Type Drivetrain – SRAM's answer to the call to create a ruggedly dependable transmission for your enduro needs, the X0 T-Type AXS Transmission drivetrain is their most robust high-performance transmission. SRAM's all-new Transmissions take a holistic approach to a bicycles shifting, an entire system synchronized, providing you with a superior ride experience.
Reserve 25 GR 700c Carbon Rims – Bringing cutting edge performance to the diverse needs of drop bar off-roaders, the coveted Reserve gravel rims have been redesigned and are ready for any dirt adventure you can dream up. Wider than our previous gravel wheels, the 25|GR plays nicely with today’s slew of big volume gravel tires. A semi-hooked rim makes tubeless set up easier than ever and like all Reserve wheels, the 25|GR has a lifetime warranty supported by a no-fault crash replacement. And in keeping with its workmanlike ways, you’ll find external nipples and standard spokes, which makes the wheels easy to keep tensioned up and in tip-top shape.
Glovebox – Stash snacks and tools in the bike, not on the body or in rattle-y bags.
Low Profile Fender Mounts
Specs
- Gender: Unisex
- Recommended Use: Cyclocross, Gravel
-
Biking Type:
Gravel/Adventure
More
Biking Type
Gravel/Adventure Gravel/Adventure bikes are versatile machines designed for exploring mixed terrain, combining elements of road and mountain bike frames for comfort and stability. They offer traction and stability on various surfaces. Whether on gravel roads, light trails, or city streets, these bikes provide a perfect balance between comfort, performance, and versatility.
- Bike Style: Cyclocross, Gravel, XC
- Wheel Size: 700c
- Gearing: 1 x 12
-
Frame Material:
Carbon
More
Frame Material
Carbon Carbon is a composite frame material. Unlike metals, carbon is composed of fibrous strands woven into a grid and bonded with epoxy. Carbon is favored by many for its lightness and stiffness but its complexity in fabrication makes it the most expensive option.
- Fork: Carbon
- Fork Material: Carbon
-
Shifters:
SRAM Rival eTap AXS
More
Shifters
SRAM Rival eTap AXS Compatible with AXS drivetrains, this wireless shifter has an ergonomic "click and fire" two button design, and ergonomics that'll have your thumbs feeling great. -
Rear Derailleur:
SRAM X0 Eagle AXS T-Type, 12-Speed
More
Rear Derailleur
SRAM X0 Eagle AXS T-Type, 12-Speed Engineered as integrated and interdependent transmission components, the X0 Eagle T-Type derailleur mounts around the wheel axle itself, contacting the cassette directly with a first-of-its-kind Hangerless Interface. Beyond that, its Full Mount attachment method creates a far stronger connection that grips both sides of the frame. The new Transmission derailleurs feature the same intuitive pairing and set-up procedure as our Eagle AXS derailleurs. Featuring an overload clutch that boosts resiliency and a tucked-in profile that houses protection covers on the B-knuckle and outer link that are fully replaceable, or upgradeable to the XX skid plate. - Crankset: SRAM Force AXS, 42t
- Bottom Bracket: SRAM DUB 68mm Road Wide BB
- Pedals: Not Included
-
Cassette:
SRAM X0 Eagle T-Type XS-1295, 10-52t
More
Cassette
SRAM X0 Eagle T-Type XS-1295, 10-52t The X0 Eagle Transmission (T-Type) Cassette is a major reason why Eagle Transmission offers the best-ever inboard and outboard shifting performance under load. Engineered as integrated and interdependent transmission components, the X0 Eagle Transmission Cassette and derailleur contact directly, ensuring perfect alignment on every bike. Beyond its unique and stunning Dark Polar finish and electroless nickel plating for incredible resistance to corrosion and wear, its full X-Sync design literally means the harder you pedal, the better it shifts. Its strength is further proven by its full approval for E-MTB use. It’s been built for a 55mm chainline for even more durability and precision thanks to milder chain angles throughout the full range, low to high. From its massive 520% gear range, the 52 tooth cog steps down with improved gear progression with 44 and 38 tooth cogs in the low end (compared to the Eagle drivetrain 10-52-tooth cassette). What else? It has a clearly marked Setup Cog, making install both simple and fool-proof.
FEATURES- Full X-SYNC for best-ever inboard and outboard shifting performance under load
- Optimized gear steps on low end
- 55mm chainline compatibility for more moderate chain angle, longer wear and greater precision
- Setup Cog for fool-proof set up
- Features X-DOME with a lighter aluminum 12th gear
- Fully E-MTB approved
-
Chain:
SRAM X0 Eagle T-Type Flattop, 12-Speed
More
Chain
SRAM X0 Eagle T-Type Flattop, 12-Speed With Eagle Transmission being the first of its kind, fully integrated and interdependent system, the X0 Eagle Transmission (T-Type) Flattop Chain is so much more than just a chain. Its unique flat top design makes it the strongest change chain we have ever made. With equal importance, it upgrades the look of any super machine. These details matter. It features a Dark Polar finish specific to X0, has been plated with electroless nickel, and comes with a PVD coating for unbelievable resistance to corrosion and wear. Fully approved for E-MTB use with solid pins.
FEATURES- Strongest SRAM chain ever
- Specifically engineered for Eagle Transmission
- Flattop profile, unbelievable shifting performance, game-changing aesthetics
-
Brake Levers:
SRAM Red AXS
More
Brake Levers
SRAM Red AXS True one-finger braking is at hand. SRAM overhauled their hood and lever architecture and achieved breakthroughs for fit across all hand sizes and easy access to powerful and smooth, easy braking from anywhere on the bar. Truly independent reach and contact point adjustment allow for highly personalized setup, with no risk of pinching your fingers or bottoming out on the bar no matter your settings. Better finger wrap on the hood means less fatigue on long days, and Bonus Buttons let you shift or control ANT+ devices with your thumbs. All that and they still managed to remove 83 g. The caliper is not only stiffer, but lighter too, with phenomenal pad clearance for rub-free operation. -
Brake Calipers:
SRAM Red AXS
More
Brake Calipers
SRAM Red AXS True one-finger braking is at hand. SRAM overhauled their hood and lever architecture and achieved breakthroughs for fit across all hand sizes and easy access to powerful and smooth, easy braking from anywhere on the bar. Truly independent reach and contact point adjustment allow for highly personalized setup, with no risk of pinching your fingers or bottoming out on the bar no matter your settings. Better finger wrap on the hood means less fatigue on long days, and Bonus Buttons let you shift or control ANT+ devices with your thumbs. All that and they still managed to remove 83 g. The caliper is not only stiffer, but lighter too, with phenomenal pad clearance for rub-free operation. - Rotors: Avid Centerline Centerlock | 160mm
- Headset: Cane Creek 40 IS Integrated
- Stem: Zipp Service Course Stem, 70mm
- Saddle: WTB Silverado Medium, CroMo
-
Seatpost:
Easton EC70 27.2mm
More
Seatpost
Easton EC70 27.2mm The EC70 Seatpost takes Easton's superlight unidirectional carbon and applies their patent pending ISA technology - Independent Saddle Adjustment - which allows for completely independent fore-aft adjustment and saddle adjustment. With the 2 pitch adjustment bolts, the saddle angle gets locked into place as if you were adjusting limit screws, and unlike single bolt designs, you get adjustability and security. - Hubs: DT Swiss 350, Centerlock, 24h
- Rims: Reserve 25 | GR 700c Carbon
- Tires: Maxxis Rambler DC, EXO | 700x45c
- Warranty: Limited Lifetime (Frame & Rims Only)
| Size | XS | S | M | L | XL | XXL |
| Rider Height | 5'0" - 5'3" | 5'3" - 5'6" | 5'6" - 5'9" | 5'9" - 6'0" | 6'0" - 6'2" | 6'2" - 6'6" |
| Reach (mm) | 375 | 390 | 405 | 420 | 435 | 450 |
| Stack (mm) | 550 | 564 | 576 | 600 | 612 | 631 |
| Effective Top Tube (mm) | 533 | 552 | 570 | 592 | 610 | 631 |
| Seat Tube (mm) | 450 | 455 | 485 | 515 | 545 | 575 |
| Head Tube Angle (°) | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 |
| Seat Tube Angle (°) | 74 | 74 | 74 | 74 | 74 | 74 |
| Chainstay Length (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
| Bottom Bracket Height (mm) | 278 | 278 | 280 | 280 | 282 | 282 |
| Bottom Bracket Drop (mm) | 78 | 78 | 78 | 78 | 78 | 78 |
| Head Tube Length (mm) | 90 | 105 | 120 | 145 | 160 | 180 |
| Wheelbase (mm) | 1023 | 1043 | 1063 | 1087 | 1108 | 1130 |
| Standover Height (mm) | 723 | 728 | 753 | 778 | 804 | 830 |
| Complete Weight (lbs) | 19.06 | |||||
| Complete Weight (kg) | 8.65 |
