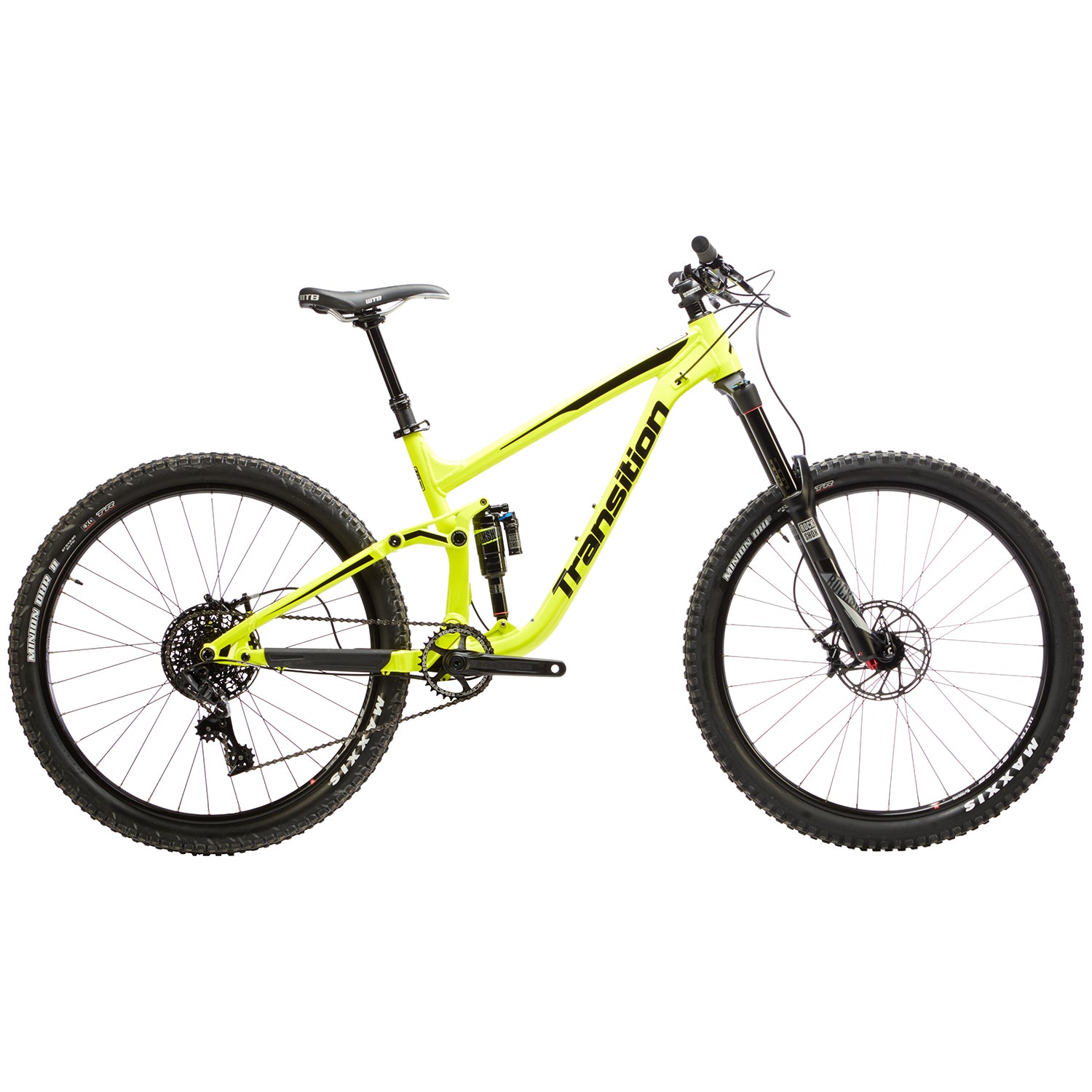

Transition Patrol 3 Complete Mountain Bike 2016
SKU# EB-99374-1005
$3,599.10
$3,999.00
Find in Store
Checking availability...
Not available in store
Order and get 3599 reward points
Earn 3599 points with this product. Join Free
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsTransition Patrol 3 Complete Mountain Bike 2016
The Transition Patrol 3 Complete Mountain Bike makes use of a long, low and slack geometry for aggressive stability on the steeps while the long-travel Giddy Up Suspension and adaptive Monarch shock keep you from walking like a penguin after a couple days of all-time riding. Equipped with durable and reliable SRAM components, the Patrol and it's progressive design are merging big mountain confidence with trail-type agility. Don't wait around because the Transition Patrol 3 Complete Mountain Bike is a true enduro weapon that's sweeping the industry.
Product Details

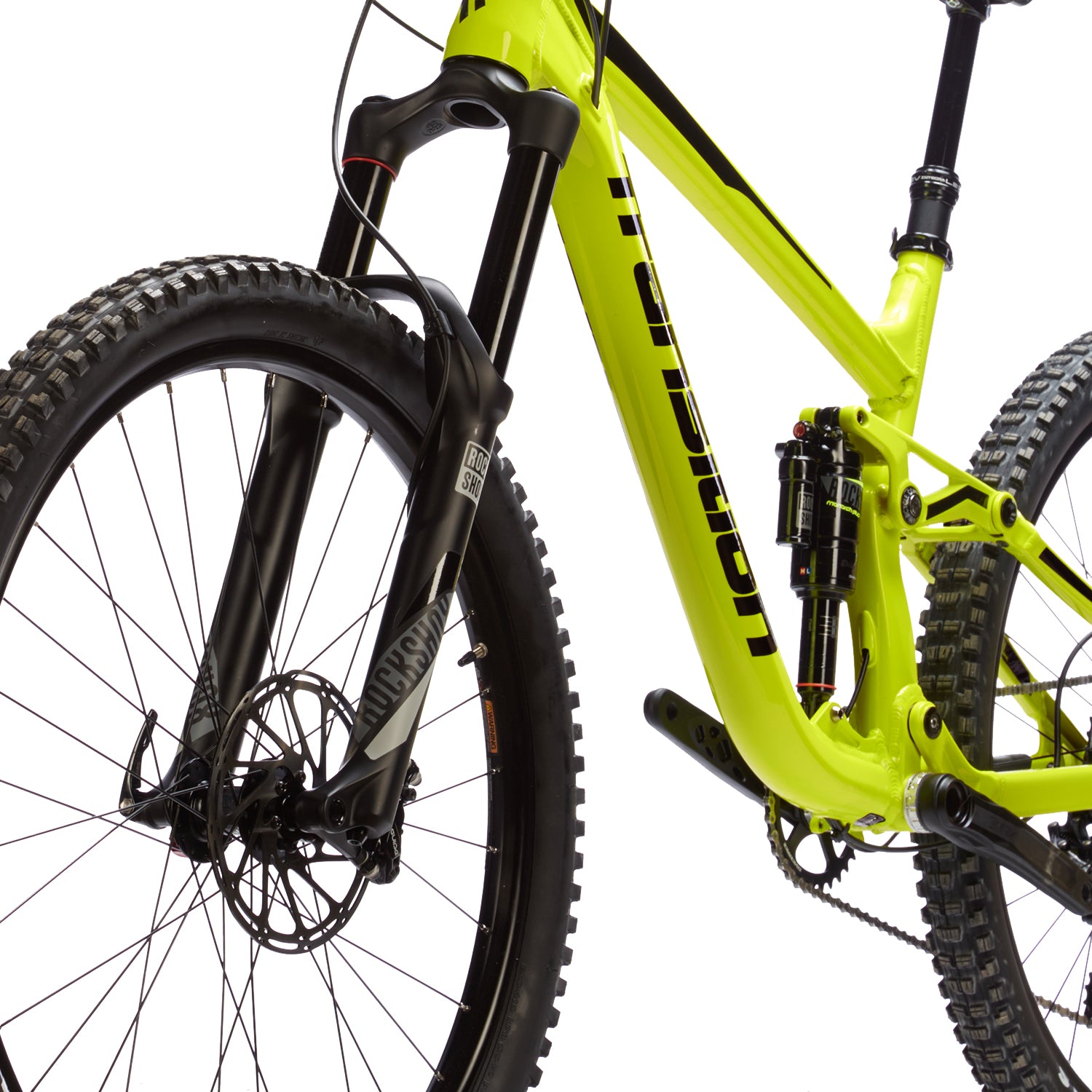

Frame/Shock:
Aluminum Welded Frame
Progressive Geometry: Long, low and slack.
Giddy Up Suspension System: When Transition set out to design the new family of trail bikes, they wanted to improve their suspension bike pedaling performance, but didn't want to lose the neutral and comfortable feel that Transition Bikes are known for. No one at Transition wanted a suspension system that felt like it was locking out, or provided any "kick back" in the pedals. Their Giddy Up link is specifically tuned with a moderate amount of chain growth which is highest at the sag point and decreasing deeper into the travel. Because of this finely tuned wheel path, the new models have a notable increase in traction when climbing, without the rider noticing the chain growth fighting the suspension movement. The ride feel of Giddy Up Link bikes will be familiar for any previous Transition rider, but with a big improvement in suspension performance. Their new models are designed to be active while climbing; increased compression damping or rear shock platforms are not required with the Giddy Up link. The suspension remains free to smooth out the trail, improve traction and control without sacrificing any efficiency. There is no need to think about flipping switches; start your ride with the shock open and leave it there. With Giddy Up you can focus on the trail, not your remotes, levers or knobs. Just grab your bike, Giddy Up and go.

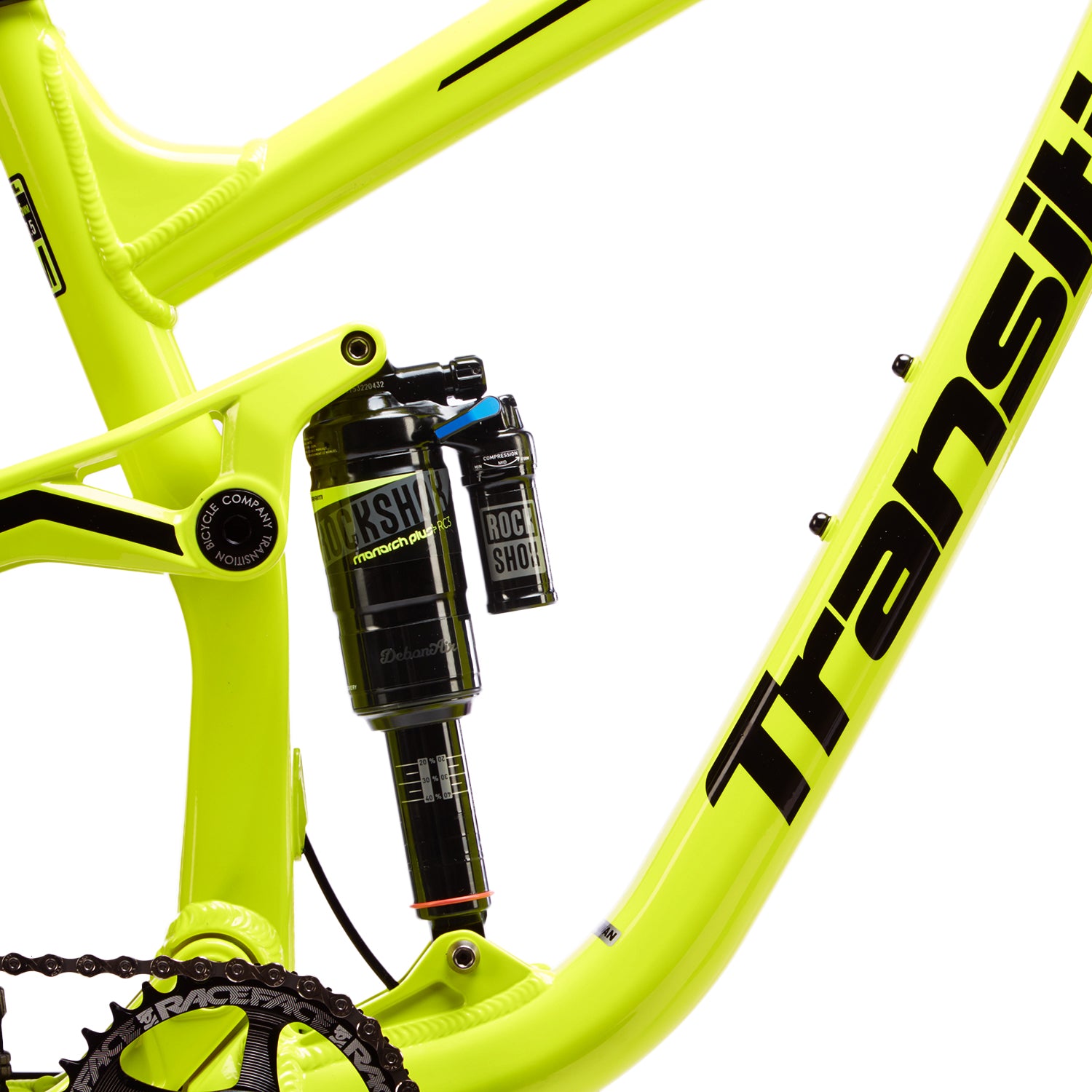

RockShox Monarch Plus RC3 Debonair Rear Shock: Monarch Plus provides traction-gaining suppleness, giving you more control over any type of terrain -- all in a lightweight bombproof package. Proven Rapid Recovery™, DebonAir and Solo Air™ technologies come standard for this lightweight big hitter.
Adjustments: External Rebound Adjustment, 3 Position Compression (Open, Pedal, Lock)
Integrated Rubber Chainstay Protection
Collet Style Main Pivot Hardware
E2 Low Direct Mount Front Derailleur Support
ISCG05 Chainguide Mounting
Syntace X12 Rear 142mm Axle and Universal Transition Derailleur Hanger
Full Size Water Bottle Fits Inside Front Triangle
User Friendly 73mm Threaded Bottom Bracket

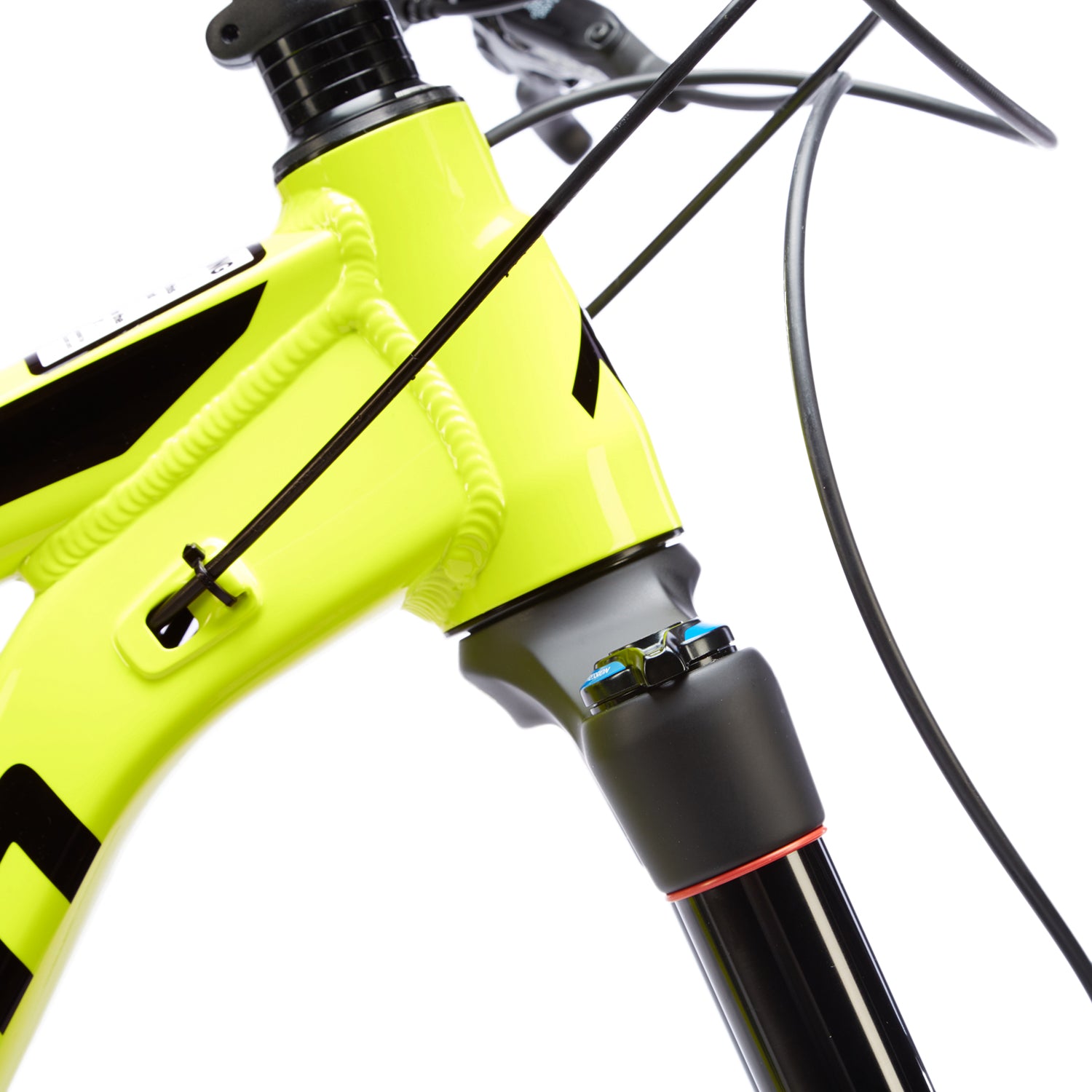

Internal Cable Routing with Stealth Dropper Post Routing
Fork:

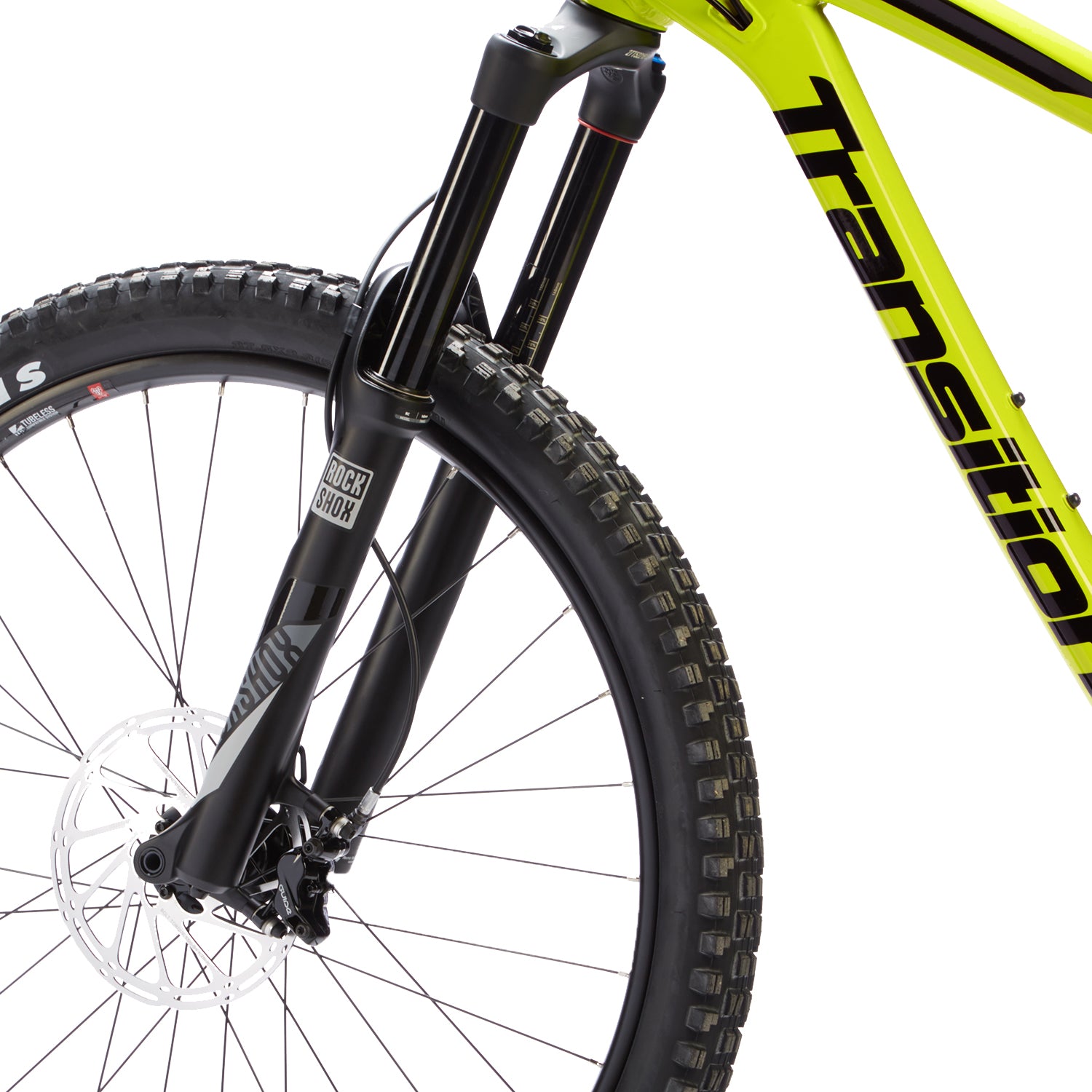

RockShox Pike RC Solo Air Fork: A comeback has never been so amazing. After taking a few years off, PIKE comes back in the RockShox lineup as the ultimate trail fork. Your trail could be a silky smooth ribbon of singletrack, or a rock-infested goat trail in the Alps.
Adjustments: External Rebound Adjustment, Low Speed Compression to 'Lock'
Drive Train:
SRAM GX 11 Speed Shifter: Get sharp, dependable shifting with the SRAM GX X-Actuation™ trigger shifter. Built for precise and swift shifting across SRAM wide range 11-speed cassettes, the GX trigger shifter brings championship technology to everyone.

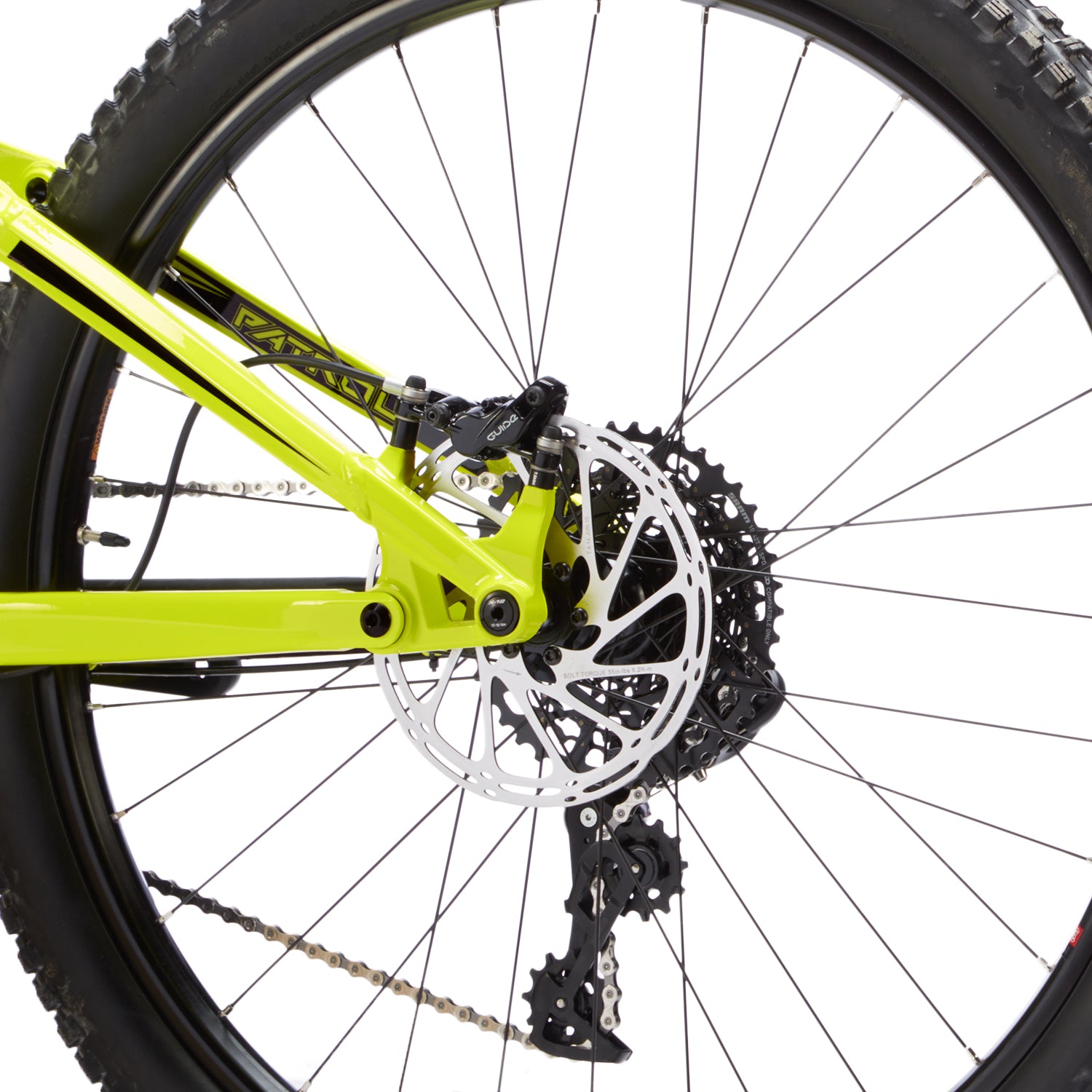

SRAM GX 11 Speed Type 2.1 Rear Derailleur: Leveraging the legendary history of SRAM shifting, the GX rear derailleur provides incredible shifting speed and precision. X-Actuation™ technology eliminates slop and shifting variation. Roller Bearing Clutch™ technology delivers maximum drivetrain stability—even through the most punishing terrain. And with Cage Lock™ technology, wheel removal and installation are easier than ever. X-Horizon™ design reduces shift force, ghost shifting and chain slap. 12-tooth X-Sync™ pulley wheels.
Race Face Æffect Cinch Crankset: The all new Æffect crankset is designed to handle aggressive trail riding at a XC crank weight. Featuring the Cinch System with its interchangeable spider options and Race Face's trusted 24mm EXI interface spindle, the Æffect is a rock solid crankset for today's modern XC and trail rider.
SRAM XG1150 (10-42) Cassette: FULL PIN™ technology uses eleven lightweight, stamped steel cogs held together with 123 high-strength stainless steel pins. The result: a cassette that's light, durable and equipped with SRAM's super wide 10-42t gear range that's a perfect fit for any ride.
KMC X11 Chain: Designed to work perfectly on 11x shifting systems. Highly durable, super lightweight, and easy to mount.
Brakes:

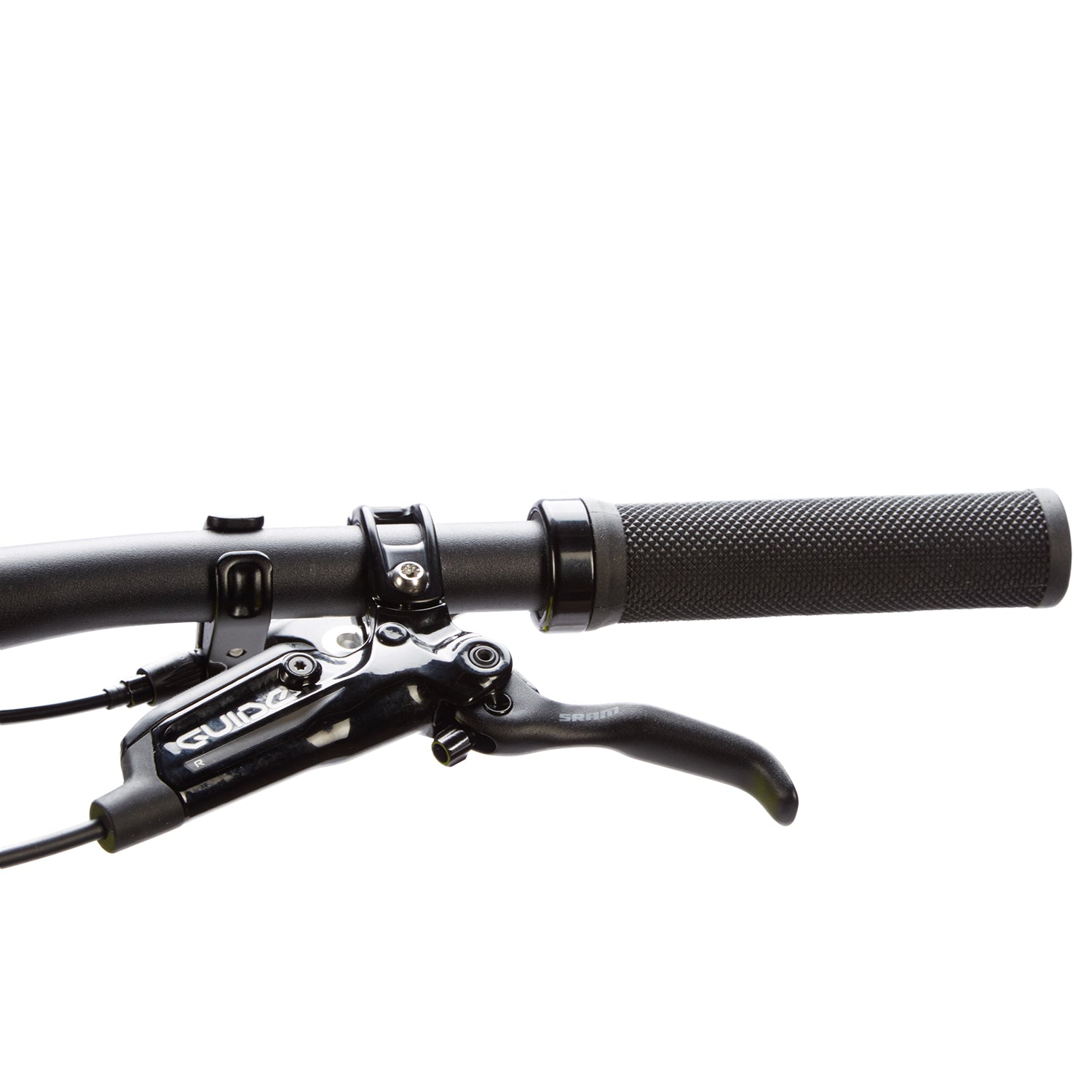

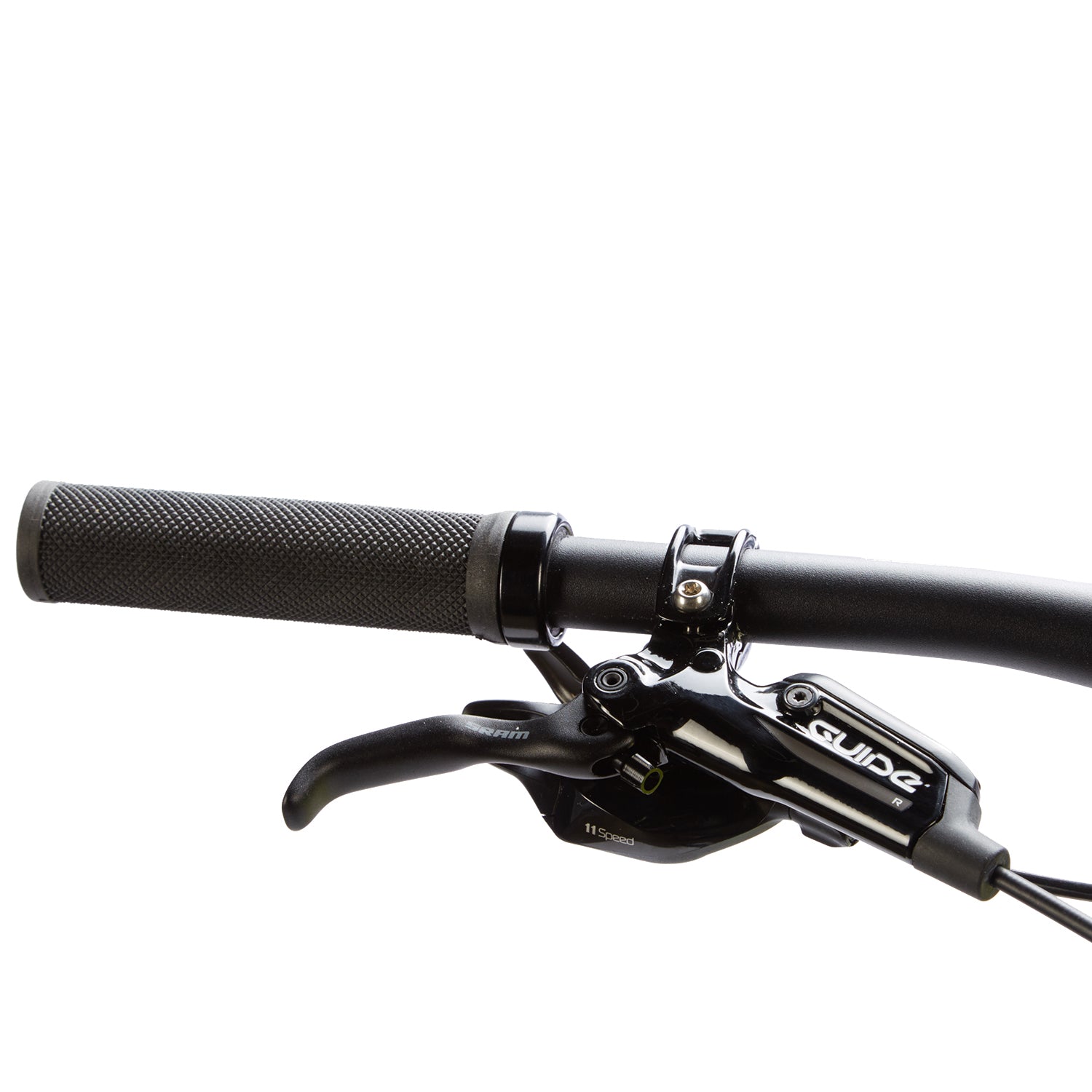

SRAM Guide R Brakes: What’s it going to take to ride that line? It’s steep. It’s rocky. You’ve passed it a hundred times. But not this time. With the all-new SRAM Guide R, you have the power. Proven 4-piston calipers give you smooth, one-finger control. Features like Reach Adjust let you dial it in just right. And Guide perfectly complements other SRAM components and gives you flawless performance on every ride.
SRAM Centerline Rotors: The new Centerline Rotor was designed to keep the center of friction consistent throughout rotation thereby minimizing vibration offering consistent performance and a quiet ride.
Wheelset:
WTB Frequency STP i25 27.5" Rims: Frequency rims are renowned for their craftsmanship, durability, rigidity, and tubeless simplicity. A UST-compliant inner rim profile provides standards-driven consistency while a tap and sealant system eliminates precious rotational weight. WTB's legendary I-Beam, 4D drilling, and WT69 Alloy futher aids in lateral and torsional strength while maximizing lifespan.
SRAM MTH 716/746 Hubs: Front 15x100, Rear 12x142 | Identical driver mechanism as X9 12x142 with a simpler hub shell | Cartridge bearings for smooth rotation and durability.
Maxxis Minion DHF 27.5" x 2.3" EXO Dual: The Minion DHF was designed for the often loose and muddy conditions of aggressive all-mountain terrain. The DHF incorporates ramped knobs for low rolling resistance and channel-cut knobs to increase gripping edges, giving straight-line control and precise cornering.
Maxxis Minion DHR II 27.5" x 2.3" EXO Dual: The trail version of the Maxxis Minion DHR II features the same tread pattern as its downhill counterpart, but uses a single-ply casing to reduce weight. With side knobs borrowed from the legendary Minion DHF, but widened to provide more support, the DHR II corners like no other. The center tread features ramped knobs to improve acceleration and sipes to create a smooth transition when leaning the bike. Paddle-like knobs on the center tread dig in under hard braking and help keep the bike under control. Pair it with a Minion DHF up front for the ultimate aggressive trail riding tire combo!
Additional Features:
KS Lev Integra Dropper Seatpost w/ Southpaw Remote: Lev Integra's internally routed cable significantly cleans up the look of your bike. Clear the clutter while benefiting from legendary Lev technology. Smooth travel executed by an air sprung hydraulically locking sealed cartridge. A forged twin bolt micro adjust head keeps the saddle on tight while KS’s patented roller-clutch bearing and replaceable brass keys ensure thousands of miles of play-free travel. A remote connects at the post end to an all new cable interface making setup and service even easier.
Specs
Fork Travel:
160mm
Rear Travel:
155mm

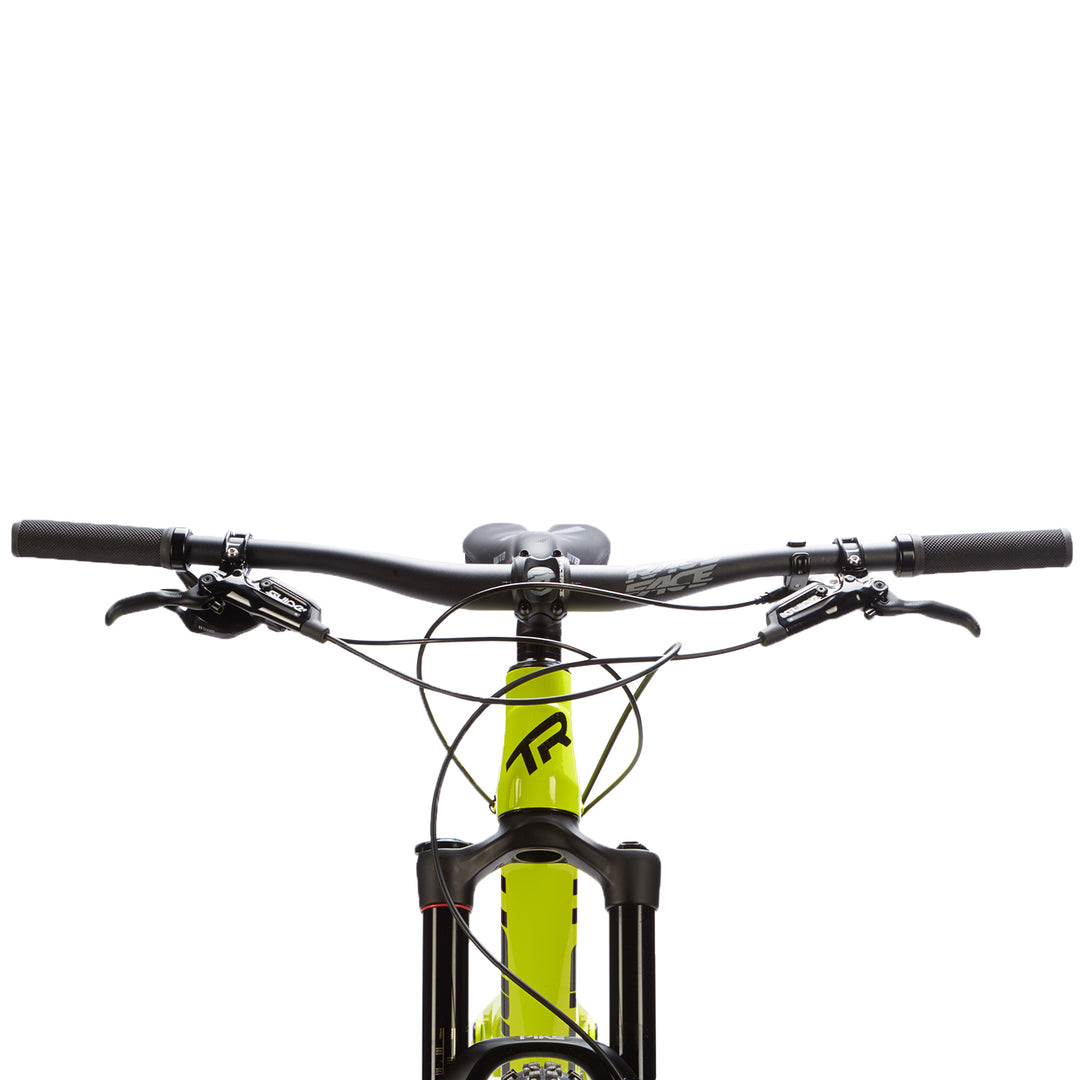

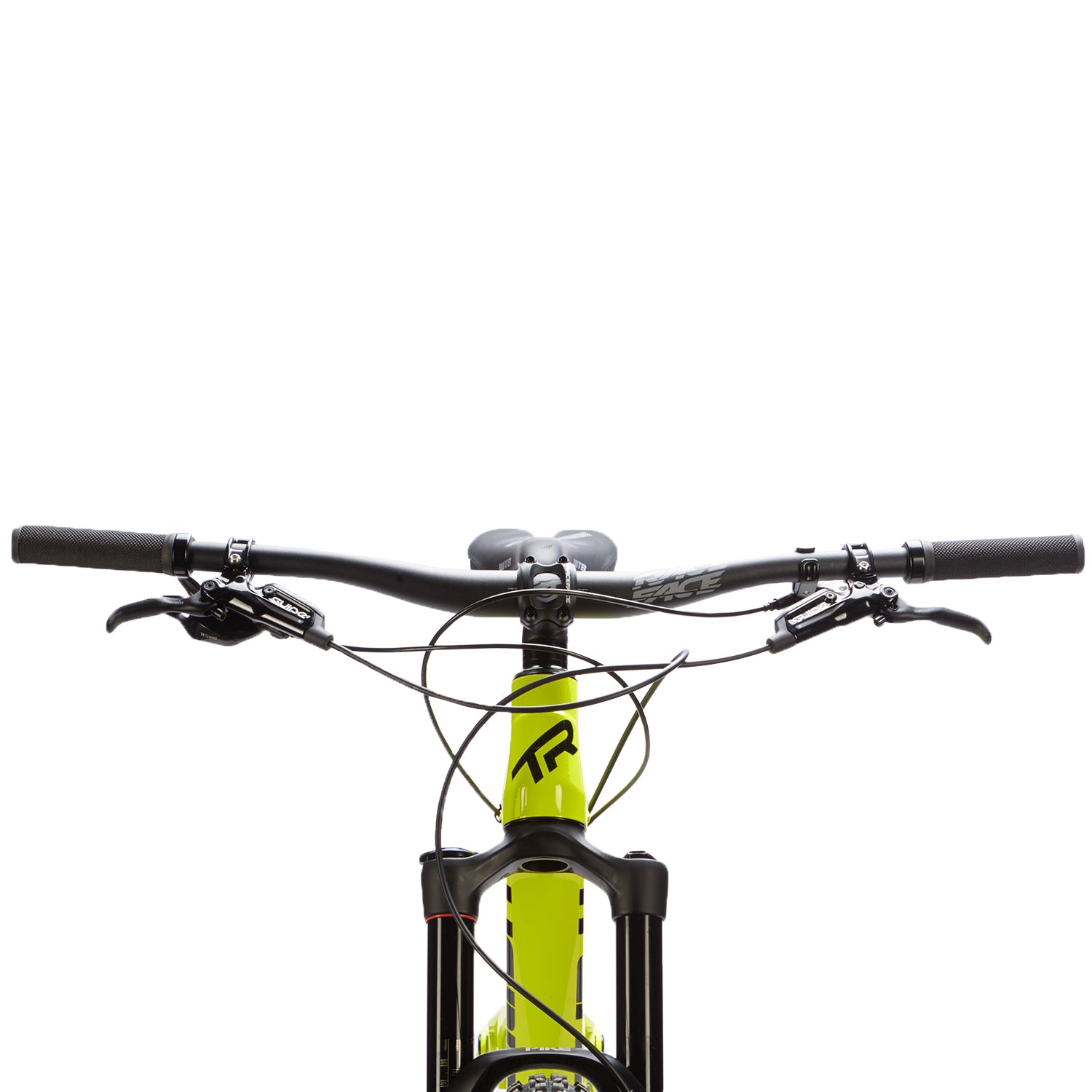

Handlebar:
Race Face Chester 35 20mm Rise x 780mm
Biking Type:
Mountain
Used For:
Enduro
Frame Material:
Aluminum Alloy
Gearing:
1 x 11
Stanchion Diameter:
35mm
Rear Shock:
Rockshox Monarch Plus RC3
Shifters:
SRAM GX Eagle
Rear Derailleur:
SRAM GX Eagle | 11-Speed
Crankset:
Race Face Aeffect, 32t
Cassette:
SRAM XG-1150, 10-42t
Chain:
KMC X11, 11-Speed
Bottom Bracket:
BSA Threaded (73mm)
Pedals:
Not Included
Brake Levers:
SRAM Guide R
Brake Calipers:
SRAM Guide R
Rotors:
SRAM Centerline (180mm)
Headset:
FSA NO.57E
Bar Tape/Grips:
Velo Single Clamp Grips
Stem:
Race Face Ride 35 (50mm)

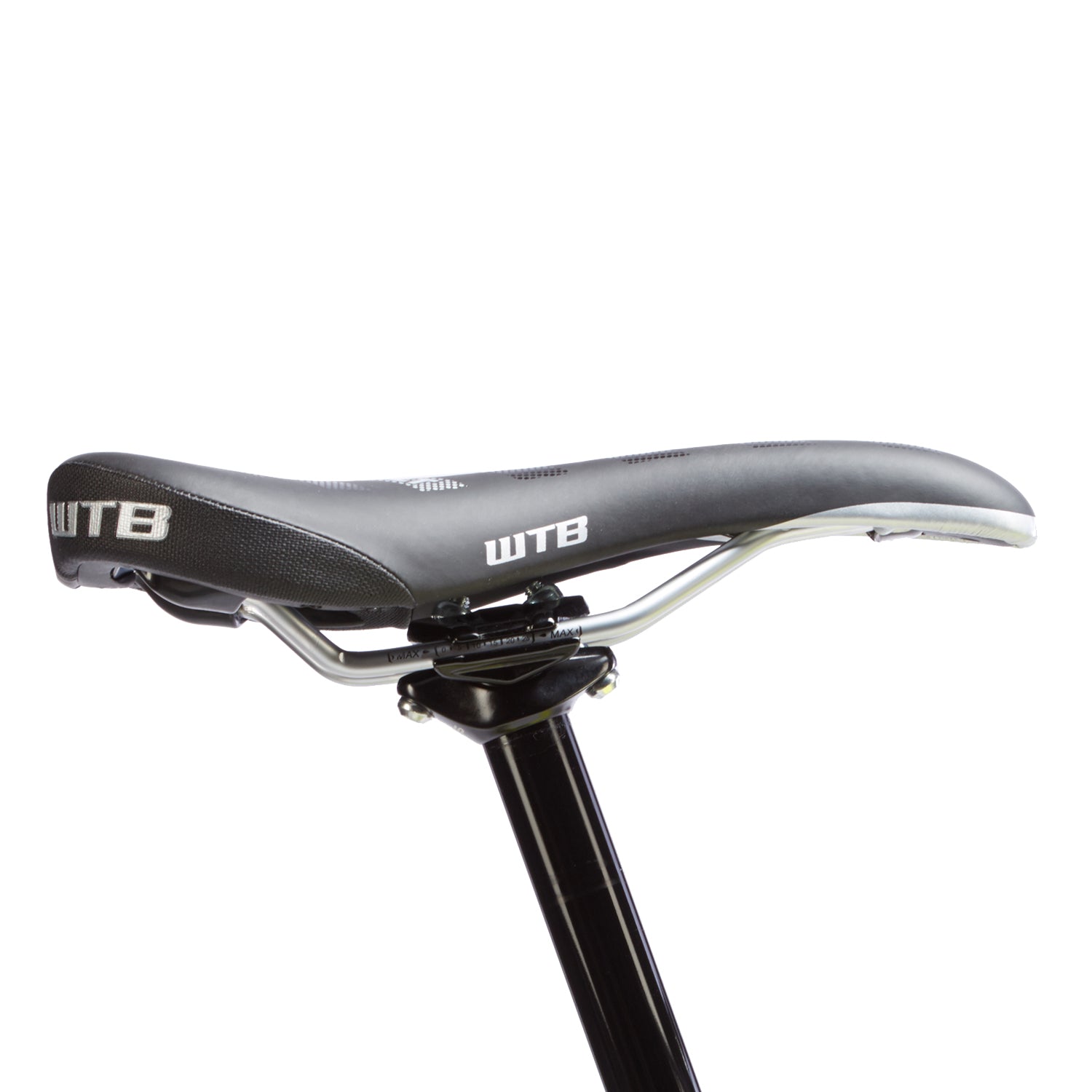

Saddle:
WTB Volt Comp
Seatpost:
KS LEV Integra Dropper
Hubs:
SRAM MTH 716/746
Rims:
WTB STP i25 32h
Front Tire:
Maxxis Minion DHF 2.3" | Dual, EXO
Rear Tire:
Maxxis Minion DHR II 2.3" | Dual, EXO
Warranty:
2 Years
Front Derailleur:
None
Wheel Size:
27.5" (650b)
