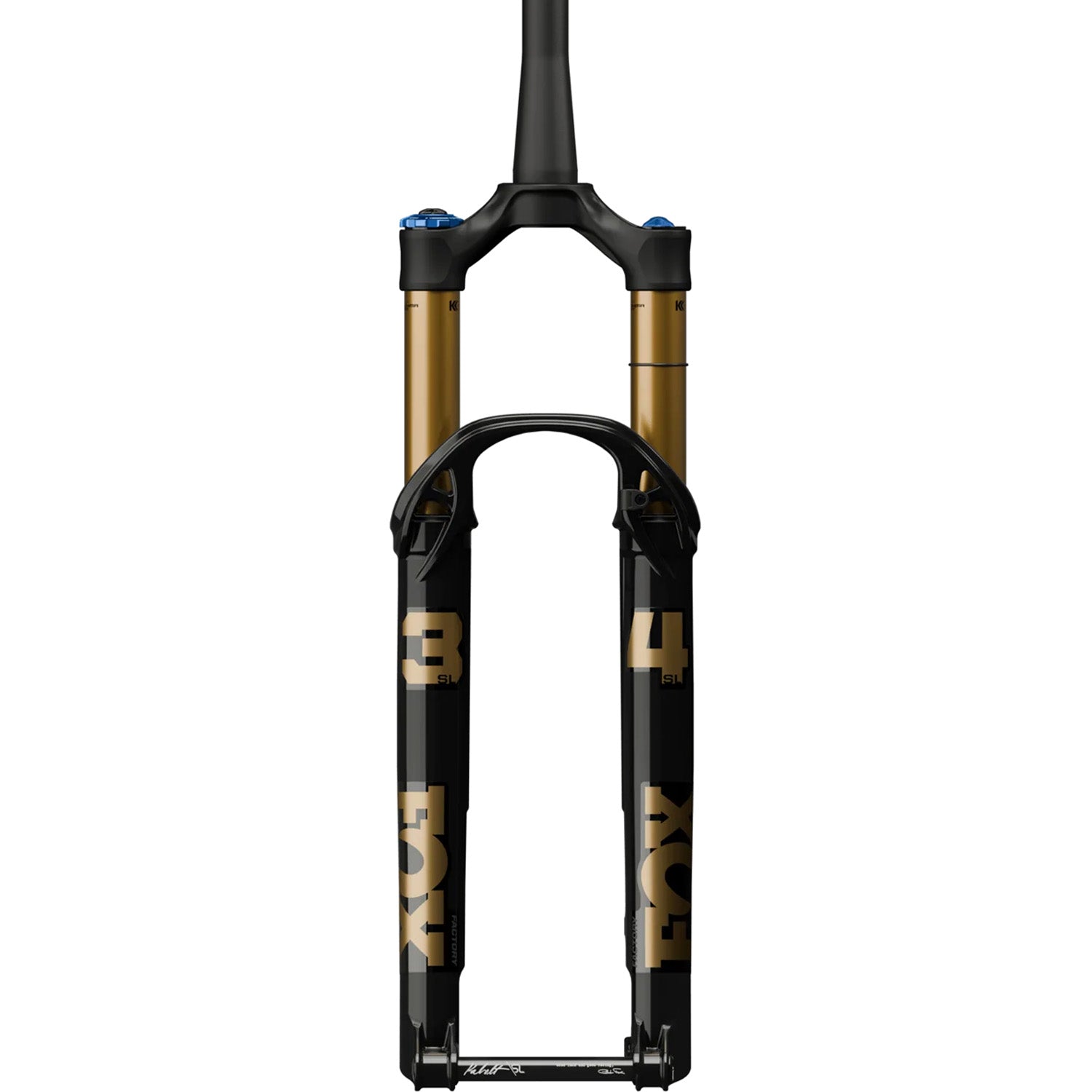

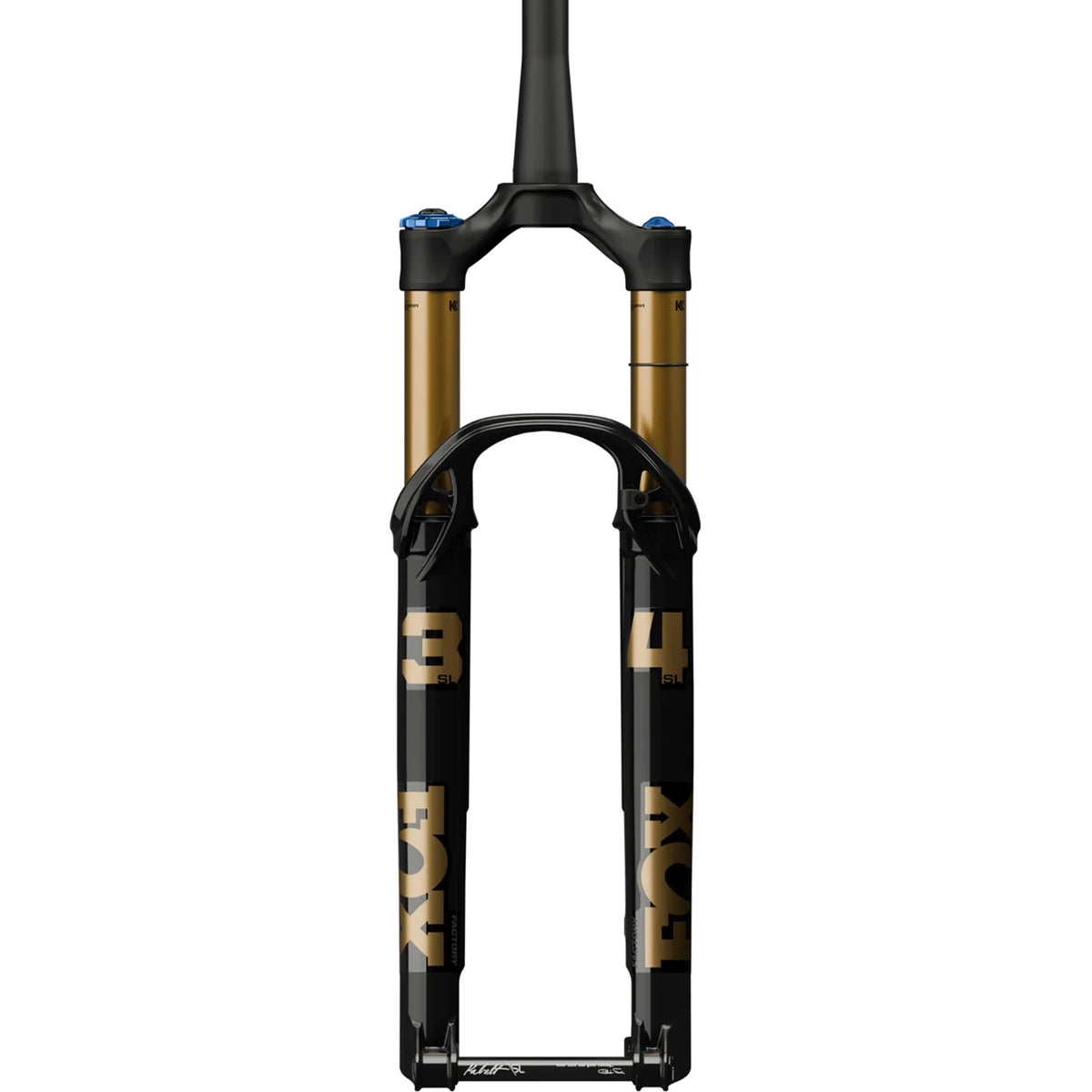

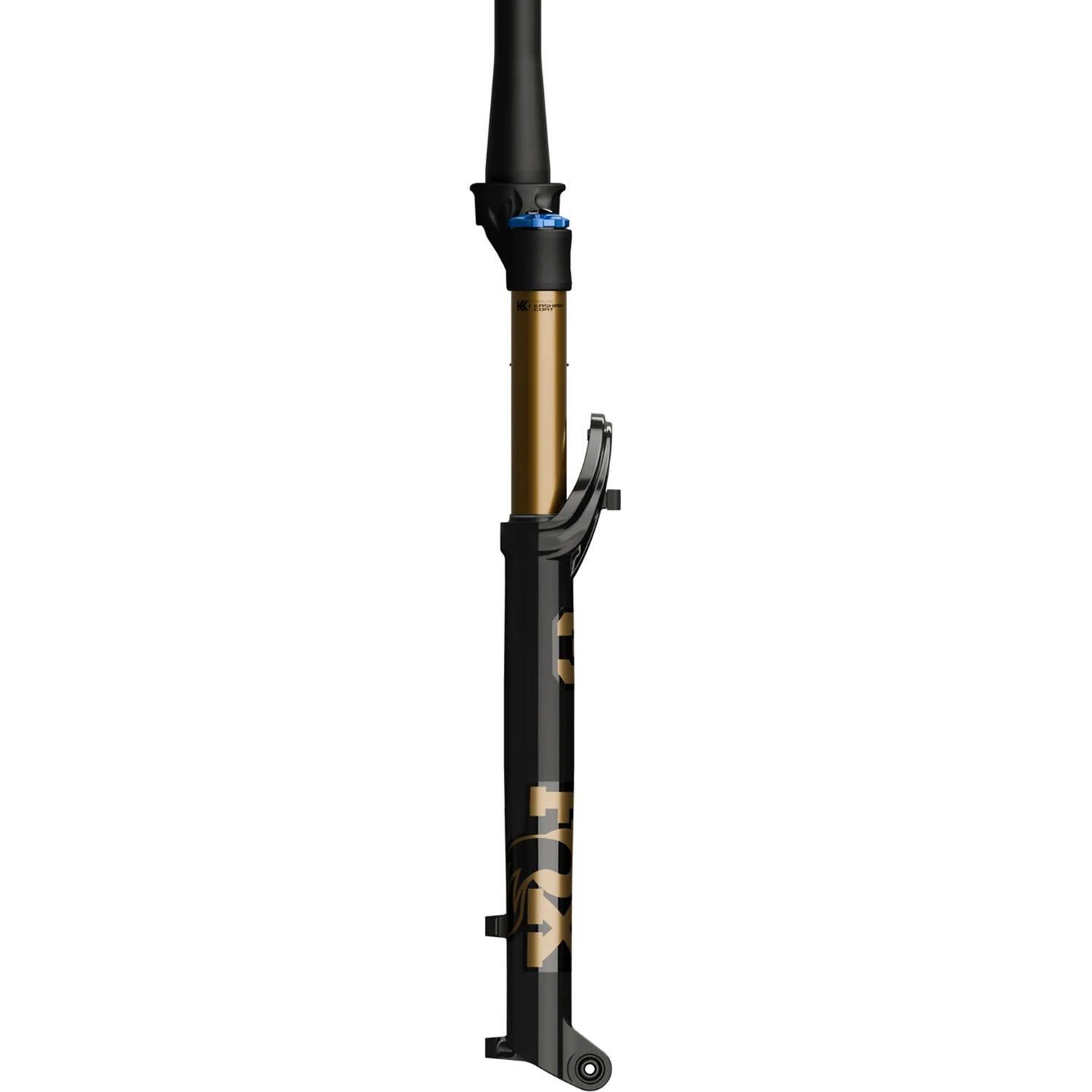

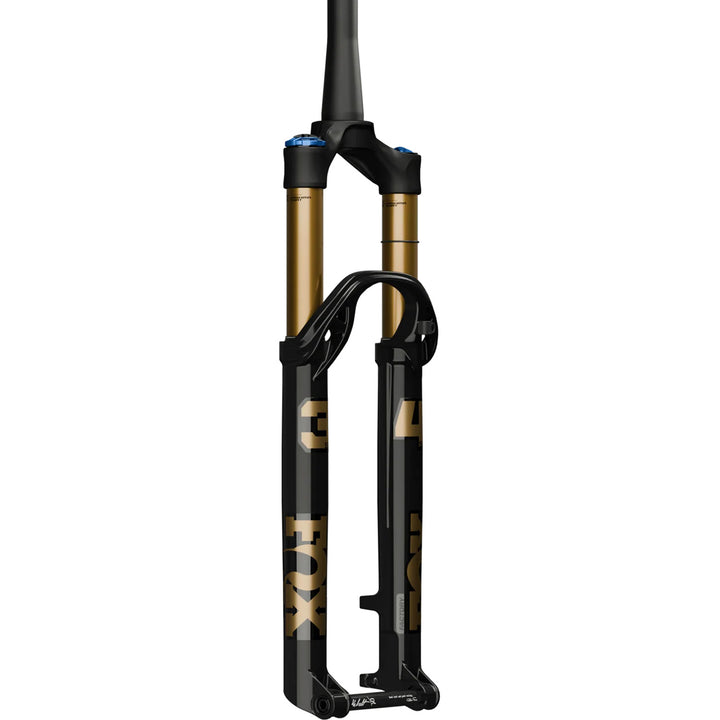

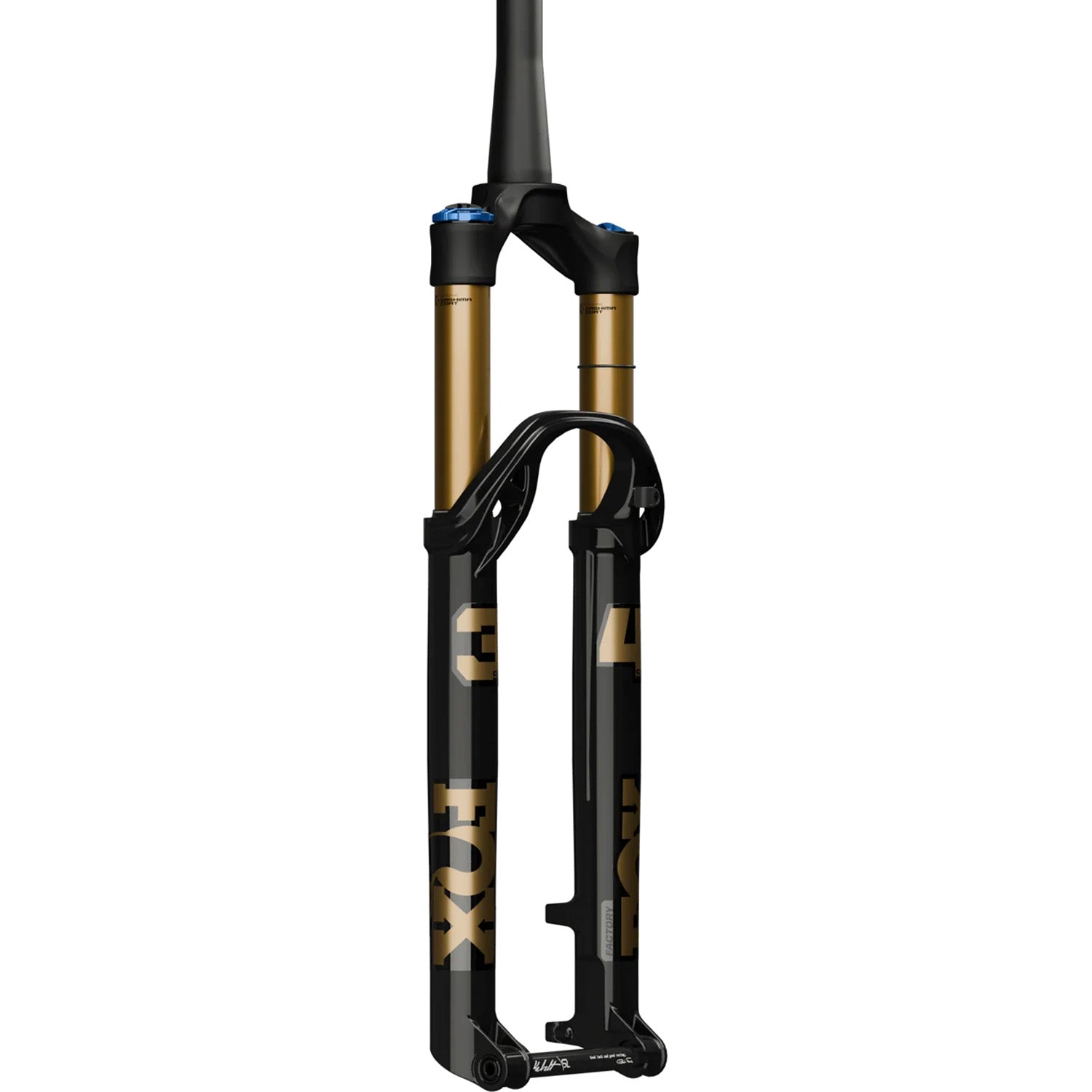

Fox Shox 34 Float SL Factory GRIP X Fork - 29"

SKU# EB-287111-1001

$1,199.00

Color: Shiny Black
Size: 130mm, Kabolt SL 110, 44m Rake
Shipping

Free shipping on orders $50+

Shipping options available

Find in Store

Checking availability...

Order and get 1199 reward points

Earn 1199 points with this product. Join Free

Free shipping on orders over $50

Details

Lowest price guarantee

Details

366 Day Return Policy

Details

Fox Shox 34 Float SL Factory GRIP X Fork - 29"

The Fox Shox 34 Float SL Factory GRIP X Fork is the trail-focused configuration of the 34 SL lineup — exclusively available in 130mm, and the only spec that pairs the 34 SL chassis with the more adjustable GRIP X damper. That means separate high- and low-speed compression adjustment, more mid-stroke support, and a ride feel that leans toward more capable trail and downcountry riding over pure XC race efficiency. Kashima-coated stanchions, the lightweight Kabolt SL axle, and a 17% stiffer arch over the old 34 Step-Cast round out the package. For riders who want 34 SL weight savings but ride terrain that demands a bit more than a three-position lever can offer.

Fox Shox

Product Details

Construction & Measurements:
Kashima Coated Stanchions: The smoothest of the smooth, plus it looks cooler. The gold Kashima coating has become synonymous with friction-free suspension actuation, and it's only available on Fox Factory components.
Inboard Bypass Channels: Bypass channels help curb pressure ramping for increased small bump sensitivity, as well as recirculating bath oil to lubricate bushings and seals. By relocating the bypass channels from the aft side of the fork to the inboard side, they are now out of the fore-aft load path to further reduce dynamic friction throughout the fork’s travel.
Increased Bushing Overlap: The 34 SL increases the bushing overlap by 20% over the 34 SC for a smoother feeling fork overall. Riders will notice additional suppleness at higher speeds when bending loads on the fork are at their greatest.
Redesigned Arch & Crown: Generatively designed and optimized by FOX engineers, the new 34 SL arch wraps around the lowers to increase torsional stiffness of the fork by 17% over the previous 34 SC. Cutouts at strategic locations in the arch help minimize weight of the lowers. In addition to the arch, the generatively designed 7000 series aluminum crown also contributes to overall torsional stiffness, with larger internal lightening bores and a black anodized finish (lighter than paint) to save even more weight.
1.5" Tapered Aluminum Steerer
Features:
Kabolt SL Axle: The Kabolt SL axle drops an additional 12g over the standard Kabolt by eliminating the axle nut and decreasing flange diameter.
Rotor Size: 180 Direct Post Mount, Up to 203 Compatible
Adjustments:
GRIP X Damper: Trail and all-mountain riders no longer need to choose between a descent-focused damper or a lightweight endurance damper. GRIP X exudes exemplary descent performance, refined for less weight, easier set up and an easy access firm mode for pedaling efficiency.
Fork Adjustments: Rebound, High / Low Speed Compression, Firm Mode

Specs

Used For:
Trail
Trail
Wheel Size:
29"
Axle Configuration:
15 x 110 Boost
Stanchion Diameter:
34mm
Maximum Rotor Size:
203mm
Maximum Tire Width (in):
2.5in
Warranty:
1 Year
