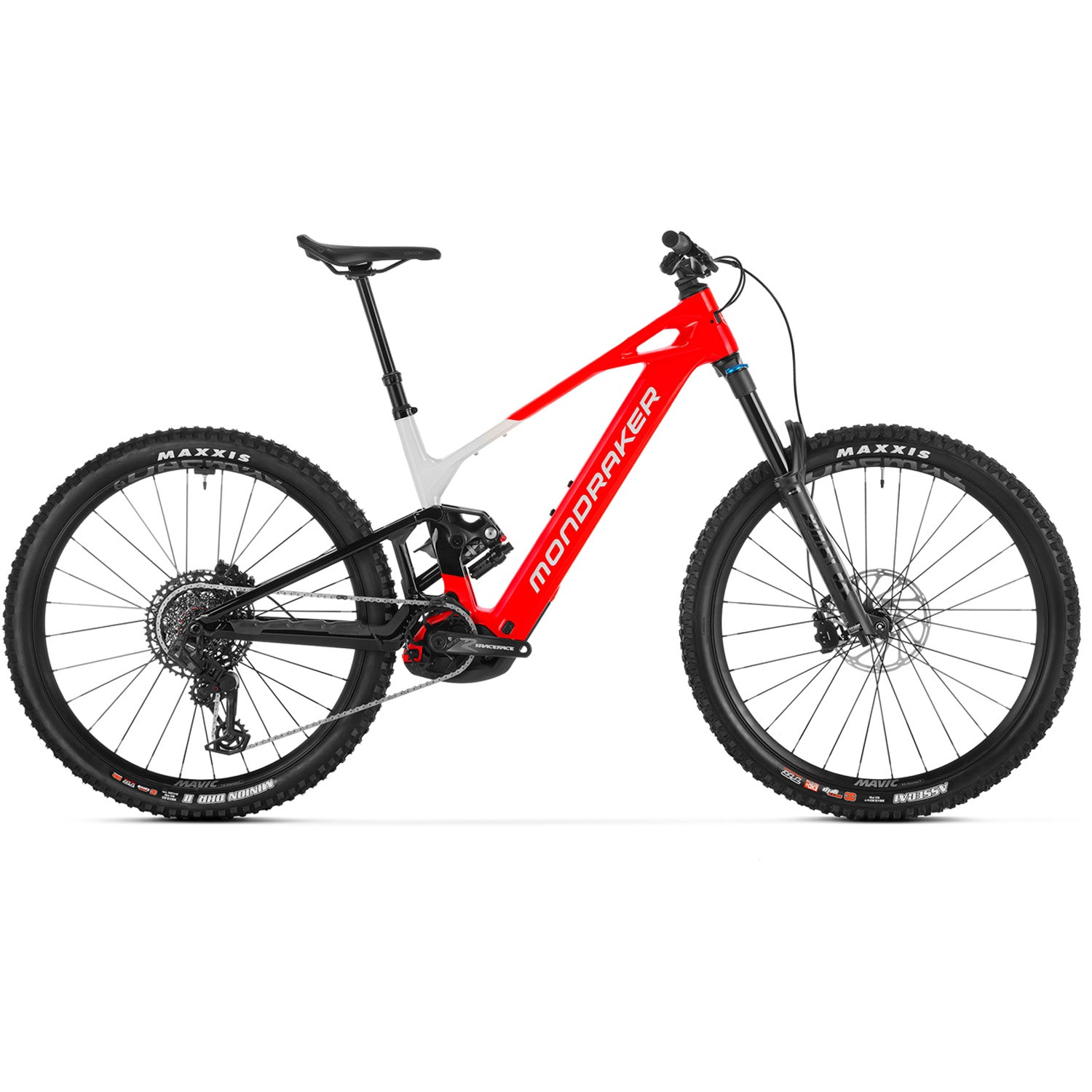

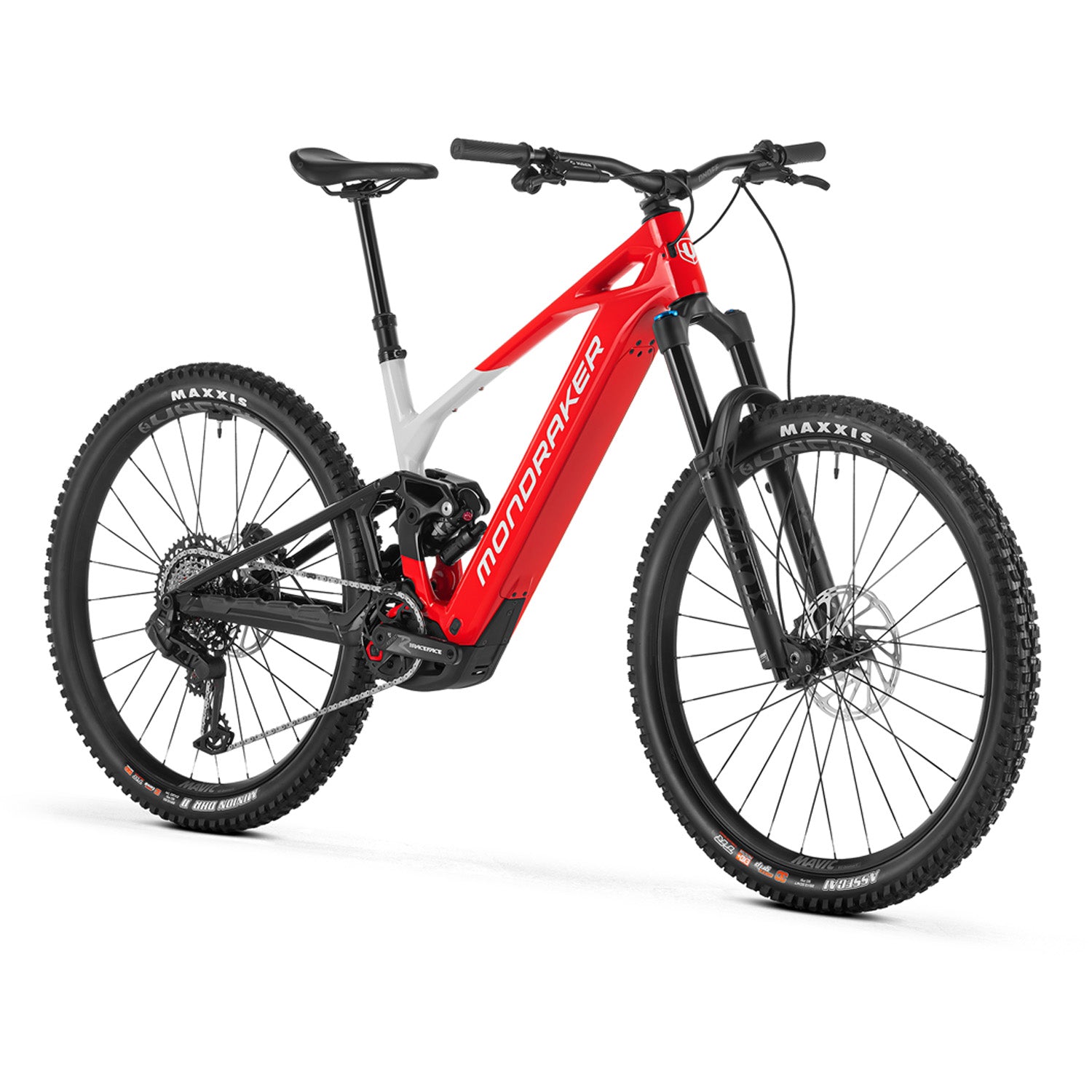

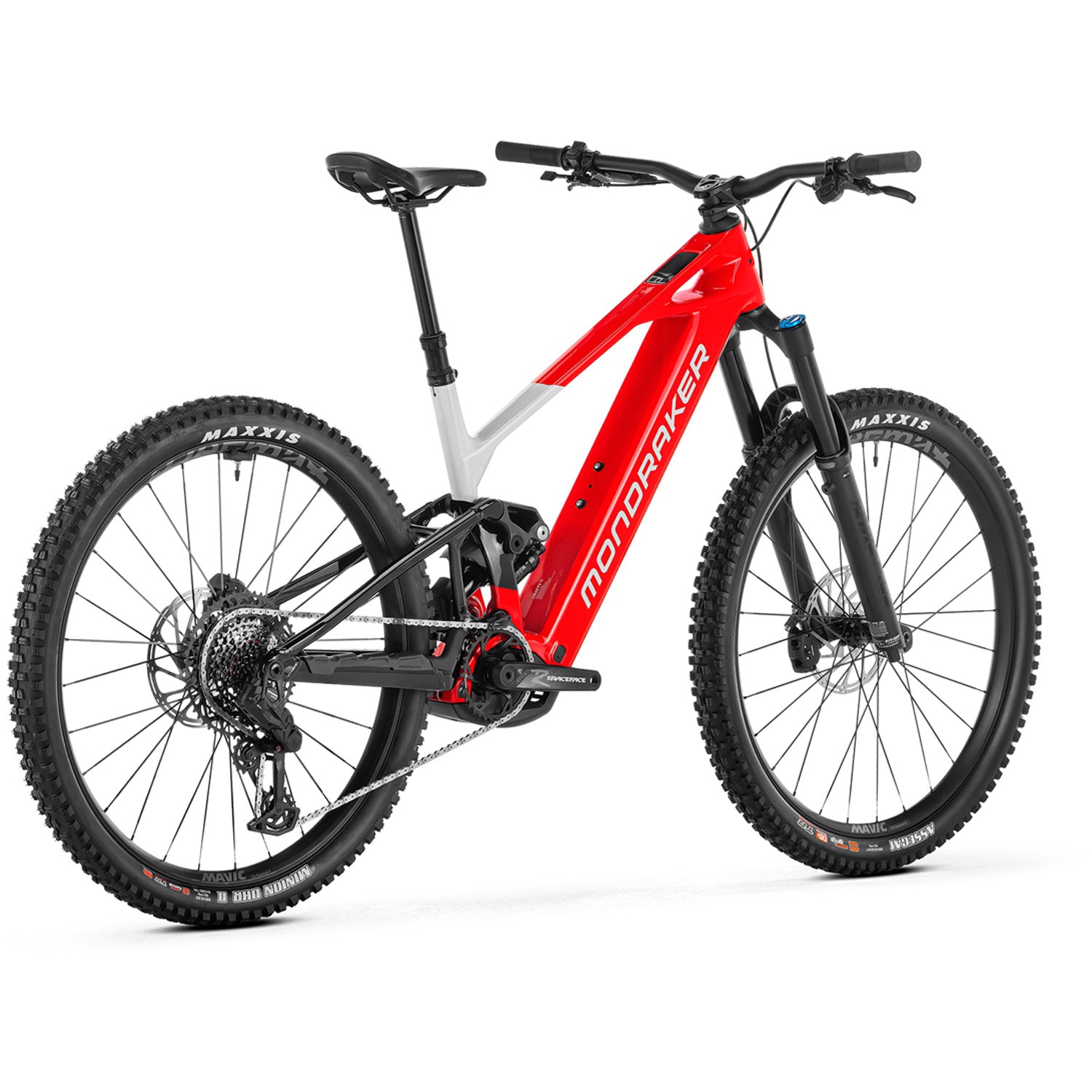

Mondraker Crafty Carbon R E-Mountain Bike 2026

SKU# EB-285703-1008

$8,499.00

Color: Chili Red
Size: M/L
Size Guide
Shipping

Shipping options available Details

Find in Store

Checking availability...

Mondraker Crafty Carbon R E-Mountain Bike 2026

Built by evo certified mechanics. Ready to ride.

  • Our team builds and tunes it before it leaves the warehouse
  • Ships out in 2–4 days
  • Quick setup at home with included instructions.

Earn up to 10% back in rewards

Join Free (opens in a new tab)

Free shipping on orders over $50

Details

Lowest price guarantee

Details

366 Day Return Policy

Details

Mondraker Crafty Carbon R E-Mountain Bike 2026

The Mondraker Crafty Carbon R E-Mountain Bike is built around the Bosch Performamnce Line CX motor and a 800Wh battery — a setup that makes the nastiest climbs feel manageable. The Stealth Air Carbon front triangle pairs with ZERO suspension kinematics and 150mm of travel tuned for both small bump sensitivity and high-speed composure, while a Fox 38 up front adds 160mm of pure confidence on the descents. Forward Geometry with a 64.5° head angle and a two-position flip chip lets you dial geometry to terrain, and proportional chainstay lengths across five sizes ensure the bike handles consistently no matter what frame you're on.

Product Details

Key Features:
Stealth Air Carbon Frame With Stealth Alloy Rear Triangle
Travel: 160mm Front / 150mm Rear
Wheel Size: 29"
Evolved FORWARD GEOMETRY
ZERO Suspension Platform: ZERO is a virtual pivot suspension system with an exclusive dual link design. The shock floats between the two suspension links and is compressed from both ends, making the rear suspension extremely supple on small bumps and big hit capable. ZERO's main advantages are Zero power loss, Zero pedal kickback, Zero brake jack, and Zero bumps.
Flip Chip: The new design is one degree slacker than the previous generation of Crafty Carbon, making it more stable at speed. As well as the new 64.5° head angle, the frame also comes with a two-position (standard and low) flip chip on the lower shock mount which means you can modify the bottom bracket height by +/- 0.5mm and the seat and head tube angles by +/-0.35° to better suit your style or terrain type.
Removeable Batteries: An integrated, removable battery ensures all the power you need on every ride. And when you get home, simply remove the battery and charge it next to your smartphone.
250Wh Range Extender: All models and frame sizes of the Crafty Carbon offer Powermore range extender compatibility. An extra 250Wh to extend your range or to conquer that last gnarly climb, it’s easily fixed to the main bottle mount on the downtube.

Specs

Handlebar:
Onoff S6 1.0 7050 alloy, 800mm
Biking Type:
Mountain
Mountain
Used For:
Enduro
Enduro
Suspension:
Full Suspension
Full Suspension
Gearing:
1 x 12
Frame Material:
Carbon
Carbon
Water Bottle Mounts:
1
Fork:
Fox 38 Performance
Stanchion Diameter:
38mm
Fork Travel:
160mm
Rear Shock:
Fox Float X Performance
Rear Travel:
150mm
Drive Unit:
Bosch Performance Line CX
Battery:
Bosch PowerTube 800Wh
Shifters:
SRAM AXS Pod Bridge
Rear Derailleur:
SRAM S1000 Eagle AXS T-Type, 12 Speed
Crankset:
Race Face Aeffect
Cassette:
SRAM XS 1270 10-52t
Chain:
SRAM GX Eagle T-Type Flattop, 12-Speed
Pedals:
Not Included
Brake Levers:
SRAM Maven Base
Brake Calipers:
SRAM Maven Base
Rotors:
SRAM Centerline, 200mm
Headset:
Acros Custom ZS56/ZS56
Bar Tape/Grips:
Onoff Desert Pro
Stem:
Onoff S6, 30mm
Saddle:
Ergon SM-10
Seatpost:
Onoff Pija Dropper Internal, 31.6mm
Hubs:
Mavic
Rims:
Mavic E-Deemax 29"
Spokes:
Mavic J-bend
Front Tire:
Maxxis Assegai 2.5" | 3C MaxxGrip, EXO+, TR
Rear Tire:
Maxxis Minion DHR II 2.5" | 3C MaxxTerra, DoubleDown
Warranty:
Limited Lifetime (Frame)
