Transition Sentinel Alloy Eagle 70 Complete Mountain Bike 2026

SKU# EB-278267-1012

$3,999.00

Color: Silver Mist
Size: XL
Size Guide
Shipping

Shipping options available Details

Find in Store

Checking availability...

Earn up to 10% back in rewards

Join Free (opens in a new tab)

Free shipping on orders over $50

Details

Lowest price guarantee

Details

366 Day Return Policy

Details

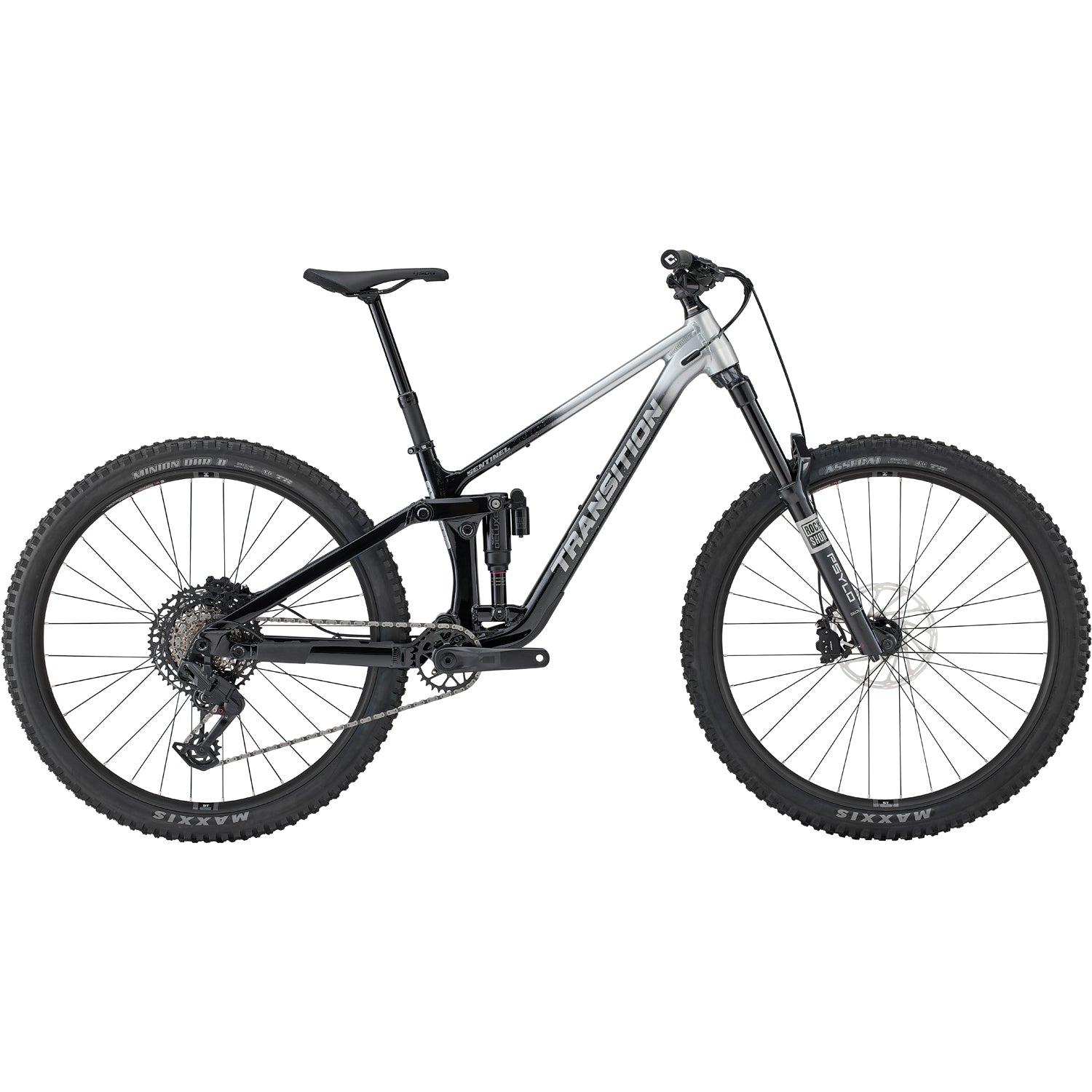

Transition Sentinel Alloy Eagle 70 Complete Mountain Bike 2026

The Transition Sentinel Alloy Eagle 70 Complete Mountain Bike lives squarely in the sweet spot between planted, confidence-inspiring enduro bike and poppy trail ripper, and it genuinely delivers on both. With 150mm of rear travel, 160mm up front, and either 29er or mixed wheel setups to choose from, it has the capability to charge gnarly terrain while staying lively and fun on mellower trails. The Sentinel's SBG geometry keeps things intuitive and predictable, giving you the confidence to tackle lines and features you'd have skipped before — the kind of bike that expands your horizons.

Product Details

Key Features:
Sentinel Alloy Frame
Travel: 160mm Front (150mm Compatible) / 150mm Rear
Wheel Size: 29" or Mixed Wheel
Refined Tuning and Kinematics Create a Lively, Progressive Platform: The new Sentinel may have a similar silhouette, but Transition have fully redesigned the frame with updated industrial design, features, and geometry to turn it up a notch. The leverage curve supports the bike higher in its travel, leaving plenty of room for big hits while keeping it light on its feet to remain nimble, and quick everywhere else. This gives it the lively, sporty attitude felt in the Spur and Smuggler without sacrificing its capabilities in rougher terrain. New size specific chainstays and a 64 degree headtube angle keep riders balanced with great traction on climbs and descents. All of this creates a bike that encourages new riders to push their limits, while ensuring a seasoned pro feels none. You will be ready to Send-it-all
Geo Adjust Chip: The lower shock mount has a geo-adjust flip chip to accommodate mixed wheels, and features a new design that allows water, dirt and debris to easily wash away. Change the attitude of the bike with a simple flip of a chip. High and Low settings give you two very usable geo settings to suit your riding style: High is comparable to most other companies' low settings so there's a high shred warning in effect!
New Cable Routing Ports: Cable ports on the side of the headtube allow for easy and simple cable routing with customizable routing for mechanical or wireless shifting as well as left or right rear brake routing. The new port stops cables from getting kinked during a crash and holds them tight to prevent rattling. If you aren’t using the port at all, simply cover it with the supplied insert to prevent dirt or water getting inside your frame, as well as keeping a clean aesthetic. These ports help improve the look and quality of the frame, while remaining functional and simple for maintenance.
Main Pivot Mud Guard: The Sentinel comes with a pre-installed mud guard to protect the main pivot area, improving the bearing life.
Size Specific Chainstays (XS 436, SM/MD 442, LG/XL/XXL 448): The Sentinel has size-specific chainstay lengths to provide balanced handling and rider weight distribution across the range of sizes.
Increased Size Range (XS-XXL)

Specs

Used For:
Trail, Enduro
Trail Enduro
Handlebar:
RaceFace Chester XS/SM(800x20mm) MD/LG/XL/XXL(800x35mm)
Biking Type:
Mountain
Mountain
Suspension:
Full Suspension
Full Suspension
Frame Material:
Aluminum Alloy
Aluminum Alloy
Gearing:
1 x 12
Water Bottle Mounts:
1
Fork:
RockShox Psylo Gold RC
Stanchion Diameter:
35mm
Fork Travel:
160mm
Rear Shock:
RockShox Super Deluxe
Rear Travel:
150mm
Shifters:
SRAM Eagle 70 T-Type
Rear Derailleur:
SRAM Eagle 70 T-Type, 12-Speed
Crankset:
SRAM Eagle 70 DUB T-Type, 30t
Cassette:
SRAM XS 1270 10-52t
Chain:
SRAM Eagle 70 T-Type Flattop, 12-Speed
Bottom Bracket:
73mm Threaded
Pedals:
Not Included
Brake Levers:
SRAM Maven Base
Brake Calipers:
SRAM Maven Base
Rotors:
SRAM Centerline, 200mm Front / 180mm Rear
Headset:
FSA NO.57E
Bar Tape/Grips:
ODI Elite Flow
Stem:
RaceFace Aeffect R (40mm)
Saddle:
SDG Bel Air V3
Seatpost:
SDG Tellis Dropper
Wheelset:
WTB ST i30
Hubs:
Novatech D791SB/D902SB
Rims:
WTB ST i30
Spokes:
Pillar Double Butted
Front Tire:
Maxxis Assegai 2.5" | 3C, EXO+
Rear Tire:
Maxxis Minion DHR II 2.4" | 3C, EXO, TR
Warranty:
Limited Lifetime
