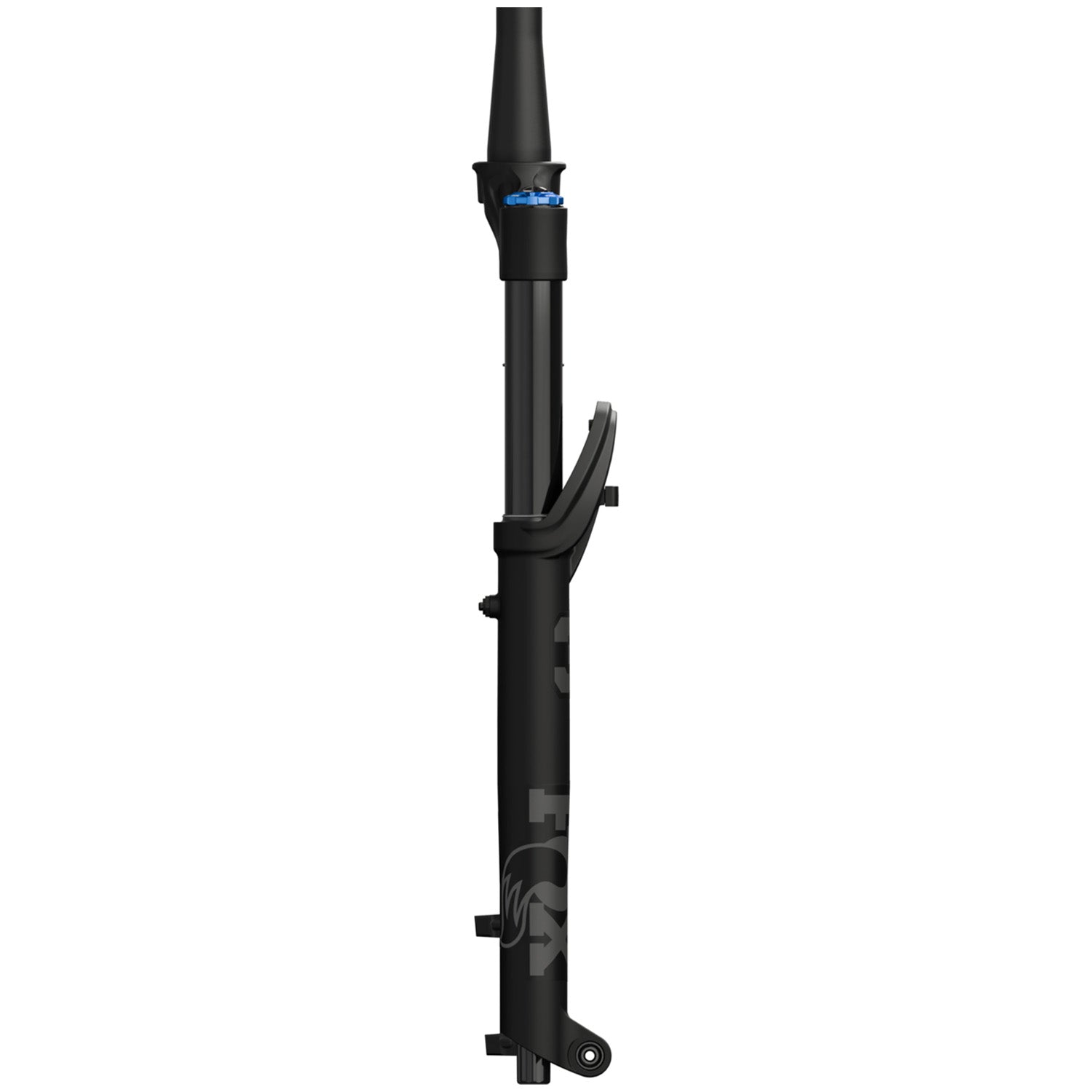

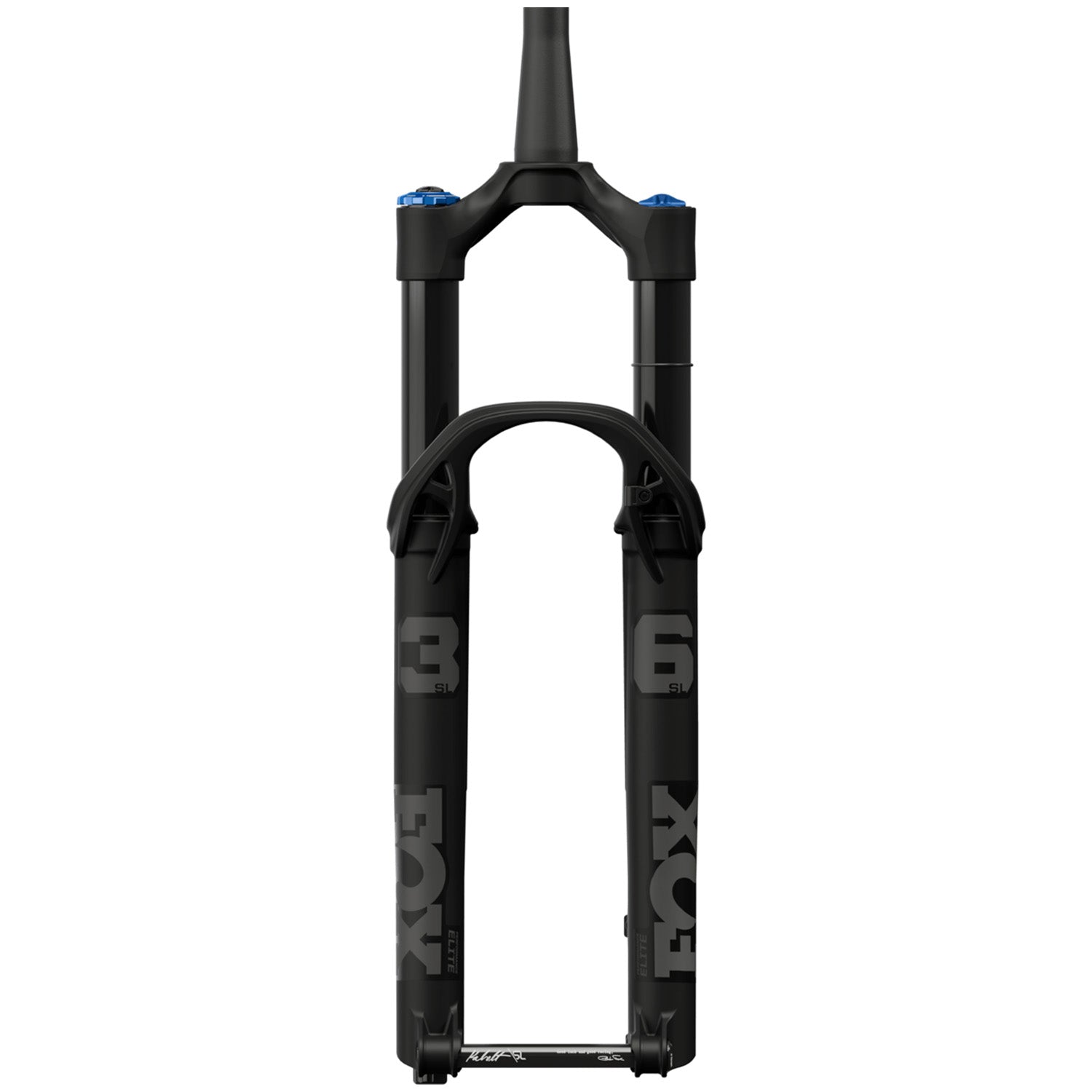

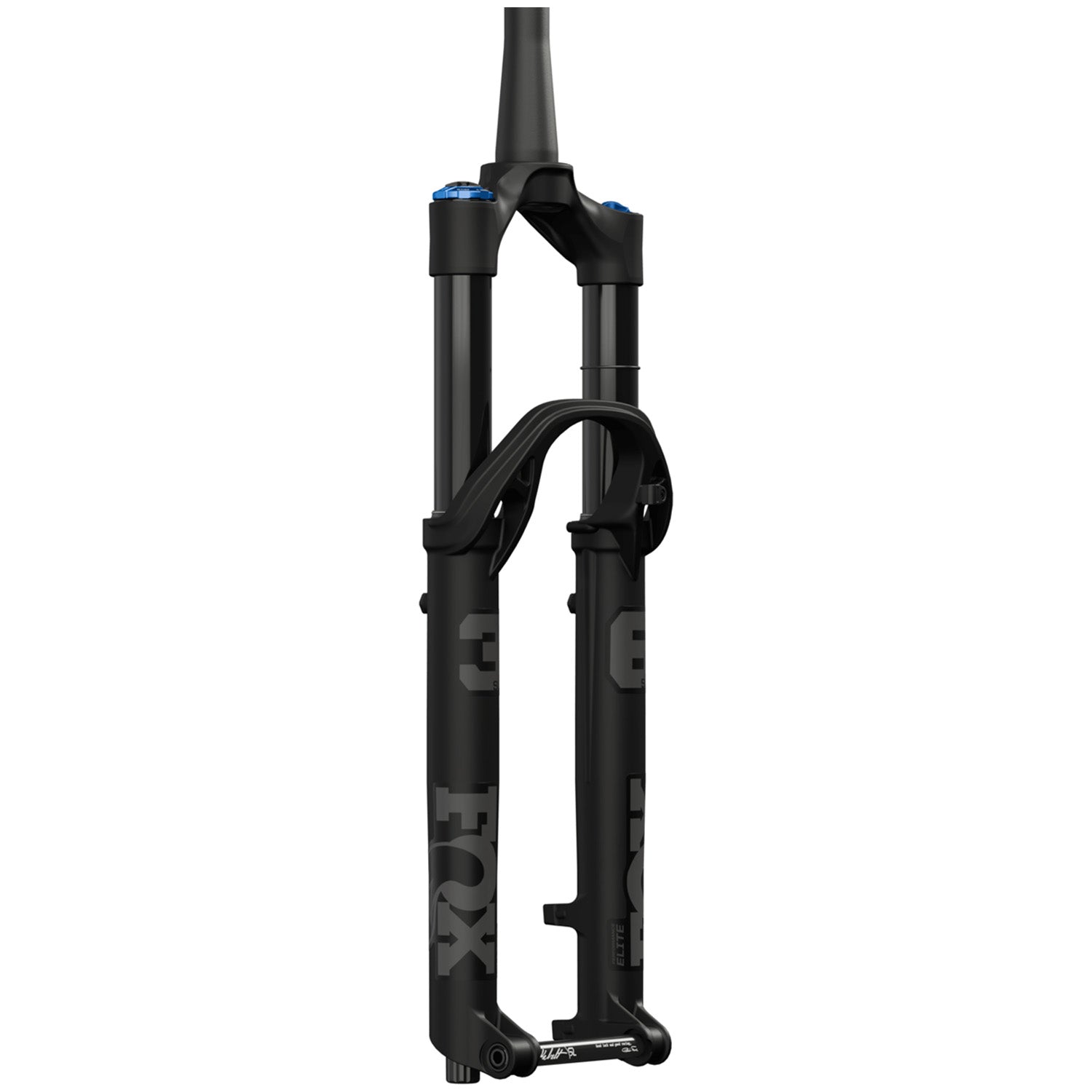

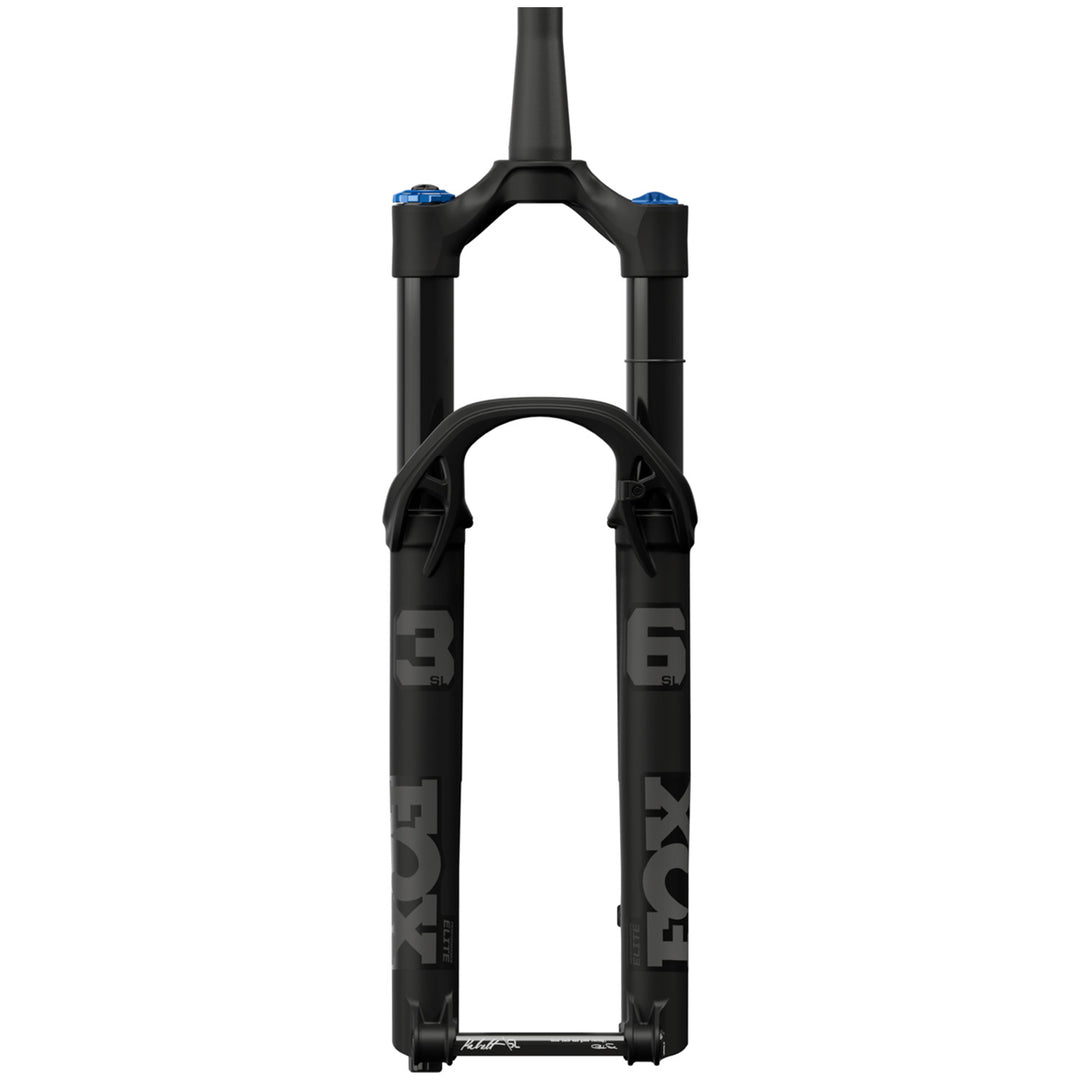

Fox Shox 36 Float SL Performance Elite GRIP X Fork - 29"

SKU# EB-270062-1001

$1,099.00

Color: Matte Black, Neutral/Matte Black Logo
Size: 140mm, Kabolt SL 110, 44mm Rake
Shipping

Free shipping on orders $50+

Shipping options available

Find in Store

Checking availability...

Order and get 1099 reward points

Earn 1099 points with this product. Join Free

Free shipping on orders over $50

Details

Lowest price guarantee

Details

366 Day Return Policy

Details

Fox Shox 36 Float SL Performance Elite GRIP X Fork - 29"

Trail riders, meet your new confidence machine. The Fox Shox 36 Float SL Performance Elite GRIP X Fork shatters the compromise between weight and performance, delivering a sub-1800g marvel that packs 20% more torsional stiffness at a penalty of just 100 extra grams over the 34. Its generatively designed arch and compliant FLOAT air spring transform technical terrain, smoothing out high-speed impacts while keeping your steering razor-sharp. Whether you're threading alpine singletrack or attacking rooty descents, this fork helps you keep your eyes on the prize.

Fox Shox

Product Details

Construction & Measurements:
Inboard Bypass Channels: Bypass channels help curb pressure ramping for increased small bump sensitivity, as well as recirculating bath oil to lubricate bushings and seals. By relocating the bypass channels from the aft side of the fork to the inboard side, they are now out of the fore-aft load path to further reduce dynamic friction throughout the fork’s travel.
Increased Bushing Overlap: The 36 SL increases the bushing overlap by 20mm over the 34 for a smoother feeling fork overall. Riders will notice additional suppleness at higher speeds when bending loads on the fork are at their greatest.
Redesigned Arch & Crown: Generatively designed and optimized by FOX engineers, the new 36 SL arch and crown increase torsional stiffness of the fork by a full 20% over the previous Trail fork, the 34. Cutouts and lightening bores at strategic locations help minimize weight.
1.5" Tapered Aluminum Steerer
Features:
Redesigned Air Spring: A large enough bending force—such as hitting a large rock or root at high speed—can cause the air spring to bind to the inside of the stanchion when the fork is compressing through its travel. The redesigned and compliant FLOAT air spring decouples the stanchion from the air shaft, allowing the piston to move with the fork while under these bending loads, rather than resisting them. The result? Smoother suspension action overall, especially when the fork is experiencing high loads from speed or weight of a rider.
Kabolt SL Axle: The Kabolt SL axle drops an additional 12g over the standard Kabolt by eliminating the axle nut and decreasing flange diameter.
Low Profile Bleeders: Grooved design allows pressure to escape around your finger as you press the bleeder.
Air Spring Top Cap: Uses the common Shimano cassette tool for easy volume adjustments.
Rotor Size: 180 Direct Post Mount, Up to 230 Compatible
Adjustments:
GRIP X Damper: Trail and all-mountain riders no longer need to choose between a descent-focused damper or a lightweight endurance damper. GRIP X exudes exemplary descent performance, refined for less weight, easier set up and an easy access firm mode for pedaling efficiency.
Fork Adjustments: Rebound, High / Low Speed Compression, Firm Mode

Specs

Used For:
Trail
Trail
Wheel Size:
29"
Axle Configuration:
15 x 110 Boost
Stanchion Diameter:
36mm
Maximum Rotor Size:
230mm
Warranty:
1 Year
