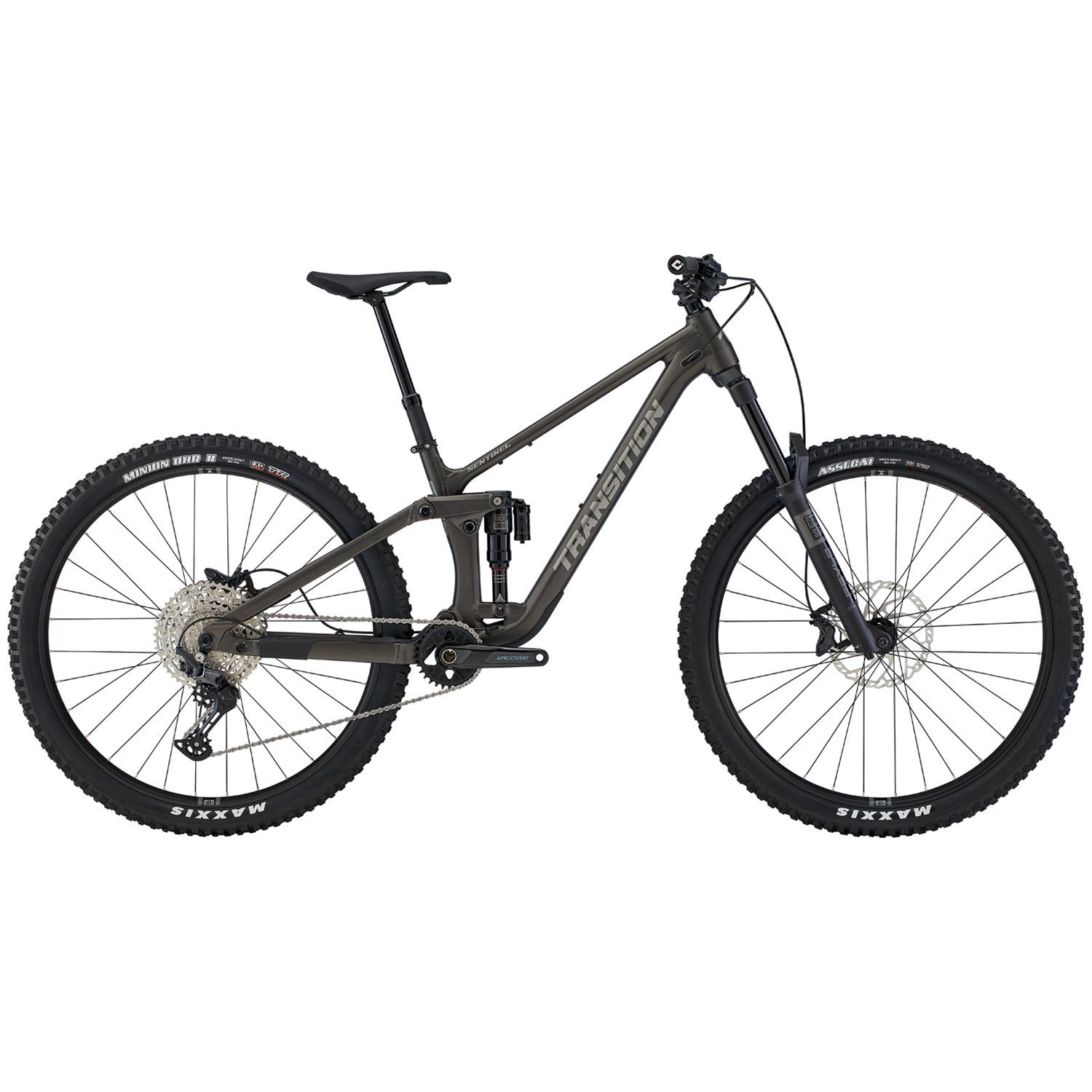

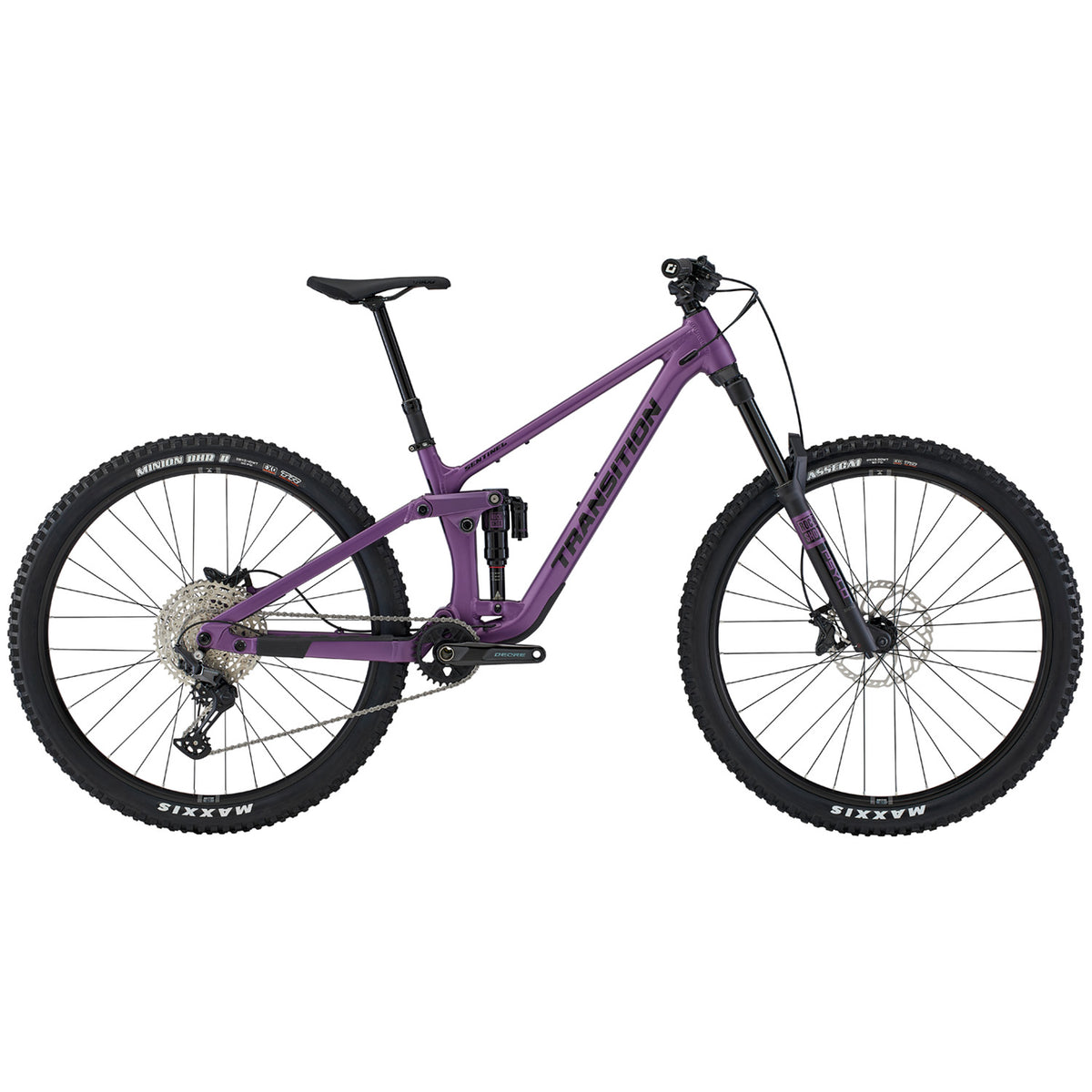

Transition Sentinel Alloy Deore Complete Mountain Bike 2025
SKU# EB-258553-1017
$2,799.00
$3,499.00
Find in Store
Checking availability...
Not available in store
Transition Sentinel Alloy Deore Complete Mountain Bike 2025
Order and get 2799 reward points
Earn 2799 points with this product. Join Free
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsTransition Sentinel Alloy Deore Complete Mountain Bike 2025
The new Transition Sentinel Alloy Deore Complete Mountain Bike is a long-term love story between riders and their bikes. Building on the success of Transition's most sought after bike, it has a similar silhouette to its predecessor with subtle tweaks to improve ride performance and kinematics. Its lively geometry mirrors the sporty feel of the Smuggler and Spur, making it more dynamic and playful while maintaining the long travel power and stability you need on rough descents. Available in a sturdy and economic aluminum build, it has everything you need to push yourself to new levels on the trail.
Product Details
Key Features:
Sentinel Alloy Frame
Travel: 160mm Front (150mm Compatible) / 150mm Rear
Wheel Size: 29" " (X-Small 27.5")
Refined Tuning and Kinematics Create a Lively, Progressive Platform: The new Sentinel may have a similar silhouette, but Transition have fully redesigned the
frame with updated industrial design, features, and geometry to turn it up a notch.
The leverage curve supports the bike higher in its travel, leaving plenty of room for
big hits while keeping it light on its feet to remain nimble, and quick everywhere
else. This gives it the lively, sporty attitude felt in the Spur and Smuggler without
sacrificing its capabilities in rougher terrain. New size specific chainstays and a 64
degree headtube angle keep riders balanced with great traction on climbs and
descents. All of this creates a bike that encourages new riders to push their limits,
while ensuring a seasoned pro feels none. You will be ready to Send-it-all
Geo Adjust Chip: The lower shock mount has a geo-adjust flip chip to accommodate mixed wheels, and
features a new design that allows water, dirt and debris to easily wash away. Change the attitude of the bike with a simple flip of a chip. High and Low settings give you two very usable geo settings to suit your riding style: High is comparable to most other companies' low settings so there's a high shred warning in effect!
New Cable Routing Ports: Cable ports on the side of the headtube allow for easy and simple cable routing with
customizable routing for mechanical or wireless shifting as well as left or right rear
brake routing. The new port stops cables from getting kinked during a crash and holds
them tight to prevent rattling. If you aren’t using the port at all, simply cover it with the
supplied insert to prevent dirt or water getting inside your frame, as well as keeping a
clean aesthetic. These ports help improve the look and quality of the frame, while
remaining functional and simple for maintenance.
Main Pivot Mud Guard: The Sentinel comes with a pre-installed mud guard to protect the main pivot area,
improving the bearing life.
Size Specific Chainstays (XS 436, SM/MD 442, LG/XL/XXL 448): The Sentinel has size-specific chainstay lengths to provide balanced handling and rider weight distribution across the range of sizes.
Increased Size Range (XS-XXL)
Specs
Used For:
Trail,
Enduro
Handlebar:
RaceFace Chester XS/SM(800x20mm) MD/LG/XL/XXL(800x35mm)
Biking Type:
Mountain
Suspension:
Full Suspension
Frame Material:
Aluminum Alloy
Gearing:
1 x 12
Water Bottle Mounts:
1
Fork:
RockShox Psylo Gold RC
Stanchion Diameter:
36mm
Fork Travel:
160mm
Rear Shock:
RockShox Super Deluxe
Rear Travel:
150mm
Shifters:
Shimano Deore
Rear Derailleur:
Shimano Deore M6100, 12-Speed
Crankset:
Shimano Deore M6100
Cassette:
Shimano Deore M6100, 10-51t
Chain:
Shimano Deore M6100
Bottom Bracket:
73mm Threaded
Pedals:
Not Included
Brake Levers:
Shimano Deore
Brake Calipers:
Shimano Deore M6120
Rotors:
Shimano RT66 (203mm)
Headset:
FSA NO.57E
Bar Tape/Grips:
ODI Elite Flow
Stem:
RaceFace Aeffect R (40mm)
Saddle:
SDG Bel Air V3
Seatpost:
SDG Tellis Dropper
Wheelset:
WTB ST i30
Hubs:
Novatech D791SB/D902SB
Rims:
WTB ST i30
Spokes:
Pillar Double Butted
Tires:
Maxxis
Front Tire:
Maxxis Assegai 2.5" | 3C, EXO+
Rear Tire:
Maxxis Minion DHR II 2.4" | 3C, EXO, TR
Warranty:
Limited Lifetime
