Fox Shox 36 Float E-Optimized Factory GRIP X2 Fork - 29"

SKU# EB-256038-1001

$976.65

$1,149.00

Shipping

Not available for shipping

Find in Store

Checking availability...

Order and get 977 reward points

Earn 977 points with this product. Join Free

Free shipping on orders over $50

Details

Lowest price guarantee

Details

366 Day Return Policy

Details

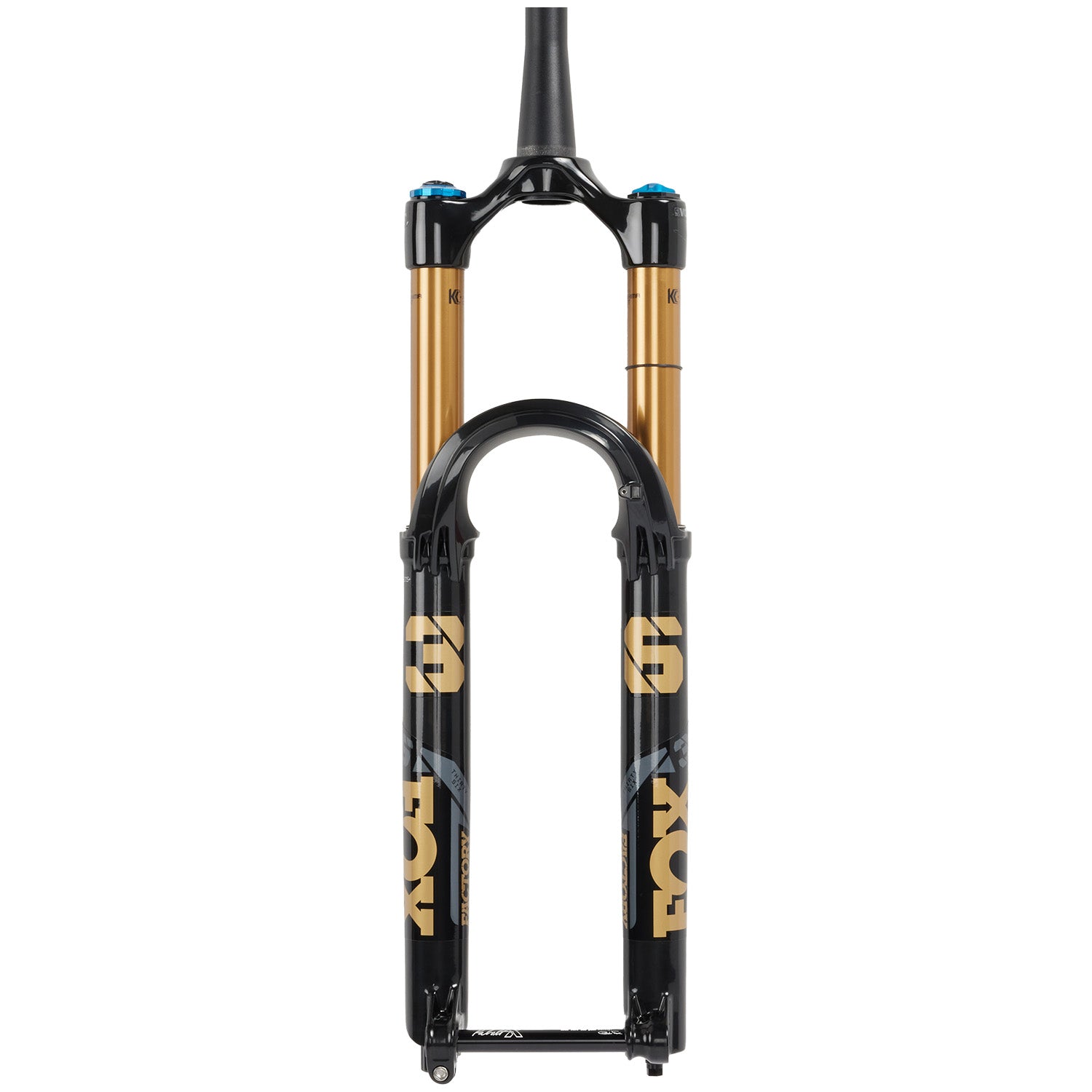

Fox Shox 36 Float E-Optimized Factory GRIP X2 Fork - 29"

For the ultimate in traction, control, and tunability, look no further than the Fox Shox 36 Float E-Optimized Factory GRIP X2 Fork. The latest incarnation of Fox's e-bike suspension platform is powered by the all new GRIP X2 damper, a stunning evolution of their award winning GRIP 2. GRIP X2 increases the number of valves from 7 to 23, with a larger 24mm base valve for improved tunability, precision, and sensitivity. The result is an ultra supportive, ultra responsive fork that keeps your wheel glued to the ground for unreal traction on the jankiest trails. With stiffer construction and reinforcement in key high-stress areas, the Fox Shox 36 Float E-Optimized Factory GRIP X2 Fork provides the confidence you need to plow through anything.

Fox Shox

Product Details

Construction & Measurements:
Ebike Optimized: FOX’s e-MTB Optimized forks not only receive the same special damper and air spring tune as their e-MTB Tuned forks, but they also receive beefed up aluminum alloy CSUs (Crown, Steerer, and Upper tubes) assemblies in order to meet internal stiffness and strength requirements, as well meeting or exceeding EN, ISO, and ASTM testing requirements for e-MTB use cases on Class 1, and Class 3 e-bikes with increased system weight ratings.
Kashima Coated Stanchions: The smoothest of the smooth, plus it looks cooler. The gold Kashima coating has become synonymous with friction-free suspension actuation, and it's only available on Fox Factory components.
Kabolt X Axle: Kabolt X, a lightweight bolt-on floating axle to shave grams and increase torsional stiffness via a sleeveless, single-sided pinch bolt design.
Lower Leg Bypass Channels: Increasing air volume within the lower legs reduces the amount of additional unintended pressure ramping. Lower leg bath oil also circulates to the upper reaches of the legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel.
Lower Leg Bleeders: These little buttons allow for atmospheric pressure equalization for better fork performance, allowing full travel to be achieved and increasing small bump sensitivity and responsiveness.
1.5" Tapered Aluminum Steerer
Features:
FLOAT EVOL Air Spring: EVOL technology increases negative air spring volume, optimizing small bump sensitivity. EVOL’s linear spring curve delivers plushness off the top, extra mid-stroke support, and more tunable bottom-out progression.
Rotor Size: 180 Direct Post Mount, Up to 230 Compatible
Kabolt X Axle: Kabolt X, a lightweight bolt-on floating axle to shave grams and increase torsional stiffness via a sleeveless, single-sided pinch bolt design.
Adjustments:
GRIP X2 Damper: GRIP X2 is the most tunable, supportive and smoothest descent-focused damper ever created by FOX. Riders reap the benefits of sitting higher in the travel while tires stay glued to the ground, cornering with increased traction. It gives you the confidence to push the limits of downhill and enduro racing, all while reducing overall rider fatigue. GRIP X2 is the winning difference.
Fork Adjustments: High / Low Speed Rebound, High / Low Speed Compression

Specs

Used For:
Trail, Enduro
Trail Enduro
Wheel Size:
29"
Axle Configuration:
15 x 110 Boost
Stanchion Diameter:
36mm
Maximum Rotor Size:
230mm
Maximum Tire Width (in):
2.6in
Warranty:
1 Year
