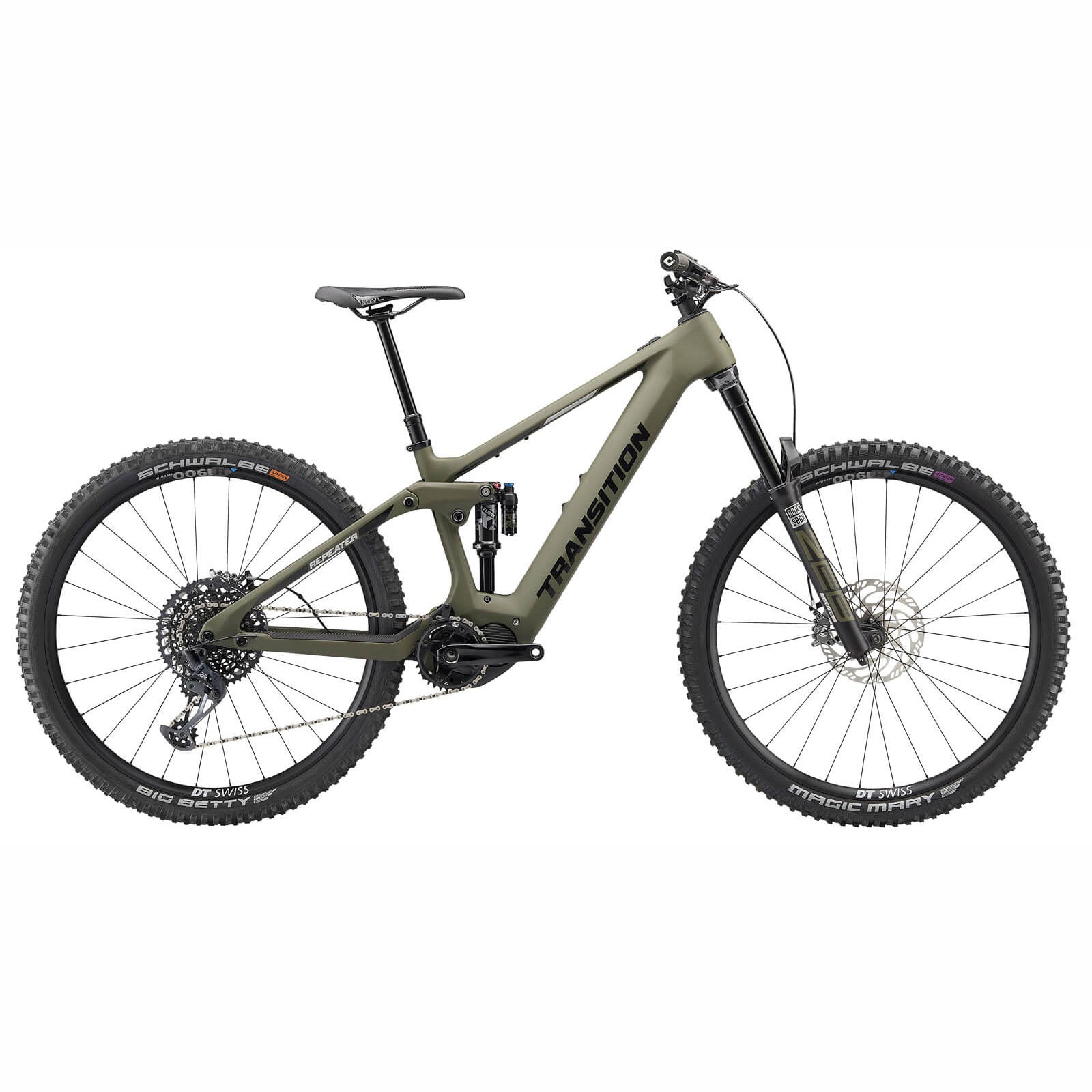

Transition Repeater Carbon GX E-Mountain Bike 2022
SKU# EB-246000-1001
$5,999.00
$9,499.00
Find in Store
Checking availability...
Not available in store
Earn up to 10% back in rewards
Join Free (opens in a new tab)
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsTransition Repeater Carbon GX E-Mountain Bike 2022
Laps, miles, smiles: no matter your goal, the Transition Repeater Carbon GX E-Mountain Bike delivers more. Again and again. This e-assist version of Transition's excellent trail bike, the Sentinel, expands the term "do-it-all" to new heights. If you show up with a Repeater, you're guaranteed fast fun on any trails. Adventure exploration on forgotten moto trails? Yup. Boost mode power hour of your local at lunch? On it. This GX build features excellent componentry that'll stand up to the mileage you'll be clocking. Eat your breakfast, because you're staring down a long season of daily epics. This bike goes!
Product Details
Frame/Shock:
All Carbon Frameset: The Repeater frame is made from premium Japanese Toray carbon fiber. The lightweight one piece rocker is made from 100% carbon fiber and the full carbon frame construction reduces aluminum inserts to save weight and maximize strength.
Speed Balanced Geometry: SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with an all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.
Fox Float X Performance Elite Rear Shock: Designed specifically to meet the demands of aggressive trail riders, the new FLOAT X combines sophisticated damping and fade free performance with incredible light weight and outstanding structural integrity.
Shock Adjustments: Air Spring Pressure | 2 Position Open/Firm Compression | Low Speed Compression | Low Speed Rebound
GiddyUp Suspension: With nearly 26% progression and an E-bike specific version of the GiddyUp suspension kinematic, the Repeater has an excellent balance of support and small bump sensitivity. The Repeater suspension is tuned for maximum traction that enhances both descending and climbing experiences, while delivering a bottomless ride feel.
Coil Shock Compatible
Collet Main Pivots: Collet main pivot technology improves rear end stiffness and keeps your pivot hardware tight. Additional bearing shields prevent bearing contamination when washing your bike or riding in wet conditions.
Frame and Motor Protection: Fully integrated, flush-mounted rubber chainstay and seatstay protection keep your bike riding quietly. The custom low profile plastic skid plate protects your motor and helps you slide over rocks and logs in the trail without damaging your motor.
Enduro MAX Bearings: Transition exclusively uses Enduro MAX suspension specific bearings in standard sizes that are readily available worldwide. Dual bearings are used at the dropout pivots for frame stiffness and additional c-clips lock the rocker bearings in place under torsional loads.
Gear Accessory Mount: An underside top-tube accessory mount allows you to carry a spare tube or other goodies safely on your frame in case you are looking to ditch your pack.
Hidden Cable Routing: All cables and wires are routed internally and pass from the front triangle to the rear triangle hidden from view and safely away from trailside obstacles.
Water Bottle Compatible
Universal Derailleur Hanger: SRAM's Universal Derailleur Hanger protects your derailleur by pivoting back and out of the way under impacts. It improves shifting performance, guarantees better alignment, works with all drivetrains, and is available anywhere.
Drive Unit / Battery:
Shimano EP8: The Repeater comes equipped with a Shimano EP8 system that delivers 85Nm of torque, 250W continuous power and 500W peak power. All build levels come with Shimano's top of the line full color display, making it easy to tell which mode you are in with a quick glance.
Shimano 630Wh Battery: The Repeater uses a Shimano 630Wh internal battery that is easily removed with a single 4mm allen wrench. The full carbon battery cover is lightweight, durable, and painted to match the frame.
Fork:
RockShox ZEB Ultimate: Built to match the new generation of long-travel, hard-hitting mountain machines. ZEB’s bold design is built to withstand the gnarliest enduro tracks, death grip speeds, relentless rock gardens, raw corners, steep chutes, and one heck of a good time. From Rampage glory to Enduro World Series titles, there isn’t much ZEB has left to prove.
Fork Adjustments: Air Spring Pressure / High Speed Compression / Low Speed Compression / Low Speed Rebound
Drivetrain:
SRAM GX Eagle: GX Eagle is your partner for all rides, all the time, all day. Long days, quick rides and everything in-between, GX Eagle is the ecosystem at its best. With the all new 520% range, all new colourways and seamless compatibility with the rest of the ecosystem, GX Eagle is there to maximize the potential of your ride experience.
Brakes:
Magura 203mm Rotors
Magura MT7: With four pistons, the MT7 Pro offers the best possible braking performance, while the ergonomically-optimized 1-finger HC lever blade gives you the ideal braking feel.
Wheel Set:
Schwalbe Magic Mary Front Tire: The perfect choice for virtually any track. Intermediate tread: maximum braking traction and cornering grip even in extremely muddy terrain thanks to strong shoulder studs and the aggressive, open tread design.
Schwalbe Big Betty Rear Tire: Equipped with everything modern tire technology has to offer. A Downhill and Enduro Allrounder for dry to damp conditions. Big Betty works perfectly on the rear wheel when combined with the much-loved Magic Mary.
DT Swiss Hybrid H 1900: A reliable aluminum wheelset now with Ratchet LN Technology for extended eMTB tours.
DT Swiss 370 Hubs
Additional Features:
Price and Spec Subject to Change
Specs
Used For:
Trail,
Enduro
Handlebar:
RaceFace Chester Alloy | S/M: 780 x 20mm / L/XL: 780 x 35mm
Biking Type:
Mountain
Suspension:
Full Suspension
Gearing:
1 x 12
Frame Material:
Carbon
Water Bottle Mounts:
1
Fork:
RockShox ZEB Ultimate
Stanchion Diameter:
38mm
Fork Travel:
160mm
Rear Shock:
Fox Float X Performance Elite
Rear Travel:
160mm
Drive Unit:
Shimano EP8
Battery:
Shimano 630Wh
Shifters:
SRAM GX Eagle
Rear Derailleur:
SRAM GX Eagle, 12-Speed
Crankset:
Shimano EM900, 34t
Cassette:
SRAM GX Eagle XG-1275, 10-52t
Chain:
SRAM GX Eagle, 12-Speed
Pedals:
Not Included
Brake Levers:
Magura HC1
Brake Calipers:
Magura MT7
Rotors:
Magura MDR-O 203mm
Headset:
Acros ICR
Bar Tape/Grips:
ODI Elite Pro Lock-On
Stem:
ANVL Swage | 40mm
Saddle:
ANVL Forge CroMo
Seatpost:
OneUp Dropper | S: 150mm / M: 180mm / L-XL: 210mm
Hubs:
DT Swiss 370
Rims:
DT Swiss Hybrid H 1900
Spokes:
DT Swiss Hybrid 1
Front Tire:
Schwalbe Magic Mary 2.4" | Super Gravity, Ultra Soft
Rear Tire:
Schwalbe Big Betty 2.4" | Super Gravity, Soft
Warranty:
Limited Lifetime (Frame), 2 Years (Shimano STEPS Components)
