Marin Gestalt X10 Complete Bike 2023
SKU# EB-244684-1001
$1,549.00
$1,549.00
Find in Store
Checking availability...
Not available in store
Order and get 1200 reward points
Earn 1200 points with this product. Join Free
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsYou Might Also Like

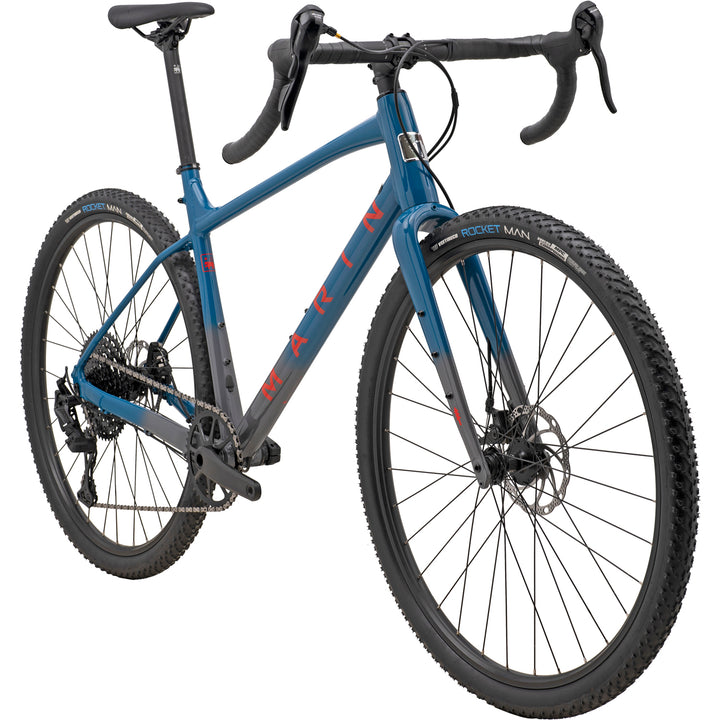

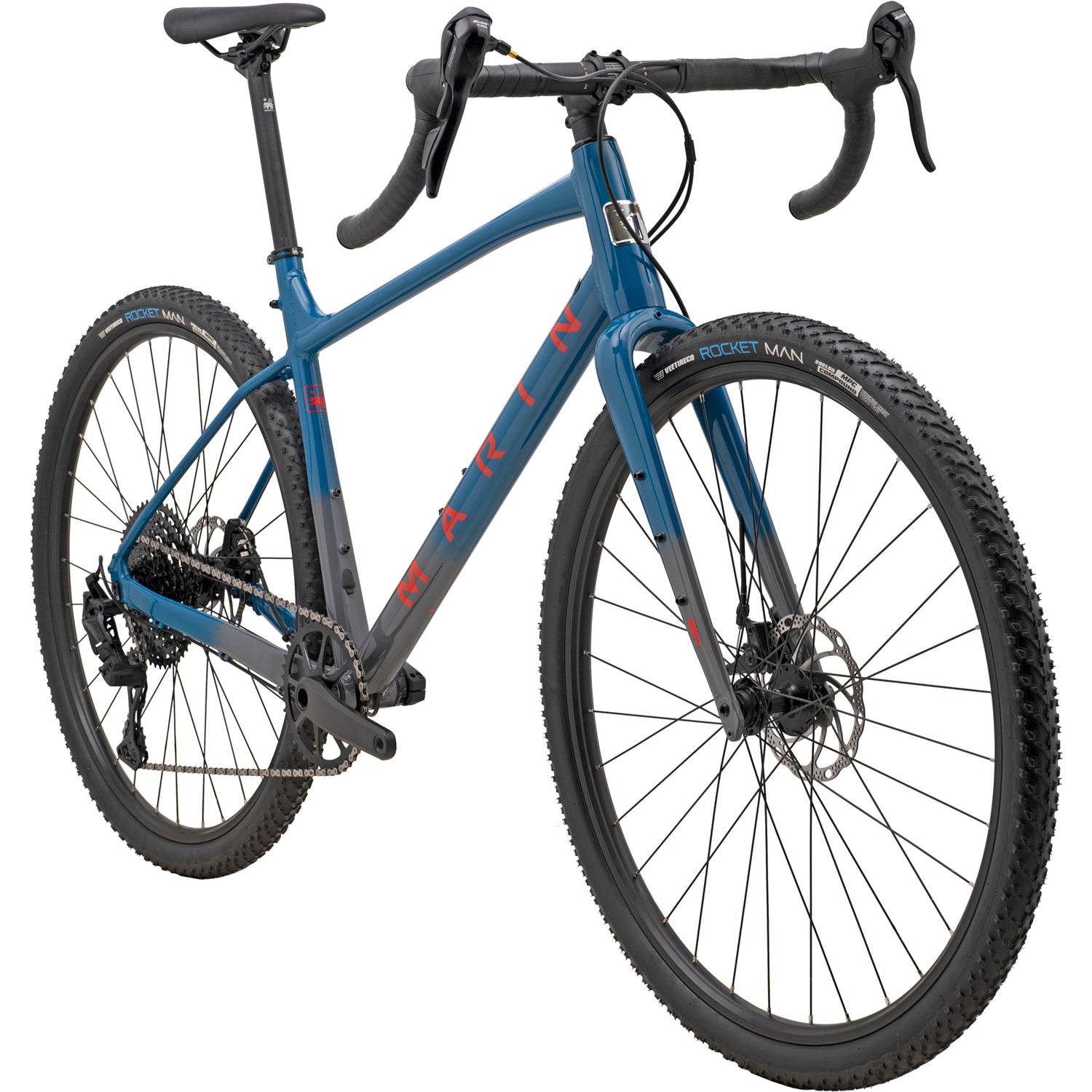

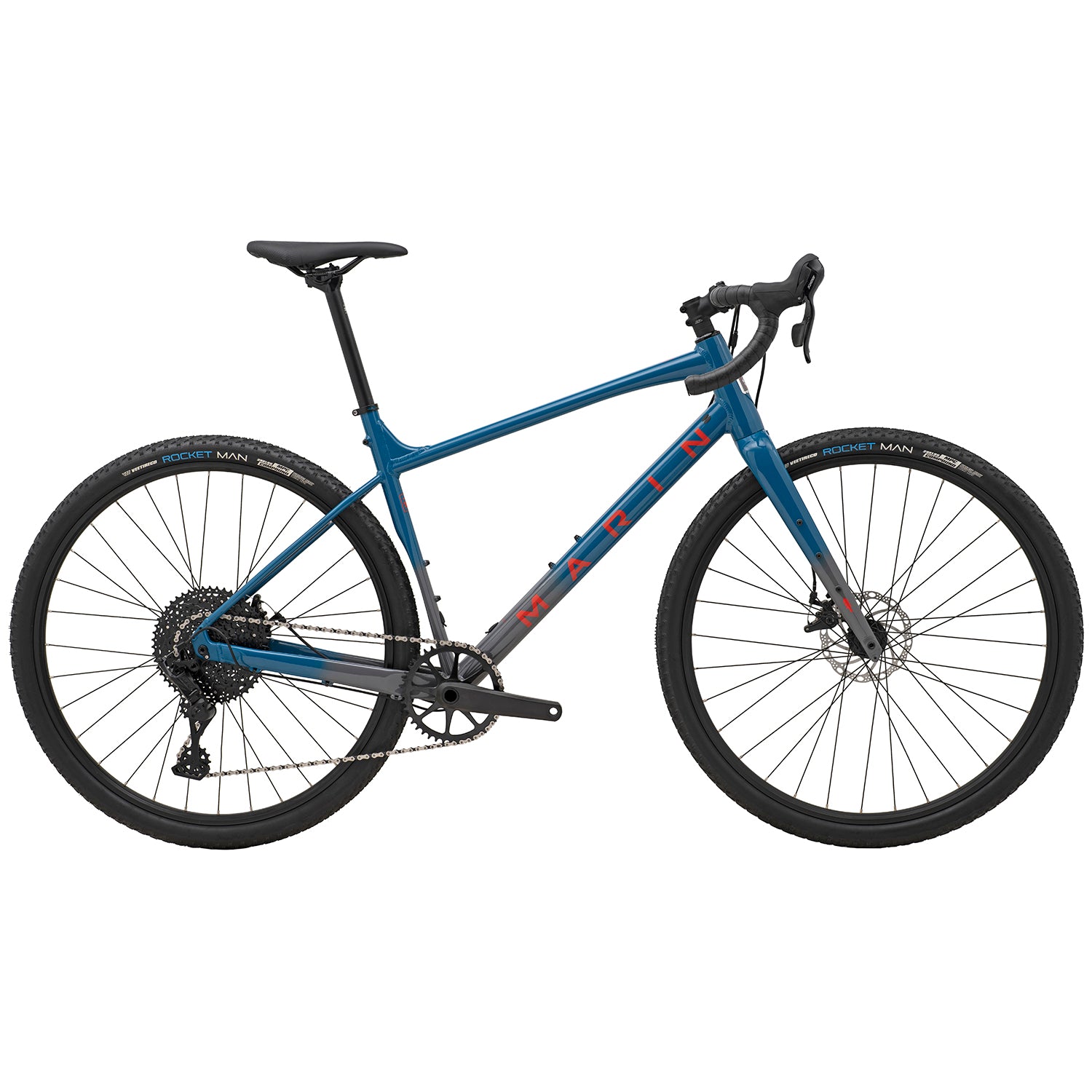

Marin Gestalt X10 Complete Bike 2023
Sitting somewhere in between a gravel grinder and a drop-bar mountain bike, the Marin Gestalt X10 Complete Bike is your answer to off-road adventure riding that doesn't require suspension. Featuring beefy 44mm tires, a carbon fork, and disk breaks, rough riding is on the horizon and looking better than ever. You can even throw on a drop bar, bikepacking rack, or road tires if you must thanks to the Gestalt X's adaptable aluminum frame.
Product Details
Frame and Fork:
Series 3 Aluminum Frame: The Gestalt X features a butted and formed Series 3 6061 aluminum frame with internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets
Beyond Road Geometry: The Gestalt X takes Beyond Road Geometry to the next level of aggressive road and dirt exploration with a blend of endurance road handling and mountain bike sensibilities. Frames now follow mountain bike sizing norms (S, M, L, XL), and the longer/lower/slacker style found on dirt-oriented bikes, with 67.5° head tube angles, and short stem/wide bar combos.
Braze-In Cable Routing: New braze-in cable/hose routing for is seek, clean, and rattle-free
6061 Aluminum
Tapered Head Tube
142x12mm Thru-Axle
Drivetrain:
2x10 Drivetrain: A mix of microSHIFT, Sunrace, and Marin products keep this drivetrain inexpensive all while delivering great performance.
Brakes:
Disk Brakes: The Gestalt X features the latest flat mount disc brake standard for smooth, controlled stopping in all conditions with minimal maintenance.
Wheelset:
Tire Clearance: The Gestalt X frame and fork now has clearance for up to up to 700Cx50 or 650Bx54 Road Plus.
Specs
Handlebar:
Marin Butted Alloy, Compact 16º Flared Drop
Recommended Use:
Gravel
Biking Type:
Gravel/Adventure
Bike Style:
Gravel
Wheel Size:
700c
Gearing:
2 x 10
Frame Material:
Aluminum Alloy
Fork:
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Fork Material:
Carbon
Shifters:
MicroSHIFT Advent
Rear Derailleur:
microSHIFT Advent X 10-Speed Wide-Range
Crankset:
Forged Alloy, 42t
Bottom Bracket:
External Sealed Cartridge Bearings
Pedals:
Not Included
Cassette:
SunRace, 11-51t
Chain:
KMC X10, 10-Speed
Brake Levers:
microSHIFT Advent X
Brake Calipers:
Tektro MD-C500 Dual Piston Road Mechanical Disc
Rotors:
160mm Rotor
Headset:
FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Bar Tape/Grips:
Marin Shock Absorbing Perforated Tape
Stem:
Marin 3D Forged Alloy
Saddle:
Marin Beyond Road Concept
Seatpost:
Marin Alloy 27.2mm
Wheelset:
700C Wheels
Hubs:
Forged Aluminum Alloy, Disc, 32H
Rims:
Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific
Spokes:
14g Black Stainless Steel
Tires:
Vee Tire Co., Rocket Man, Tubeless Compatible | 700x44mm
Warranty:
Limited Lifetime
