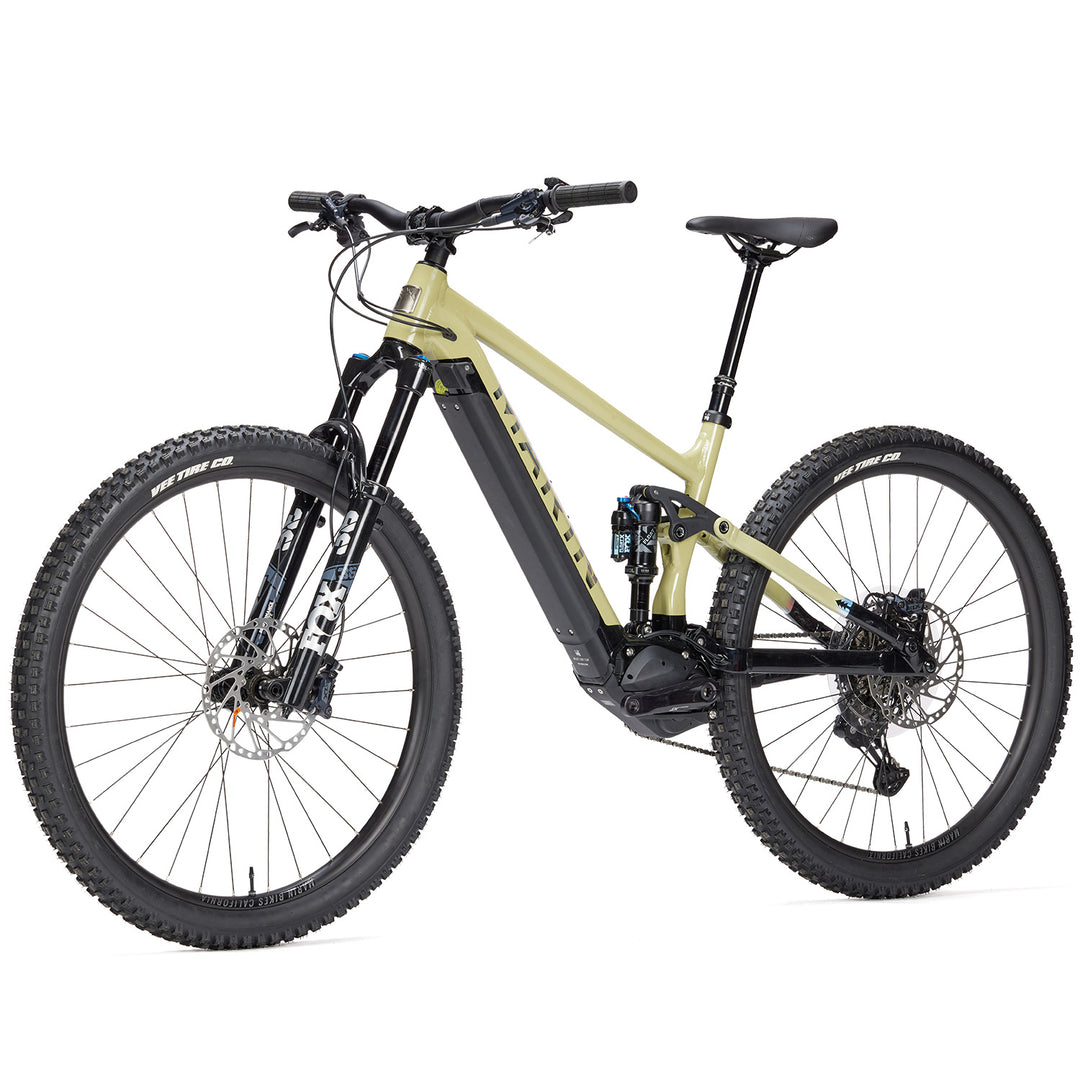

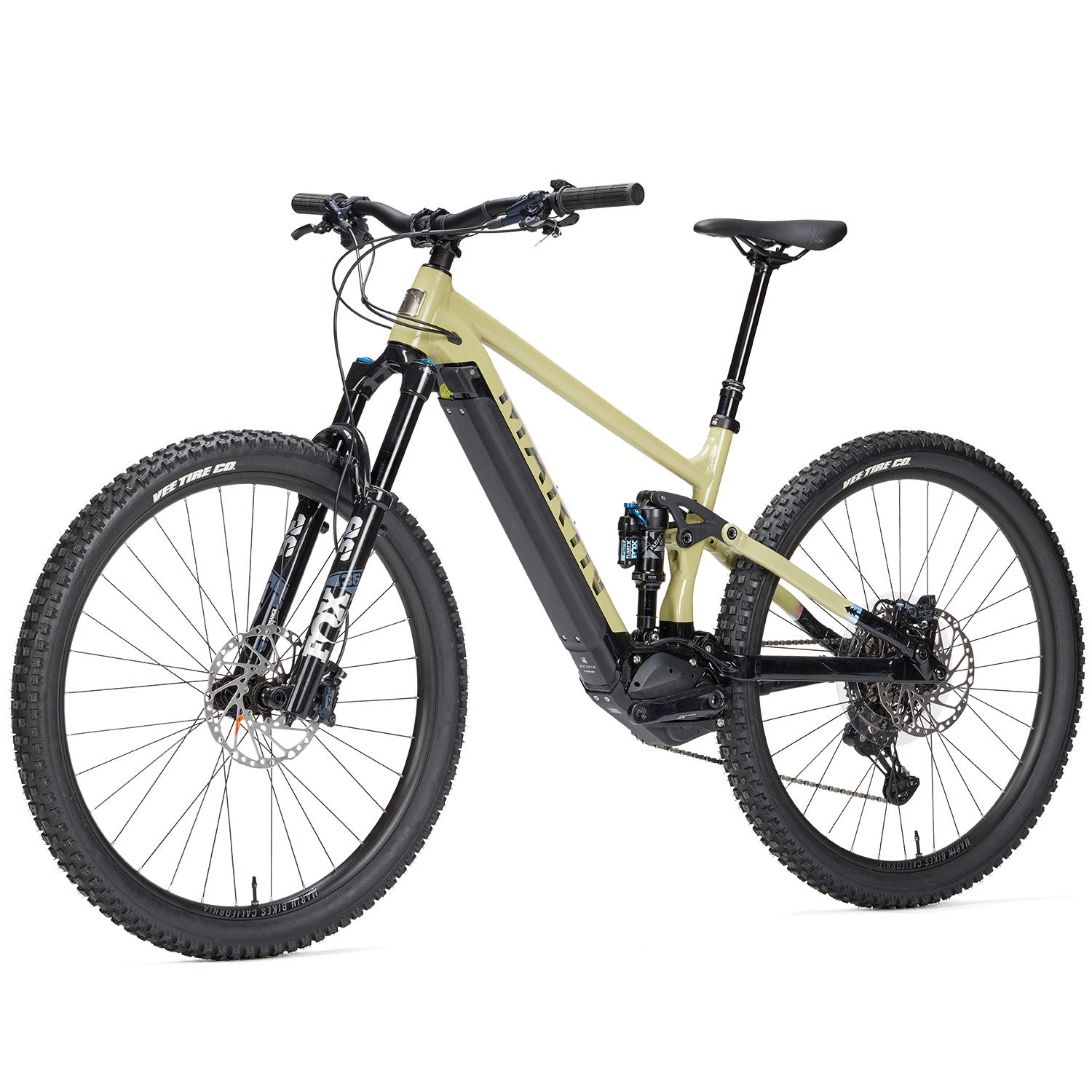

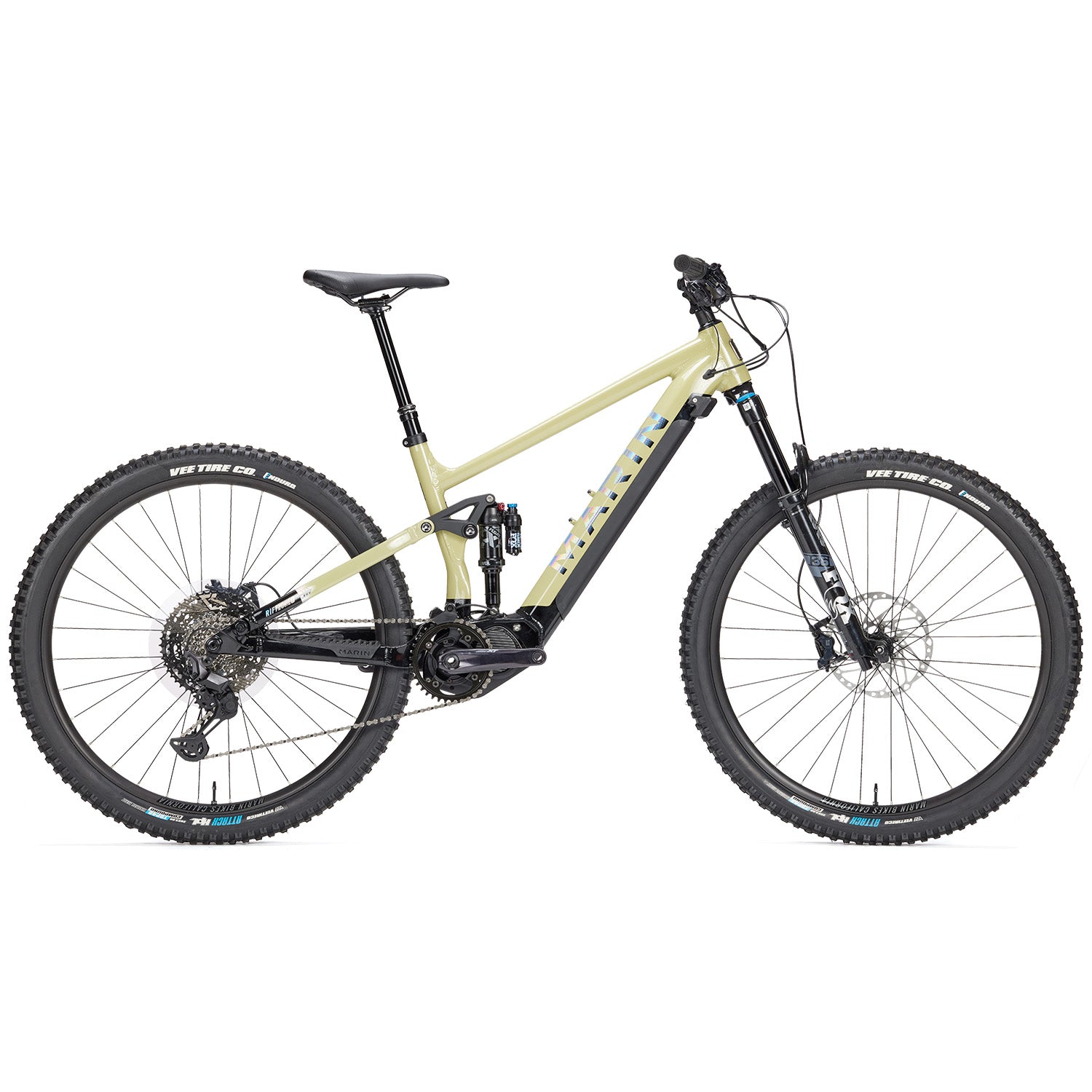

Marin Rift Zone E2 E-Mountain Bike 2023

The electric assist version of Marin's do-it-all machine is here! The Marin Rift Zone E2 E-Mountain Bike takes their fan favorite ripper and boosts it to the moon. More climbs, more descents, more exploring: thanks to 630Wh of battery and 85Nm of pedal assist, you'll have the opportunity to do more of everything. The drive unit pairs nicely with 140mm of travel, immensely powerful TRP brakes, and Shimano's extra-durable LinkGlide XT drivetrain. When you take a versatile bike like the Rift and add the capabilities of e-assist, there's really nothing like it. Let's ride!

Product Details

Frame/Shock:
140mm Multitrac Suspension: The Rift Zone E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system. With this combination there is no need for platform or lockout levers, just get on and blast up the hills.
Series 4 Aluminum Frame: Rift Zone E models are built upon Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.

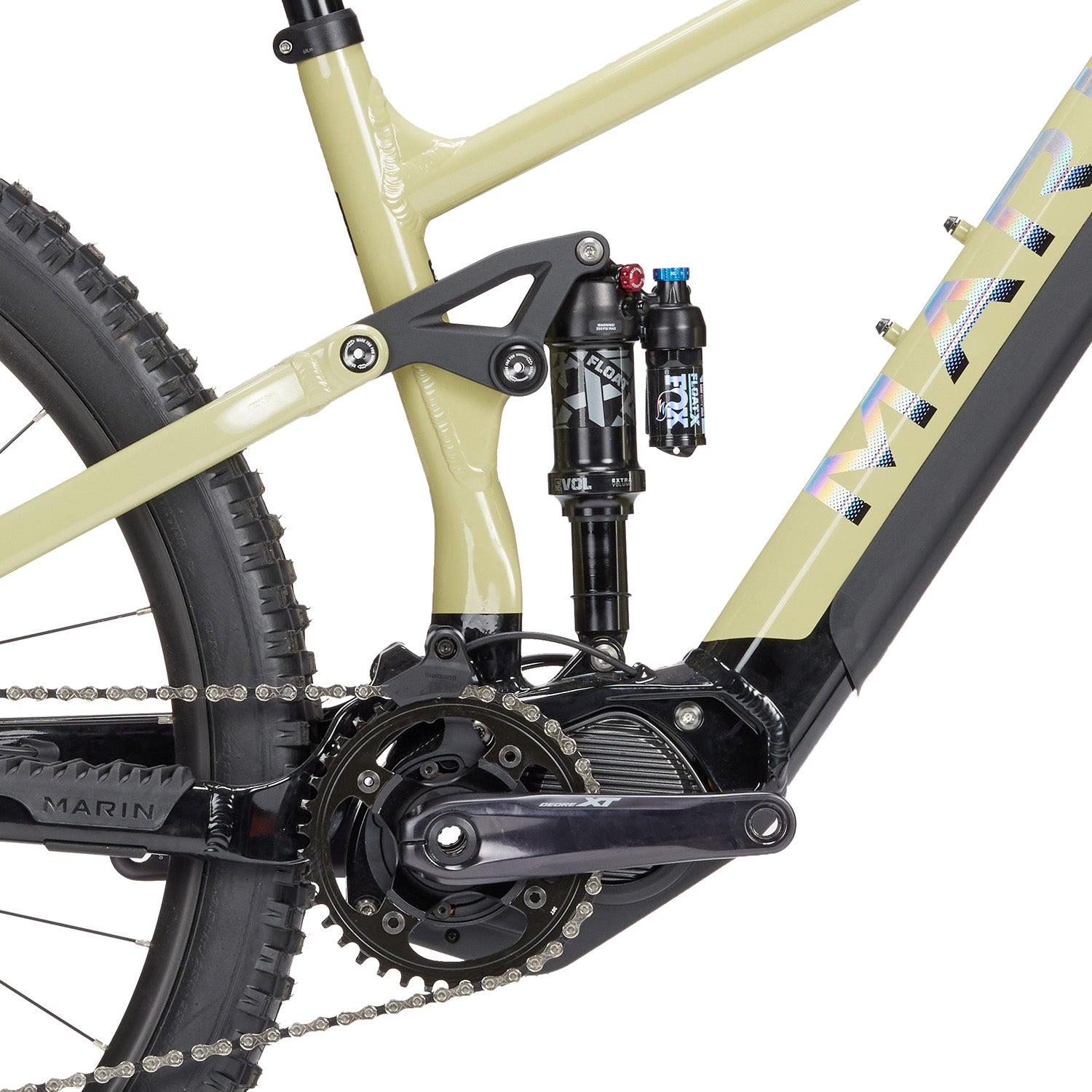

Fox Float X Performance Elite Rear Shock: From aggressive trail to enduro, the advanced damping, fade free performance and class-leading durability of Float X makes it the versatile and lightweight choice for All-Mountain riders who value their descents.
Shock Adjustments: Air Spring Pressure | Low Speed Compression Damping (11 Clicks) | 2-Position Firm/Open Lever | Rebound Damping (9 Clicks)
Drive Unit / Battery:
Shimano 630Wh Integrated Battery: Designed specifically for SHIMANO's STEPS system, the BT-E8036 battery integrates smoothly into the down tube and features 630 Wh capacity. Delivering a sleek design, the battery also charges quickly and retains its max capacity longer throughout its lifespan. Fast becoming an industry standard, this battery is easy to find and service.

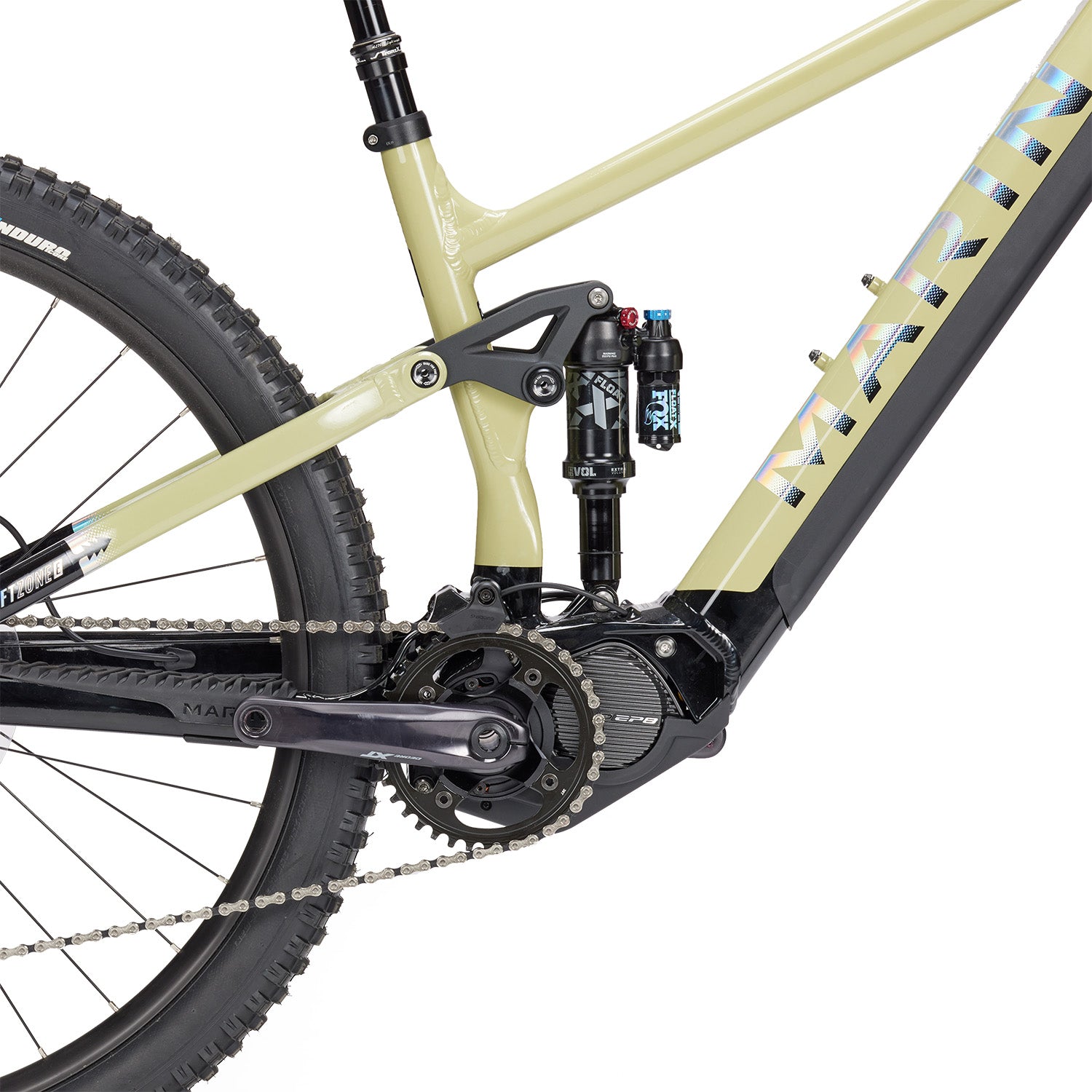

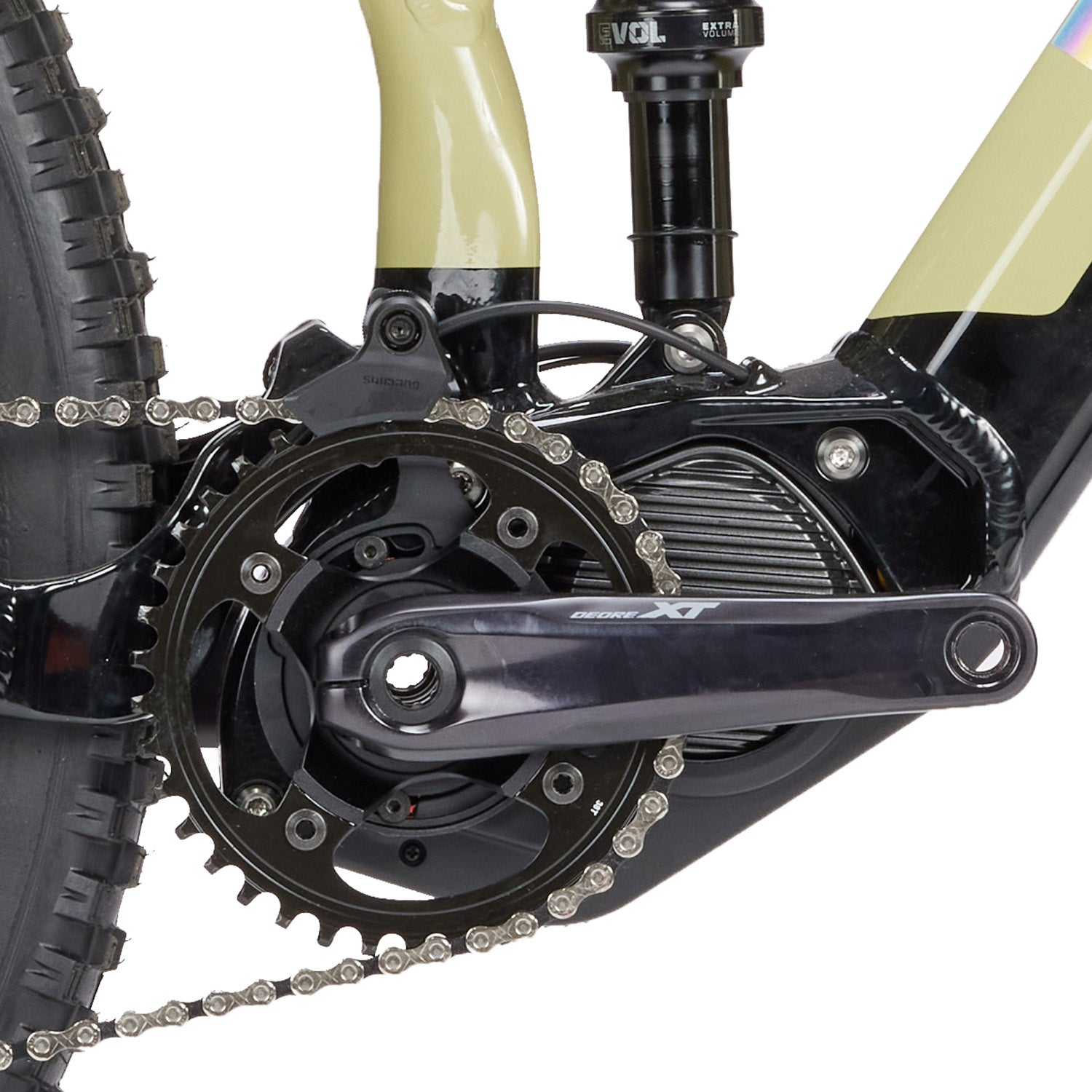

Shimano EP801: With 85Nm of available torque, the EP8 delivers smooth, direct power to ensure you're always in complete control while experiencing a natural ride feeling. With three customizable assist modes (and a walk mode), you can dial in exactly the ride you're looking for, depending on terrain and route. This latest version of Shimano's world-beating drive unit is smaller, lighter, and more responsive than ever before.
Fork:

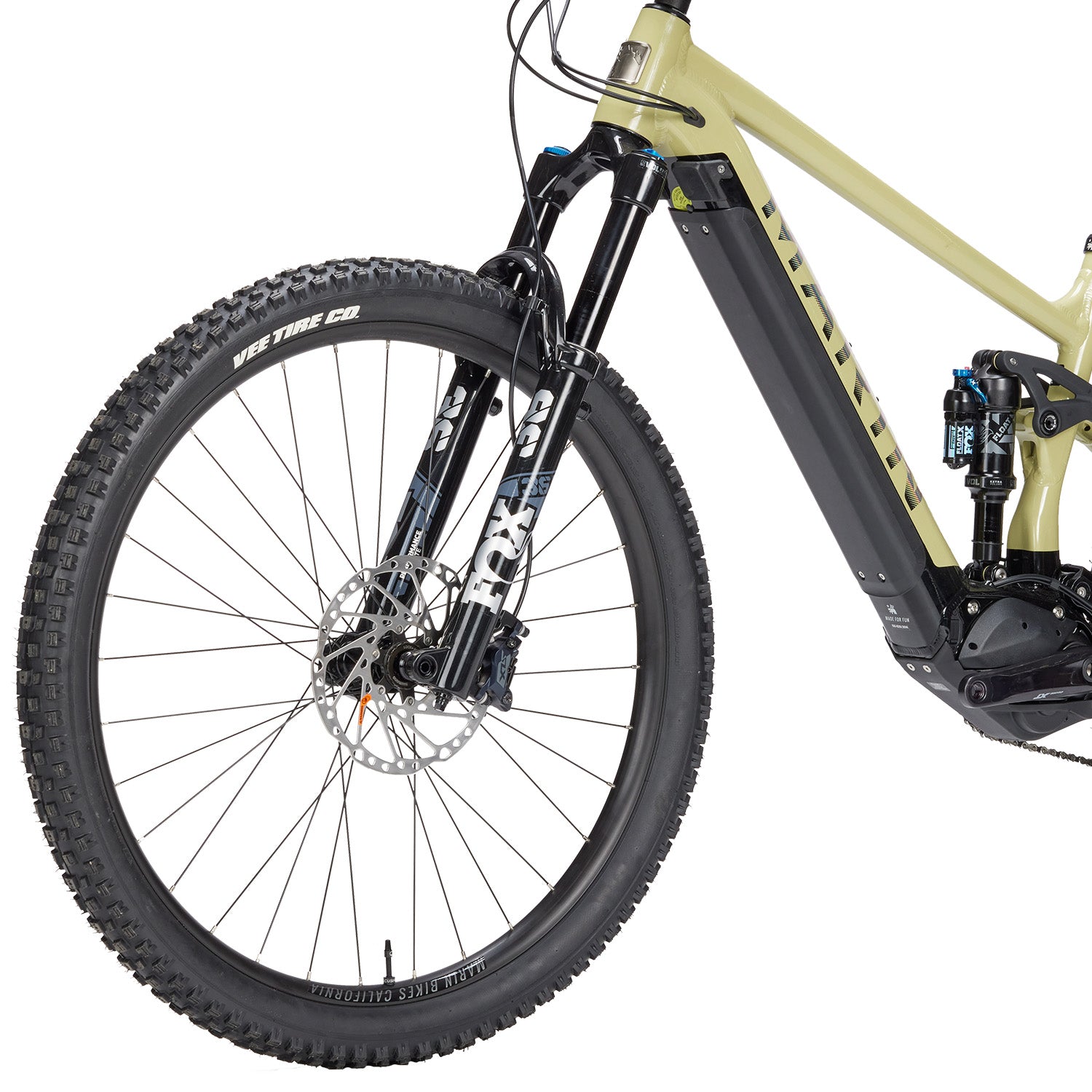

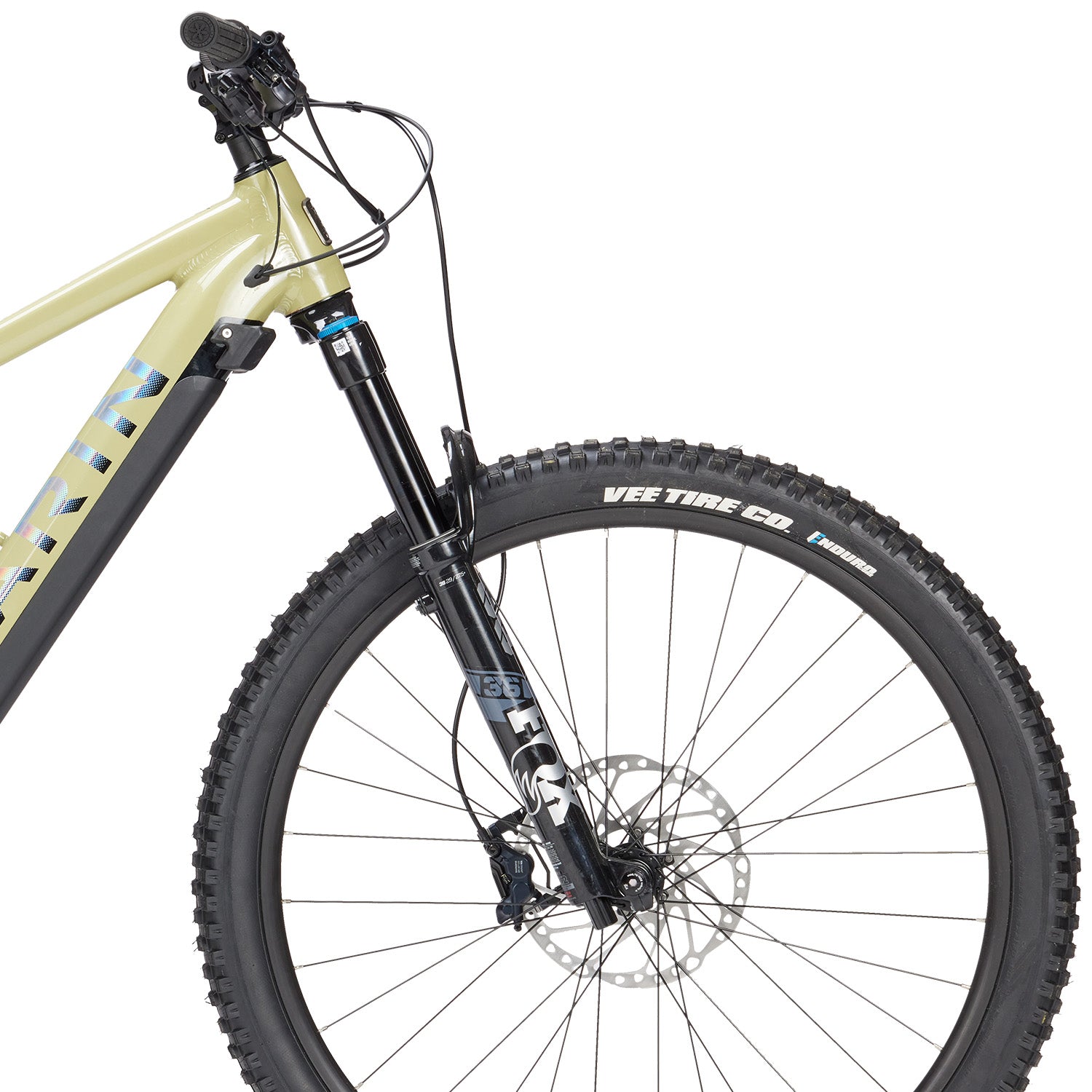

Fox 36 Performance Elite: The all-mountain fork choice for a decade, this latest 36 features lower leg bleed valves, optimized bypass channeling, a floating axle, and the amazing GRIP2 damper. For small bump sensitivity, mid-stroke support, and tunable bottom-out progression, this fork cannot be beat.
Fork Adjustments: Air Spring Pressure | High Speed Compression Damping (8 Clicks) | Low Speed Compression Damping (16 Clicks) | High Speed Rebound Damping (8 Clicks) | Low Speed Rebound Damping (16 Clicks)
Drivetrain:

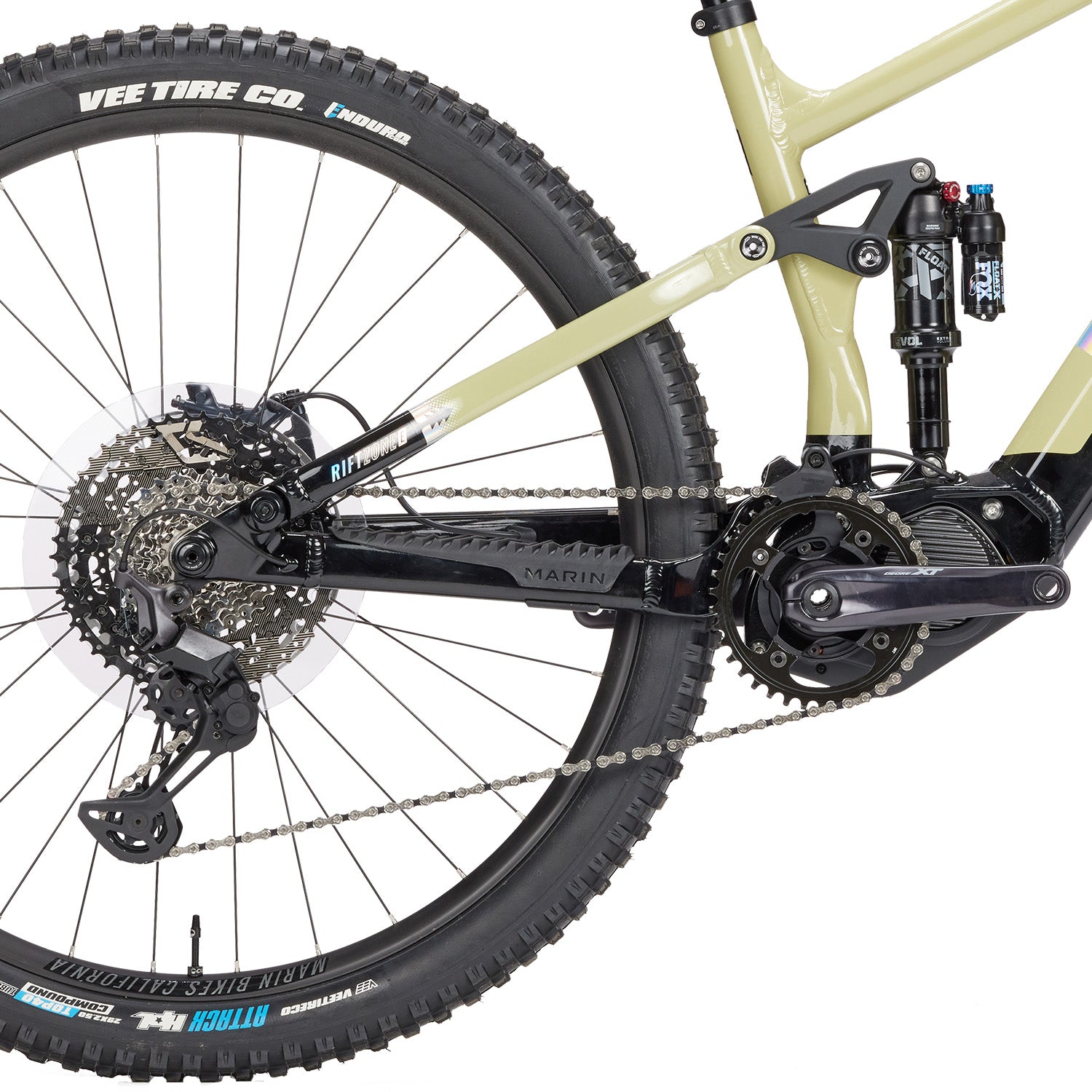

Shimano XT 11 Speed: The latest Shimano drivetrain tech features LinkGlide, a redesign of the ramps and pins that help a chain shift through a cassette. Made for the increased demands of ebikes, this system is incredibly durable and smooth, lasting longer than anything before it. Shift under load, shift while pedaling through roots, shift whenever you want.
Brakes:
TRP DH-R EVO: Born from technology proven in World Cup DH and tuned for the demands of DH bikes and E-MTB’s, the four-piston DH-R EVO takes modulation and braking power to an entirely new level of control. New ergonomic lever-blade, newly formulated brake pad compounds, new high-performance hydraulic oil, new 5 mm brake hose-system, newly designed and CNC-machined adapters, new selection of thick 2.3mm rotors, newly designed oil flow inside the calipers, and a 10mm master cylinder piston lift the overall performance of the DH-R EVO to this new standard of TRP performance.
TRP Rotors | 203mm
Wheel Set:
Marin Double Wall Aluminum Rims Laced to Shimano Hubs: With sealed bearings, 29mm inner width, and 32 spokes, these aluminum rims are light and strong--perfect for the do-it-all frame they're attached to.
Vee Tire Co. Attack HPL Tires: The HPL represents the cutting-edge of fast high-speed ability, unparalleled precision and damping qualities that pros and weekend warriors all appreciate. Traction defying Top 40 compound and tried and trusted puncture protection ensures the new HPL is the tire to rely on in all conditions.
Additional Features:
eBikes can only be shipped via ground. Delivery to AK and HI is unavailable at this time.
Price and Spec Subject to Change

Specs

Handlebar:

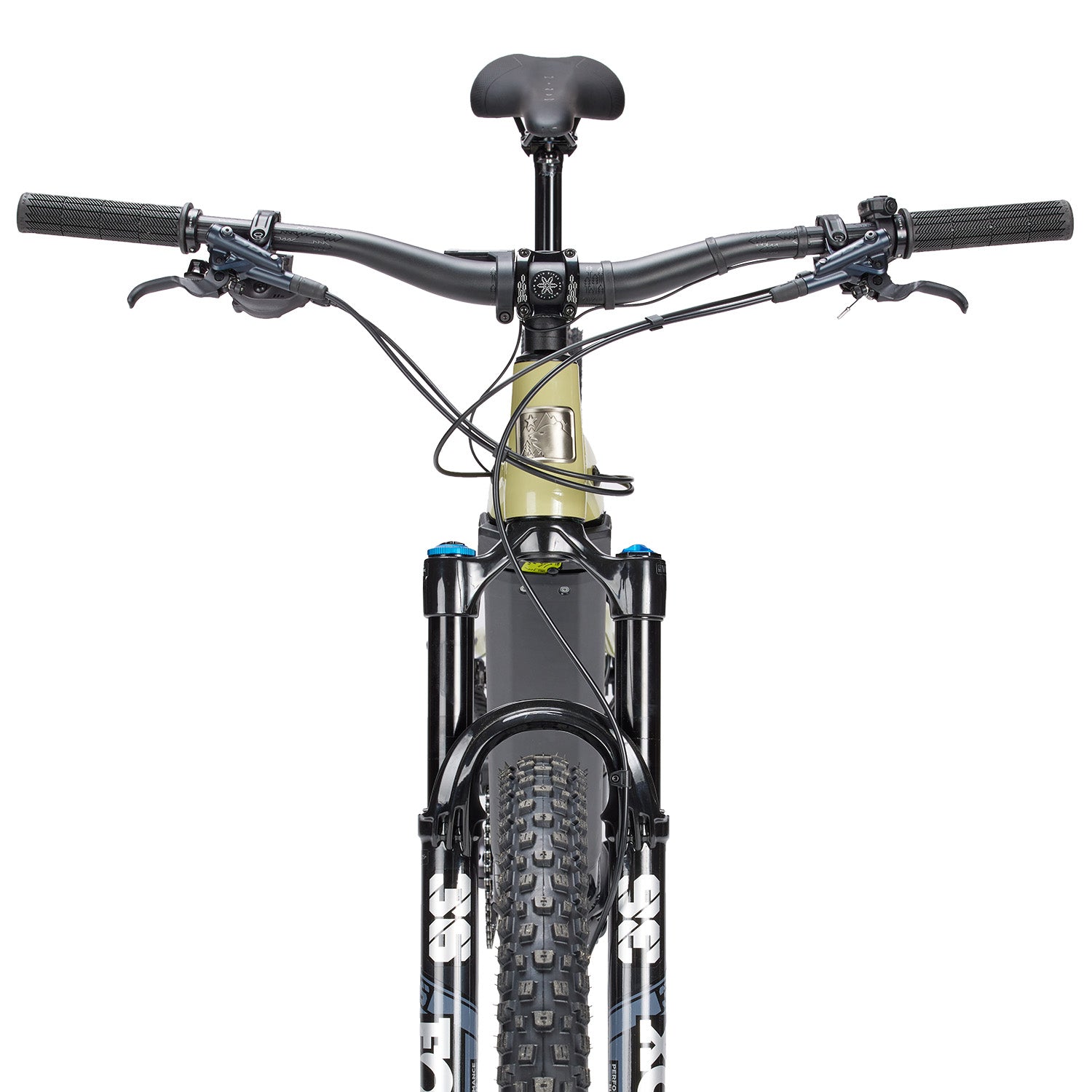

Marin Trail | 7000 Aluminum | 800mm | 35mm | 5º Up / 8º Backsweep | 20mm Rise
Biking Type:
Mountain
Mountain
Used For:
Trail
Trail
Suspension:
Full Suspension
Full Suspension
Gearing:
1 x 11
Frame Material:
Aluminum Alloy
Aluminum Alloy
Water Bottle Mounts:
1
Fork:
Fox 36 Performance Elite
Stanchion Diameter:
36mm
Fork Travel:
140mm
Rear Shock:
Fox Float X Performance Elite
Rear Travel:
140mm
Drive Unit:
Shimano EP801
Battery:
Shimano 630Wh
Shifters:
Shimano XT
Rear Derailleur:

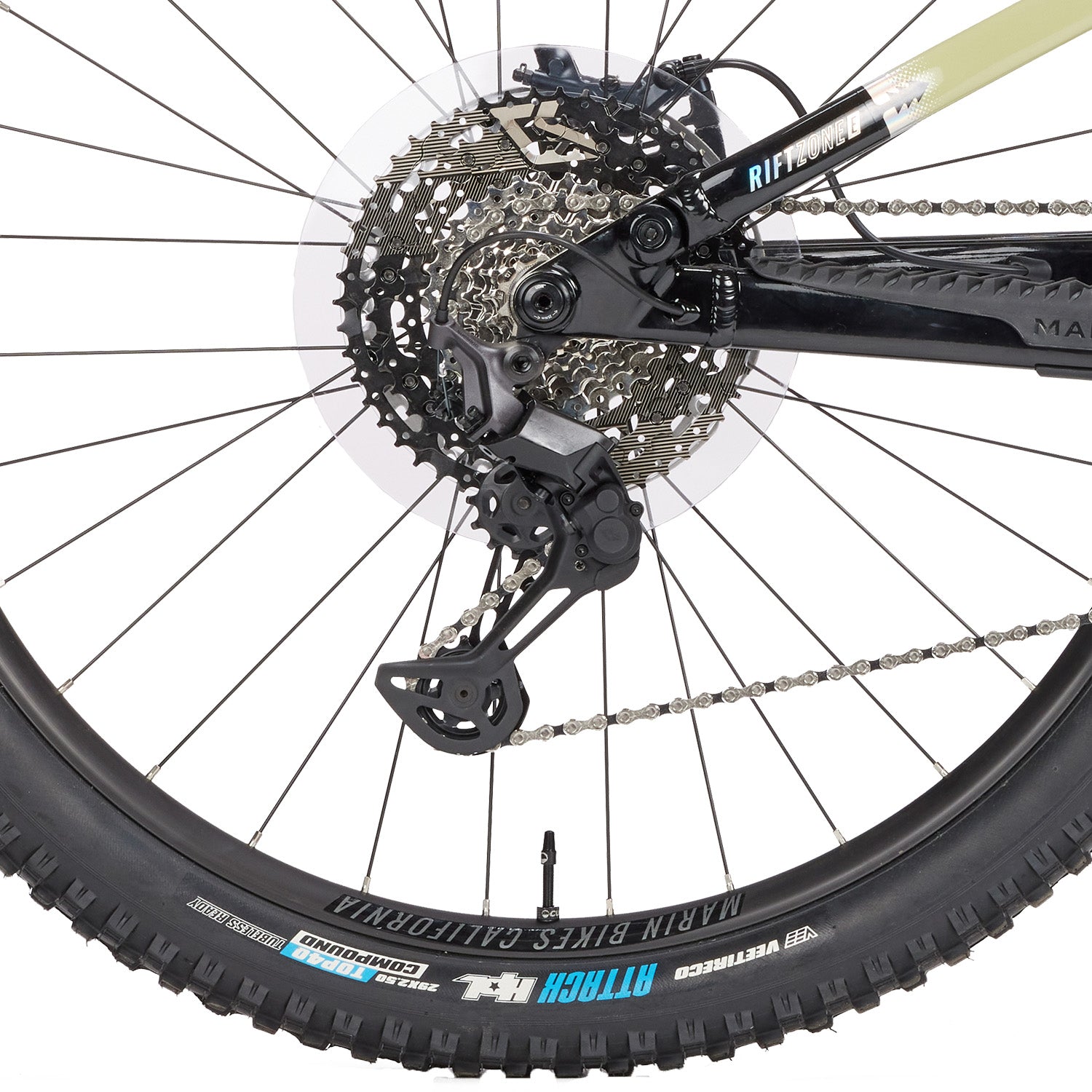

Shimano XT M8130, 11-Speed
Crankset:
Shimano XT M8150, 38t
Cassette:
Shimano XT LinkGlide, 11-50t
Chain:
KMC e11, 11-Speed
Pedals:
Marin MTB Plastic
Brake Levers:
TRP DH-R EVO
Brake Calipers:
TRP DH-R EVO
Rotors:
203mm
Headset:
FSA No.57
Bar Tape/Grips:
Marin Grizzly Lock-on
Stem:
Marin CNC Aluminum | 35mm / 35mm
Saddle:
Marin eMTB Saddle
Seatpost:
X-Fusion Manic Dropper | S: 125mm / M-L: 150mm / XL: 170mm
Hubs:
Shimano 32H | Centerlock Disc | MicroSpline Freehub
Rims:
Marin Aluminum Double Wall | 29mm | 29"
Spokes:
14g Black Stainless Steel
Tires:
Vee Tire Co. Attack HPL | Override E-Specific Casing | 29 x 2.5"
Warranty:
5 Years
