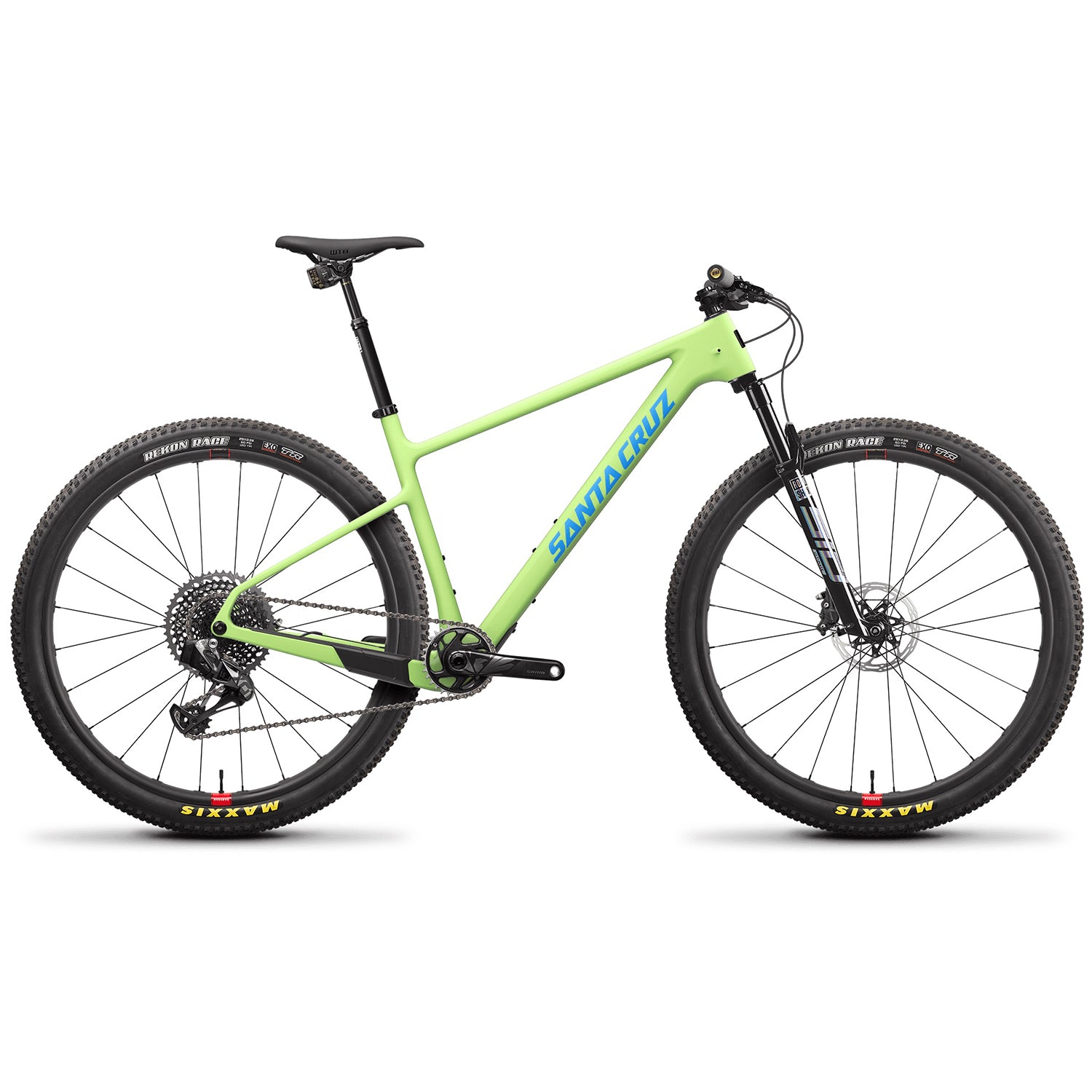

Santa Cruz Bicycles Highball X01/GX AXS Reserve Complete Mountain Bike 2023
SKU# EB-240681-1001
$8,299.00
$8,299.00
Find in Store
Checking availability...
Not available in store
Order and get 6499 reward points
Earn 6499 points with this product. Join Free
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsSanta Cruz Bicycles Highball X01/GX AXS Reserve Complete Mountain Bike 2023
Fast, quick, or extremely rapid: you must choose all three. The Santa Cruz Bicycles Highball X01/GX AXS Reserve Complete Mountain Bike is the kind of bike that'll bring out the critics, the engineers, and the know-it-alls. Everyone's got an opinion on whether all this tech is "worth it." Well, yeah, that's life. This is the fastest mountain bike in Santa Cruz's lineup, a carbon wonder with full AXS and Reserve XC carbon wheels. No question about that. You won't know unless you go, and this one goes! This build pairs X01 components with a GX cassette and chain.
Product Details
Frame/Shock:
Carbon CC Frame: Santa Cruz's highest grade CC-level carbon frame is every bit as stiff and strong as their C-level frame, but weighs about 280 grams less, due to the use of lighter, stronger, and more expensive carbon fiber. Santa Cruz is also able to truly integrate the shock mounts, pivot mounts, dropouts and disc brake tabs into the structure, using all uni-directional carbon plies. The shock mount isn't merely riveted or bonded on after curing, but is an integrated part of the fiber lay-up. This makes Santa Cruz's carbon frames incredibly strong and able to absorb impact better than any other frame they've tested.
Integrated Headset
Threaded Bottom Bracket
Internal Brake and Dropper Cable Routing
148mm Rear Axle Spacing
2 Water Bottle Mounts
Fork:
RockShox SID SL Ultimate: The lightest, fastest XC fork on the market, full stop. SID SL Ultimate features the lightest performance damper RockShox has ever made - Charger™ Race Day. They machined away every extra gram and made premium style plays to deliver the ultimate race-winning package.
Fork Adjustments: Air Spring Pressure, Low Speed Compression to Lockout, External Rebound Adjust
Remote Lockout Lever
Drive Train:
SRAM X01 / GX Eagle AXS™: X01 Eagle AXS utilizes the proven backbone of SRAM 1x. 500-percent gear range, a more secure and longer wearing X-SYNC 2 chainring. The resilience of an aluminum cage is paired with the connected components of Eagle AXS to be ready for the new gen of super bikes. This build has a GX cassette and chain.
Brakes:
SRAM Level TLM: Strong performance in a very light package, TLM brakes have alloy levers and two powerful pistons. Precision, modulation, and ease of setup are all top notch in these dependable trail brakes from SRAM.
SRAM CLX Center Lock Rotors
Wheelset:
Santa Cruz Reserve 28|XC Carbon: The Reserve 28|XC is the race-ready culmination of everything Santa Cruz has learned from years at the highest levels of competition, and it delivers on a heap of promises. At a genre blurring 1300g for a complete wheelset (with no rider weight limit and a market-defining lifetime warranty), the 28|XC features a new wider and lower rim profile to increase strength and lateral rigidity, while adding vertical compliance for enhanced traction. The new rim shape also eases tubeless tire installation and improves tire bead retention at lower pressure. The Reserve 28|XC is really the go-to wheelset for the modern XC bike: Sturdy and strong enough for a rowdy XC ride, but light and fast enough for a jaunt on the World Cup XC circuit.
Industry Nine 1/1 Hubs: Confident and capable of cleaning the A-line yet budget friendly to save up for a season of bucket list rides, the 1/1 hub stays true to the performance heritage of Industry Nine. Featuring a dual phased-pawl drive mechanism accomplishing 90 POE and 4° engagement by way of a six pawl driver and 45 tooth drivering, 1/1 takes a no-nonsense approach in welcoming riders to Industry Nine.
Maxxis Rekon Race Tires: The Maxxis Rekon Race is a semi-slick XC race tire that features the lowest profile tread in Maxxis's XC line. It is a great choice for XC trails and short track racing.
Additional Features:
RockShox AXS Xplr Dropper Post: No hoses. No routing. No energy wasted. Not a single thing in the way of the experience. SRAM created a reliable wireless-electronic dropper post and controller that actuates with drastically less effort and zero distraction. Expanding what's possible on a bike, Reverb AXS is enabled by SRAM AXS technology, a new level of interaction, personalization, and connectivity across all AXS enabled components.
Santa Cruz Bicycles Carbon Flat Bar
Price and Spec Subject to Change
Specs
Handlebar:
Santa Cruz Bicycles Carbon Flat
Biking Type:
Mountain
Used For:
Cross Country
Frame Material:
Carbon
Gearing:
1 x 12
Water Bottle Mounts:
2
Fork:
RockShox SID SL Ultimate
Stanchion Diameter:
32mm
Fork Travel:
100mm
Shifters:
SRAM AXS Pod Bridge
Rear Derailleur:
SRAM X01 Eagle AXS, 12-Speed
Crankset:
SRAM X1 Carbon DUB, 34t
Cassette:
SRAM GX Eagle XG-1275, 10-50t
Chain:
SRAM GX Eagle, 12-Speed
Bottom Bracket:
SRAM DUB 68/73mm Threaded
Brake Levers:
SRAM Level TLM
Brake Calipers:
SRAM Level TLM
Rotors:
SRAM CLX Center Lock | 160mm
Headset:
Cane Creek 40 IS Integrated
Bar Tape/Grips:
ESI Chunky
Stem:
Syntace LiteForce
Saddle:
WTB Silverado Team
Seatpost:
RockShox Reverb AXS XPLR Dropper
Hubs:
Industry Nine 1/1 Centerlock 24H
Rims:
Reserve 28 XC Carbon
Spokes:
Sapim D-Light (24)
Tires:
Maxxis Rekon Race EXO TR | 29 x 2.35"
Warranty:
Limited Lifetime (Frame)
