Transition Relay Alloy NX E-Mountain Bike 2023

SKU# EB-240612-1001

$4,699.00

$6,799.00

Shipping

Not available for shipping

Find in Store

Checking availability...

Order and get 3999 reward points

Earn 3999 points with this product. Join Free

Free shipping on orders over $50

Details

Lowest price guarantee

Details

366 Day Return Policy

Details

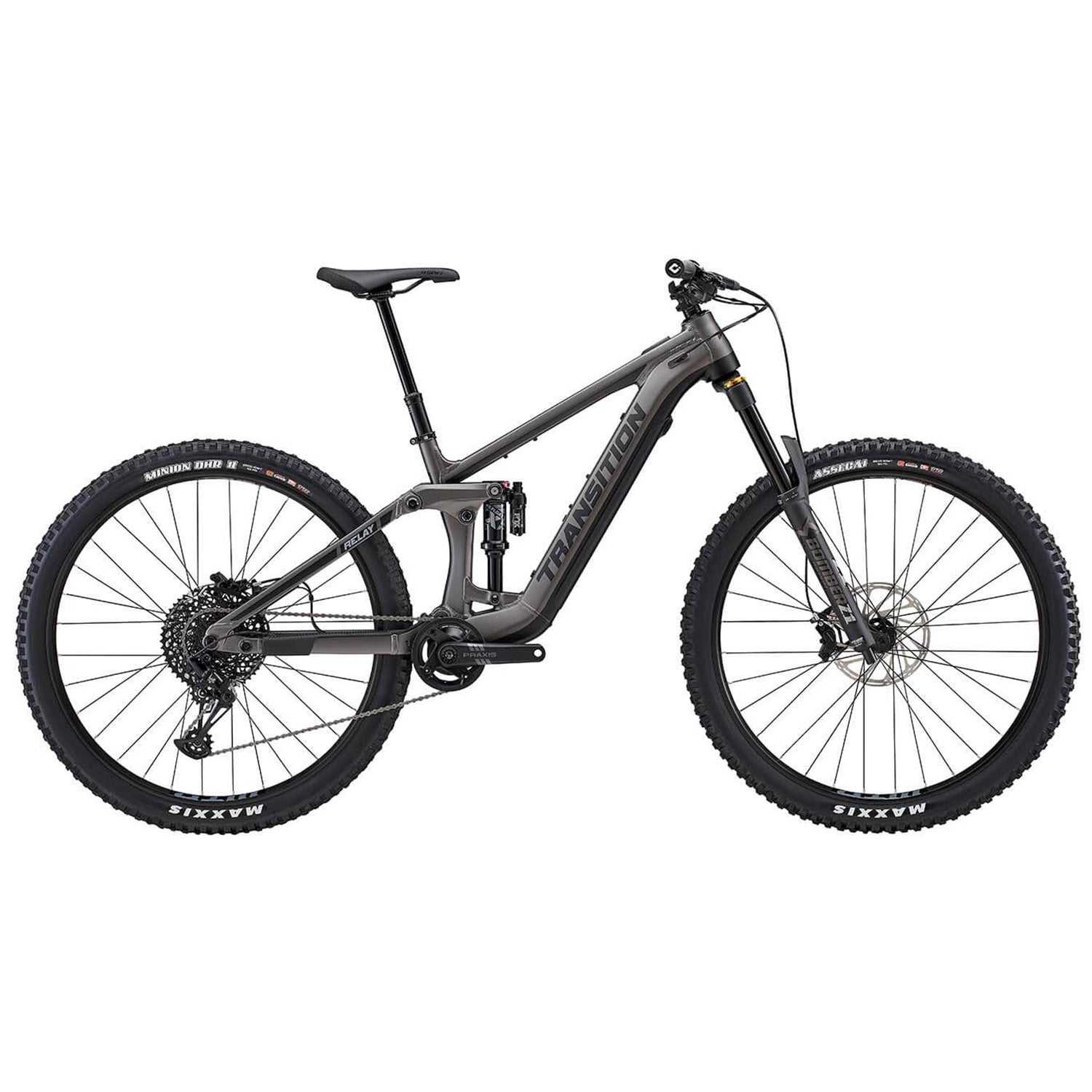

Transition Relay Alloy NX E-Mountain Bike 2023

Billed as "the mountain biker's eMTB," the Transition Relay Alloy NX E-Mountain Bike is a huge step forward in bike technology. As an ebike, it's a lightweight and nimble mid-power (60Nm) go-anywhere ripper, with the the aggressive geo and excellent ride quality you'd expect from a Transition. But, when you take the battery out, you can still pedal it. Yeah, that's right, it really is two great bikes in one, convertible between lightweight eeb and beefy enduro bike. Further still, the frame allows for tinkering with setup as well, with the ability to take air or coil shocks, 160 or 170mm travel, and/or mixed wheel sizing. There are like a half dozen dream bikes here, one for pretty much anything you're into. There's never been a better time to be a mountain biker: get on it!

Transition

Product Details

Key Features:
Alloy Frame
Travel: 160mm Front / 160mm Rear
Wheel Size: 29"
Fazua Ride 60 Drive Unit: 60 Nm of torque but more compact and lighter weight than full-power systems.
Fazua Ring Controller: The simple and ergonomic ring controller adjusts modes with a gentle nudge up or down. Pushing it up increases the power level, pushing it down decreases power level, pushing inward will activate walk mode. Holding the controller up for 2 seconds from any assistance mode will activate a boost mode, giving you peak system power output for roughly ten seconds.
Speed Balanced Geometry: SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with an all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.
Coil and Air Shock Compatible: With 26% progression, the rear suspension is fully compatible with both air and coil shocks without worrying about harsh bottom out.
Long Dropper Insertion: With an uninterrupted seat tube, you are free to drop your post all the way to the collar, allowing for long droppers on every size.
Chainring Bashguard: Designed in-house, the forged spider bashguard keeps the chain, chainring, and frame safe from impacts.
Internal Cable Routing: Fully internal cable routing is a breeze with easy access through the battery door, while ports in the headtube keep it quick and easy to work on the headset.
UDH Compatible: SRAM's Universal Derailleur Hanger is available at almost every bike shop, should something go wrong.
Gear Accessory Mount: An underside top-tube accessory mount allows you to carry a spare tube or other goodies safely on your frame in case you are looking to ditch your pack.

Specs

Handlebar:
RaceFace Chester 35 | 780mm
Biking Type:
Mountain
Mountain
Used For:
Enduro
Enduro
Suspension:
Full Suspension
Full Suspension
Gearing:
1 x 12
Frame Material:
Aluminum Alloy
Aluminum Alloy
Water Bottle Mounts:
1
Fork:
Marzocchi Bomber Z1
Stanchion Diameter:
36mm
Fork Travel:
160mm
Rear Shock:
Fox Float X Performance
Rear Travel:
160mm
Drive Unit:
Fazua Ride 60
Battery:
Fazua Energy 430Wh
Shifters:
SRAM NX Eagle
Rear Derailleur:
SRAM NX Eagle, 12-Speed
Crankset:
Praxis eTor AL
Cassette:
SRAM GX Eagle XG-1275, 10-50t
Chain:
SRAM NX Eagle, 12-Speed
Pedals:
Not Included
Brake Levers:
SRAM Code R
Brake Calipers:
SRAM Code R
Rotors:
SRAM Centerline | 200mm
Headset:
FSA No.55R
Bar Tape/Grips:
ODI Elite Flow Lock-On
Stem:
RaceFace Aeffect R | 40mm
Saddle:
SDG Bel Air 3
Seatpost:
OneUp Dropper | XS: 120mm / S: 150mm / M: 180mm / L-XXL: 210mm
Hubs:
Novatec D791SB-B15/D902SB-B12
Rims:
WTB i30
Spokes:
Pillar
Front Tire:
Maxxis Assegai 2.5" | 3C, EXO+
Rear Tire:
Maxxis Minion DHR II 2.4" | 3C, EXO+
Warranty:
Limited Lifetime (Frame and Bearings)
