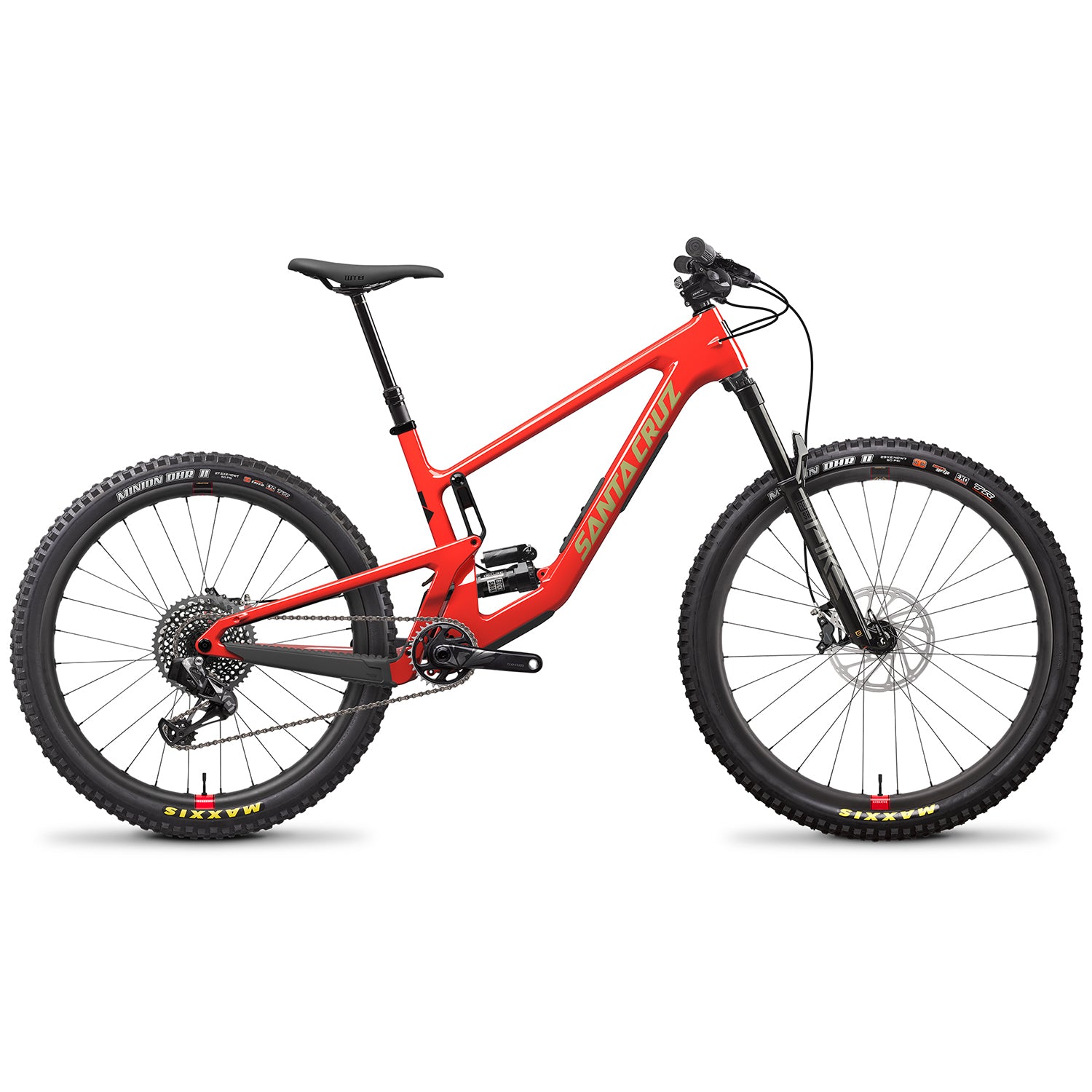

Santa Cruz 5010 CC X01 AXS Reserve Complete Mountain Bike 2023

The distinction between a playbike that can ride trails and a trailbike that plays is subtle, but significant. The latest 5010 leads the way into that second designation, adding mixed wheel sizes to the model's energetic history. The Santa Cruz 5010 CC X01 AXS Reserve Complete Mountain Bike is the top of the line when it comes to spec, with the best components available affecting the true bottom line: fun. This bike is always in search of maximum enjoyment. Lightning fast wireless shifting, top tier suspension, and guaranteed-for-life carbon frame and wheels: all this adds up to a blank slate of frolic. You'll laugh harder than everyone on this 5010, it's pure bliss for the hyperactive set.

Santa Cruz

Product Details

Key Features:
Carbon CC Frame: Santa Cruz's highest grade CC-level carbon frame is every bit as stiff and strong as their C-level frame, but weighs about 280 grams less, due to the use of lighter, stronger, and more expensive carbon fiber. Santa Cruz is also able to truly integrate the shock mounts, pivot mounts, dropouts and disc brake tabs into the structure, using all uni-directional carbon plies. The shock mount isn't merely riveted or bonded on after curing, but is an integrated part of the fiber lay-up. This makes Santa Cruz's carbon frames incredibly strong and able to absorb impact better than any other frame they've tested.
Travel: 140mm Front / 130mm Rear
Wheel Size: Mixed Wheel (29" Front / 27.5" Rear) / Size XS: 27.5"
Lower-Link Mounted VPP® Suspension: VPP is based on the patented principle of having two short links rotating in opposite directions. This system provides huge design flexibility, allowing Santa Cruz to manipulate shock rates to the intended purpose and character of each model; from short travel endurance bikes to World Championship winning DH machines. This redesign mounts the shock lower on the bike, making for an even better ride quality.
The Glovebox™: Seal whatever you want to carry on your ride inside your downtube. Secure and easy to access, the Glovebox™ has a Tool Wallet and Tube Purse inside, to help organize your stuff too. Simply cavernous!
Integrated Flip Chip for High/Low Geometry Setting
Internal Brake & Dropper Cable Routing

Specs

Handlebar:
Santa Cruz 35 Carbon Bar 800mm | 35mm Rise
Biking Type:
Mountain
Mountain
Used For:
Trail
Trail
Suspension:
Full Suspension
Full Suspension
Frame Material:
Carbon
Carbon
Gearing:
1 x 12
Water Bottle Mounts:
1
Fork:
RockShox Pike Ultimate
Stanchion Diameter:
35mm
Fork Travel:
140mm
Rear Shock:
RockShox Super Deluxe Ultimate
Rear Travel:
130mm
Shifters:
SRAM GX Eagle AXS
Rear Derailleur:
SRAM X01 Eagle AXS, 12-Speed
Crankset:
SRAM X1 Carbon DUB, 32t
Cassette:
SRAM X01 Eagle XG-1295, 10-50t
Chain:
SRAM X01 Eagle, 12-Speed
Bottom Bracket:
SRAM DUB 68/73mm Threaded
Pedals:
Not Included
Brake Levers:
SRAM G2 RSC
Brake Calipers:
SRAM G2 RSC
Rotors:
Avid Centerline 200 / 180mm
Headset:
Cane Creek 40 IS
Bar Tape/Grips:
Santa Cruz Bicycles House Grips
Stem:
Burgtec Enduro MK3 42mm
Saddle:
WTB Silverado Medium Ti or WTB Volt
Seatpost:
RockShox Reverb Stealth Dropper
Wheelset:
Santa Cruz Reserve Carbon 30HD
Hubs:
i9 1/1 | 28H
Rims:
Santa Cruz Reserve Carbon 30HD
Front Tire:
Maxxis Minion DHR II 2.4" | 3C MaxxGrip, EXO, TR
Rear Tire:
Maxxis Minion DHR II 2.4" | 3C MaxxTerra, EXO, TR
Warranty:
Limited Lifetime (Frame and Bearings, Rims)
