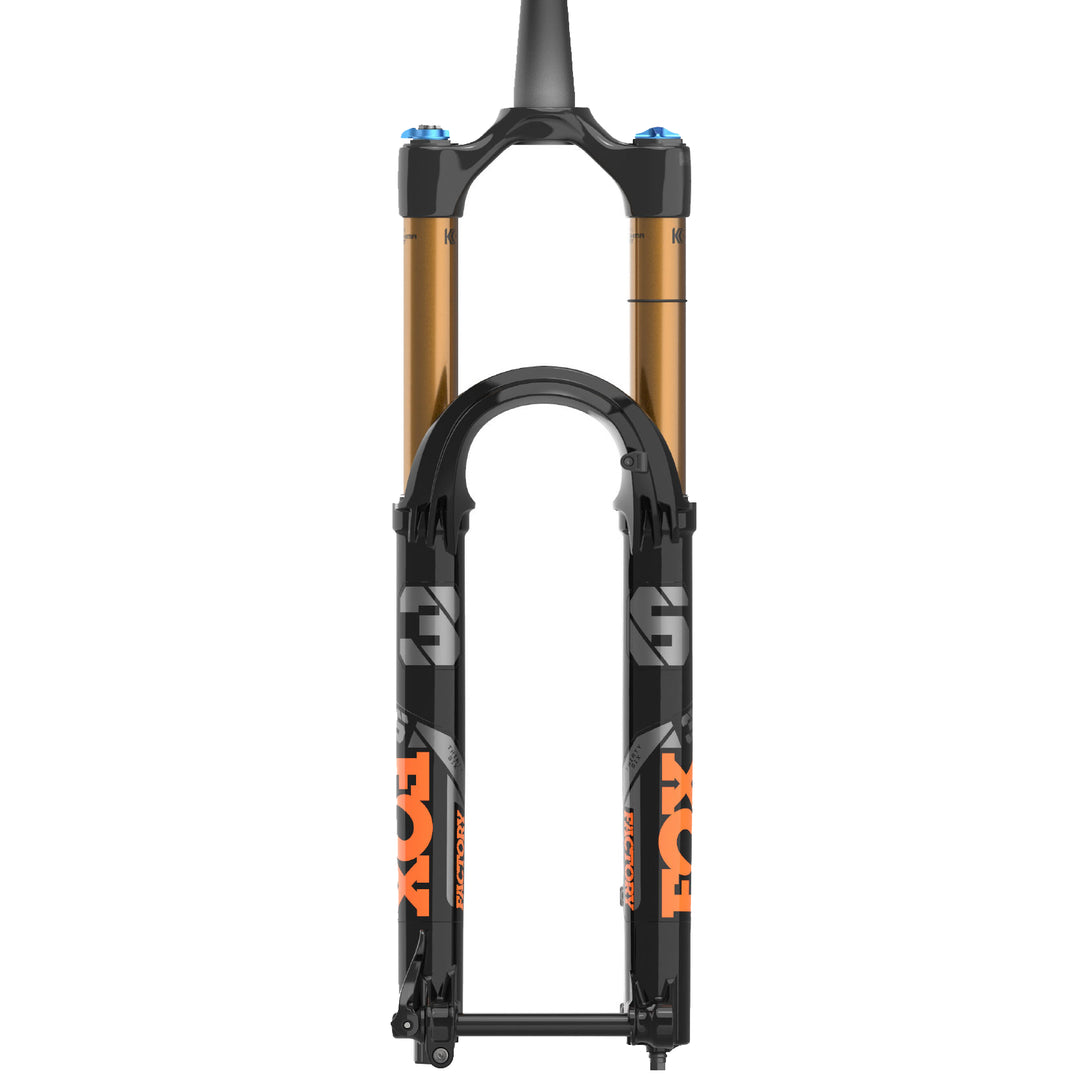

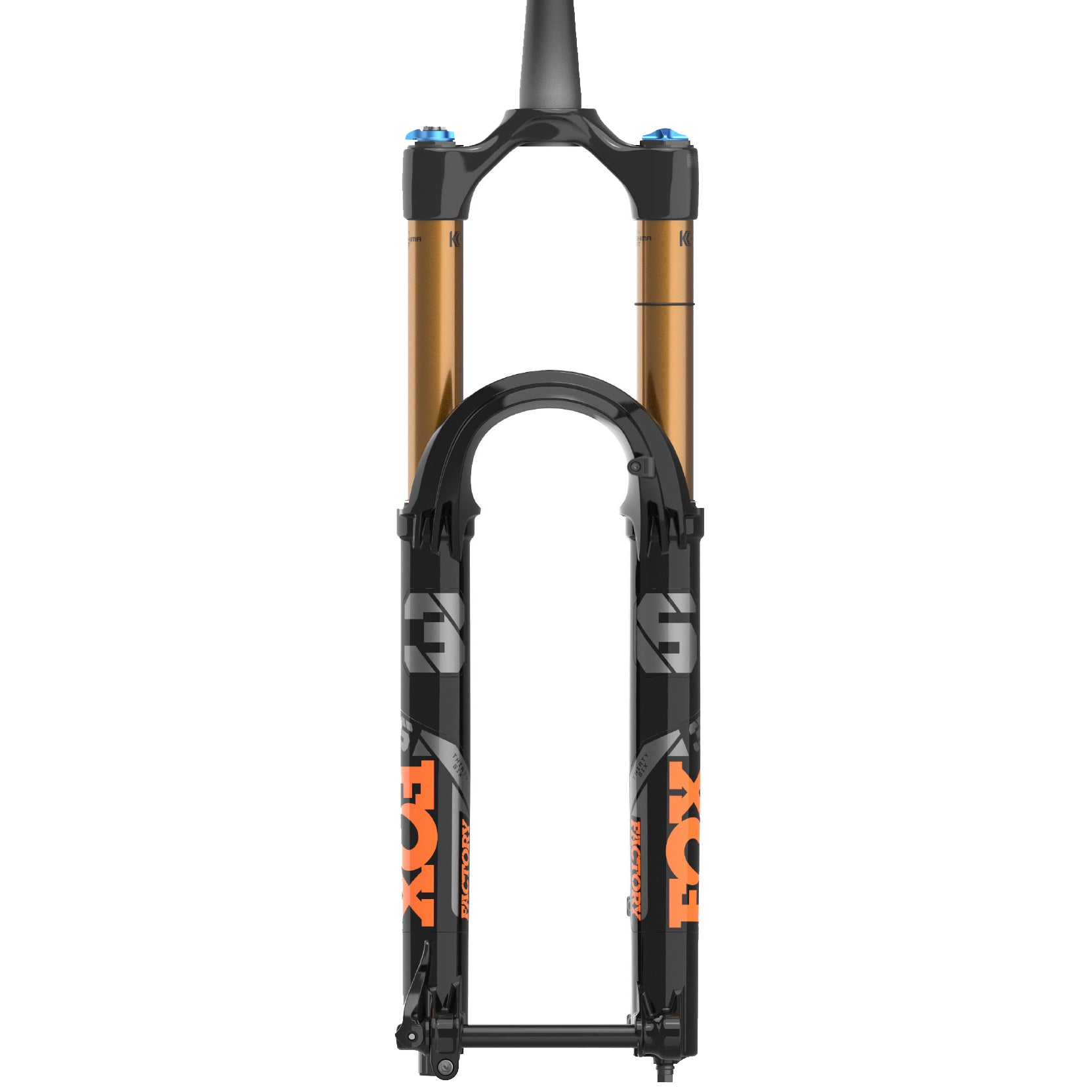

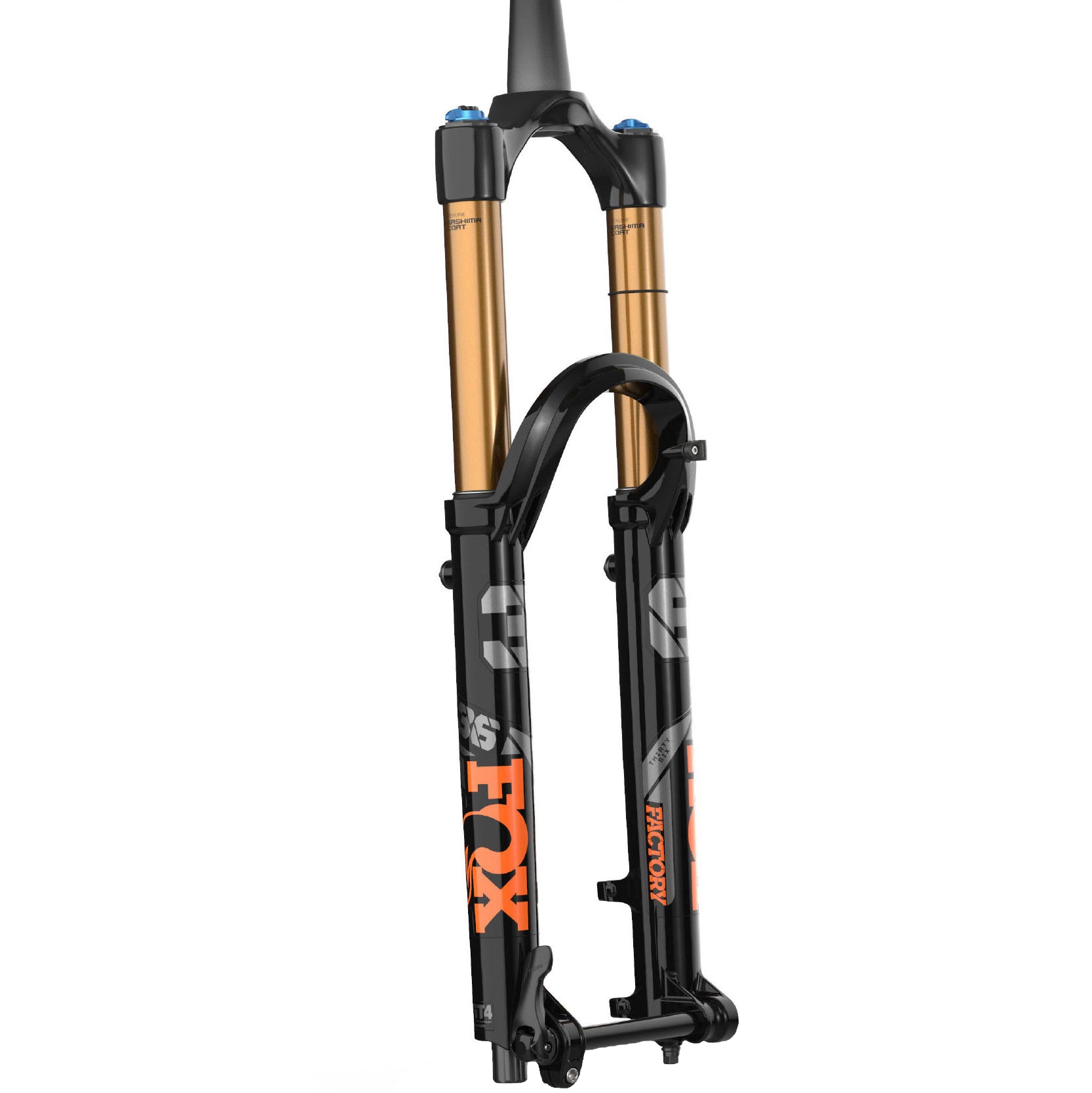

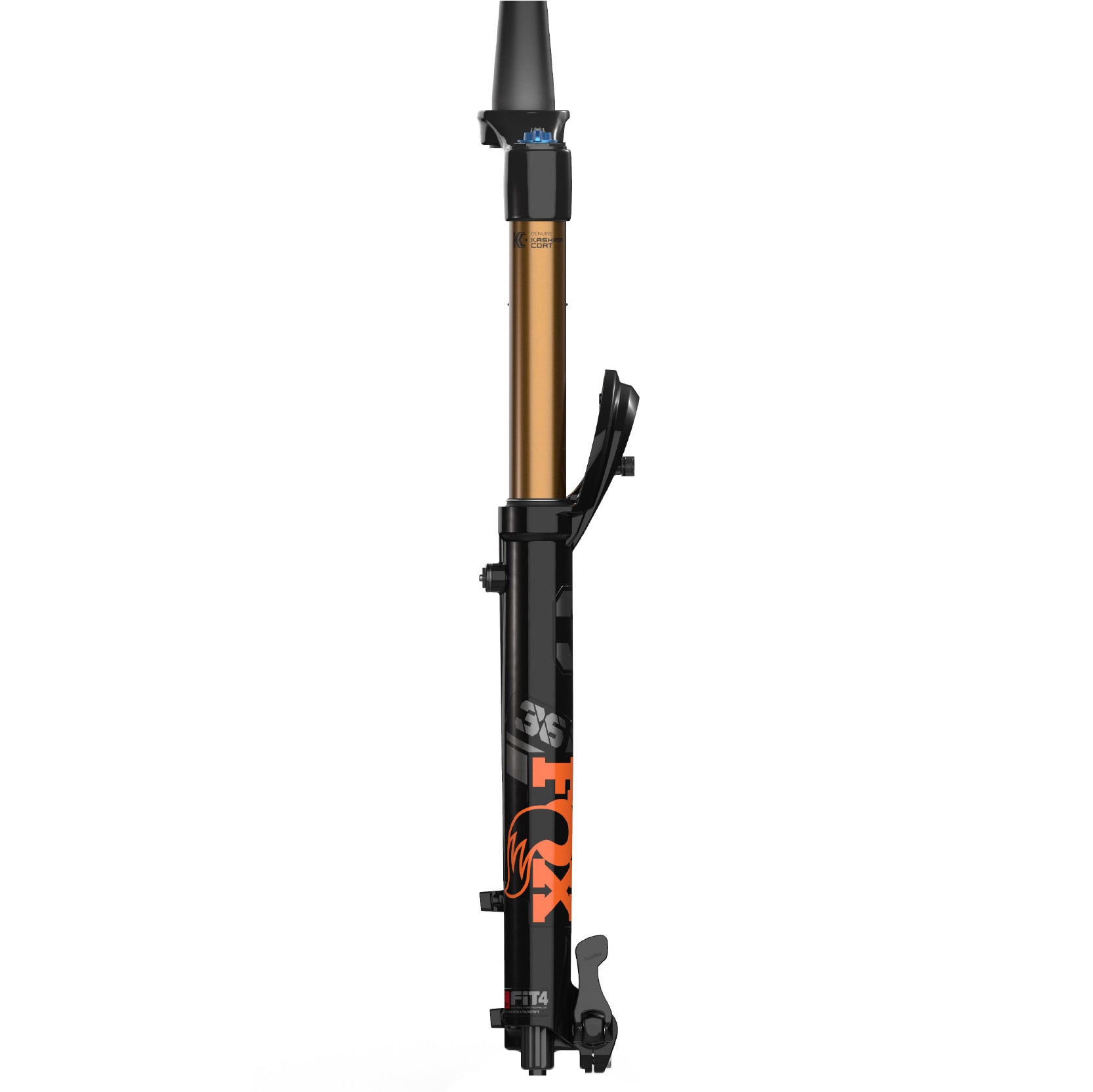

Fox Racing 36 Float Factory FIT4 Fork - 29"

The Fox Racing 36 Float Factory FIT4 Fork is the all-mountain dominator it has always been, with the intuitive ease of use from a FIT4 damper. Just flip the compression lever to a position that corresponds with the terrain (climb, trail, descend), and get the best balance of traction and efficiency out of your fork (or, just leave it wide open and enjoy this fork's inherent efficiency and light weight--it's that good). This Kashima-coated beauty tracks the trail surface like no other: experience the same supple action as the world's top riders, you will not be disappointed.

Fox Shox

Product Details

Construction & Measurements:
New Crown: Lighter by 20 grams, while increasing steerer-tube overlap at the CSU, the new crown design improves durability while Fox's engineering maintains stiffness and drops weight.
Kabolt X Axle: Kabolt X, a lightweight bolt-on floating axle to shave grams and increase torsional stiffness via a sleeveless, single-sided pinch bolt design.
Lower Leg Bypass Channels: Increasing air volume within the lower legs reduces the amount of additional unintended pressure ramping. Lower leg bath oil also circulates to the upper reaches of the legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel.
1.5" Tapered Aluminum Steerer
Kashima Coated Stanchions: The smoothest of the smooth, plus it looks cooler. The gold Kashima coating has become synonymous with friction-free suspension actuation, and it's only available on Fox Factory components.
Lower Leg Bleeders: These little buttons allow for atmospheric pressure equalization for better fork performance, allowing full travel to be achieved and increasing small bump sensitivity and responsiveness.
Features:
FLOAT EVOL Air Spring: EVOL technology increases negative air spring volume, optimizing small bump sensitivity. EVOL’s linear spring curve delivers plushness off the top, extra mid-stroke support, and more tunable bottom-out progression.
Rotor Size: 180 Direct Post Mount, Up to 230 Compatible
Adjustments:
FIT4 Damper: In its fourth generation, this patented closed cartridge system provides 3 on-the-fly compression damping positions--open, medium, and firm--to adapt to varying trail conditions. This Factory Series model also has 22 clicks of low-speed compression in Open mode, along with 10 clicks of low-speed rebound, all of this is on top of initial air spring pressure and volume spacer compatibility, making for a very tunable setup.

Specs

Used For:
Enduro
Enduro
Wheel Size:
29"
Axle Configuration:
15 x 110 Boost
Stanchion Diameter:
36mm
Maximum Rotor Size:
203mm
Maximum Tire Width (in):
2.6in
Weight:
1942g
Warranty:
1 Year
