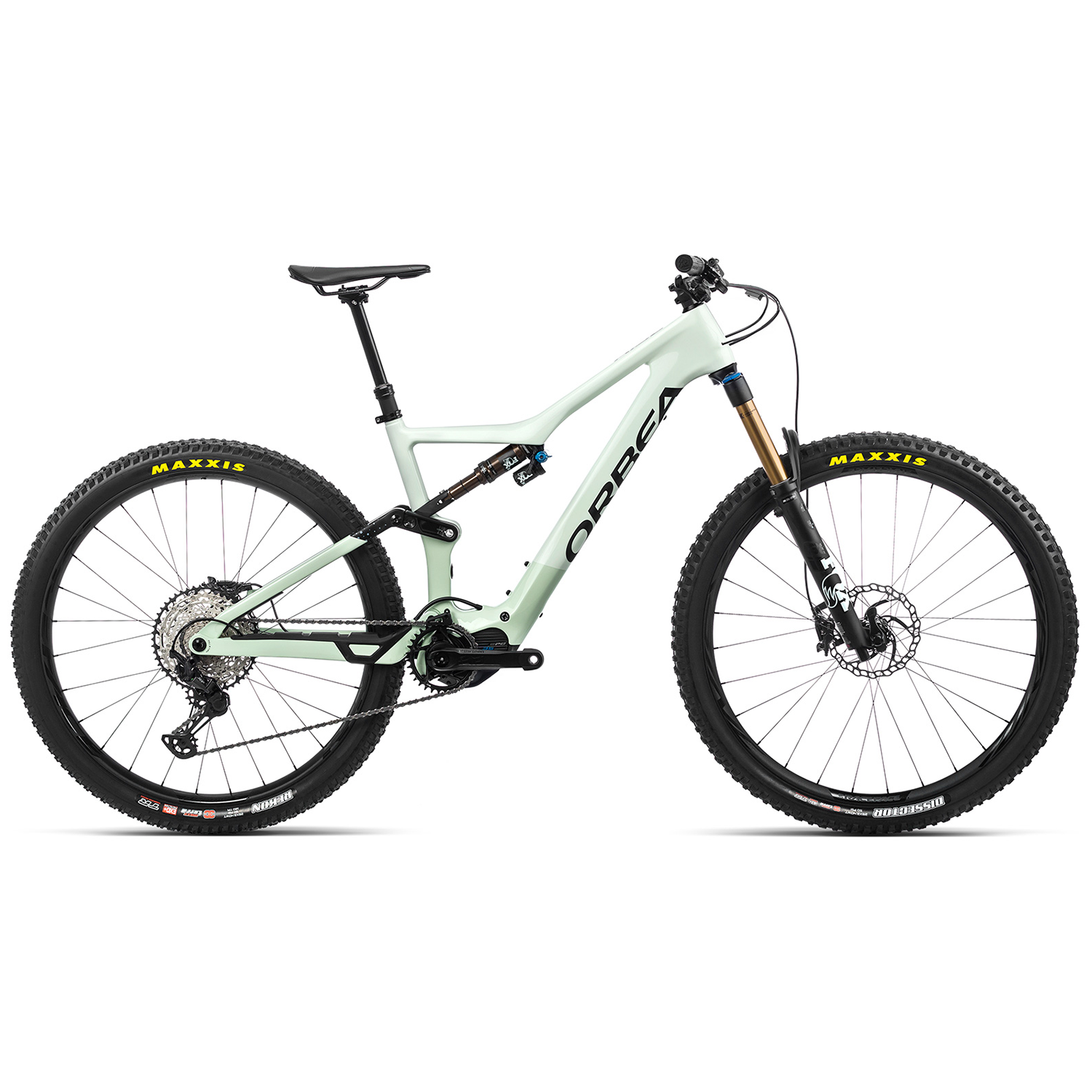

Orbea Rise M10 E-Mountain Bike 2022
SKU# EB-212167-1001
$8,099.10
$8,999.00
Find in Store
Checking availability...
Not available in store
Order and get 8099 reward points
Earn 8099 points with this product. Join Free
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsOrbea Rise M10 E-Mountain Bike 2022
While most eMTBs are getting heavier and harder to wrangle, the Orbea Rise M10 E-Mountain Bike goes in the complete opposite direction. Weighing in near 40lbs, this 140mm travel trail bike weighs only slightly more than many conventional enduro builds, with a lightweight carbon frame and parts spec that lets Orbea use a much lighter drive unit and battery setup. The result is an eMTB that feels familiar, something you can pedal with the motor off and bunnyhop to your hearts content. Designed in collaboration with Shimano, this lightweight ebike leads the heavyweights into the future.
Product Details
Frame/Shock:
Carbon Fiber OMR Frame: Orbea Monocoque Race (OMR) fames add high modulus and high strength fibers to a standard layup to improve stiffness-to-weight ratios. Bladder molding with EPS forms and PU headtube and bottom bracket inserts stop wrinkling and unconformities in critical zones, allowing less carbon to be used while maintaining strength.
Fox Float X Factory Rear Shock: Designed specifically to meet the demands of aggressive trail riders, the new FLOAT X combines sophisticated damping and fade free performance with incredible light weight and outstanding structural integrity.
Shock Adjustments: Air Spring Pressure / 2-Position Compression Lever / Rebound
Trail Balanced Suspension: A high starting leverage rate gives a plush and active feel combined with terrific traction. A progressive curve controls the bike in full-travel situations - the inevitable big hits that come along with pointing a capable bike down a rocky trail.
Trail Geometry: This bike is capable of handling the widest variety of terrain without making big compromises in any aspect of performance.
Direct Mount Chainguide
Internal Cable Routing
Lightweight
Drive Unit / Battery:
Shimano EP8: Lighter, more powerful, and quieter? Shimano's latest motor improves on their popular systems in every measurable way. You can also dial in your assist level to suit your ride style across 3 different ride modes (Eco, Trail, and Boost), and save your preferences to profiles.
Orbea Interal 360Wh Battery
Fork:
Fox 36 Float Factory: With the amazing GRIP2 damper, this fork is known as one of the most versatile on the trail. In factory trim, it's stiff, light, and very smooth, soaking up bumps both big and small.
Fork Adjustments: Air Spring Pressure, Three On-the-fly Compression Damping Positions (Open, Medium, Firm) with Additional Low Speed Compression Open Mode Adjust (22 Clicks), Low Speed Rebound Adjust (10 Clicks)
Drivetrain:
Shimano XT M8100 12 Speed: The original mountain bike groupset trusted by generations of mountain bikers around the world, XT is the solution for any trail and whatever you ride. Reliable shifting and intuitive maintenance make XT the high-performance workhorse you can count on.
Brakes:
Shimano XT M8120: The four piston version of Shimano's excellent trail brakes have tons of stopping power in all conditions. With no rotor wobble, these stay quiet all ride, especially when paired with Ice Tech rotors.
180mm Shimano Ice Tech Rotors
Wheel Set:
Race Face Turbine R-30 TLR: A stiff and durable 6069 welded Alloy rim with a 30mm inner width makes these lightweight, burly wheels just what your Enduro build is begging for. An offset spoke bed laced with reliable, double-butted straight pull spokes provides ideal wheel stiffness and balance. With their super high engagement Vault hubs, these deliver big time performance and durability for long-lasting shredability.
Maxxis Dissector Front Tire: Designed in conjunction with Aussie DH racer Troy Brosnan, the Dissector seeks to minimize drag while retaining cornering control. This versatile tire can be used as a front, a pair, or as a rear depending on trail conditions.
Maxxis Rekon Rear Tire: The Rekon is a light duty trail tire designed to go fast in technical terrain.
Additional Features:
Price and Spec Subject to Change
Orbea MC20 Dropper Post
Specs
Used For:
Trail,
Enduro
Fork Travel:
150mm,
5.9in
Rear Travel:
140mm,
5.5in
Handlebar:
Race Face Next R 35 780mm | 20mm Rise
Biking Type:
Mountain
Gearing:
1 x 12
Frame Material:
Carbon
Water Bottle Mounts:
1
Stanchion Diameter:
36mm
Rear Shock:
Fox Float X Factory
Drive Unit:
Shimano EP8-RS
Battery:
Orbea Internal 360Wh
Shifters:
Shimano XT SL-M8100
Rear Derailleur:
Shimano XT M8100, 12-Speed
Crankset:
e*thirteen e*spec Plus Alloy, 32t
Cassette:
Shimano M7100, 10-51t
Chain:
Shimano M7100
Brake Levers:
Shimano XT M8100
Brake Calipers:
Shimano XT M8120
Rotors:
Shimano Ice Tech 180mm / 180mm
Headset:
Acros Alloy
Saddle:
Fizik Taiga S-Alloy Rail
Seatpost:
MC20 Mountain Control Dropper
Wheelset:
Race Face Turbine R, 30mm
Front Tire:
Maxxis Dissector 2.4" | 3C MaxxTerra, EXO
Rear Tire:
Maxxis Rekon 2.4" | 3C MaxxTerra, EXO+
Warranty:
Limited Lifetime (Frame)
Wheel Size:
29"
