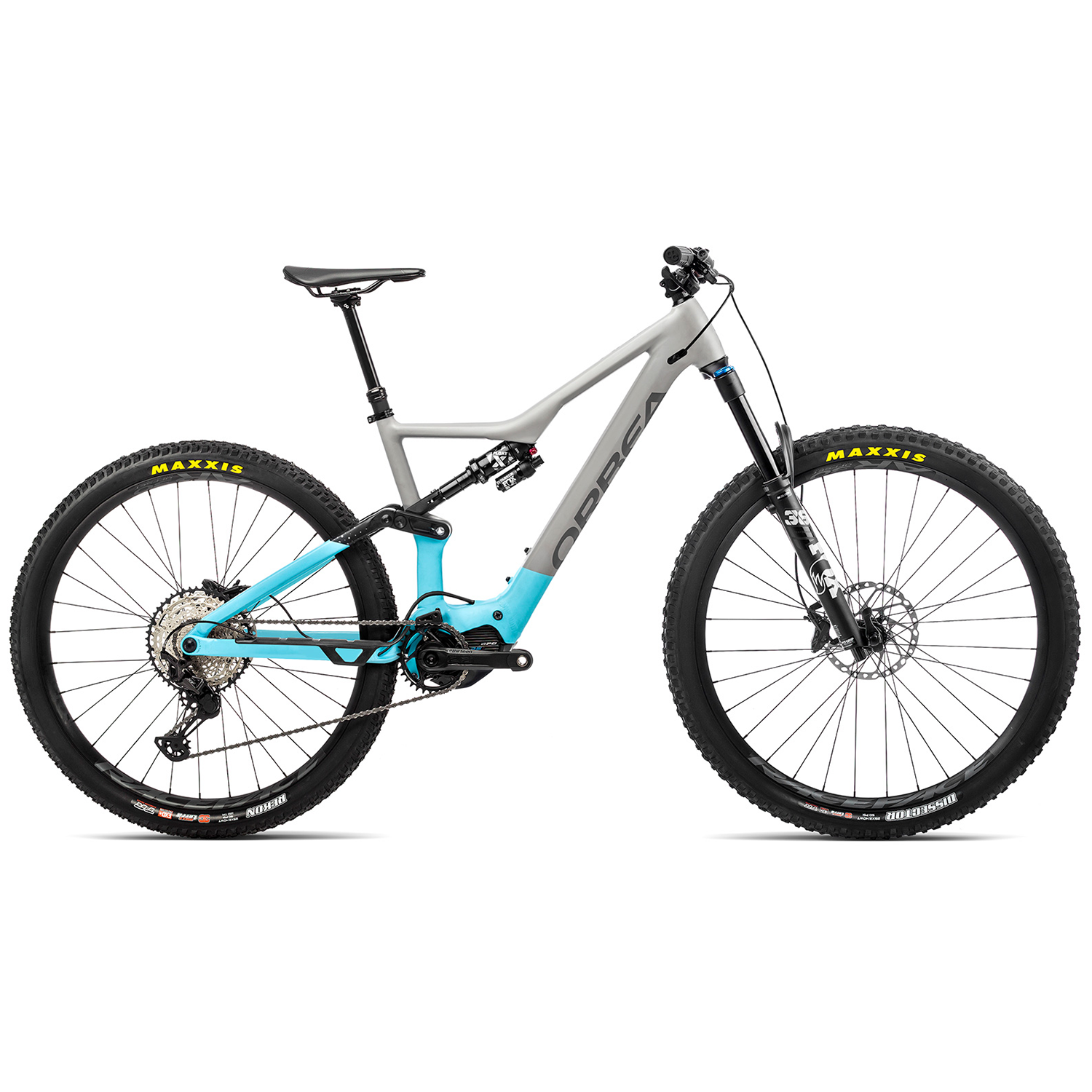

Orbea Rise H15 E-Mountain Bike 2022
SKU# EB-212164-1005
$6,119.10
$6,799.00
Find in Store
Checking availability...
Not available in store
Order and get 6119 reward points
Earn 6119 points with this product. Join Free
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsOrbea Rise H15 E-Mountain Bike 2022
One of the best ebikes on the planet now comes in aluminum! The Orbea Rise H15 E-Mountain Bike tones down the massive assist and weight numbers associated with many ebikes and comes from a different angle: weighing in at just a bit more than a beefy enduro bike, the Rise line has smaller motors, batteries, and electric assist levels. This means a more natural ride, a longer ride, and a more manageable ride. The motor and battery are tuned to assist 1.5X, so it's not like you won't notice 60Nm of help, but if you're looking for an endurance or more "mountain bike" feel, this is the trail ebike for you. It rides very well on trail, which is important because you're going to see a whole lot of trail!
Product Details
Frame/Shock:
Advanced Alloy Frame: Using hydroforming process and triple butted tubes, Orbea has perfected the wall thickness to save weight and strengthen the stress bearing zones.
Fox Float X Performance Rear Shock: Designed specifically to meet the demands of aggressive trail riders, the new FLOAT X combines sophisticated damping and fade free performance with incredible light weight and outstanding structural integrity.
Shock Adjustments: Air Spring Pressure / 2-Position Compression Lever / Rebound
Trail Geometry: Capable of handling the widest variety of terrain without making big compromises in performance.
Trail-Balanced Suspension: The support provided by the progressive rate, along with the anti-squat characteristics of the main pivot placement, mean Rise is an efficient pedaler that won't sap your energy on sustained efforts.
Stiffer: Moving the pivot to the rear axle and using the rear thru axle and rear hub creates a very solid interface.
Easy Hanger Removal
Boost Spacing
Drive Unit / Battery:
Shimano EP8-RS: With a maximum torque output of 60Nm, this lighter-weight version of Shimano's excellent EP8 motor is nearly half the weight of other ebike motors. Its power band feels alive, smooth and responsive, echoing your input and cadence. It's customizable through Shimano's E-tube mobile app as well, so you tune your bike to best fit your rides.
360Wh Battery: At 2.2 kilograms, this lightweight battery gives you over 8 hours ride time, with 4000m of climbing in ECO mode. Made with the newest 21700 cells, it provides a higher rate of charge/discharge, much better battery life, and heat management.
Compatible with RS Range Extender: Add the range extender for ride times comparable with 900Wh heavyweight ebikes.
Fork:
Fox 36 Float Performance: For MY23 the FOX 36 receives an update in the form of a new crown with updated design and engineering for more steer tube overlap improving durability and maintaining stiffness while dropping 20 grams.
Fork Adjustments: Air Spring Pressure / 3 On-the-Fly Compression Positions (Open, Medium, Firm) / Rebound
Drivetrain:
Shimano 12 Speed: A mix of Shimano's most reasonable components keep this bike rolling. A wide gear range, excellent chain retention, and smooth shifting are in your future.
Brakes:
Shimano Hydraulic 4 Piston: With gobs of grip and that familiar Shimano feel, these brakes are just what you need for control in all conditions.
Wheel Set:
Race Face AR 30: All-around rad AR rims are slightly tweaked with an new asymmetrical profile. Fully dialed to be stiffer, stronger and optimally balanced, these crazy-versatile rims come in every width imaginable to cover XC to plus bikes and everything in between.
Maxxis Dissector Front Tire: Designed in conjunction with Aussie DH racer Troy Brosnan, the Dissector seeks to minimize drag while retaining cornering control. This versatile tire can be used as a front, a pair, or as a rear depending on trail conditions.
Maxxis Rekon Rear Tire: The Rekon is a light duty trail tire designed to go fast in technical terrain.
Additional Features:
eBikes can only be shipped via ground. Delivery to AK and HI is unavailable at this time.
Price and Spec Subject to Change
Orbea Dropper Post
Specs
Handlebar:
Race Face Aeffect 35 | 780mm | 20mm Rise
Biking Type:
Mountain
Used For:
Trail
Gearing:
1 x 12
Frame Material:
Aluminum Alloy
Water Bottle Mounts:
1
Fork:
Fox 36 Performance
Stanchion Diameter:
36mm
Fork Travel:
150mm
Rear Shock:
Fox Float X Performance
Rear Travel:
140mm
Drive Unit:
Shimano EP8-RS
Battery:
Orbea Internal 540Wh
Shifters:
Shimano SLX SL-M7100
Rear Derailleur:
Shimano XT M8100, 12-Speed
Crankset:
e*thirteen e*spec Plus Alloy
Cassette:
Shimano M7100, 10-51t
Chain:
Shimano M6100
Brake Levers:
Shimano Deore M6100
Brake Calipers:
Shimano Deore M6100
Rotors:
180
Headset:
Acros Alloy Integrated
Stem:
Race Face Aeffect R
Saddle:
Fizik Taiga S-Alloy Rail
Seatpost:
OC MC20 Dropper 31.6mm
Wheelset:
Race Face AR 30c
Front Tire:
Maxxis Dissector 2.4" | 3C MaxxTerra, EXO
Rear Tire:
Maxxis Rekon 2.4" | 3C MaxxTerra, EXO+
Warranty:
Limited Lifetime (Frame)
