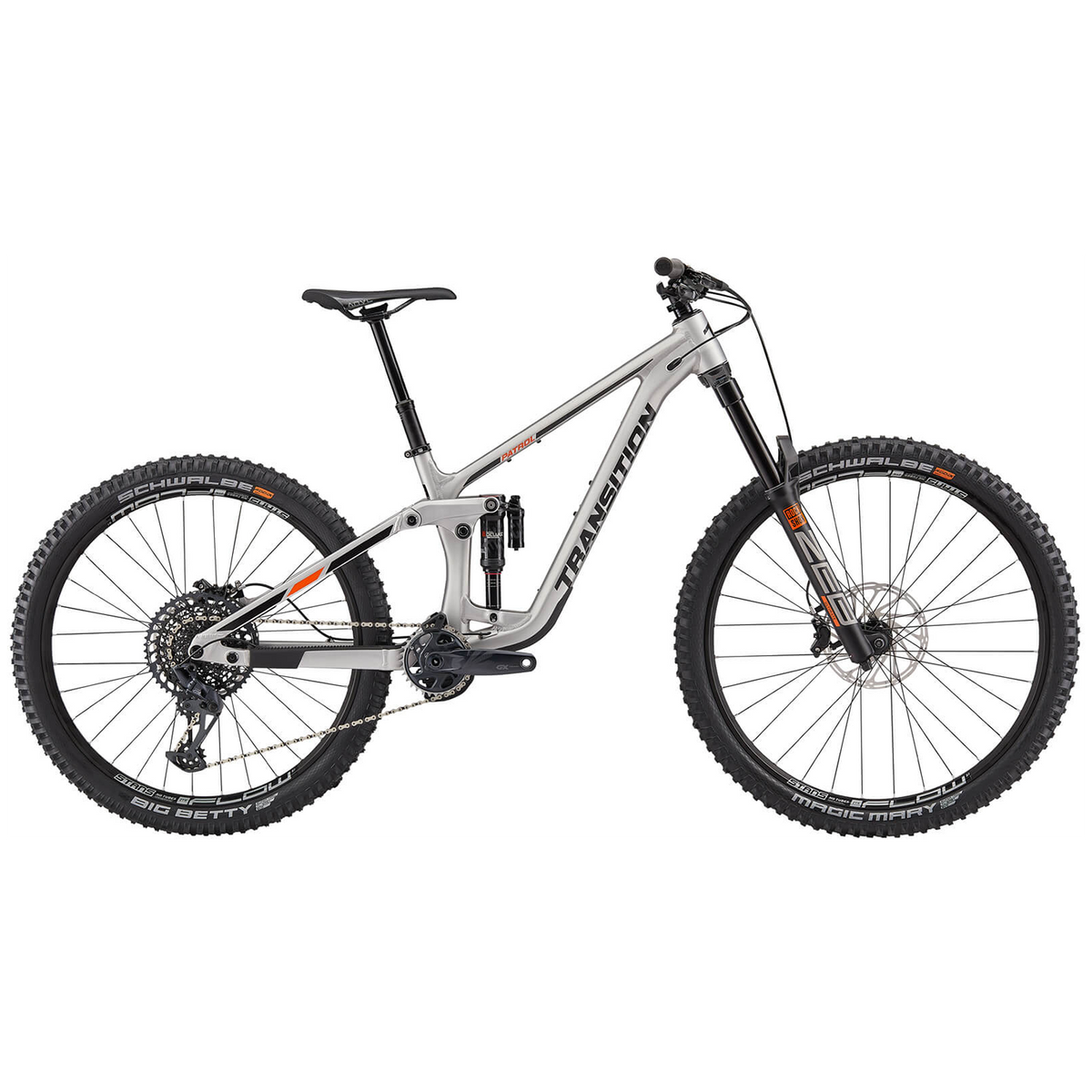

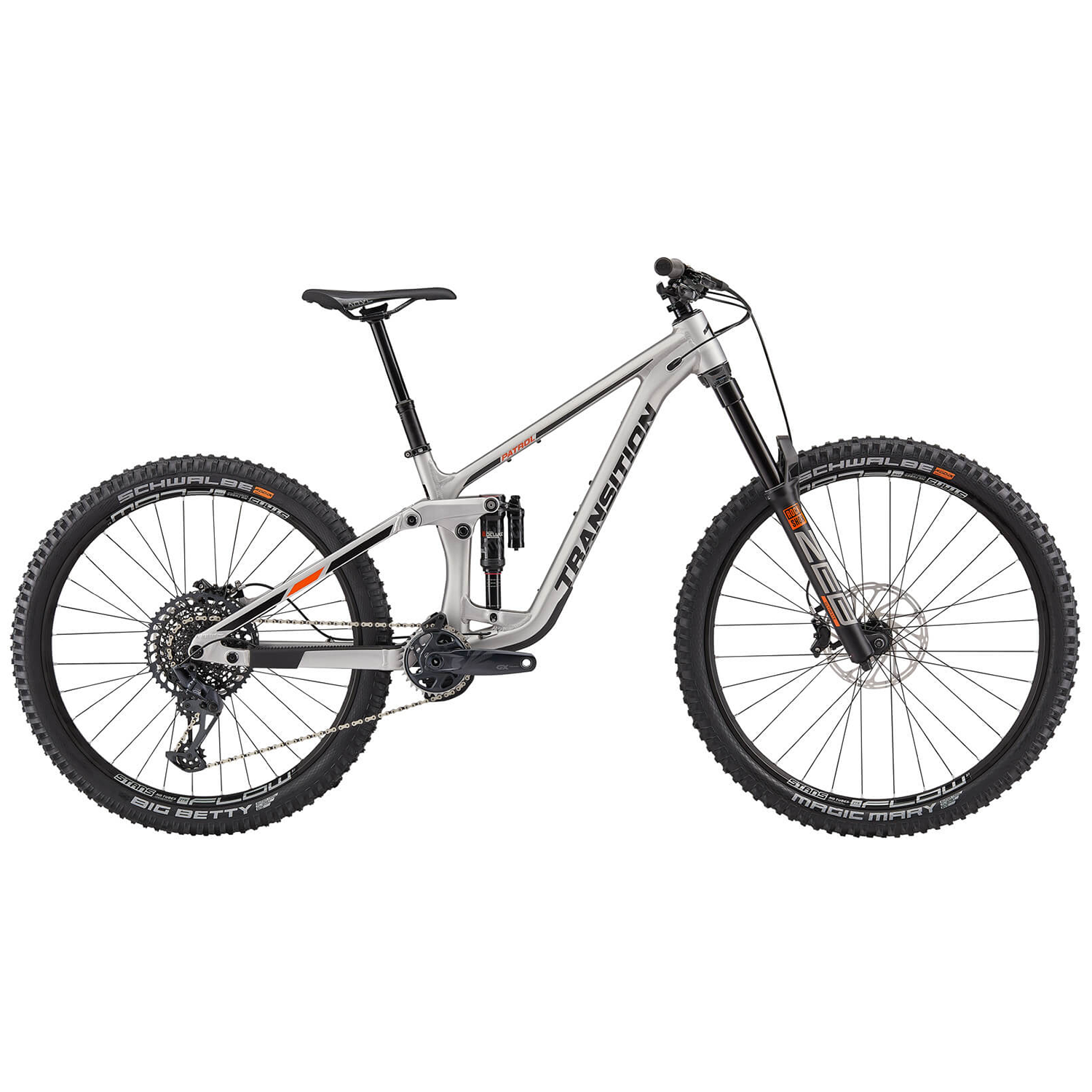

Transition Patrol Alloy GX Complete Mountain Bike 2022
SKU# EB-212069-1005
$2,999.00
$5,299.00
Find in Store
Checking availability...
Not available in store
Earn up to 10% back in rewards
Join Free (opens in a new tab)
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsTransition Patrol Alloy GX Complete Mountain Bike 2022
Party in the front, out-of-control festival in the rear: the Transition Patrol Alloy GX Complete Mountain Bike has gone mullet, and it's the perfect platform for this latest wheel trend. The Patrol is known as the life of the party, as long as we're talking about rowdy bashes that elicit response from the authorities - it'll stay quiet during civilized cocktail affairs but it much prefers the after party. As always, this Patrol is built to be ridden hard. In this aluminum / SRAM GX build, it's one for all-out downhill attack, leading the train down new sections, and straight up getting wild.
Product Details
Frame/Shock:
RockShox Super Deluxe Ultimate Shock: Designed for the latest hard-hitting enduro and trail bikes, Super Deluxe Ultimate features the ride tuning abilities of an air spring with both compression and rebound adjustment to fine tune to any trail. With a solid threshold adjustment for pedaling performance and Maxima Plush fluid for a buttery smooth feel, riders can now easily dial in a podium-worthy ride.
Shock Adjustments: Separate and Independent Open and Threshold Pistons / Low Speed Compression Adjustment / Rebound Adjustment / Air Spring Pressure
GiddyUp 2.0HH Suspension: Building upon the success of Transition's original GiddyUp suspension design, the new GiddyUp 2.0HH system has been refined for the modern two-wheel cowboy delivering a slightly firmer feel for more efficient pedaling, as well as more progressive travel that provides that extra little bit of bottom-out support when needed.
Speed Balanced Geometry: SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with an all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.
Frame Protection: Fully integrated, flush-mounted rubber frame protection on the chainstay and downtube keep your bike rides quiet and your frame safe from damage.
Badass Bearings: EnduroMAX suspension pivot specific bearings come in standard sizes that are readily available worldwide.
Rattle-Free Cable Routing
Pivot Technology: Collet main pivot technology improves rear end stiffness and keeps hardware tight. Bearing shields prevent main pivot contamination from water.
Threaded Bottom Bracket: A standard 73mm threaded bottom bracket shell makes crankset maintenance hassle-free and prevents unwanted pressfit BB noises.
Tire Clearance: Ample clearance for mud and tires up to 2.6" wide.
User Friendly Cable Routing: To simplify maintenance and keep your bike noise free, the rear derailleur cable is routed through guide tubes in the front triangle and chainstay.
Water Bottle Compatibility: Your water bottle is kept clean inside the front triangle so you can keep hydrated without worrying about mud making it to your mouth.
Size Specific Chainstays: The Patrol has two size specific chainstay lengths to provide balanced handling and rider weight distribution across the range of sizes.
Geo Adjust Chip: Change the attitude of the bike with a simple flip of a chip. High and Low settings give you two very usable geo settings to suit your riding style: High is comparable to most other companies' low settings so there's a high shred warning in effect!
Gear Accessory Mount: An underside top-tube accessory mount allows you to carry a spare tube or other goodies safely on your frame.
Dual Crown Fork Compatible
Press In Headset: The ZS44/ZS56 press in headset fives you the freedom to use angle adjust headsets if you feel the need to make your bike a touch slacker or steeper.
12 x 148mm Boost Rear End
Fork:
RockShox ZEB Ultimate: ZEB Ultimate is a whole new breed of fork, designed to challenge the limits and take on the world’s toughest Enduro tracks. Going Ultimate has its advantages. Featuring an all-new stiff 38mm chassis designed with the Charger 2.1 damper, DebonAir™ air spring technology, SKF Wiper Seals, and Maxima Plush Fluid.
Fork Adjustments: Independent High- and Low-speed Compression Adjust / Rebound Adjust / Air Spring Pressure
Drive Train:
SRAM GX Eagle: GX Eagle is your partner for all rides, all the time, all day. Long days, quick rides and everything in-between, GX Eagle is the ecosystem at its best. With the all new 520% range, all new colorways and seamless compatibility with the rest of the ecosystem, GX Eagle is there to maximize the potential of your ride experience.
Brakes:
SRAM Centerline Rotor: The Centerline rotor was designed to keep the center of friction consistent throughout rotation, thereby minimizing vibration, offering consistent performance and a quiet ride.
SRAM Code RSC Brakeset: Code RSC is built from the elements that made Guide a benchmark in contemporary brake design and performance, and delivers an extra 15% power to shine in all heavy duty applications. SwingLink™ and Lever Pivot Bearings ensure a smooth and progressive feel at the lever, while the additional 30% positive fluid volume ensures consistent performance even when braking harder, more frequently or with a heavier mass to slow down.
Wheelset:
Stan's NoTubes Flow S1 Wheelset: Burly enough to handle the toughest of trails yet light enough to pedal all day, the Flow S1 is up for any challenge. Developed from rims ridden in Red Bull Rampage and raced on the World Cup DH circuit for years, the S1 is now ready for action. With a 1.6mm deeper profile and reinforced rim walls the new Flow S1 offers greater impact strength, for an even wider range of use, with only a minor weight gain. Strong and light 6061 alloy rims, stainless steel rim eyelets, and easily replaceable standard spokes mean the Flow S1 is built to last. Combined with faster-engaging, CNC-machined Neo hubs, the Flow S1 is the ultimate trail, all-mountain, and enduro wheelset.
Mixed Wheel Sizing: The best of both worlds: 29er rollover and traction up front, 27.5" quickness and maneuverability out back.
Additional Features:
OneUp Dropper Post: Known for its no-nonsense smooth cable actuation, short overall length, and easy serviceability, the OneUp Dropper is a solid choice for dependable and customizable performance.
Price and Spec Subject to Change
Specs
Used For:
Trail,
Enduro
Handlebar:
ANVL Mandrel Alloy 35 800mm
Biking Type:
Mountain
Suspension:
Full Suspension
Frame Material:
Aluminum Alloy
Gearing:
1 x 12
Water Bottle Mounts:
1
Fork:
RockShox ZEB Ultimate
Stanchion Diameter:
38mm
Fork Travel:
160mm
Rear Shock:
RockShox Super Deluxe Ultimate
Rear Travel:
160mm
Shifters:
SRAM GX Eagle
Rear Derailleur:
SRAM GX Eagle, 12-Speed
Crankset:
SRAM GX Eagle DUB, 32t
Cassette:
SRAM GX Eagle XG-1275, 10-52t
Chain:
SRAM GX Eagle, 12-Speed
Bottom Bracket:
Threaded
Brake Levers:
SRAM Code RSC
Brake Calipers:
SRAM Code RSC
Rotors:
SRAM Centerline 200mm
Headset:
FSA No.55R/57
Bar Tape/Grips:
Sensus Lite
Stem:
ANVL Swage
Saddle:
ANVL Forge CroMo
Seatpost:
OneUp Dropper
Hubs:
Stans Neo Durasync
Rims:
Stans Flow S1
Spokes:
Sapim Race Double Butted
Front Tire:
Schwalbe Magic Mary 2.4" | Super Trail, Soft
Rear Tire:
Schwalbe Big Betty 2.4" | Super Trail, Soft
Warranty:
Limited Lifetime (Frame)
