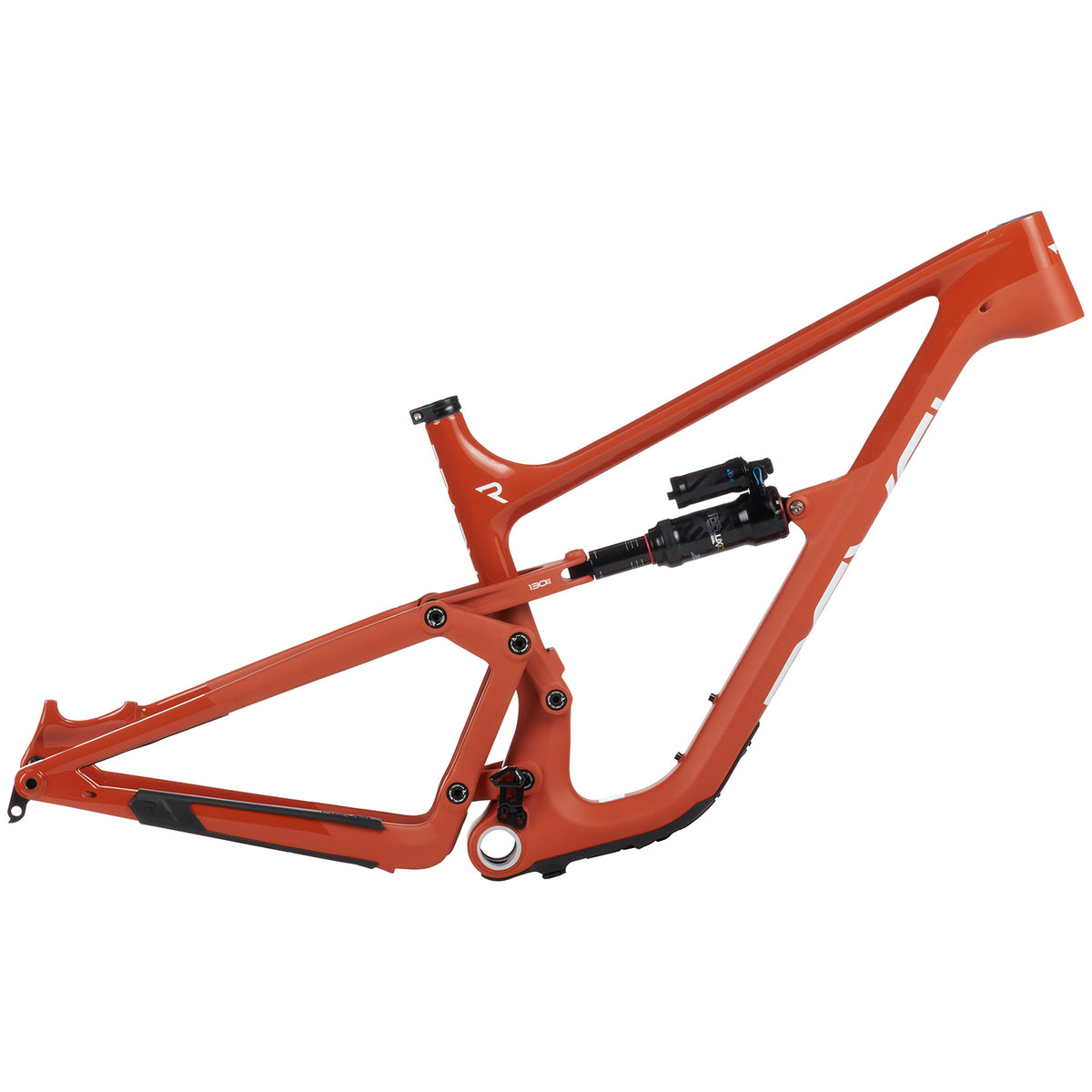

Revel Rascal Frame 2022
SKU# EB-198036-1009
$2,799.20
$3,499.00
Find in Store
Checking availability...
Not available in store
Order and get 2799 reward points
Earn 2799 points with this product. Join Free
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsRevel Rascal Frame 2022
Feel free to check out when everyone starts talking about gear: you're dialed. Your Revel Rascal Frame is unconcerned with trail choice with 130mm of travel that hits well above its class. Beautifully thought out, the Rascal hits every ride- no matter what parts you slap on it. CBF pedals and descends like alien technology, and the angles and travel choices are spot on for the wheel size. This bike renders so many tedious conversations moot!
Product Details
Frame/Shock:
RockShox Super Deluxe Ultimate Shock: Designed for the latest hard-hitting enduro and trail bikes, Super Deluxe Ultimate features the ride tuning abilities of an air spring with both compression and rebound adjustment to fine tune to any trail. With a solid threshold adjustment for pedaling performance and Maxima Plush fluid for a buttery smooth feel, riders can now easily dial in a podium-worthy ride.
Shock Adjustments: Air Spring Pressure, Low Speed Compression Adjust, Rebound Adjust
Canfield Balance Formula | 130mm Rear Travel: CBF™ focuses on designing rear suspension around the Center of Curvature (CC). Until now, most suspension systems have focused solely on the instant center. CBF points the chain-line and corresponding drive forces around the top of the chainring through 100 percent of the travel. This results in maximum pedaling efficiency regardless of terrain, where you are in the travel, or what kind of power you’re putting down.
Internal Cable Routing: Revel’s full-carbon tubes are molded in one piece onto the inside of the carbon frame tubes. Not only does this provide structural improvement to the frame, but also allows you to route an entire frame in about a minute. No rattling, no noise, and no fishing cables out of frames.
Carbon Fiber Frame: Revel uses a mix of Japanese Toray T700 and T800 fibers in their frames, but the real magic is in the angles. Most bike frames use a selection of 0-, 45-, and 90-degree fibers, since these are the most readily available and easiest to work with. Revel frames are optimized using more 30/60-degree fibers, which, when laid up properly, create stronger and stiffer tubing and shapes, using less material.
Integrated Revel Chainguide: This lil’ guy will hold your chain on your chainring and is super easy to adjust—all while maintaining simplicity and clean aesthetics. Optimized around SRAM DUB cranks and BBs.
Threaded Bottom Bracket
Specs
Used For:
Trail,
Enduro
Biking Type:
Mountain
Wheel Size:
29"
Freeride:
No
Enduro:
No
Frame Material:
Carbon
Rear Shock:
Rock Shox Super Deluxe Ultimate
Rear Travel:
130mm
Warranty:
Limited Lifetime
