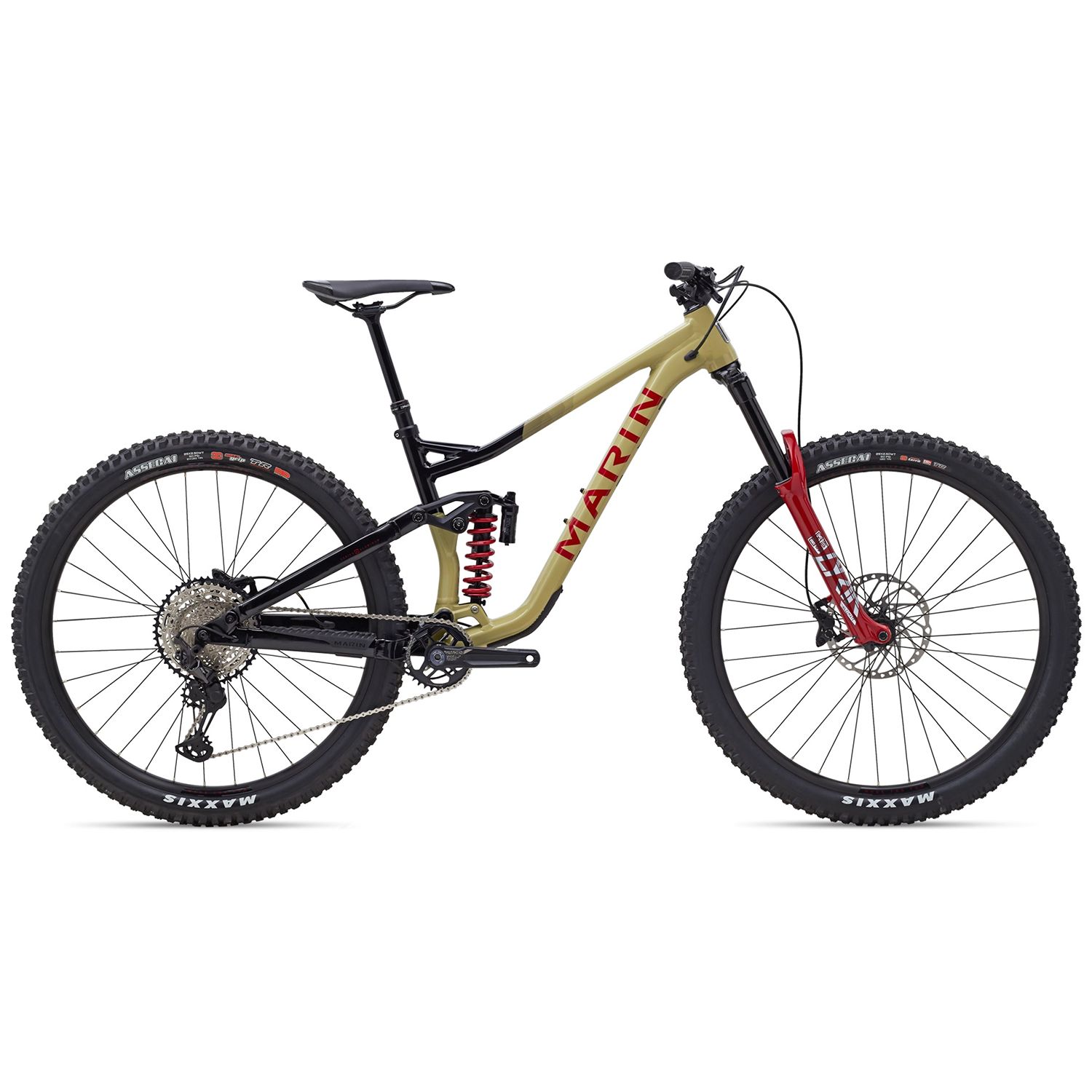

Marin Alpine Trail XR Complete Mountain Bike 2022
SKU# EB-192244-1001
$3,999.00
$3,999.00
Find in Store
Checking availability...
Not available in store
Earn up to 10% back in rewards
Join Free (opens in a new tab)
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsMarin Alpine Trail XR Complete Mountain Bike 2022
Toss a leg over the Marin Alpine Trail XR Complete Mountain Bike and inject some gravity juice into your veins. Combining enduro friendly geometry and Marin's excellent MultiTrac Suspension Technology, this enduro monster inspires tons of confidence on burly downhill terrain while remaining plenty efficient on the climb. Key upgrades over the Alpine Trail 7 include a smooth Shimano SLX / XT drivetrain and RockShox Super Deluxe Coil Ultimate RCT shock. Shocked? You shouldn't be. Marin has always delivered superb bang for your buck, and the Alpine Trail XR is no exception.
Product Details
Frame/Shock:
Series 4 Aluminum Frame: Alpine Trail models feature Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving riders the highest-end alloy frame that Marin offers.
MultiTrac Suspension Technology: MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks.
RockShox Super Deluxe Coil Ultimate RCT: Super Deluxe Select is built for the latest breed of hard hitting enduro and trail bikes. Offering the ride control you need paired with a user-friendly threshold adjustment all rolled into a great high performance-to-value package. They even threw in Maxima Plush fluid to reduce friction and silence noise.
Shock Adjustments: Separate and Independent Open / Threshold Positions, Air Spring Pressure, External Rebound
148x12mm Boost Thru-Axle
Fork:
RockShox Lyrik Ultimate: Designed not only for the race down, but the ride up. Holding onto every critical line, Lyrik Ultimate features an updated DebonAir air spring paired with the Charger 2.1 damper for unmatched trail control and precision. Ultra-low friction SKF wiper seals and Maxima Plush damping fluid all work overtime to reduce friction, silence noise, and provide unmatched fork performance sun up to sun down.
Fork Adjustments: Independent high and low speed compression adjust
Drive Train:
1x12 Drivetrain: A mix of Shimano Deore, FSA, and Marin products keep this drivetrain inexpensive all while delivering great performance.
Shimano SLX: This is everything you need and nothing you don't. Featuring tech from their XT and XTR groupsets, SLX offers consistent and reliable high performance, all at a lower price.
Brakes:
Shimano MT420 4 Piston Hydraulic Disc: The BR-MT420 caliper features consistent braking performance and reliable stopping power in all conditions. The 4-piston caliper instills greater downhill confidence and control.
Rotors: 203mm Front / 180mm Rear
Wheelset:
Marin Aluminum Double Wall Rims Laced to Forged Alloy Hubs: With sealed bearings, 29mm inner width, and 32 holes, these aluminum rims are light and strong--perfect for the do-it-all frame they're attached to.
Maxxis Assegai Tires: A beefy DH tire that's been a fave since it was released, the Assegai is great in the front or rear of a hard charging setup. It has big blocky knobs that maximize grip in all conditions.
Additional Features:
X-Fusion Manic Dropper Post
Price and Spec Subject to Change
Specs
Handlebar:
RaceFace Aeffect R 35 | 780mm | 20mm Rise | 5° Up / 8° Back
Biking Type:
Mountain
Used For:
Enduro
Frame Material:
Aluminum Alloy
Gearing:
1 x 12
Water Bottle Mounts:
1
Fork:
RockShox Lyrik Ultimate
Stanchion Diameter:
35mm
Fork Travel:
160mm
Rear Shock:
RockShox Super Deluxe Coil Ultimate
Rear Travel:
150mm
Shifters:
Shimano SLX
Rear Derailleur:
Shimano XT M8100, 12-Speed
Crankset:
FSA Gradient, 32t
Cassette:
Shimano SLX M7100, 10-51t
Chain:
KMC X12, 12-Speed
Bottom Bracket:
MegaEvo 73mm Threaded
Brake Levers:
Shimano Deore M4100
Brake Calipers:
Shimano MT420
Rotors:
203mm
Headset:
FSA No.57
Bar Tape/Grips:
Marin Single Clamp Locking
Stem:
Race Face Aeffect R 50mm
Saddle:
Marin Speed Concept
Seatpost:
X-Fusion Manic Dropper
Hubs:
Shimano MT510 / MT 410 Centerlock Microspline
Rims:
Marin Aluminum Double Wall 29mm
Spokes:
14g Black Stainless Steel
Front Tire:
Maxxis Assegai 2.5" | 3C MaxxTerra, EXO+
Rear Tire:
Maxxis Assegai 2.5" | 3C MaxxGrip, DoubleDown
Warranty:
1 Year
