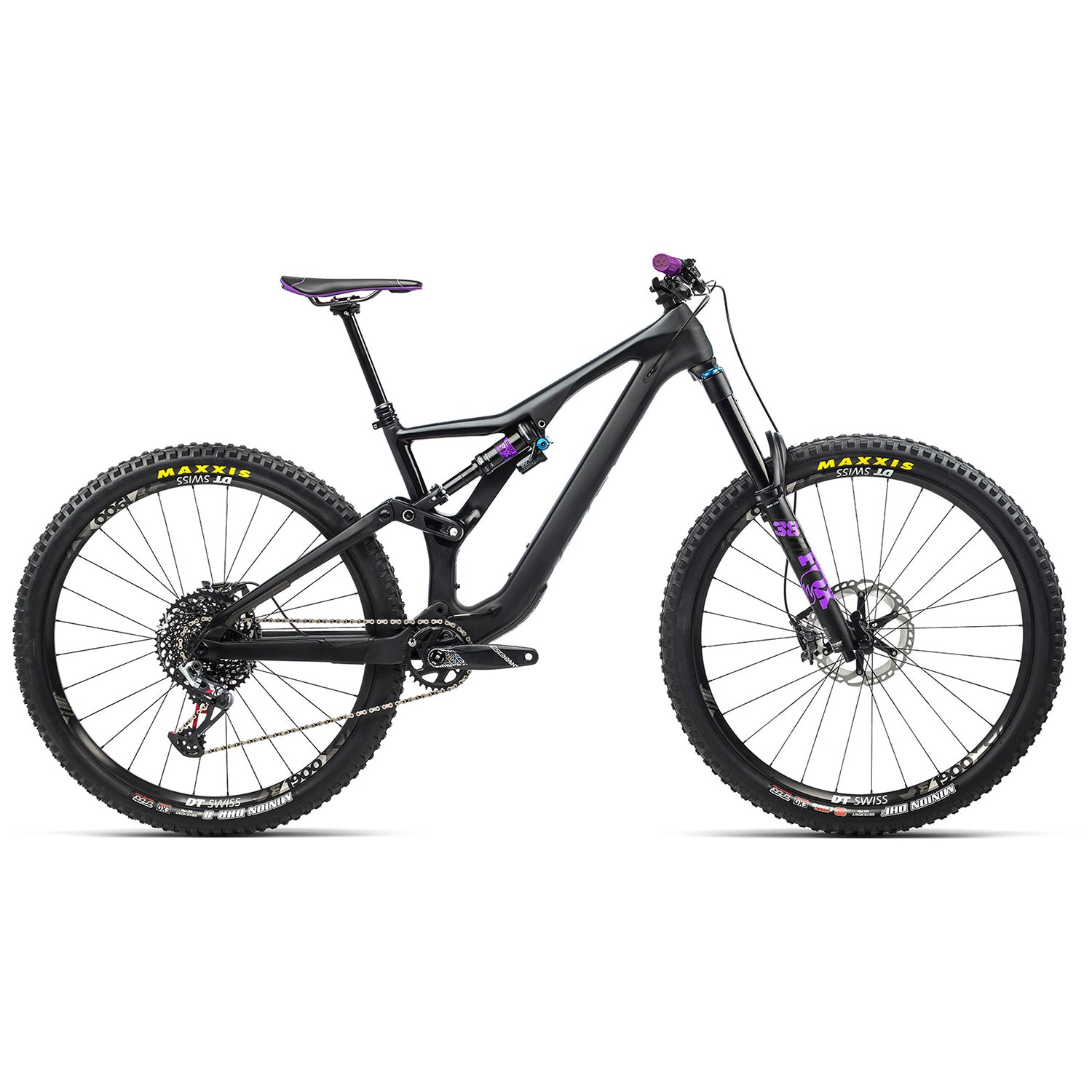

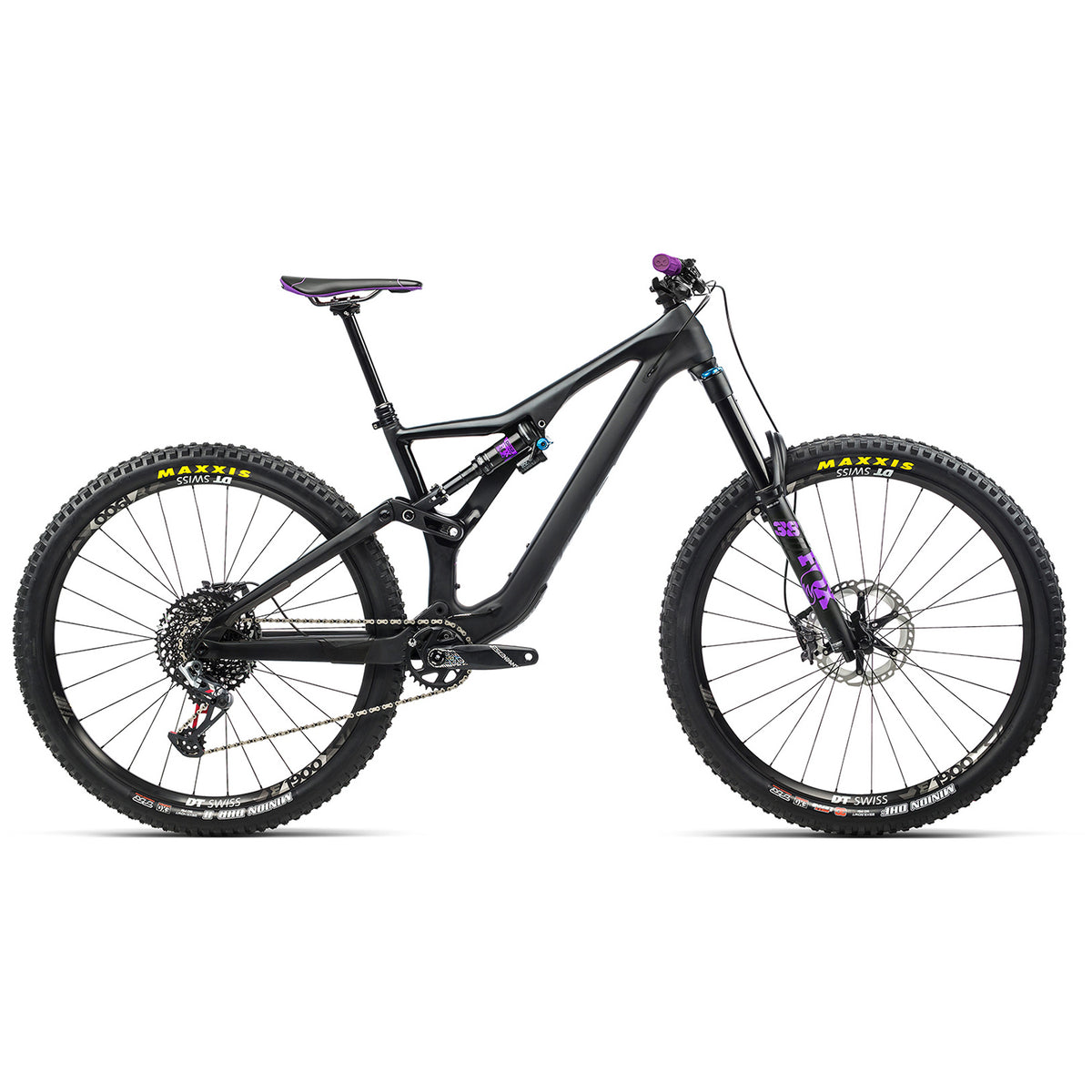

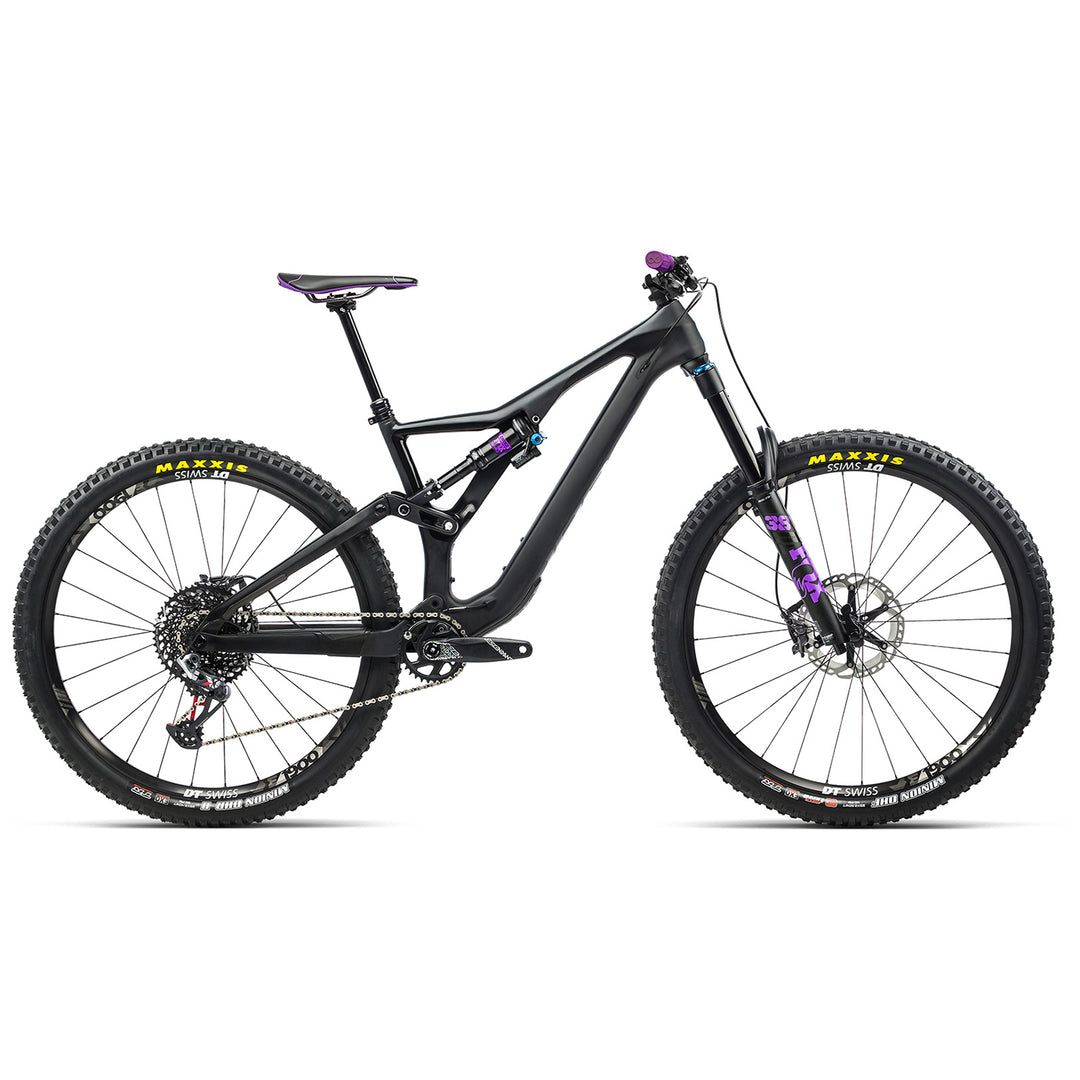

Orbea Rallon M10 Complete Mountain Bike 2021

Over two years in the making, the asymmetrical carbon frame of the Orbea Rallon M10 Complete Mountain Bike is a marvel. It's extremely stiff side-to-side, and when paired with Fox suspension, it's both plush and supportive: gobbling chunky rocks with ease, but also providing a platform for bigger hits and pedaling. This model has Shimano XT brakes and a SRAM GX Eagle drivetrain, both top performers in their chosen profession. Whether you're actually racing the EWS or just riding your own personal enduros, the Rallon M10 is fully capable for speed.

Orbea

Product Details

Frame/Shock:
Full Carbon Fiber OMR Frame: Orbea Monocoque Race (OMR) fames add high modulus and high strength fibers to a standard layup to improve stiffness-to-weight ratios. Bladder molding with EPS forms and PU headtube and bottom bracket inserts stop wrinkling and unconformities in critical zones, allowing less carbon to be used while maintaining strength
Connected Link Suspension: A high main pivot point provides minimum pedalling energy losses at the same time the seat stays and linkage positioning ensure just the right progressivity for outstanding bumps absorption and ultimate grip and control.
Fox DPX2 Performance Rear Shock: From its twin-tube design borrowed from the fabled X2 to a 3 position compression adjustment lever and EVOL air spring, this is an all-mountain shock made for today's enduro bikes.
Shock Adjustments: Air Spring Pressure / 3-Position Open, Medium, Firm Compression Modes / Rebound
Pure Enduro Geometry: Every measurement and angle on this frame is aimed at enduro racing: it has a slacker head tube angle, long wheelbase, and long cockpit for stability. The low bottom bracket lends itself to natural cornering, and the short seat tube is steep for proper positioning while pedaling and descending.
Internal Cable Routing: Internal Cable Routing is carefully guided along the best path with no rub or rattle, and is optimized for both traditional and electronic shifting systems
Fork:
Fox 38 Performance: Hitting new levels of stiffness-to-weight, the ultimate metric in the bike world, the new 38 is the beefiest single crown fork Fox has ever made. It's plush, lightweight, and tuneable with the proven GRIP damper.
Fork Adjustments: Air Spring Pressure | Lever Actuated Open, Medium, Firm Compression Modes | Rebound
Drive Train:
SRAM GX Eagle: Whether you're discovering the mountain for the first time or you're an MTB lifer searching for a no-nonsense, no-worries 1x drivetrain, SRAM GX Eagle is ready for action and ready to take you there. Eagle brings you a wide range of gear choices engineered for simplicity and durability, so you can focus on what matters most-the ride ahead. German engineered and proudly bearing the SRAM Eagle stamp of approval, GX Eagle is ready to let the world know what real riding feels like.
Brakes:
Shimano XT M8120: The four piston version of Shimano's excellent trail brakes have tons of stopping power in all conditions. With no rotor wobble, these stay quiet all ride, especially when paired with Ice Tech rotors.
Shimano Rotors
Wheelset:
DT Swiss E-1900 Spline 30: An all-mountain wheelset that's designed to spend all day taking hits without batting an eye, the E1900 combines trail feel with durability. Spline Hubs have quick engagement and the rims fight tire burps, allowing you to run lower pressures for maximum traction. Its 30mm internal width hits the sweet spot for wider tires, too.
Additional Features:
Orbea OC2 Dropper Seatpost
Race Face Cockpit
Price and Spec Subject to Change

Specs

Fork Travel:
170mm
Rear Travel:
160mm
Handlebar:
Race Face Aeffect 35 | 780mm | 20mm Rise
Biking Type:
Mountain
Mountain
Used For:
Enduro
Enduro
Frame Material:
Carbon
Carbon
Gearing:
1 x 12
Water Bottle Mounts:
1
Stanchion Diameter:
38mm
Rear Shock:
Fox DPX2 Performance
Shifters:
SRAM GX Eagle
Rear Derailleur:
SRAM X01 Eagle, 12-Speed
Crankset:
SRAM Descendant DUB, 32t
Cassette:
SRAM GX Eagle XG-1275, 10-50t
Chain:
SRAM GX Eagle, 12-Speed
Brake Levers:
Shimano XT M8100
Brake Calipers:
Shimano XT M8120
Rotors:
Shimano
Headset:
Acros Alloy Integrated
Stem:
Race Face Aeffect R
Saddle:
Fizik Taiga S-Alloy Rail
Seatpost:
OC2 Dropper
Wheelset:
DT Swiss E 1900 Spline
Front Tire:
Maxxis Minion DHF 2.5" | 3C MaxxTerra, EXO
Rear Tire:
Maxxis Minion DHR II 2.4" | Dual, EXO
Warranty:
Limited Lifetime
Wheel Size:
29"
