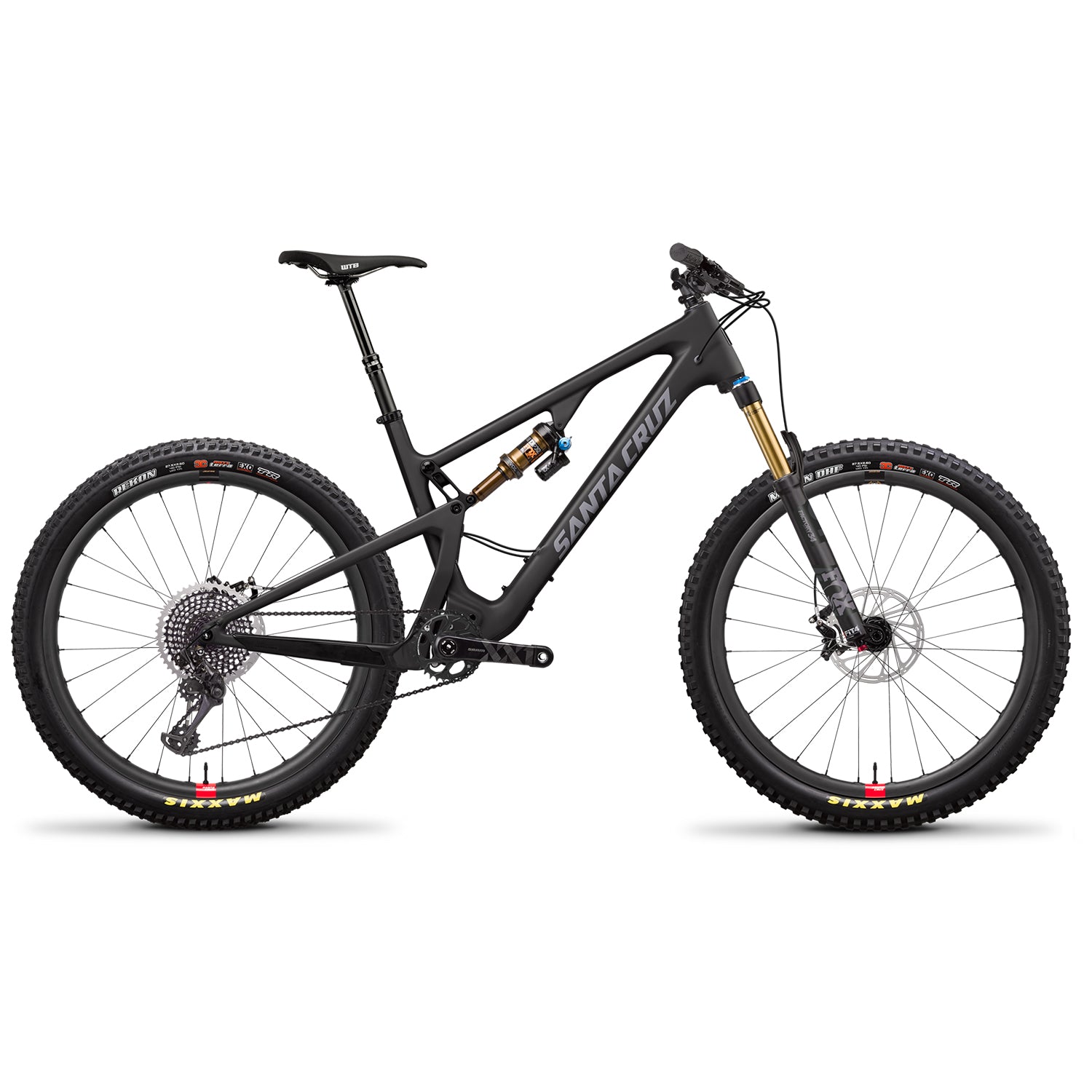

Santa Cruz Bicycles 5010 CC XX1+ Reserve Complete Mountain Bike 2019
SKU# EB-188030-1001
$7,599.99
$9,199.00
Find in Store
Checking availability...
Not available in store
Order and get 7600 reward points
Earn 7600 points with this product. Join Free
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsSanta Cruz Bicycles 5010 CC XX1+ Reserve Complete Mountain Bike 2019
When you take the original shenanigan sled and bestow upon it the highest grade components and unreal grip that comes with plus-sized tires, the result is life-changing. The Santa Cruz Bicycles 5010 CC XX1+ Reserve Complete Mountain Bike is an all-day fun machine, game to climb, bomb, jib, twitch, boost, and grip on any surface you can reach. The giddy gecko of the two-wheeled jungle, this XX- and Kashima-coated carbon 5010 is a revelation.
Product Details
Frame/Shock:
Frame Update 3.0: The 5010 sees a longer reach, slightly slacker head angle and steeper seat angle for a more optimized ride.
Carbon CC Frame: Santa Cruz's highest grade CC-level carbon frame is every bit as stiff and strong as their C-level frame, but weighs about 280 grams less, due to the use of lighter, stronger, and more expensive carbon fiber. Santa Cruz is also able to truly integrate the shock mounts, pivot mounts, dropouts and disc brake tabs into the structure, using all uni-directional carbon plies. The shock mount isn't merely riveted or bonded on after curing, but is an integrated part of the fiber lay-up. This makes Santa Cruz's carbon frames incredibly strong and able to absorb impact better than any other frame they've tested.
130mm VPP® Suspension: VPP is based on the patented principle of having two short links rotating in opposite directions. This system provides huge design flexibility, allowing Santa Cruz to manipulate shock rates to the intended purpose and character of each model; from short travel endurance bikes to World Championship winning DH machines.
Fox Float Factory DPX2: Combining the best of X2 and DPS, the DPX2 features a recirculating oil damper design with the convenience of three on-the-fly compression damping positions. “Factory” says it all – feature-packed and designed to exceed the demands of Fox's Factory-level riders. Factory Series products feature slippery smooth, ultra-durable Genuine Kashima Coat.
Shock Adjustments: Lever Actuated Open, Medium, Firm Modes | Open Mode Adjust Tuning Range (10 Clicks) | Rebound | Air Spring Pressure
Lower Link Flip Chip for Geo Adjustment (+/- 3.5mm BB Height): Preserves BB height for "over-forkers" and allows even the most sensitive riders the ability to fine-tune their ride.
Internal Carbon Tubes: Ensure precise and hassle-free routing of derailleur and seat post cables.
Bottle Cage Mount: Within the front triangle, fits piggyback shocks.
27.5 / 27.5+ Wheel Clearance: Clearance for up to 2.8-inch tires.
Angular Contact Bearings Maximize Stiffness
Double Sealed Pivots for Long Bearing Life
ISCG-05 Tabs for Chainguide Compatibility
Forged Upper and Lower Links
148mm Rear Axle Spacing
Threaded Bottom Bracket
Integrated Headset
Fork:
Fox 34 Float Factory: "Factory” says it all. The best-of-the-best technology with buttery smooth and ultra durable Genuine Kashima Coat. Designed for trail riding, the Factory Series 34 features a FIT4 damper, FLOAT EVOL air spring, and lightweight chassis. The 34 provides proven trail performance that instills confidence and control.
Fork Adjustments: FIT4 3-Position Lever Adjust with Open, Medium, Firm Modes | External Rebound | Air Spring Pressure
Drive Train:
SRAM XX1 Eagle™: SRAM built the incredible XX1 Eagle™ drivetrain to work quietly, intuitively, precisely and perfectly. Whether you're an hour and twelve minutes into a World Cup XC or, just about to hit the top of Pearl Pass-XX1 Eagle™ is ready for that and every place in between. This cross-country-optimized drivetrain combines our newest generation of SRAM 1x™ drivetrain technological advancements with lightweight materials. With a greater gear range of 500-percent, XX1 Eagle™ gives you smoother, more precise shifts with greater durability for long lasting performance so you can spend more time in the gear you want. XX1 Eagle™ just rewrote the rules of freedom.
Brakes:
SRAM Guide Ultimate Brakeset: The new SRAM Guide Ultimate is packed with ride-enhancing performance that makes every new trail a trusted old friend. SRAM started from scratch to create the perfect combination of braking reliability and control. Brand-new SwingLink™ technology provides more power, silky-smooth modulation, less deadband and better lever-feel than you’ve ever experienced. Steep-line confidence. Deep-corner dominance. Ride every trail like you own it. KNOW YOU CAN. Now featuring the World Championship-winning S4 caliper with Bleeding Edge™ and Heat Shield technologies.
Avid CenterLine Rotors: The new CenterLine Rotor was designed to keep the center of friction consistent throughout rotation thereby minimizing vibration offering consistent performance and a quiet ride.
Wheelset:
Santa Cruz Reserve 37 Carbon Wheels: Whether it's a sunset lap with friends or a race run against the clock, a broken wheel ruins any ride. SC set strength and impact resistance as their highest priority, but strength doesn't have to mean uncomfortably stiff. Their wheels are compliant enough to avoid that harsh "wooden" ride that gives some carbon rims a bad name offroad. Santa Cruz only makes offroad bikes, so they have the privilege of being able to focus purely on the mountain bike experience. Everything from the thickness of rim beads to external spoke hole reinforcements comes purely from their experience of knowing what riders need at every level—from international racing to your local trails.
Maxxis Minion DHF Front Tire: The Minion DHF was designed for the often loose and muddy conditions of aggressive all-mountain terrain. The DHF incorporates ramped knobs for low rolling resistance and channel-cut knobs to increase gripping edges, giving straight-line control and precise cornering.
Maxxis Rekon Rear Tire: The Rekon is an aggressive trail tire inspired by the Ikon for intermediate and technical terrain. Wide knobs down the middle provide control under braking and L-shaped side knobs assure support when carving loose turns. With confidence like this you can race more and scout less with the Rekon.
Industry 9 Hubs
Additional Features:
RockShox Reverb Stealth Dropper Seatpost: Don’t let its familiar good looks fool you—Reverb is a whole new weapon. Its internals have been completely re-engineered to improve on its already legendary performance and to offer enhanced reliability: all the smallest details, down to the single seal, have been re-evaluated and updated to pass the hardest and longest durability tests. Additional bushing overlap also improves performance over time. This is the brand-new Reverb, engineered for the next-generation mountain biker.
Specs
Used For:
Trail,
Enduro
Fork Travel:
130mm
Rear Travel:
130mm
Handlebar:
Santa Cruz Bicycles Carbon Bar 35x760mm
Biking Type:
Mountain
Frame Material:
Carbon
Gearing:
1 x 12
Water Bottle Mounts:
1
Stanchion Diameter:
34mm
Rear Shock:
FOX DPX2 Float Factory
Shifters:
SRAM XX1 Eagle
Rear Derailleur:
SRAM XX1 Eagle, 12-Speed
Crankset:
SRAM XX1 Eagle DUB
Cassette:
SRAM X01 Eagle XG-1295, 10-50t
Chain:
SRAM XX1 Eagle, 12-Speed
Bottom Bracket:
73mm Threaded
Brake Levers:
SRAM Guide Ultimate
Brake Calipers:
SRAM Guide Ultimate
Rotors:
Avid Centerline 180mm
Headset:
Cane Creek 110 IS Integrated
Bar Tape/Grips:
Santa Cruz Palmdale
Stem:
Race Face Turbine R 50mm
Saddle:
WTB Silverado Team
Seatpost:
RockShox Reverb Stealth Dropper 31.6mm
Hubs:
Industry 9
Rims:
Santa Cruz Reserve 37 Carbon
Spokes:
DT Competition Race (28)
Front Tire:
Maxxis Minion DHF 2.6" | 3C MaxxTerra, EXO, TR
Rear Tire:
Maxxis Rekon 2.6" | 3C MaxxTerra, EXO, TR
Warranty:
Limited Lifetime (Frame, Bearings, and Rims)
Wheel Size:
27.5"+
