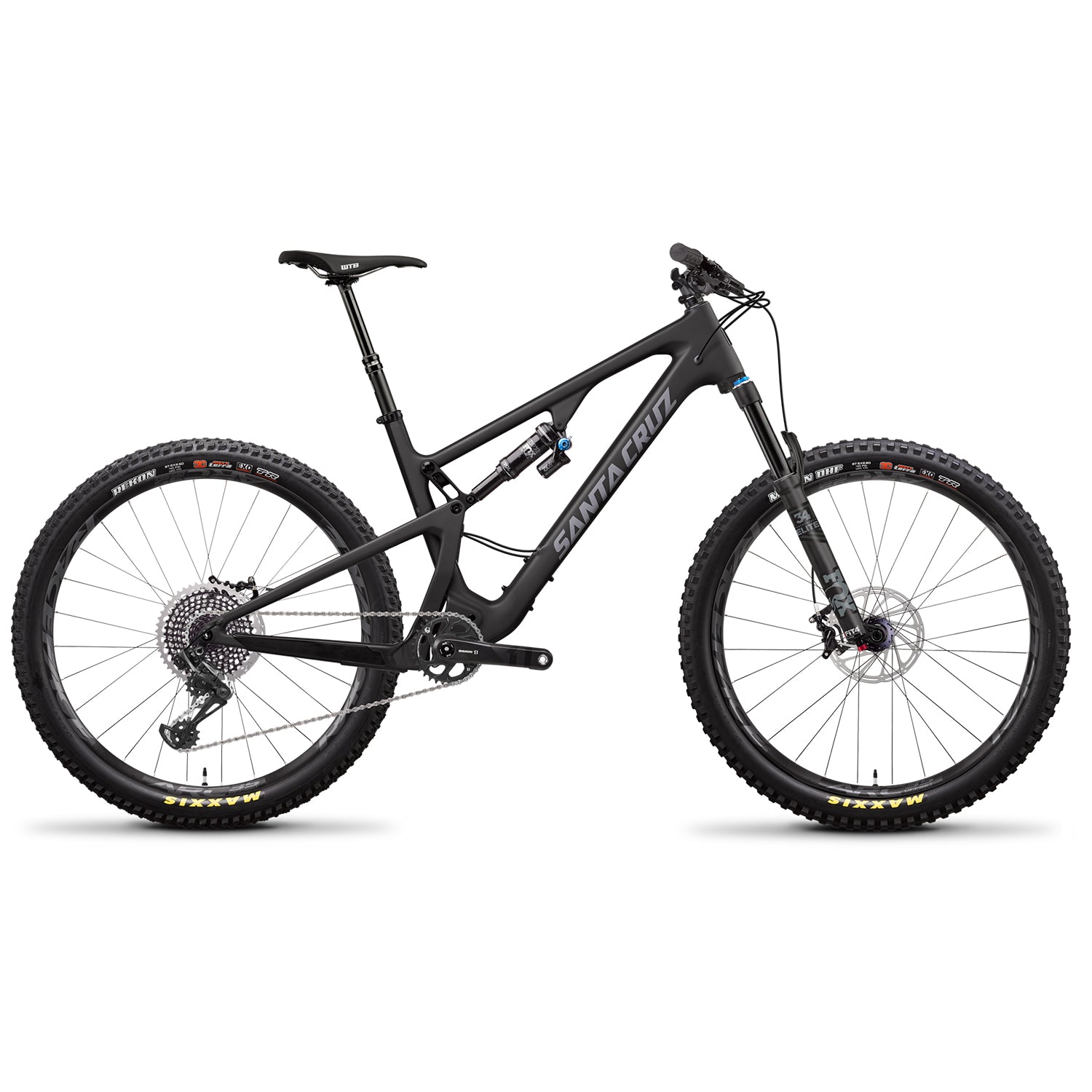

Santa Cruz Bicycles 5010 CC X01+ Complete Mountain Bike 2019

When you're riding the Santa Cruz Bicycles 5010 CC X01+ Complete Mountain Bike as intended, you could find yourself in any one of dozens of compromising positions. And that's how it should be! This bike is like a finely tuned sportscar, poppy and responsive to the point of madness - so much so that the extra grip from the high volume plus tires will be greatly appreciated. When you're hanging on through a do-or-die catch berm, blasting through a root section at 2X trail speed, or trying an optimistic gap, you'll be on a bike that's as excited as you are.

Product Details

Frame/Shock:
Frame Update 3.0: The 5010 sees a longer reach, slightly slacker head angle and steeper seat angle for a more optimized ride.
Carbon CC Frame: Santa Cruz's highest grade CC-level carbon frame is every bit as stiff and strong as their C-level frame, but weighs about 280 grams less, due to the use of lighter, stronger, and more expensive carbon fiber. Santa Cruz is also able to truly integrate the shock mounts, pivot mounts, dropouts and disc brake tabs into the structure, using all uni-directional carbon plies. The shock mount isn't merely riveted or bonded on after curing, but is an integrated part of the fiber lay-up. This makes Santa Cruz's carbon frames incredibly strong and able to absorb impact better than any other frame they've tested.
130mm VPP® Suspension: VPP is based on the patented principle of having two short links rotating in opposite directions. This system provides huge design flexibility, allowing Santa Cruz to manipulate shock rates to the intended purpose and character of each model; from short travel endurance bikes to World Championship winning DH machines.
Fox DPX2 Performance Elite: Combining the best of X2 and DPS, the DPX2 features a recirculating oil damper design with the convenience of three on-the-fly compression damping positions. Performance Elite shocks retain the same adjustments, dampers, weight, and 7000 series aluminum as Factory Series, but have s black anodized finish instead of Genuine Kashima Coat. A Performance Elite graphics package is found on these forks to tie in the black-on-black look.
Shock Adjustments: Lever Actuated Open, Medium, Firm Modes | Open Mode Adjust Tuning Range (1, 2, 3) | Rebound | Air Spring Pressure
Lower Link Flip Chip for Geo Adjustment (+/- 3.5mm BB Height): Preserves BB height for "over-forkers" and allows even the most sensitive riders the ability to fine-tune their ride.
Internal Carbon Tubes: Ensure precise and hassle-free routing of derailleur and seat post cables.
27.5 / 27.5+ Wheel Clearance: Clearance for up to 2.8-inch tires.
Bottle Cage Mount: Within the front triangle, fits piggyback shocks.
Double Sealed Pivots for Long Bearing Life
ISCG-05 Tabs for Chainguide Compatibility
Forged Upper and Lower Links
148mm Rear Axle Spacing
Threaded Bottom Bracket
Integrated Headset
Fork:
Fox 34 Float Performance Elite: Performance Elite forks retain the same adjustments, dampers, weight, and 7000 series aluminum upper tubes as Factory Series, but have black anodized upper tubes instead of Genuine Kashima Coat. A Performance Elite graphics package is found on these forks to tie in the black-on-black look.
Fork Adjustments: FIT4 3-Position Lever Adjust with Open, Medium, Firm Modes | External Rebound | Air Spring Pressure
Drive Train:
SRAM X01 Eagle™: The X01 Eagle™ drivetrain signals an exciting new era of freedom and the next level of uncompromising performance for enduro racers and aggressive trail riders. Watching the world’s best racers use their parts to battle against nature, physics and time itself, has inspired SRAM to supply them with the most advanced tools we can develop. X01 Eagle™ takes everything you love about SRAM's pioneering 1x drivetrains and increases its wear life, toughness, precision, smooth and silent operation. Add to that the 10- to 50-tooth, 12-speed, Eagle™ cassette, and you have a range of gears that gives you the freedom to enjoy the benefit of 1x in any terrain, any location and at any speed. X01 Eagle™ is drivetrain freedom—how you exploit it is up to you.
Brakes:
SRAM Guide RSC Brakeset: The new SRAM Guide RSC is packed with ride-enhancing performance that makes every new trail a trusted old friend. SRAM started from scratch to create the perfect combination of braking reliability and control. Brand-new SwingLink™ technology provides more power, silky-smooth modulation, less deadband and better lever-feel than you’ve ever experienced. Steep-line confidence. Deep-corner dominance. Ride every trail like you own it. KNOW YOU CAN. Now featuring the World Championship-winning S4 caliper with Bleeding Edge™ and Heat Shield technologies.
Avid CenterLine Rotors: The new CenterLine Rotor was designed to keep the center of friction consistent throughout rotation thereby minimizing vibration offering consistent performance and a quiet ride.
Wheelset:
Race Face ARC Offset 35 27.5" Rims Laced to DT 350 Hubs: A light and tough alloy wheel made for the demands of the EWS Enduro series, these are trail-tested to be durable and responsive. At 35mm internal width, they pair well with today's wider trail tires.
Maxxis Rekon Rear Tire: The Rekon is an aggressive trail tire inspired by the Ikon for intermediate and technical terrain. Wide knobs down the middle provide control under braking and L-shaped side knobs assure support when carving loose turns. With confidence like this you can race more and scout less with the Rekon.
Maxxis Minion DHF Front Tire: The Minion DHF was designed for the often loose and muddy conditions of aggressive all-mountain terrain. The DHF incorporates ramped knobs for low rolling resistance and channel-cut knobs to increase gripping edges, giving straight-line control and precise cornering.
Additional Features:
RockShox Reverb Stealth Dropper Seatpost: Don’t let its familiar good looks fool you—Reverb is a whole new weapon. Its internals have been completely re-engineered to improve on its already legendary performance and to offer enhanced reliability: all the smallest details, down to the single seal, have been re-evaluated and updated to pass the hardest and longest durability tests. Additional bushing overlap also improves performance over time. This is the brand-new Reverb, engineered for the next-generation mountain biker.

Specs

Fork Travel:
130mm
Rear Travel:
130mm
Handlebar:
Santa Cruz Bicycles AM Carbon Bar 35x760mm
Biking Type:
Mountain
Mountain
Used For:
Trail
Trail
Frame Material:
Carbon
Carbon
Gearing:
1 x 12
Water Bottle Mounts:
1
Stanchion Diameter:
34mm
Rear Shock:
FOX DPX2 Float Performance Elite
Shifters:
SRAM X01 Eagle
Rear Derailleur:
SRAM X01 Eagle, 12-Speed
Crankset:
SRAM X1 Carbon DUB, 32t
Cassette:
SRAM X01 Eagle XG-1295, 10-50t
Chain:
SRAM X01 Eagle, 12-Speed
Bottom Bracket:
73mm Threaded
Brake Levers:
SRAM Guide RSC
Brake Calipers:
SRAM Guide RSC
Rotors:
Avid Centerline 180mm
Headset:
Cane Creek 40 IS Integrated
Bar Tape/Grips:
Santa Cruz Palmdale
Stem:
Race Face Aeffect R 50mm
Saddle:
WTB Silverado Team
Seatpost:
RockShox Reverb Stealth Dropper 31.6mm
Hubs:
DT Swiss 350
Rims:
Race Face ARC Offset 35
Spokes:
DT Competitions (28)
Front Tire:
Maxxis Minion DHF 2.6" | 3C MaxxTerra, EXO, TR
Rear Tire:
Maxxis Rekon 2.6" | 3C MaxxTerra, EXO, TR
Warranty:
Limited Lifetime (Frame and Bearings)
Wheel Size:
27.5"+
