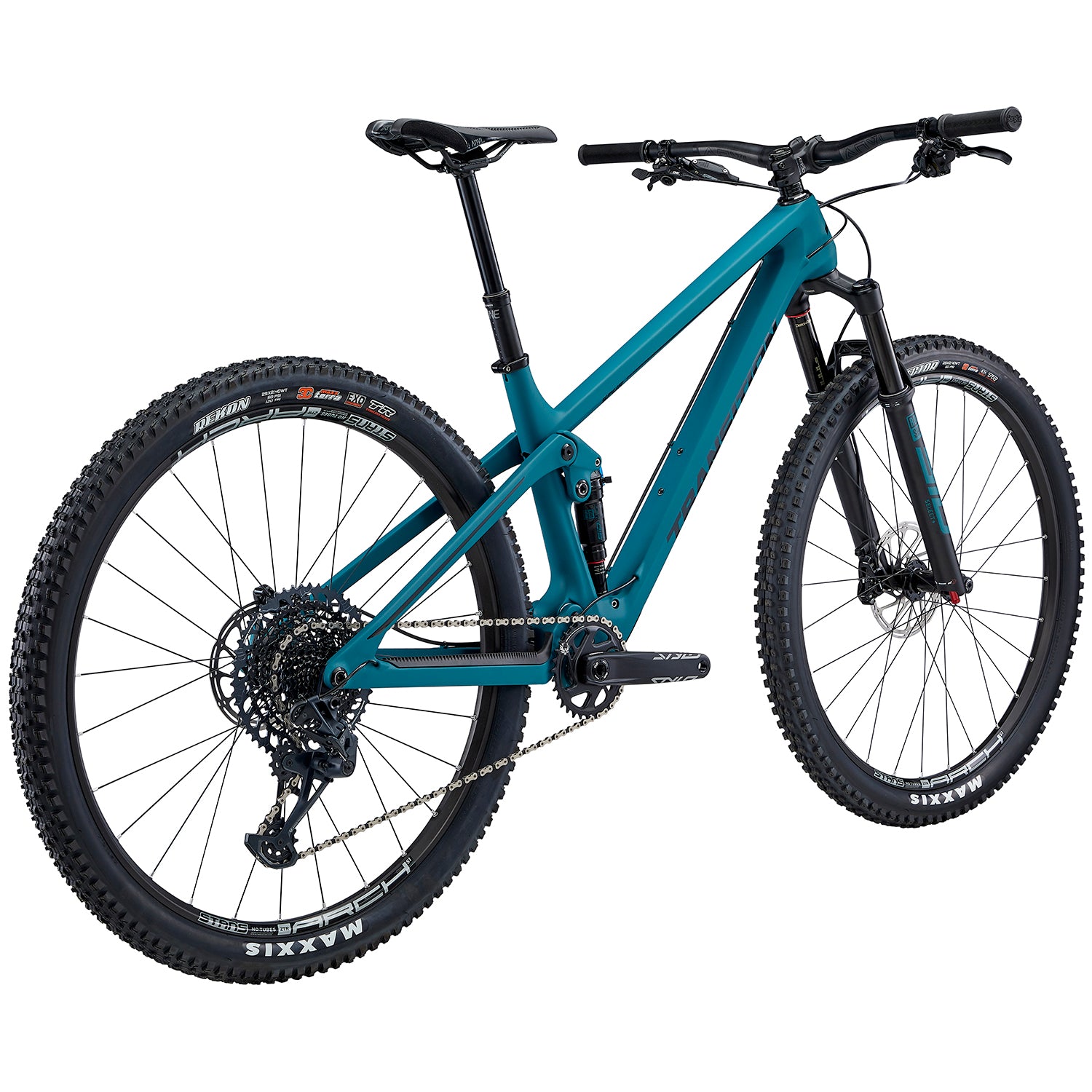

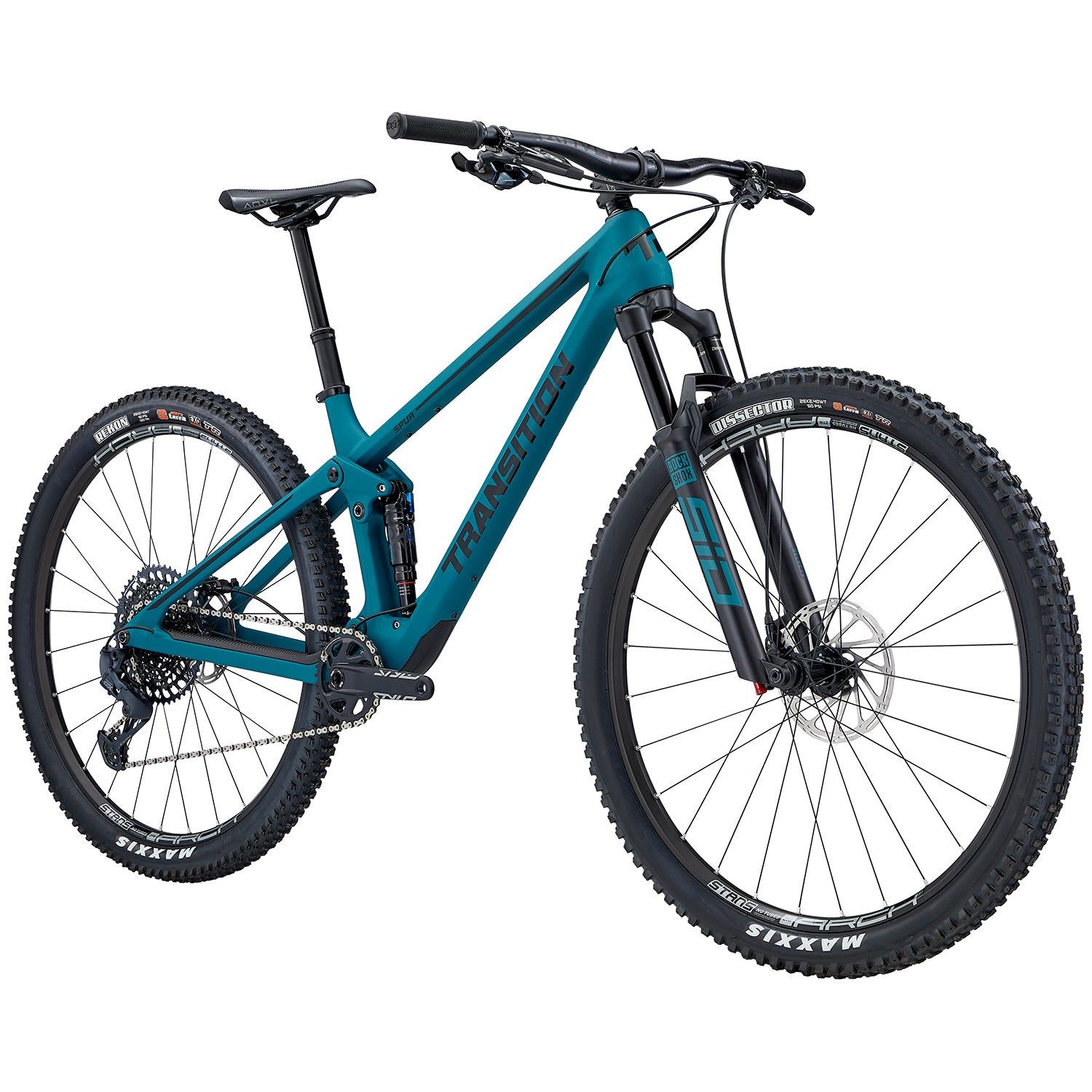

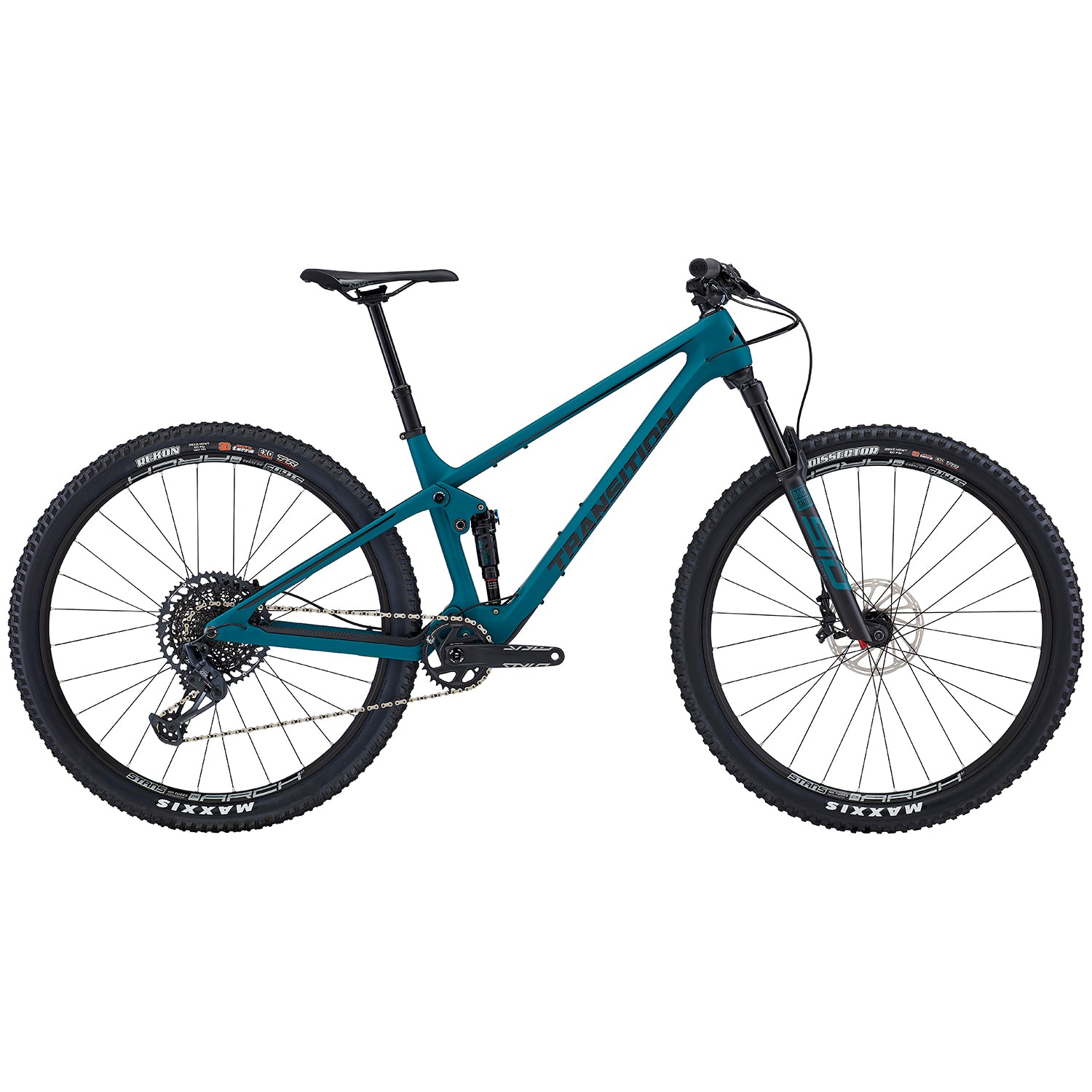

Transition Spur Carbon GX Complete Mountain Bike 2022
SKU# EB-187050-1001
$4,299.00
$5,399.00
Find in Store
Checking availability...
Not available in store
Earn up to 10% back in rewards
Join Free (opens in a new tab)
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsTransition Spur Carbon GX Complete Mountain Bike 2022
The Transition Spur Carbon GX Complete Mountain Bike turns just pedaling along into speeding up. A slack short-travel ripper that's fully in the now, this is Transition's entry into the that hottest of bike types: call it modern, call it Downcountry, just don't call it not enough bike. Lightweight and strong carbon, this frame takes the awesome GiddyUp suspension and removes a pivot and hardware, utilizing a flex stay to save weight and make for a super poppy vibe on trail. Riders are raving about the playfulness of this bike, with reviewers marveling at the DH capability of this shorter-travel trail bike.
Product Details
Frame/Shock:
All Carbon Construction: Full carbon frame made from premium Japanese Toray fiber with a tailored blend of high quality materials to create a balance of frame stiffness, strength, and impact toughness. A new molding process makes for sharper frame lines and tighter edge radius controls with less wasted material.
Giddyup Suspension Design: The GiddyUp suspension, featuring a one-piece flex stay rear triangle, is tuned to work correctly with inline style rear shocks and designed to provide a balanced feel with 120mm travel forks. Riders are able to add or remove volume spacers in the rear shock to suit their individual riding style and there is plenty of bottom out control for when things get rowdy. The Spur has 120mm of rear wheel travel when used with the supplied 190mm x 45mm stroke shock. It is also possible to install a shorter, 190mm x 37.5mm stroke shock, to reduce the rear wheel travel to 100mm if you are after a shorter travel experience.
RockShox SIDLuxe Select+ Rear Shock: With a very low breakaway force and highly tuneable air spring, this shock transforms small bumps into traction-generators. It's designed for racers and makes any bike more balanced: a lightweight trail shock that can keep up with the world's fastest forks.
Shock Adjustments: Air Spring Pressure, 2-Position Compression Damping (Open/Lock), Rebound Adjust
Pivot Technology: Collet main pivot technology improves rear end stiffness and keeps hardware tight. Bearing shields prevent main pivot contamination from water.
Frame Protection: Fully integrated, flush-mounted rubber frame protection on the chainstay and downtube keep your bike rides quiet and your frame safe from damage.
Badass Bearings: EnduroMAX suspension pivot specific bearings come in standard sizes that are readily available worldwide.
Gear Accessory Mount: An underside top-tube accessory mount allows you to carry a spare tube or other goodies safely on your frame.
Mega Seatpost Insertion: Dropper posts keep getting longer so Transition combined short seat tube lengths with mega seatpost insertion to help get your saddle completely out of the way.
Flex Stay: A flex stay system utilizes a carefully tuned carbon layup that removes pivot axles and bearings to save weight without compromising frame durability.
User Friendly Cable Routing: To simplify maintenance and keep your bike noise free, the rear derailleur cable is routed through guide tubes in the front triangle and chainstay.
Threaded Bottom Bracket: A standard 73mm threaded bottom bracket shell makes crankset maintenance hassle-free and prevents unwanted pressfit BB noises.
Water Bottle Mount
Fork:
RockShox SID Select+: The SID Select+ is built on the same winning chassis as SID Ultimate and includes the trusted reduced-friction DebonAir™ air spring and Maxima Plush fluid to improve overall fork feel and lasting performance. Equipped with the Charger™ 2 RL damper with 2-position compression, you're free to bury yourself into the pain cave with every pedal stroke.
Fork Adjustments: Air Spring Pressure, 2-Position Compression Damping (Open/Lock), Rebound Adjust
Drive Train:
SRAM GX Eagle: GX Eagle is your partner for all rides, all the time, all day. Long days, quick rides and everything in-between, GX Eagle is the ecosystem at its best. With the all new 520% range, all new colorways and seamless compatibility with the rest of the ecosystem, GX Eagle is there to maximize the potential of your ride experience.
Brakes:
SRAM G2 RS Brakeset: The G2 RS is a lighweight 4-piston brake with the power and modulation SRAM is known for. It offers riders the joys of SwingLink™ — getting brake pads to the rotor fast, then moderating pressure with smooth modulation. It’s one small movement for your finger, one monumental upgrade to your braking.
Avid CenterLine Rotors: The CenterLine design provides a smooth, consistent, and quiet running braking surface. Rounded edges make for easier wheel installs and are UCI-compliant.
Wheelset:
Stan's Arch S1 Wheelset: Durable enough to handle the most technical trails, yet light enough to rip XC laps, the Arch S1 is one of Stan's most versatile wheelsets yet. This new Arch is designed to provide unheard of traction and control when running 2.25’’ to 2.50’’ tires. These aluminum wheels are durable and lightweight, perfect for aggressive trail riding.
Maxxis Dissector Front Tire: Designed in conjunction with Aussie DH racer Troy Brosnan, the Dissector seeks to minimize drag while retaining cornering control. This versatile tire can be used as a front, a pair, or as a rear depending on trail conditions. It is ideal for dry and fast trails.
Maxxis Rekon Rear Tire: The Rekon is an aggressive trail tire inspired by the Ikon for intermediate and technical terrain. Wide knobs down the middle provide control under braking and L-shaped side knobs assure support when carving loose turns. With confidence like this you can race more and scout less with the Rekon.
Additional Features:
OneUp Dropper Post: Known for its no-nonsense smooth cable actuation, short overall length, and easy serviceability, the OneUp Dropper is a solid choice for dependable and customizable performance.
Price and Spec Subject to Change
Specs
Used For:
Cross Country,
Trail
Fork Travel:
120mm
Rear Travel:
120mm
Handlebar:
ANVL Mandrel Alloy 800mm x 20mm
Biking Type:
Mountain
Suspension:
Full Suspension
Frame Material:
Carbon
Gearing:
1 x 12
Water Bottle Mounts:
1
Stanchion Diameter:
32mm
Rear Shock:
RockShox SIDLuxe Select+
Shifters:
SRAM GX Eagle
Rear Derailleur:
SRAM GX Eagle, 12-Speed
Crankset:
SRAM Stylo 7K DUB, 32t
Cassette:
SRAM GX Eagle XG-1275, 10-52t
Chain:
SRAM GX Eagle, 12-Speed
Bottom Bracket:
Threaded
Pedals:
Not Included
Brake Levers:
SRAM G2 RS
Brake Calipers:
SRAM G2 RS
Rotors:
SRAM Centerline 180/160mm
Headset:
FSA NO.57E
Bar Tape/Grips:
Sensus Lite
Stem:
RaceFace Aeffect R 50mm
Saddle:
ANVL Forge CroMo
Seatpost:
OneUp Dropper
Wheelset:
Stan's NoTubes Arch S1 Team
Front Tire:
Maxxis Dissector 2.4" | 3C, EXO
Rear Tire:
Maxxis Rekon 2.4" | 3C, EXO
Warranty:
Limited Lifetime (Frame)
Wheel Size:
29"
