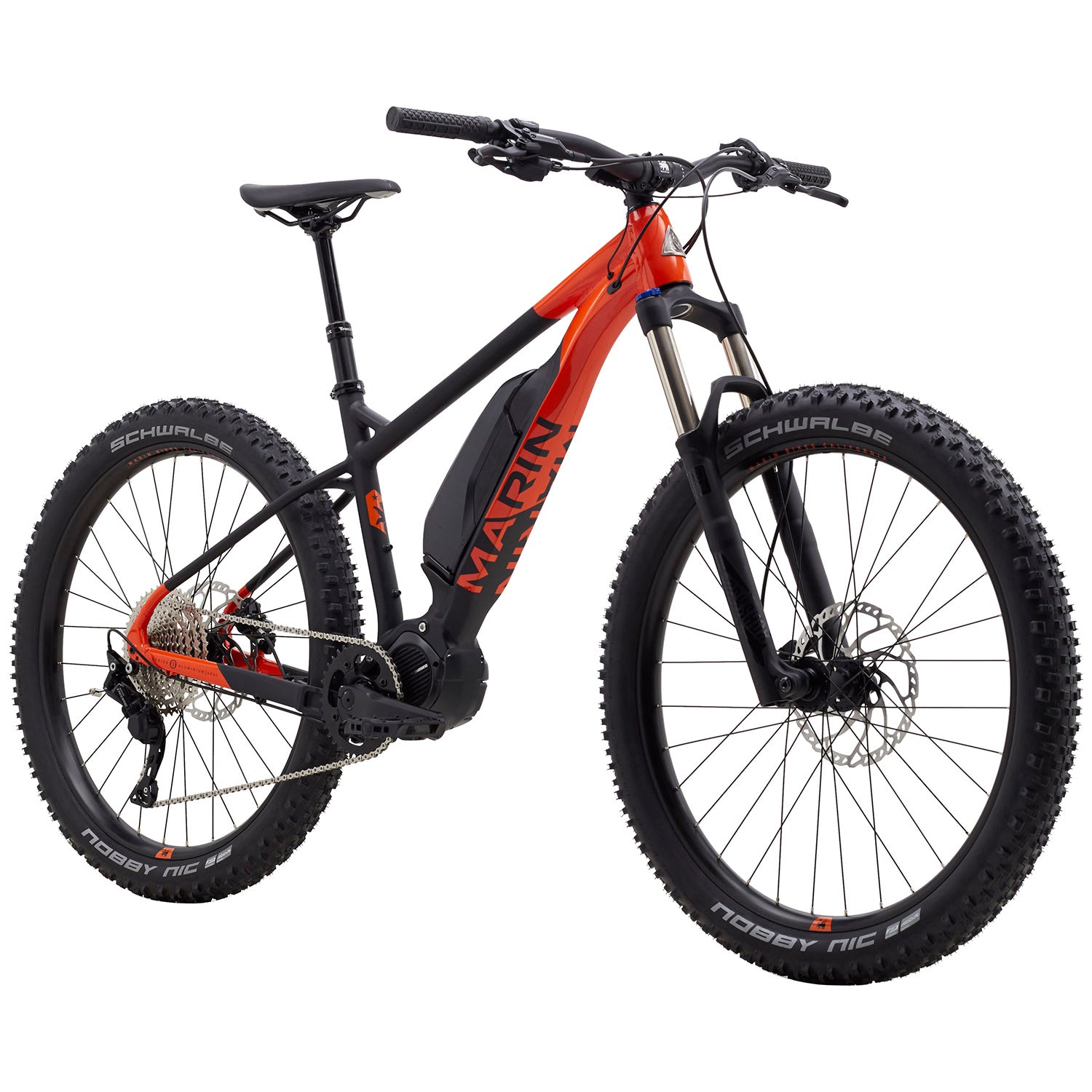

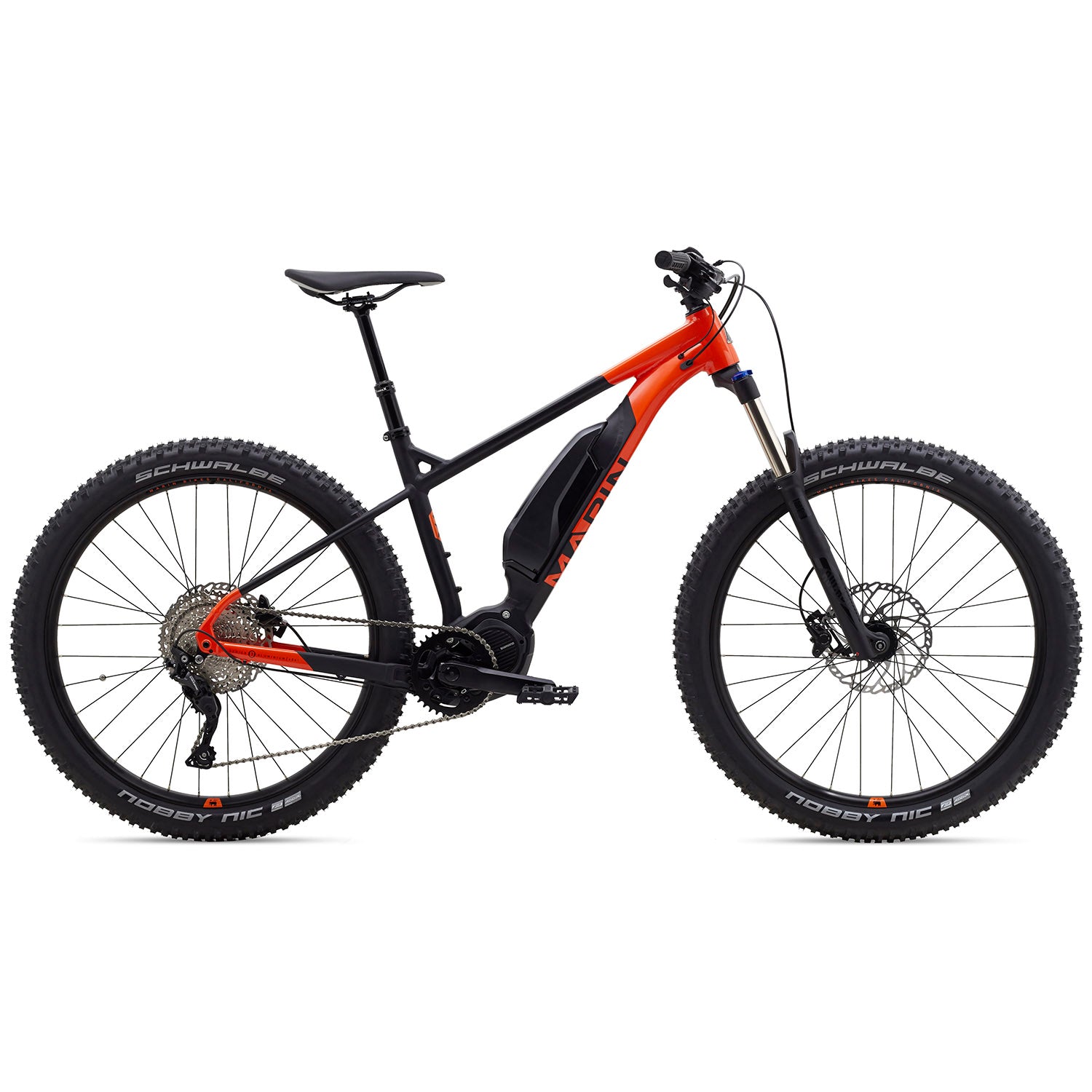

Marin Nail Trail E1 27.5+ Complete Mountain Bike 2020
SKU# EB-183872-1001
$2,699.99
$2,699.99
Find in Store
Checking availability...
Not available in store
Order and get 2700 reward points
Earn 2700 points with this product. Join Free
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsMarin Nail Trail E1 27.5+ Complete Mountain Bike 2020
Who couldn't use a little boost now and then? The Marin Nail Trail E1 27.5+ Complete Mountain Bike is every bit the aggressive hardtail singletrack shredder that it looks, but it has something special in its back pocket. This trail crusher packs a Shimano STEPS E8000 Motor capable of churning out 250W of power to help you get to those hard-to-reach spots, with a rugged MTB-ready battery that supports up to 62 miles of hitherto lung-busting climbs when fully juiced. So whether you're trying to go further, harder, longer, or faster, the Marin Nail Trail E1 27.5+ Complete Mountain Bike is bound to get you amped for the ride.
Product Details
Frame/Shock:
Series 3 Aluminum Frame: Made from 6061 double butted and hydroformed Aluminum, this frame is strong, light, and durable.
148x12mm Boost Thru-Axle
Internal Shifter and Dropper Post Routing
Drive Unit / Battery:
Shimano STEPS E8000 Motor: The powerful SHIMANO STEPS motor is strong enough to handle the steepest of trails, yet intuitive enough to give you just the right amount of support every pedal stroke along the way. At only 6.2 pounds, this is one of the lightest drive units on the market, yet able to provide stable, smooth power up to 20mph. High power with max output of 70Nm (250W).
Shimano E8010 Battery | 504Wh: Easily removable and serviceable battery provides supported travel up to 62 miles on one charge.
Switch Unit: The e-MTB Switch Unit (SW-E8000-L) is ergonomically designed for the specific demands of MTB riding to provide accurate, smooth shifting between power-assist modes regardless of weather or terrain conditions.
LCD Display: Easy-to-read display with dynamic visuals when switching between support settings. Computer specifically designed to be compact and durable for MTB riding.
Wireless Capable: Wirelessly program your preferences with smartphone, tablet or computer via SHIMANO’s application for programing/updating your bicycle's firmware - E-TUBE
Fork:
RockShox Recon RL: Recon has set the benchmark for value-based performance time and time again. With a beefier chassis and stout 32mm Fast Black steel upper tubes, Recon is best recipe for the perfect off-road success.
Fork Adjustments: Low Speed Compression to Lockout / External Rebound Adjustment
Drivetrain:
1x10 Drivetrain: A mix of Shimano, SunRace, and Marin products keep this drivetrain inexpensive all while delivering great performance.
Shimano Deore Shadow Plus Rear Derailleur: Lighter and more efficient than roller type chain device, with a rear derailleur stabilizer to reduce chain slap.
Brakes:
Shimano BR-MT201 Hydraulic Disc Brakes: A proven, bombproof design that's easy to maintain. Pre-bled and simple to install.
203mm Front and Rear Rotors
Wheel Set:
Marin Aluminum Double Wall Rims Laced to Forged Alloy Hubs: With sealed bearings, 38mm inner width, and 32 holes, these aluminum rims are light and strong--perfect for the do-it-all frame they're attached to.
Vee Crown Gem Tires: A fast, hard-hitting trail tire that’s brazen enough to take on enduro-style events without a whimper. The Crown Gem uses a high-volume, rounded profile carcass. The siped and grooved tread blocks sweep backwards making it directional specific for ultimate steering control or ultimate driving and braking traction.
Additional Features:
TranzX YSP18 Dropper Post
Specs
Used For:
Cross Country,
Trail
Fork Travel:
140mm,
5.5in
Handlebar:
Marin Mini-Riser Aluminum, 780mm, 4° Upsweep, 9° Backsweep
Biking Type:
Mountain
Gearing:
1 x 10
Frame Material:
Aluminum Alloy
Water Bottle Mounts:
1
Stanchion Diameter:
35mm
Drive Unit:
Shimano STEPS E8000
Battery:
Shimano 504Wh
Shifters:
Shimano Deore
Rear Derailleur:
Shimano Deore
Crankset:
Marin Forged Alloy, 38t
Cassette:
SunRace, 11-46t
Chain:
KMC X10, 10-Speed
Pedals:
Nylon Platform
Brake Levers:
Shimano MT201
Brake Calipers:
Shimano MT200
Rotors:
203mm Rotor
Headset:
FSA No 57E
Bar Tape/Grips:
Marin Single Clamp Locking
Stem:
Marin 3D Forged Alloy, 35mm
Saddle:
Marin Speed Concept
Seatpost:
TranzX YSP18 Dropper Post, 120mm of Travel, 30.9mm
Hubs:
Forged Alloy, 32 Hole, 148x12mm Rear / 110x15mm Front
Rims:
Marin Aluminum Double Wall Disc Specific, Tubeless Compatible, 38mm Inner
Spokes:
14g Black Stainless Steel
Tires:
Vee Tire Crown Gem Dual Control Compound Folding Bead | 27.5 x 2.8"
Warranty:
Limited Lifetime (Frame)
Wheel Size:
27.5"+
