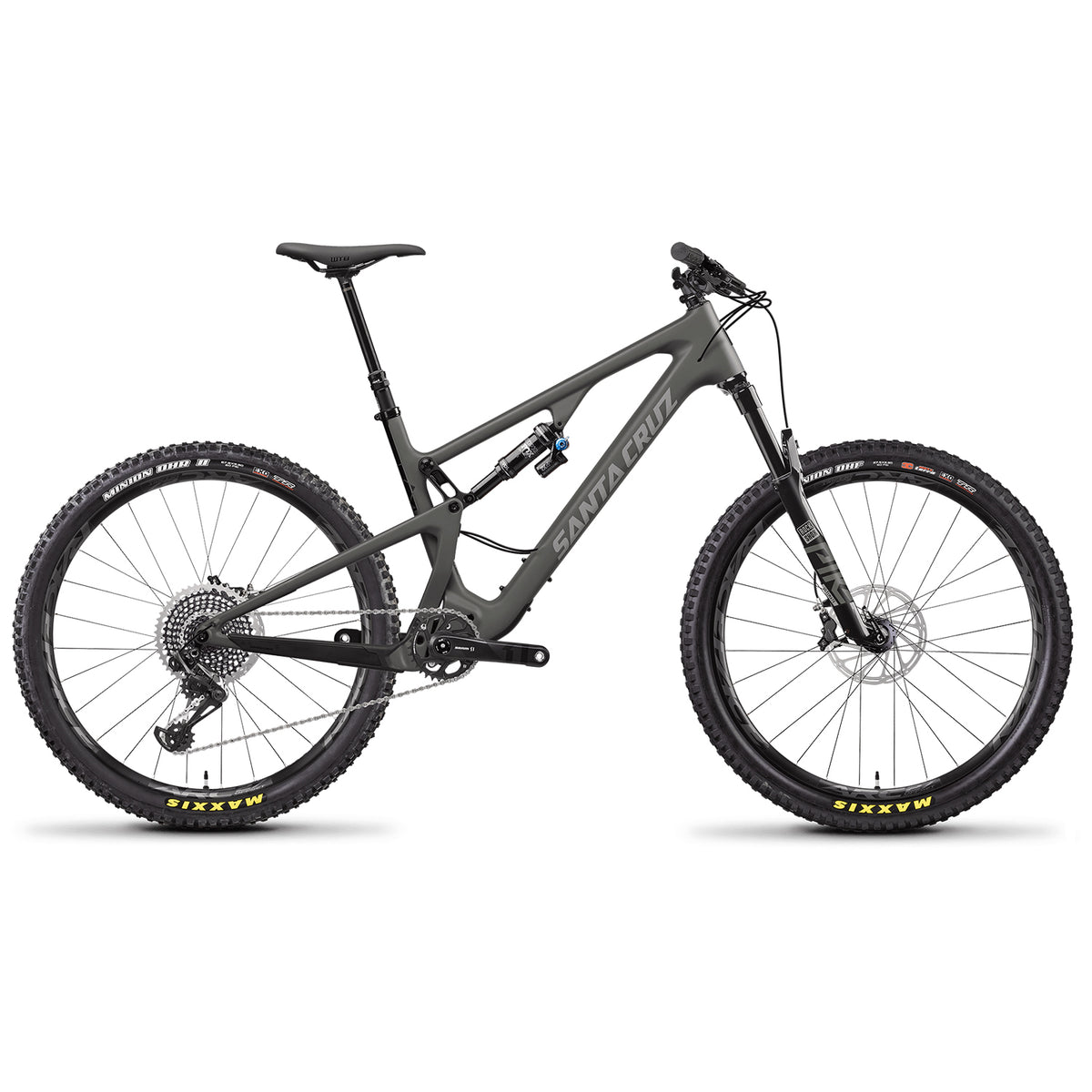

Santa Cruz Bicycles 5010 CC X01 Complete Mountain Bike 2020

Saddling up a Santa Cruz Bicycles 5010 CC X01 Complete Mountain Bike is like jumping in the driver's seat of a finely tuned sports car. The 5010 has always been an agile, overly capable powerhouse and after some recent updates in the geometry department this one's rowdier than ever. Boasting a slacker head angle, steeper seat tube and longer reach, you'll be blown away at the sheer speed and handling this 130mm travel steed provides. Fully Fox outfitted and laced up with SRAM's 12-speed X01 Eagle™ drivetrain, the Santa Cruz Bicycles 5010 CC X01 Complete Mountain Bike is a snappy, lightweight bike for the rider that wants pure balance and fun out of their ride.

Product Details

Frame/Shock:
Carbon CC Frame: Santa Cruz's highest grade CC-level carbon frame is every bit as stiff and strong as their C-level frame, but weighs about 280 grams less, due to the use of lighter, stronger, and more expensive carbon fiber. Santa Cruz is also able to truly integrate the shock mounts, pivot mounts, dropouts and disc brake tabs into the structure, using all uni-directional carbon plies. The shock mount isn't merely riveted or bonded on after curing, but is an integrated part of the fiber lay-up. This makes Santa Cruz's carbon frames incredibly strong and able to absorb impact better than any other frame they've tested.
130mm VPP® Suspension: VPP is based on the patented principle of having two short links rotating in opposite directions. This system provides huge design flexibility, allowing Santa Cruz to manipulate shock rates to the intended purpose and character of each model; from short travel endurance bikes to World Championship winning DH machines.
Fox DPX2 Performance Elite Shock: Combining DPS XC efficiency and X2 DH performance, the DPX2 is the ultimate trail shock. The Dual Piston Base Valve has dedicated compression and lockout circuits for each of the three modes -- Open, Medium, and Firm. It also features a recirculating damper design found in X2 shocks, creating excellent small bump sensitivity, great mid-stroke damping support, and better control in transitions.
Shock Adjustments: Lever Actuated Open, Medium, Firm Modes with Open Mode Adjust Tuning Range (10 clicks) | Rebound Adjust | Air Spring Pressure
Internal Carbon Tubes: Ensure precise and hassle-free routing of derailleur and seat post cables.
27.5 / 27.5+ Wheel Clearance: Clearance for up to 2.8-inch tires.
Bottle Cage Mount: Within the front triangle, fits piggyback shocks.
Dropout Flip Chip: Allows 10mm chainstay length adjustment.
Internal Brake and Dropper Cable Routing
ISCG-05 Tabs for Chainguide Compatibility
148mm Rear Axle Spacing
Integrated Headset
Fork:
RockShox Pike Select+: Everything you need, nothing you don't. Featuring the new Charger™ 2.1 damper for unmatched trail control. New ultra-low friction SKF wiper seals and Maxima Plush damping fluid all work overtime to reduce friction, silence noise, and provide lasting fork performance for every dirt searching mission.
Fork Adjustments: New Charger 2.1 RC2 Damper with External Rebound, Independent High and Low Speed Compression and Air Spring Pressure Adjust
Drive Train:
SRAM X01 Eagle™: The X01 Eagle™ drivetrain signals an exciting new era of freedom and the next level of uncompromising performance for enduro racers and aggressive trail riders. Watching the world’s best racers use their parts to battle against nature, physics and time itself, has inspired SRAM to supply them with the most advanced tools we can develop. X01 Eagle™ takes everything you love about SRAM's pioneering 1x drivetrains and increases its wear life, toughness, precision, smooth and silent operation. Add to that the 10- to 50-tooth, 12-speed, Eagle™ cassette, and you have a range of gears that gives you the freedom to enjoy the benefit of 1x in any terrain, any location and at any speed. X01 Eagle™ is drivetrain freedom—how you exploit it is up to you.
Brakes:
SRAM G2 RSC Brakeset: G2 RSC is the half-ton pickup truck of the mountain bike brake world — dependable, go anywhere, do anything, plenty of power when you need it, and all of the features you need. The new G2 RSC is based on the SRAM Code design, so it puts Code-like power and modulation into a mini-Code package. And of course the signature Guide lever-feel and contact-point adjustability ensures that this brake works great for every rider. The G2 RSC presents rider-controlled offering with an alloy blade, lever pivot bushings, stainless steel hardware.
Avid CenterLine Rotors: The new CenterLine Rotor was designed to keep the center of friction consistent throughout rotation thereby minimizing vibration offering consistent performance and a quiet ride.
Wheelset:
Race Face ARC Offset 27 Rims Laced to DT Swiss 350 Hubs: A wheelbuilder's favorite the world over, this welded, tubeless ready workhorse is the go-to rim for XC to aggressive all-mountain riding. DT Swiss 350 hubs and their signature Ratchet System power this high-performance wheelset.
Maxxis Minion DHF Front Tire: The Minion DHF was designed for the often loose and muddy conditions of aggressive all-mountain terrain. The DHF incorporates ramped knobs for low rolling resistance and channel-cut knobs to increase gripping edges, giving straight-line control and precise cornering.
Maxxis Minion DHR II Rear Tire: With side knobs borrowed from the legendary Minion DHF, but widened to provide more support, the DHR II corners like no other. The center tread features ramped leading edges to improve acceleration and sipes to create a smooth transition when leaning the bike. Paddle-like knobs on the center tread dig in under hard braking and help keep the bike under control. Pair it with a Minion DHF up front for the ultimate aggressive trail riding tire combo!
Additional Features:
RockShox Reverb Stealth Dropper Seatpost: Don’t let its familiar good looks fool you—Reverb is a whole new weapon. Its internals have been completely re-engineered to improve on its already legendary performance and to offer enhanced reliability: all the smallest details, down to the single seal, have been re-evaluated and updated to pass the hardest and longest durability tests. Additional bushing overlap also improves performance over time. This is the brand-new Reverb, engineered for the next-generation mountain biker.
Shipping Information:
Oversize Item: Ships within the continental U.S. for $69. HI and AK shipping available. Please call for details.

Specs

Fork Travel:
130mm
Rear Travel:
130mm
Handlebar:
Santa Cruz AM Carbon 35 x 760mm
Biking Type:
Mountain
Mountain
Used For:
Trail
Trail
Frame Material:
Carbon
Carbon
Gearing:
1 x 12
Water Bottle Mounts:
2
Stanchion Diameter:
35mm
Rear Shock:
Fox DPX2 Performance Elite
Shifters:
SRAM X01 Eagle
Rear Derailleur:
SRAM X01 Eagle, 12-Speed
Crankset:
SRAM X1 Carbon DUB, 32t
Cassette:
SRAM X01 Eagle XG-1295, 10-50t
Chain:
SRAM X01 Eagle, 12-Speed
Bottom Bracket:
SRAM DUB 68/73mm Threaded
Brake Levers:
SRAM G2 RSC
Brake Calipers:
SRAM G2 RSC
Rotors:
Avid Centerline 180mm
Headset:
Cane Creek 40 IS Integrated Headset
Bar Tape/Grips:
Santa Cruz Palmdale Grips
Stem:
RaceFace Aeffect R 50mm
Saddle:
WTB Silverado Team
Seatpost:
RockShox Reverb Stealth Dropper 31.6mm
Hubs:
DT Swiss 350 15x110 Front / 12x148 Rear with XD Driver
Rims:
Race Face AR Offset 27
Spokes:
DT Swiss Competition Race (28)
Front Tire:
Maxxis Minion DHF 2.3" | 3C, EXO, TR
Rear Tire:
Maxxis Minion DHR II 2.3" | EXO, TR
Warranty:
Limited Lifetime (Frame and Bearings)
Wheel Size:
27.5" (650b)
