Frame/Shock:
Carbon Fiber Frame: Revel uses a mix of Japanese Toray T700 and T800 fibers in their frames, but the real magic is in the angles. Most bike frames use a selection of 0-, 45-, and 90-degree fibers, since these are the most readily available and easiest to work with. Revel frames are optimized using more 30/60-degree fibers, which, when laid up properly, create stronger and stiffer tubing and shapes, using less material.
CBF Suspension: CBF™ focuses on designing rear suspension around the Center of Curvature (CC). Until now, most suspension systems have focused solely on the instant center. CBF points the chain-line and corresponding drive forces around the top of the chainring through 100 percent of the travel. This results in maximum pedaling efficiency regardless of terrain, where you are in the travel, or what kind of power you’re putting down.

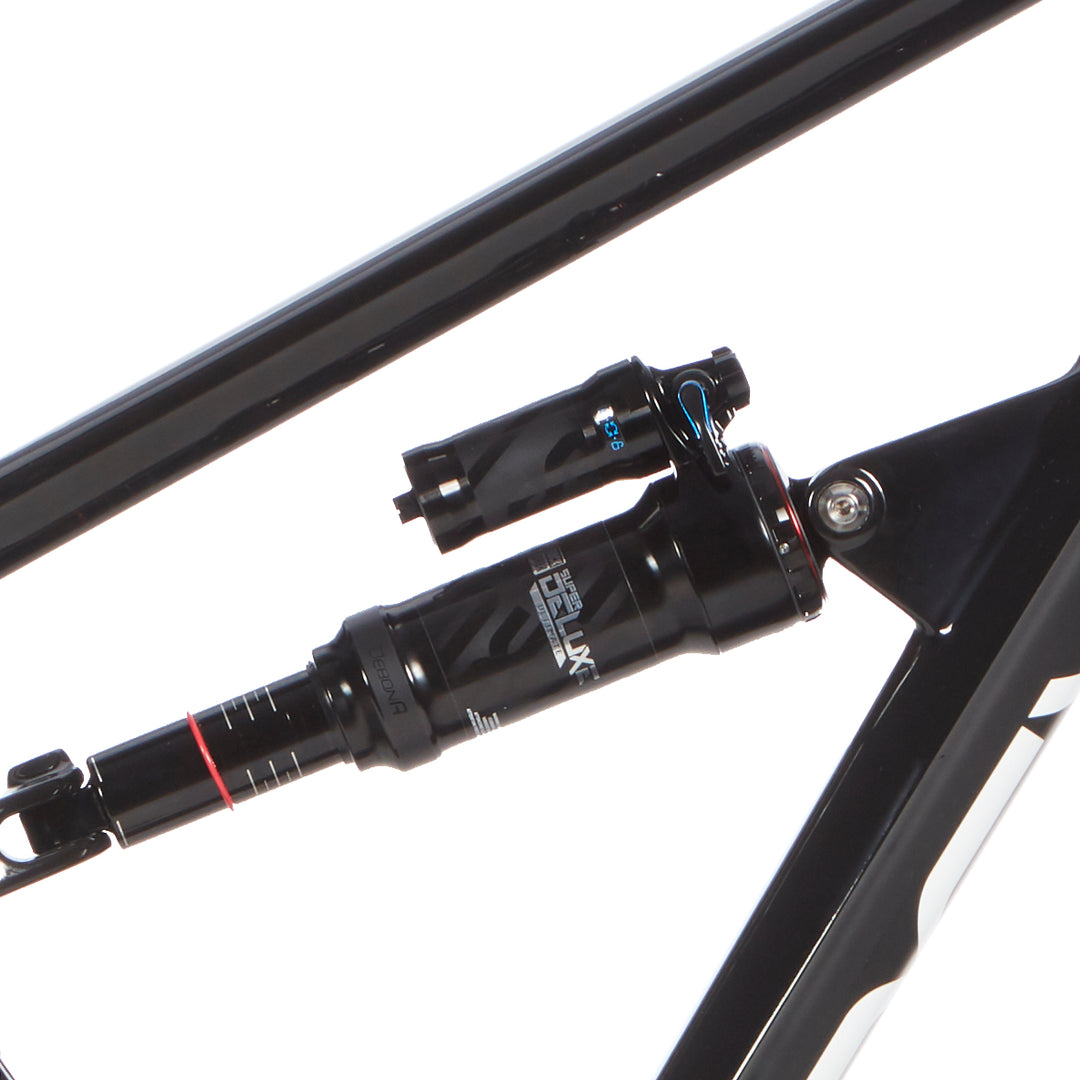

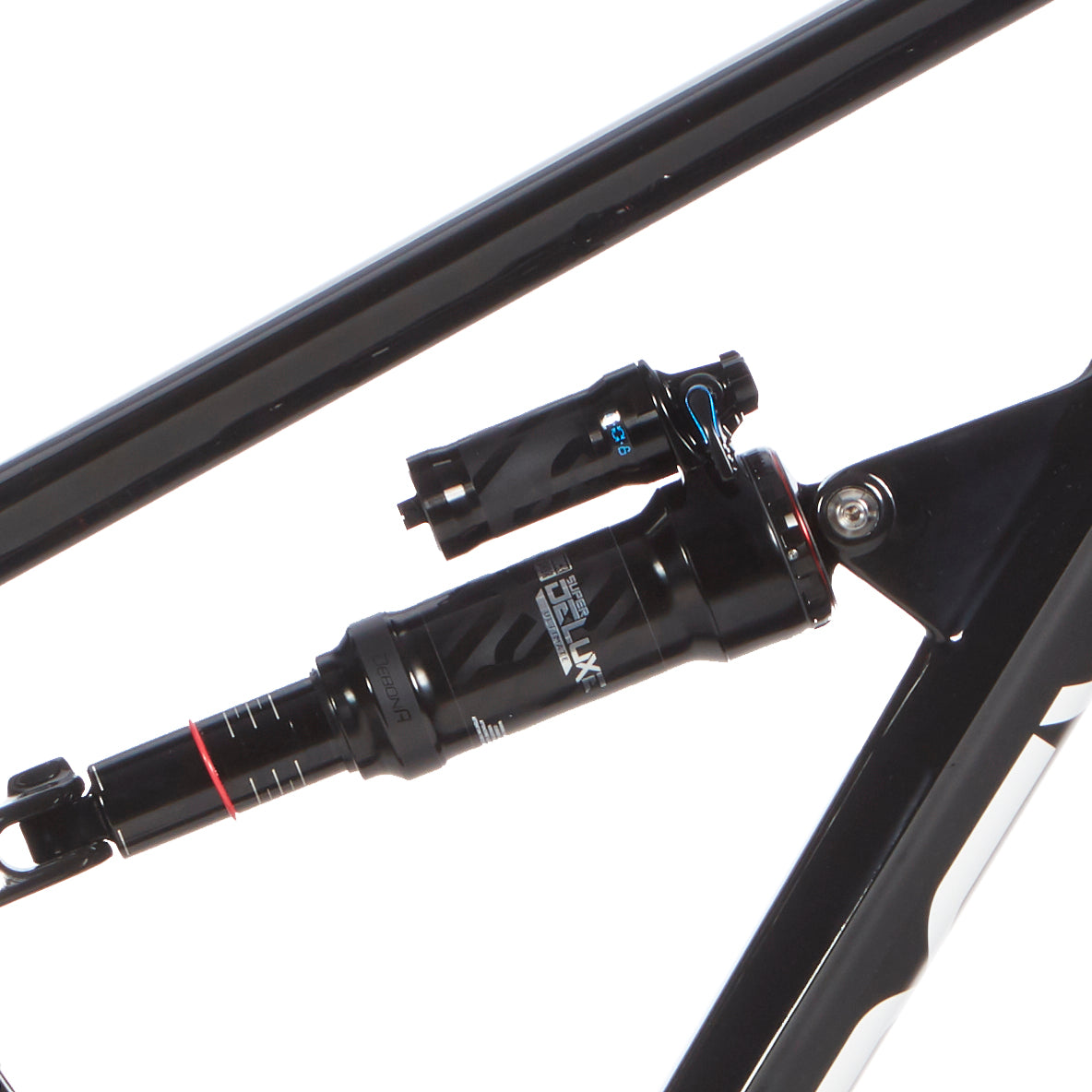

RockShox Super Deluxe Ultimate Shock: Designed for the latest hard-hitting enduro and trail bikes, Super Deluxe Ultimate features the ride-tuning abilities of an air spring with both compression and rebound adjustment to fine tune to any trail. With a solid threshold adjustment for pedaling performance and Maxima Plush fluid for a buttery smooth feel, riders can now easily dial in a podium-worthy ride.
Shock Adjustments: + / - Low Speed Compression Adjustment from Base Tune, Open / Threshold Positions, External Rebound, Air Spring Pressure

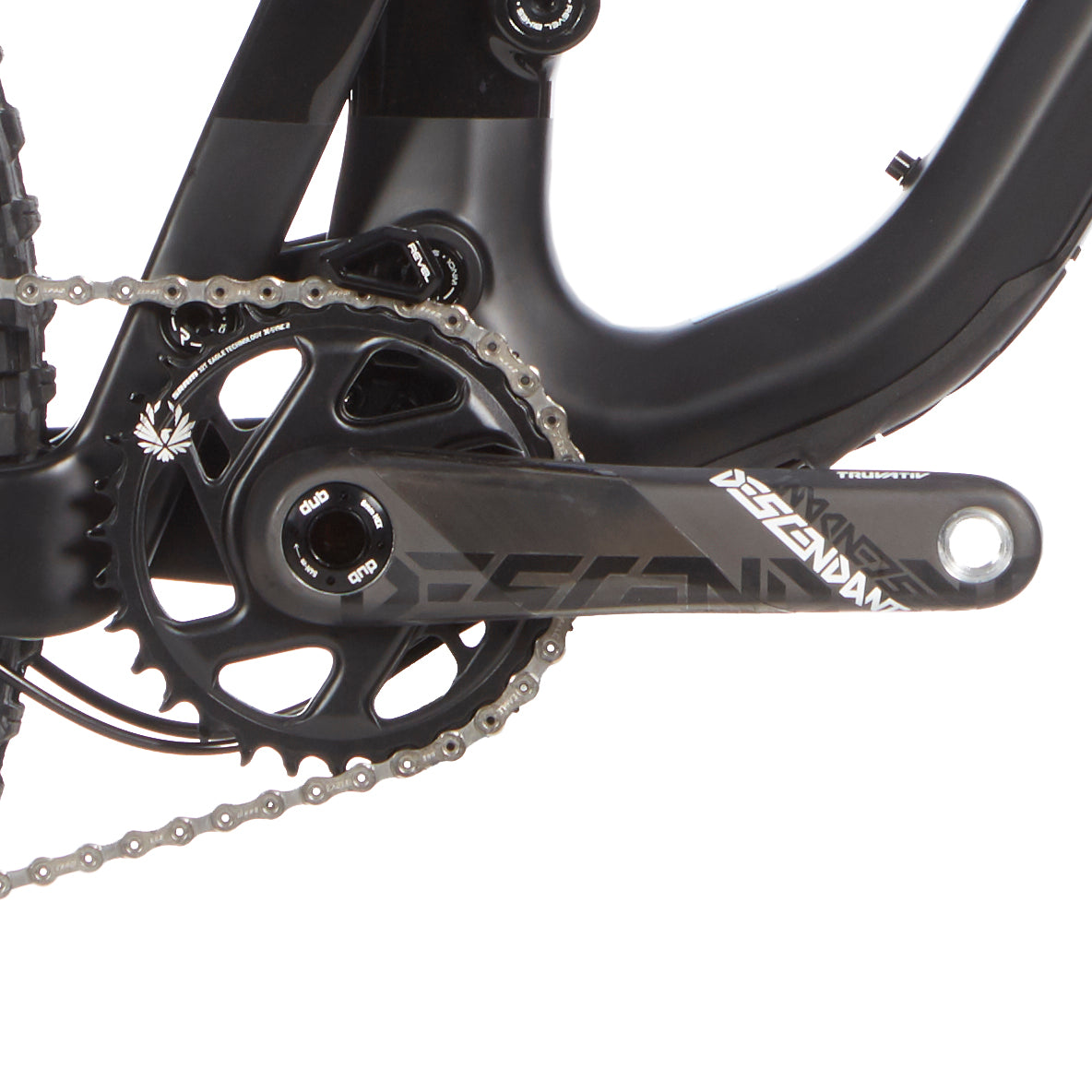

Integrated Revel Chain Guide: This lil’ guy will hold your chain on your chainring and is super easy to adjust—all while maintaining simplicity and clean aesthetics. Optimized around SRAM DUB cranks and BBs.
Internal Routing: Revel’s full-carbon tubes are molded in one piece onto the inside of the carbon frame tubes. Not only does this provide structural improvement to the frame, but also allows you to route an entire frame in about a minute. No rattling, no noise, and no fishing cables out of frames.
Threaded Bottom Bracket

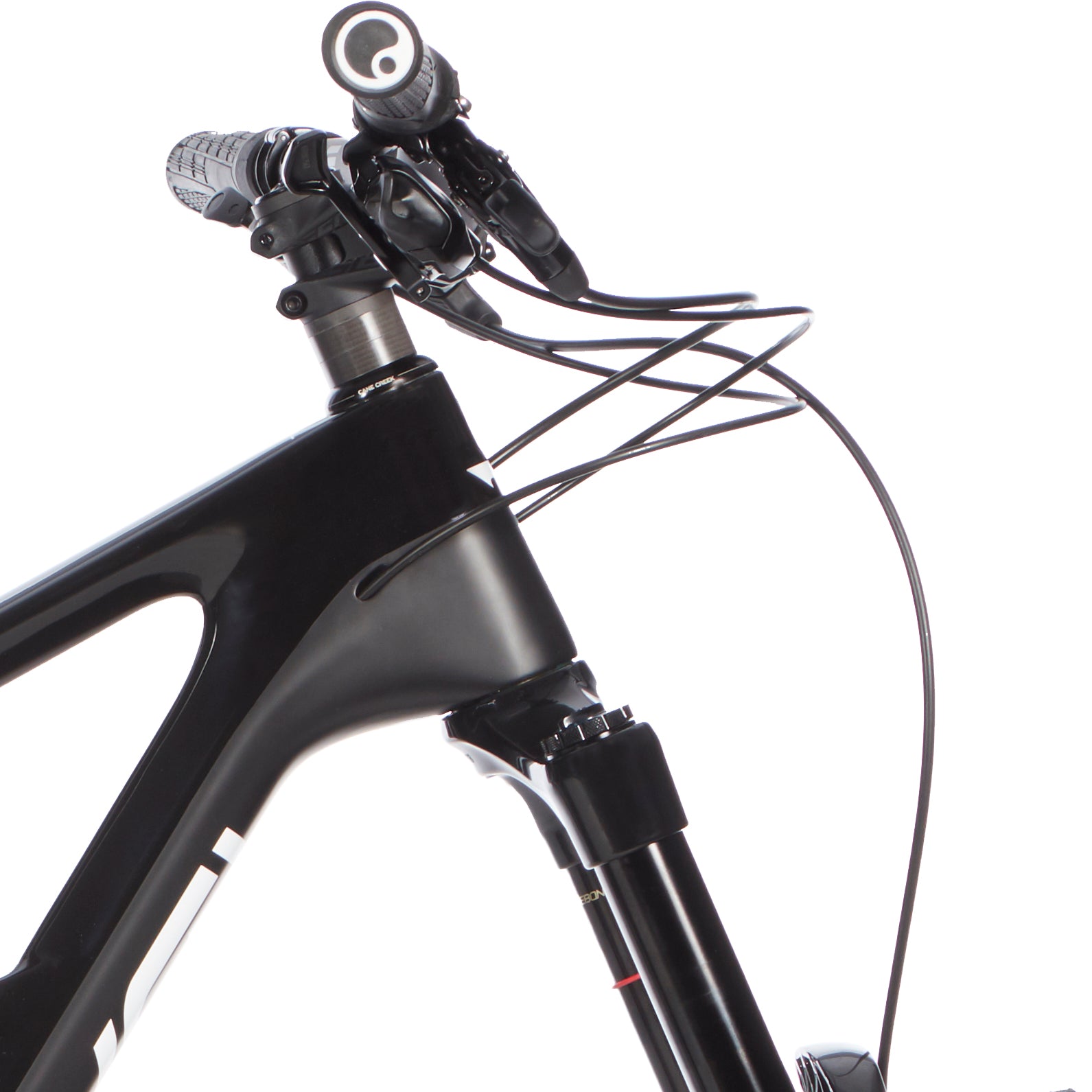

Integrated Headset
Fork:

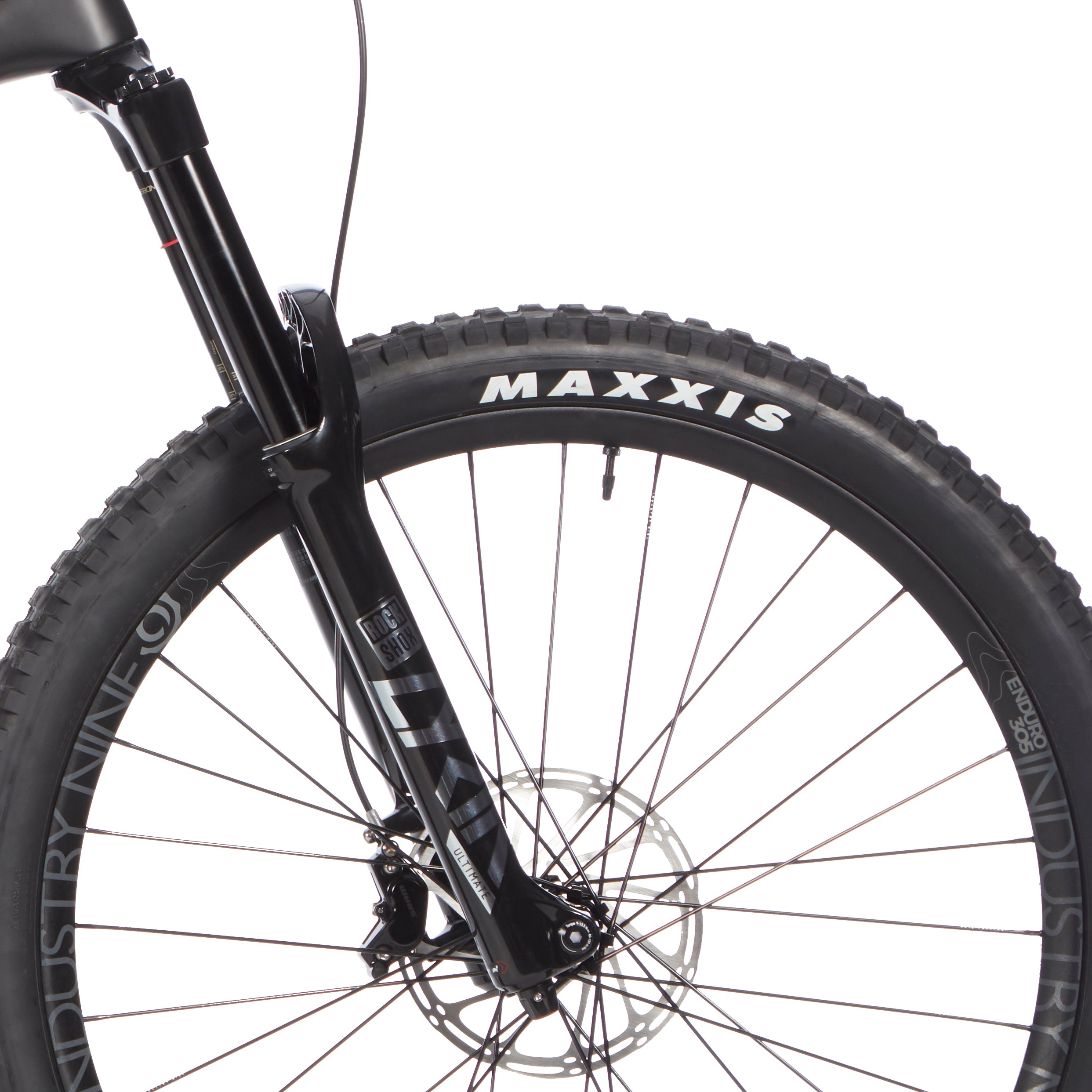

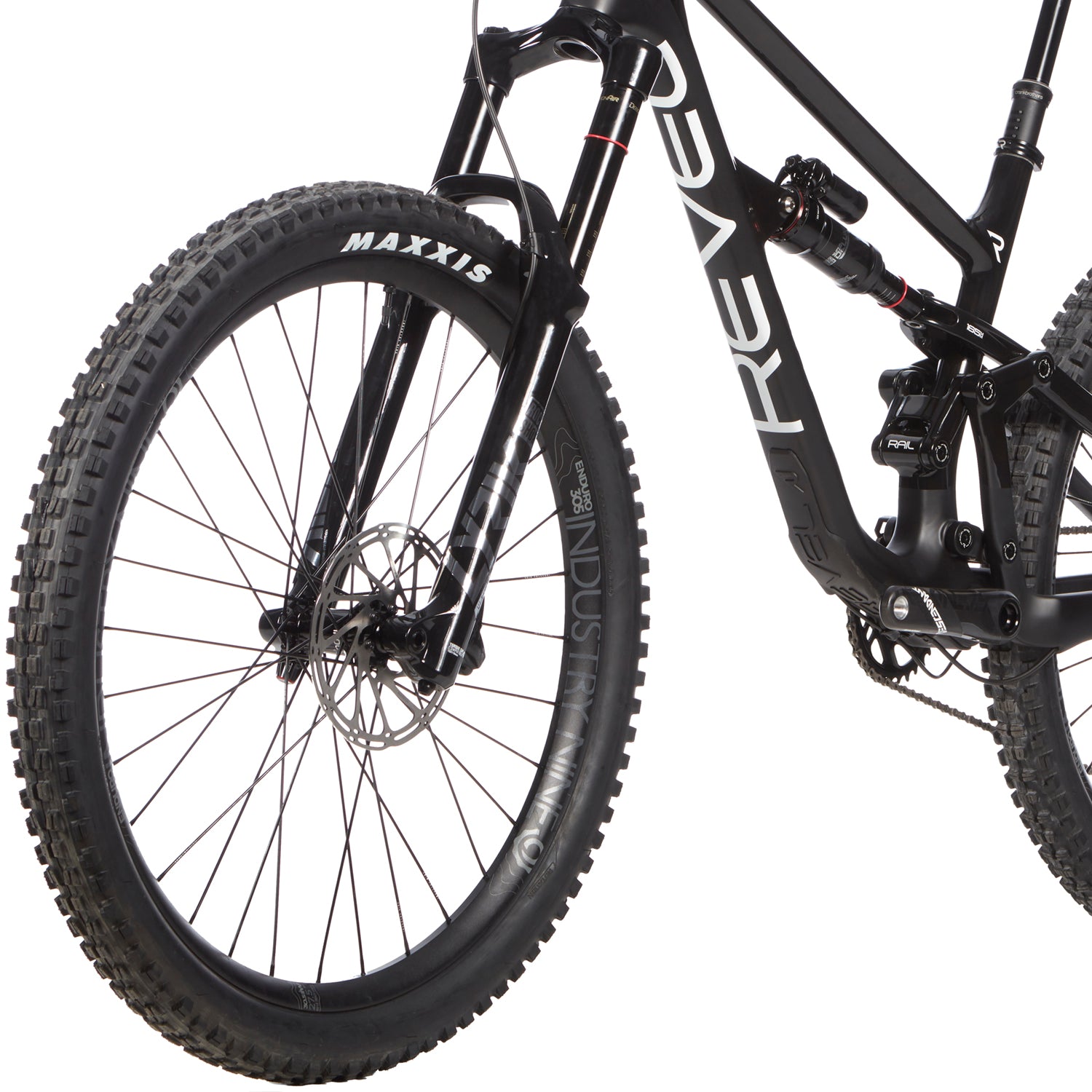

RockShox Lyrik Ultimate Fork: Designed not only for the race down, but the ride up. Holding onto every critical line, Lyrik Ultimate features the new Charger™ 2.1 damper for unmatched trail control and precision. New ultra-low friction SKF wiper seals and Maxima Plush damping fluid all work overtime to reduce friction, silence noise, and provide unmatched fork performance sun up to sundown.
Fork Adjustments: Charger™ 2.1 RC2 Damper Featuring Independent High and Low Speed Compression Adjustment / External Rebound Adjustment / Air Spring Pressure
Brakes:

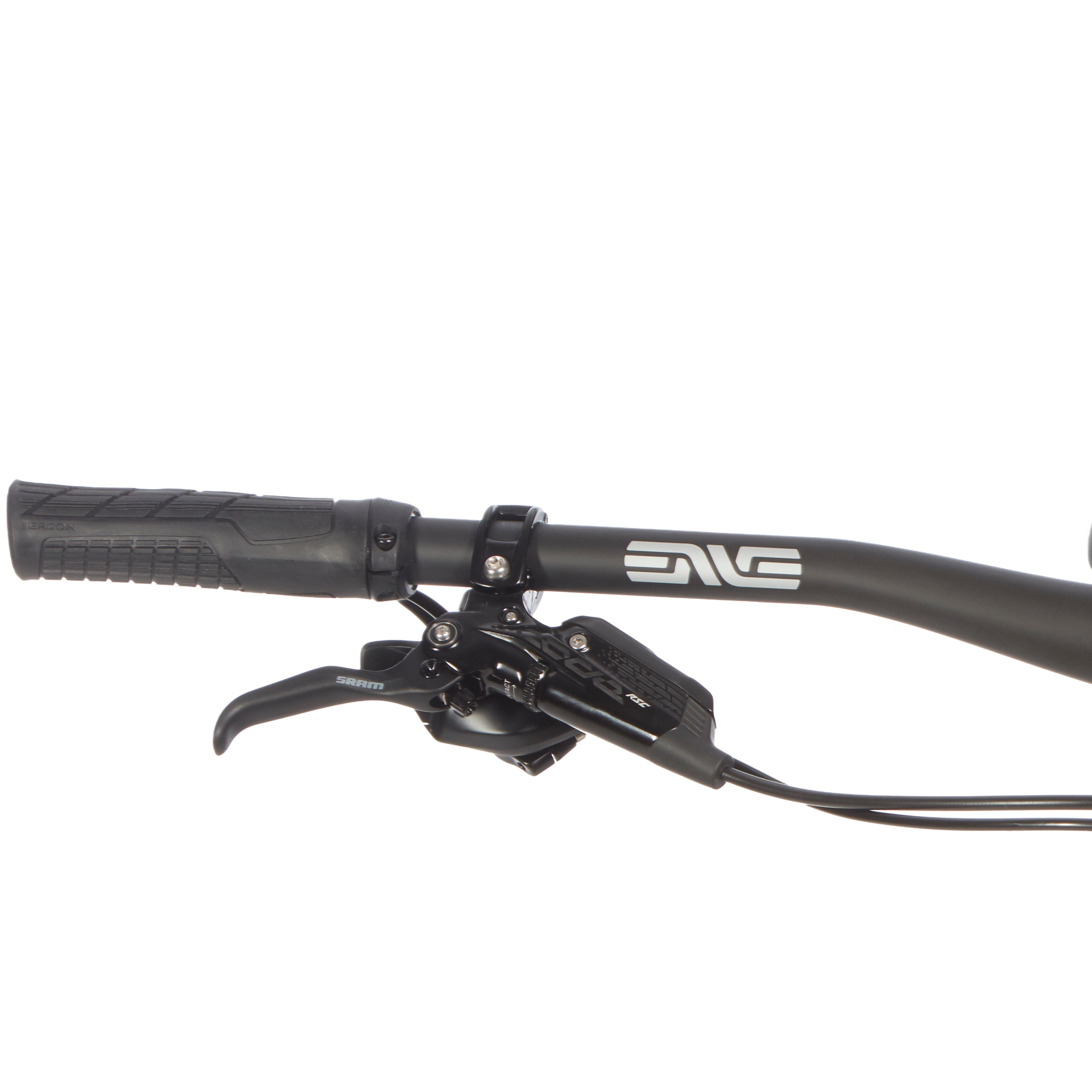

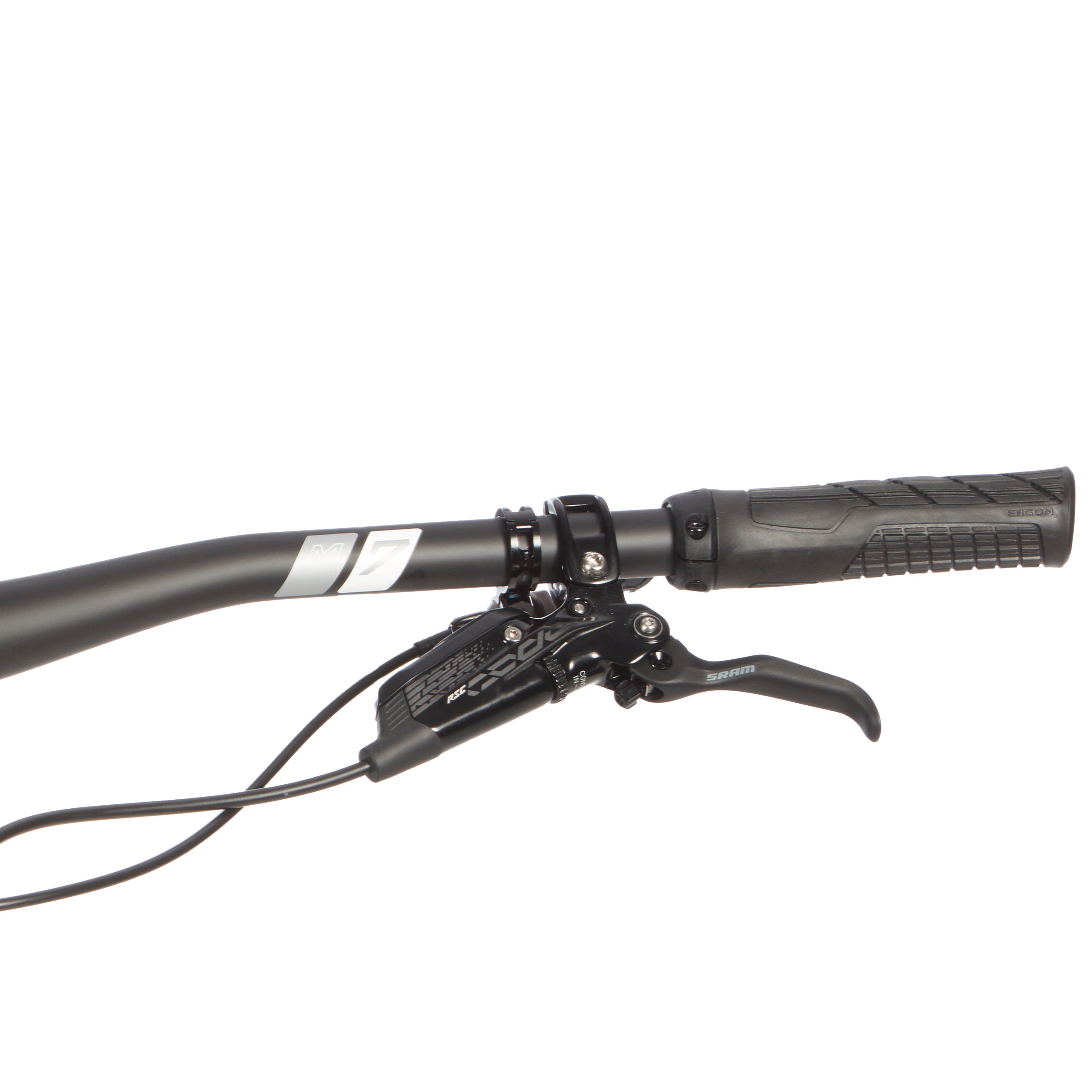

SRAM Code RSC Brakeset: Meet the new standard for hard-hitting, heavy-duty braking. SRAM added 15% extra piston power and 30% more volume in the lever reservoir, ensuring peak performance for the full run. And with SwingLink™ and Lever Pivot Bearing technologies, lever feel remains smooth and progressive, no matter how hard the pull. Go deeper and grab more power.
SRAM Centerline Rotors: The CenterLine design provides a smooth, consistent, and quiet running braking surface.

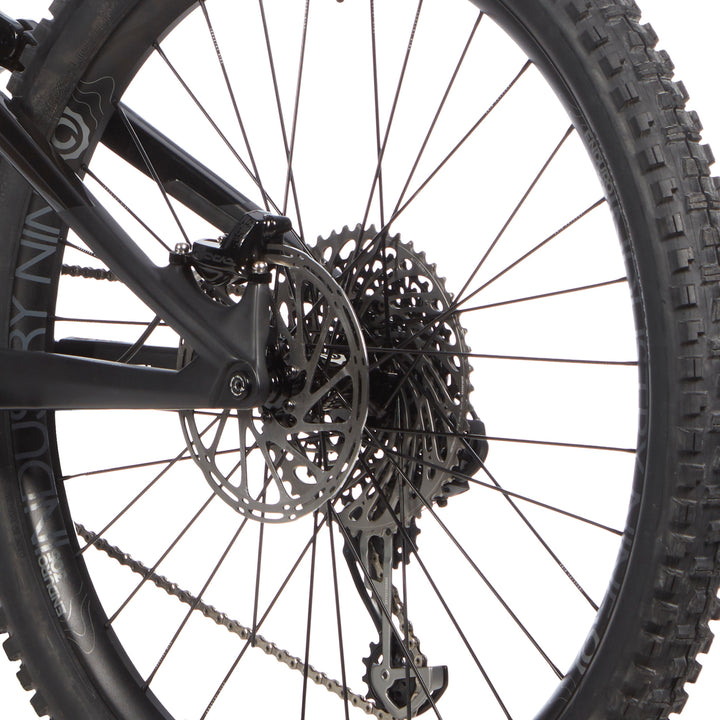

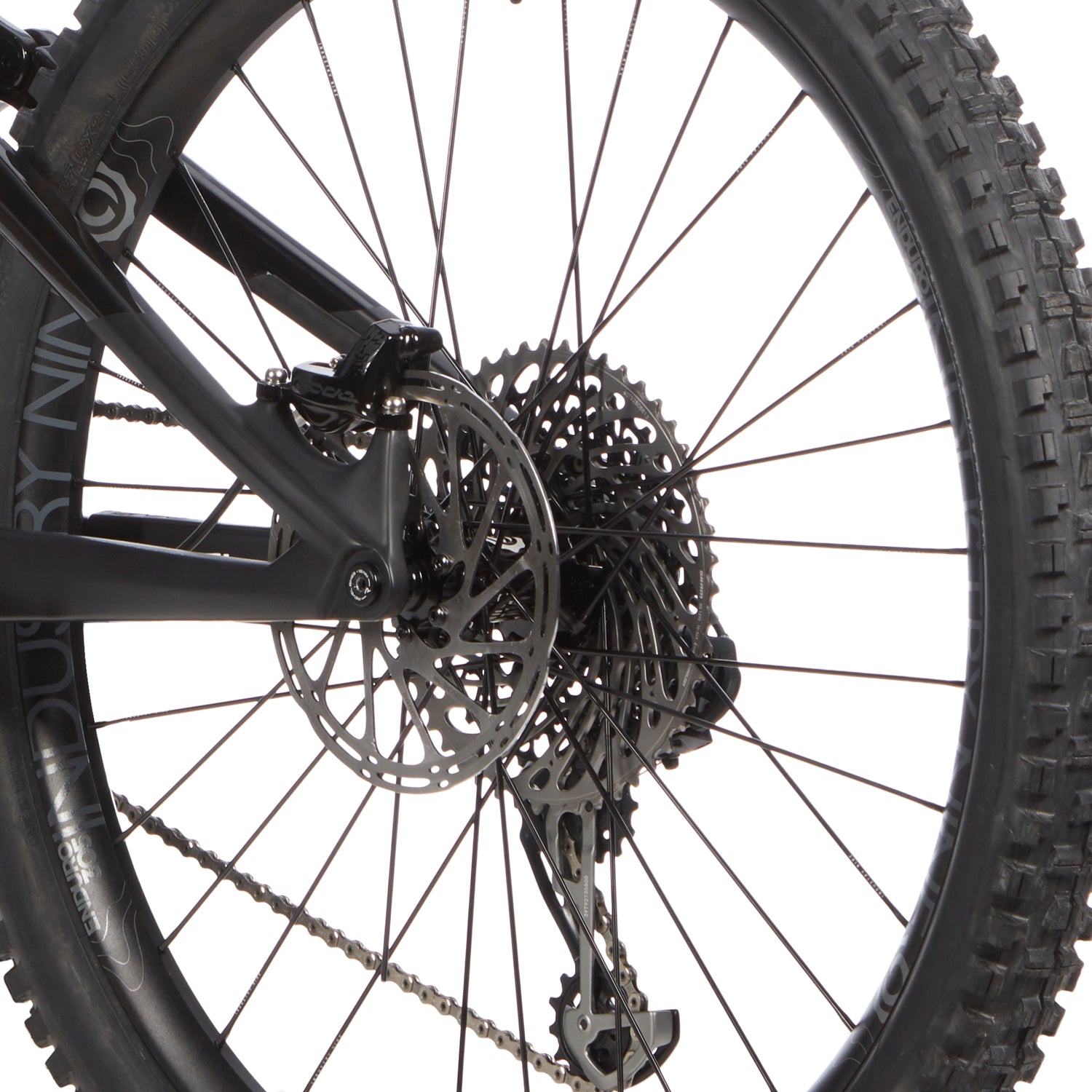

Wheelset:
Industry 9 Enduro 305 Wheelset with Hydra Hubs: You ride everywhere and anywhere. No climb is too long, no descent is too chunky or steep. Strength and reliability are key in your mind, but you gotta get up to get down, so you keep an eye on the weights too… you can have it all with EN305. Double black worthiness that’ll keep gas in the tank for when you need to get in that last lap before sunset. Hydra Classic mountain hubs are loaded with features every rider will appreciate such as revolutionary 0.52° engagement, generously low weights and an intuitive layout that can be serviced without any proprietary tools.
Maxxis Minion DHF Front Tire: With a tread design that deftly balances rolling speed with braking and cornering traction, it's hard to find fault with the Minion DHF. That's probably why it's one of the most imitated tires in mountain biking. Whether riding local trails, a backcountry epic, racing enduro or World Cup downhill, there's a Minion DHF spec to meet your needs.

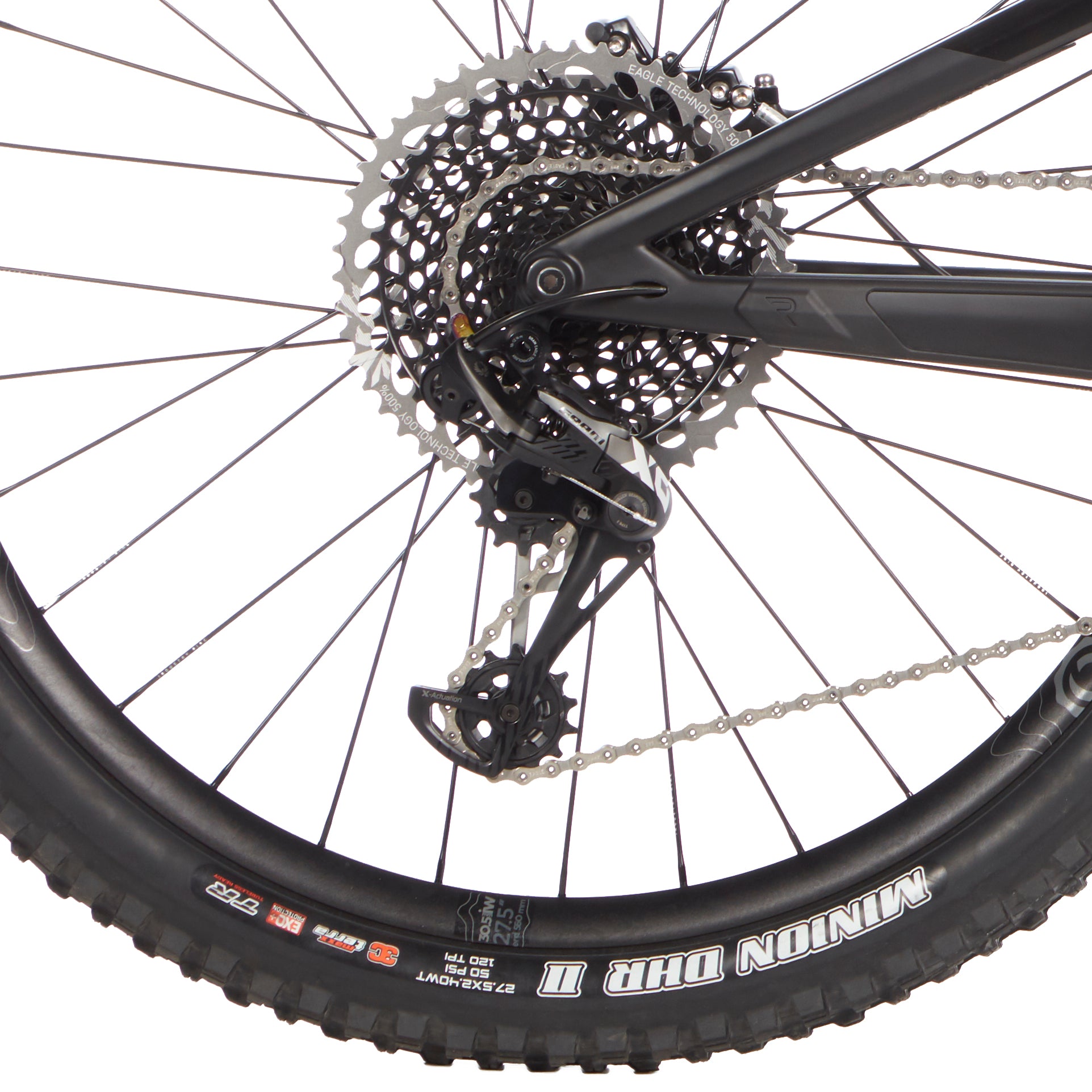

Maxxis Minion DHR II Rear Tire: With side knobs borrowed from the legendary Minion DHF, but widened to provide more support, the DHR II corners like no other. The center tread features ramped leading edges to improve acceleration and sipes to create a smooth transition when leaning the bike. Paddle-like knobs on the center tread dig in under hard braking and help keep the bike under control. Pair it with a Minion DHF up front for the ultimate aggressive trail riding tire combo!
Shipping Information:
Oversize Item: Ships within the continental U.S. for $69. HI and AK shipping available. Please call for details.
Additional Features:
Rock Shox Reverb Dropper Post: Don’t let its familiar good looks fool you—Reverb is a whole new weapon. Its internals have been completely re-engineered to improve on its already legendary performance and to offer enhanced reliability: all the smallest details, down to the single seal, have been re-evaluated and updated to pass the hardest and longest durability tests. Additional bushing overlap also improves performance over time. This is the brand-new Reverb, engineered for the next-generation mountain biker.
