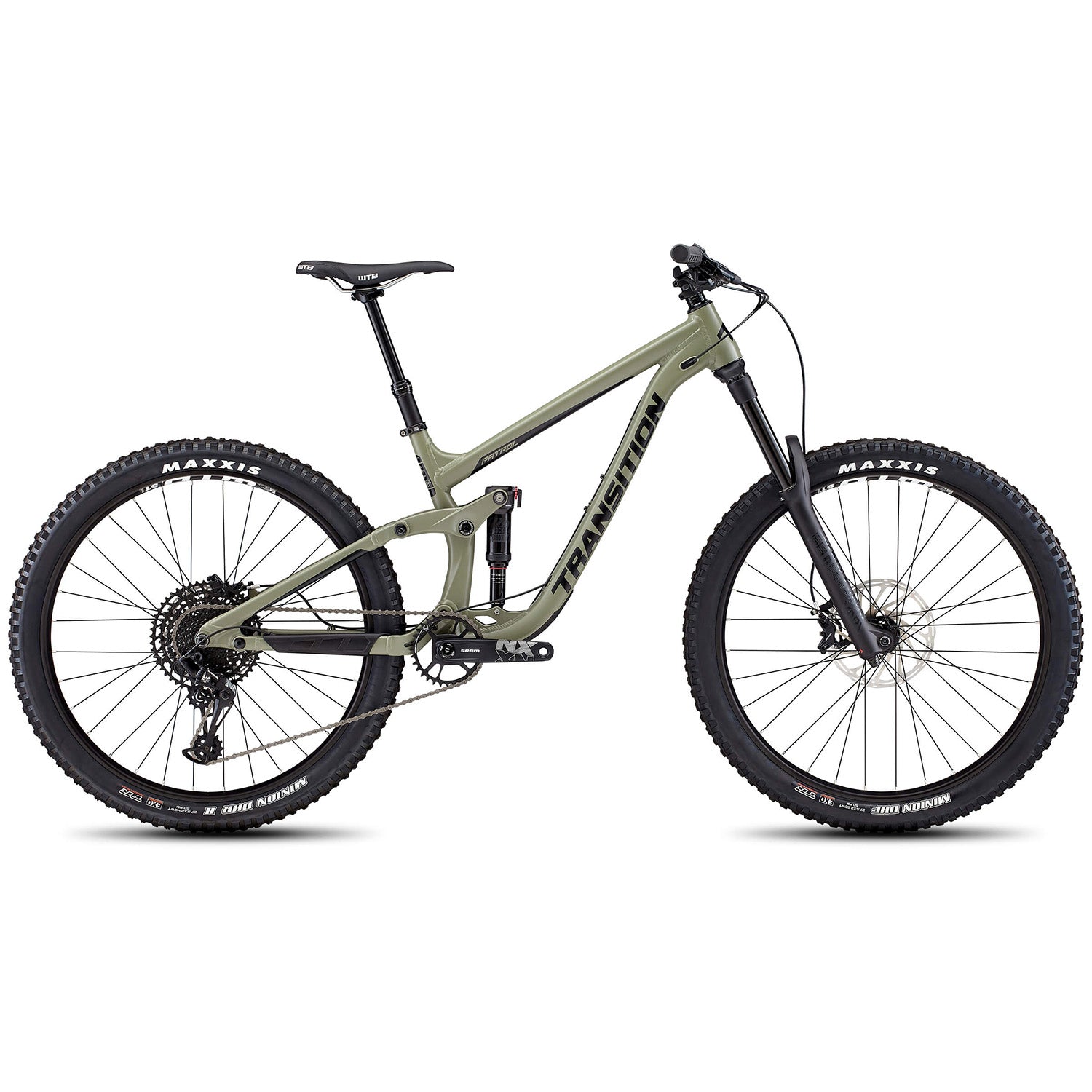

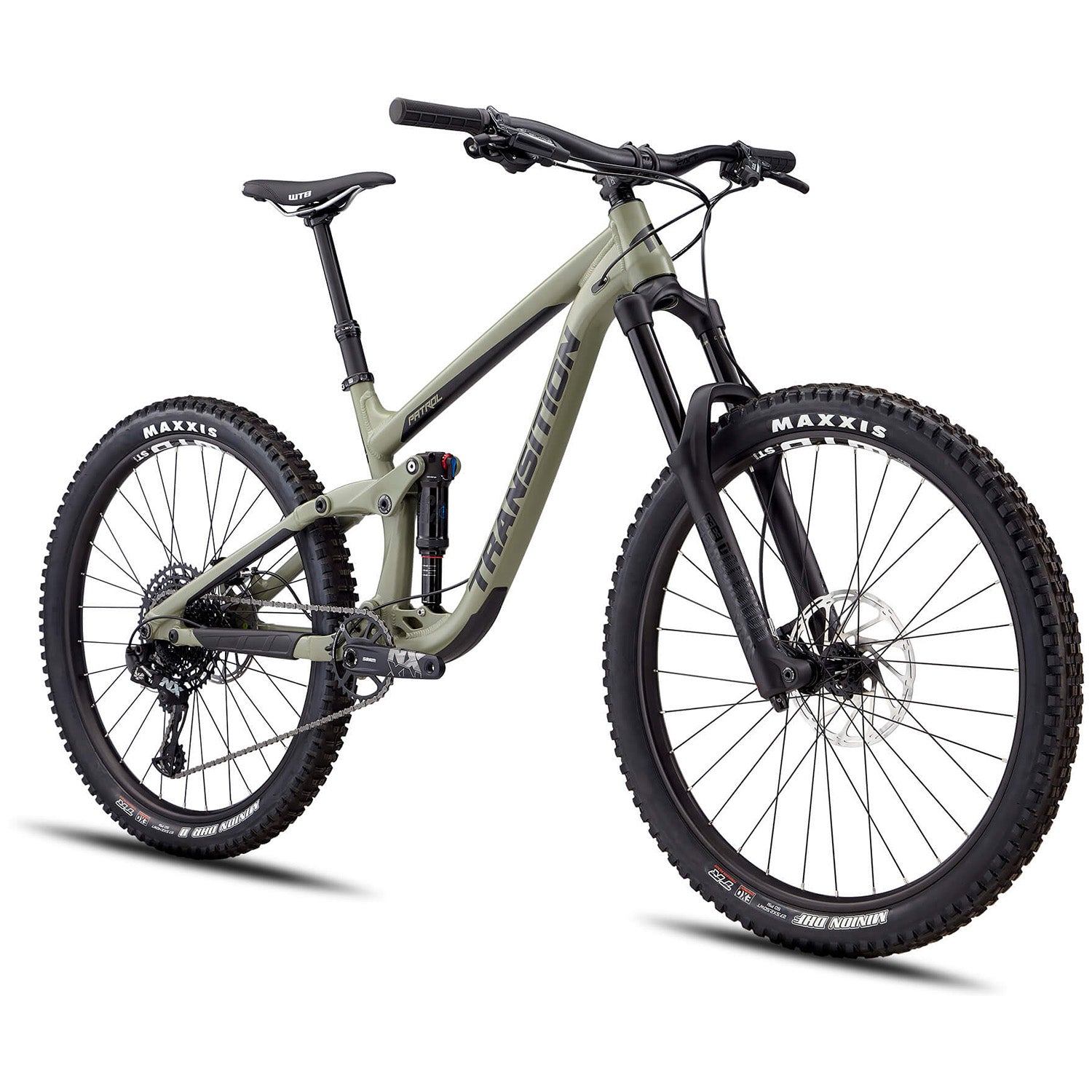

Transition Patrol Alloy NX Complete Mountain Bike 2019
SKU# EB-158498-1006
$2,559.20
$3,199.00
Find in Store
Checking availability...
Not available in store
Order and get 2559 reward points
Earn 2559 points with this product. Join Free
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsTransition Patrol Alloy NX Complete Mountain Bike 2019
As the model that started the brand, the Transition Patrol Alloy NX Complete Mountain Bike unsurprisingly provides the much needed lifeblood for your next assault on gravity. Transition built this one up with solid parts that will hold up to the abuse you'll surely dish out. From the Yari up front, to the convenient dropper post, to the wheels, everything on this Patrol is aimed at getting you out on the trail and keeping you smiling out there. "Best-in-class" is an understatement: this bike holds its own against the competitors. Time to get shreddy.
Product Details
Frame/Shock:
RockShox Deluxe RT Shock: How do you improve on the success of a rear shock that has received critical acclaim for its stellar performance and supple feel? It’s simple. You rewrite the rules, throw existing design constraints out the window, and focus solely on the best possible performance solution. We took the proven damping performance of our popular Monarch series and introduced it to our new metric-sized chassis. The result is truly Deluxe, ready to redefine your ride.
GiddyUp 2.0HH Suspension: Building upon the success of Transition's original GiddyUp suspension design, the new GiddyUp 2.0HH system has been refined for the modern two-wheel cowboy delivering a slightly firmer feel for more efficient pedaling, as well as more progressive travel that provides that extra little bit of bottom-out support when needed.
Speed Balanced Geometry: SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with an all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.
Shock Adjustments: External Rebound Adjust, Air Spring Pressure
Aluminum Alloy Frame
Full Water Bottle Storage
Rattle-Free Cable Routing
12x148 Boost Rear End
Trunion Shock Mount
Fork:
Rockshox Yari RC: Yari brings Lyrik’s acclaimed look and proven features – 35mm chassis, Fast Black upper tubes and new DebonAir™ air spring – to a wider audience. The new Charger RC damper uses a high performance, low maintenance cartridge design. The new DebonAir air spring eliminates friction from every single moving part, maintaining traction in more conditions than ever before.
Fork Adjustments: External Rebound, Low Speed Compression to Lockout, Air Spring Pressure
Drive Train:
SRAM NX Eagle™: It's how you start that matters. Whether you're discovering the mountain for the first time or you're an MTB lifer searching for a no-nonsense, no-worries 1x drivetrain, SRAM NX Eagle is ready for action and ready to take you there. NX Eagle brings you a wide range of gear choices engineered for simplicity and durability, so you can focus on what matters most-the ride ahead. German engineered and proudly bearing the SRAM Eagle stamp of approval, NX Eagle is ready to let the world know what real riding feels like.
Brakes:
SRAM Guide T Brakeset: Guide T brings the consistent performance that you have come to expect from SRAM's lightweight Guide four-piston caliper. Pair this with MatchMaker™ for a clean looking bar set-up, plus the ease of use with the Bleeding Edge™ drip-free bleed port and you have a smart budget minded brake that keeps you in control.
SRAM Centerline Rotors: The Centerline rotor was designed to keep the center of friction consistent throughout rotation, thereby minimizing vibration, offering consistent performance and a quiet ride.
Wheelset:
Maxxis DHR II Rear Tire: With side knobs borrowed from the legendary Minion DHF, but widened to provide more support, the DHR II corners like no other. The center tread features ramped leading edges to improve acceleration and sipes to create a smooth transition when leaning the bike. Paddle-like knobs on the center tread dig in under hard braking and help keep the bike under control. Pair it with a Minion DHF up front for the ultimate aggressive trail riding tire combo! The Minion DHF is available in trail, enduro, and downhill specs.
Maxxis Minion DHF Front Tire: With a tread design that deftly balances rolling speed with braking and cornering traction, it's hard to find fault with the Minion DHF. That's probably why it's one of the most imitated tires in mountain biking. Whether riding local trails, a backcountry epic, racing enduro or World Cup downhill, there's a Minion DHF spec to meet your needs. The Minion DHF is available in trail, enduro, and downhill specs.
WTB ST i29 Rims with Novatec Hubs: At 29mm internal width, these aluminum alloy wheels have 32 spokes. They're built for hard abuse on the trail, an nice mix of light weight, stiffness, and ride quality.
Additional Features:
KS Lev Integra Dropper Post: LEV INTEGRA’S internally routed cable significantly cleans up the look of your bike. With shifter cables, brake lines and lock out cables clamped and zip tied to your frame, mountain bike frames have begun to look like an IT guy’s wet dream. Clear the clutter while benefiting from legendary LEV technology. Post travels: XS (100mm) SM (125mm) MD (150mm) LG/XL (175mm)
Shipping Information:
Oversize Item: Ships within the continental U.S. for $69. HI and AK shipping available. Please call for details.
Specs
Fork Travel:
170mm
Rear Travel:
160mm
Handlebar:
RaceFace Chester 35 | XS - 760 x 10mm / S - 780 x 20mm / M/L/XL - 780 x 35mm
Weight:
33.79lbs,
15.33kg
Biking Type:
Mountain
Used For:
Enduro
Frame Material:
Aluminum Alloy
Gearing:
1 x 12
Water Bottle Mounts:
1
Stanchion Diameter:
35mm
Rear Shock:
RockShox Deluxe RT
Shifters:
SRAM NX Eagle
Rear Derailleur:
SRAM NX Eagle, 12-Speed
Crankset:
SRAM NX Eagle DUB, 32t
Cassette:
SRAM NX Eagle PG-1230, 11-50t
Chain:
SRAM NX Eagle, 12-Speed
Bottom Bracket:
73mm Threaded BB
Brake Levers:
SRAM Guide T
Brake Calipers:
SRAM Guide T
Rotors:
SRAM Centerline (200mm / 180mm)
Headset:
FSA NO.57E
Bar Tape/Grips:
Velo VLG-1812D2
Stem:
RaceFace Aeffect R (40mm)
Saddle:
WTB Silverado Comp
Seatpost:
KS LEV Integra Dropper
Hubs:
Novatec D791SB/D462SB
Rims:
WTB STi29
Spokes:
32
Tires:
Maxxis
Front Tire:
Maxxis Minion DHF 2.5" | Dual, WT
Rear Tire:
Maxxis Minion DHR II 2.4" | Dual, WT
Warranty:
3 Years
Wheel Size:
27.5" (650b)
